Pinpoint Test F: The Module Does Not Respond To The Diagnostic Tool - Restraint Control Module (RCM)

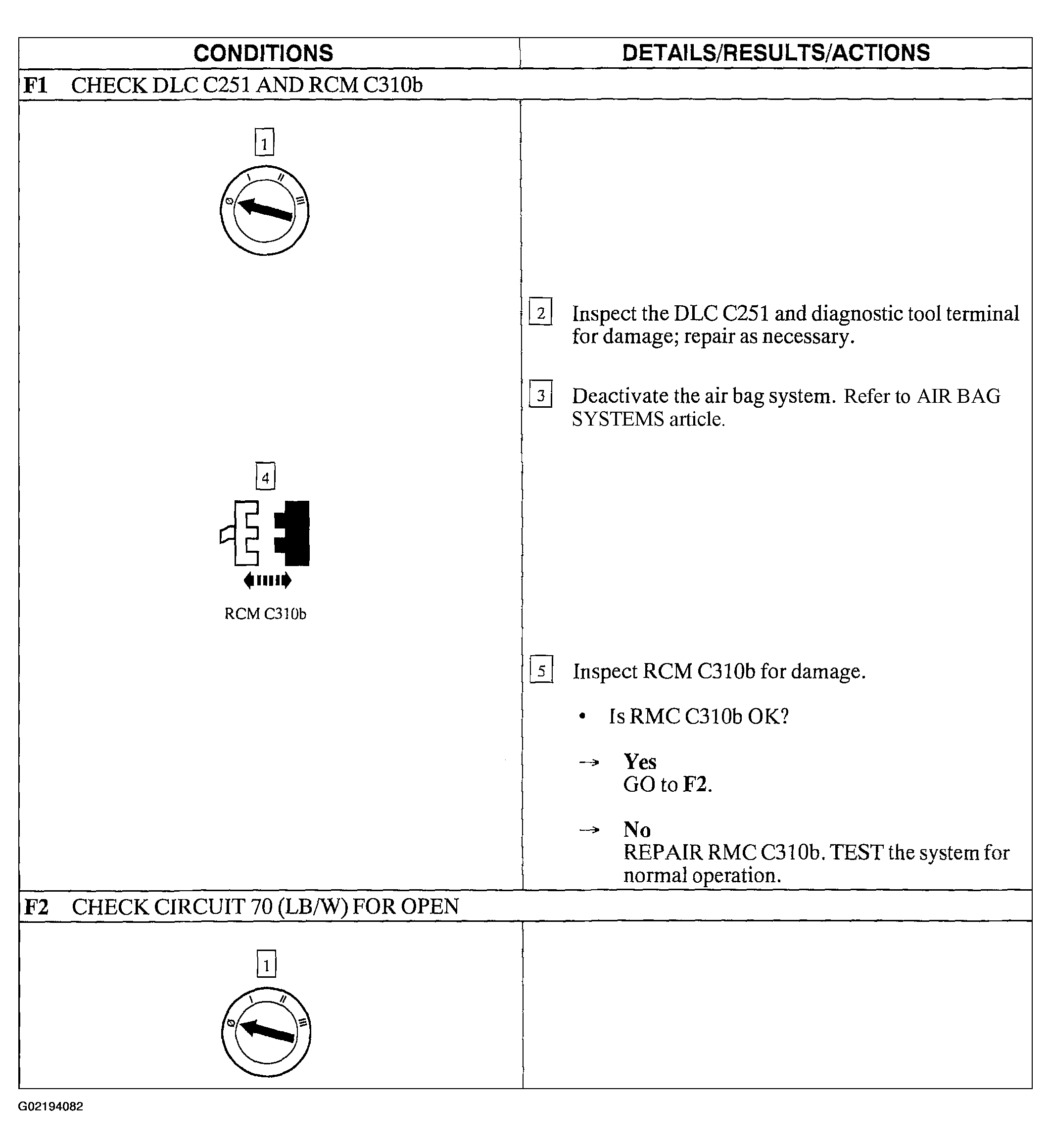

Fig 1: Pinpoint Test F: The Module Does Not Respond To The Diagnostic Tool - Restraint Control Module (RCM) (Steps F1 & F2)

Courtesy of FORD MOTOR CO.

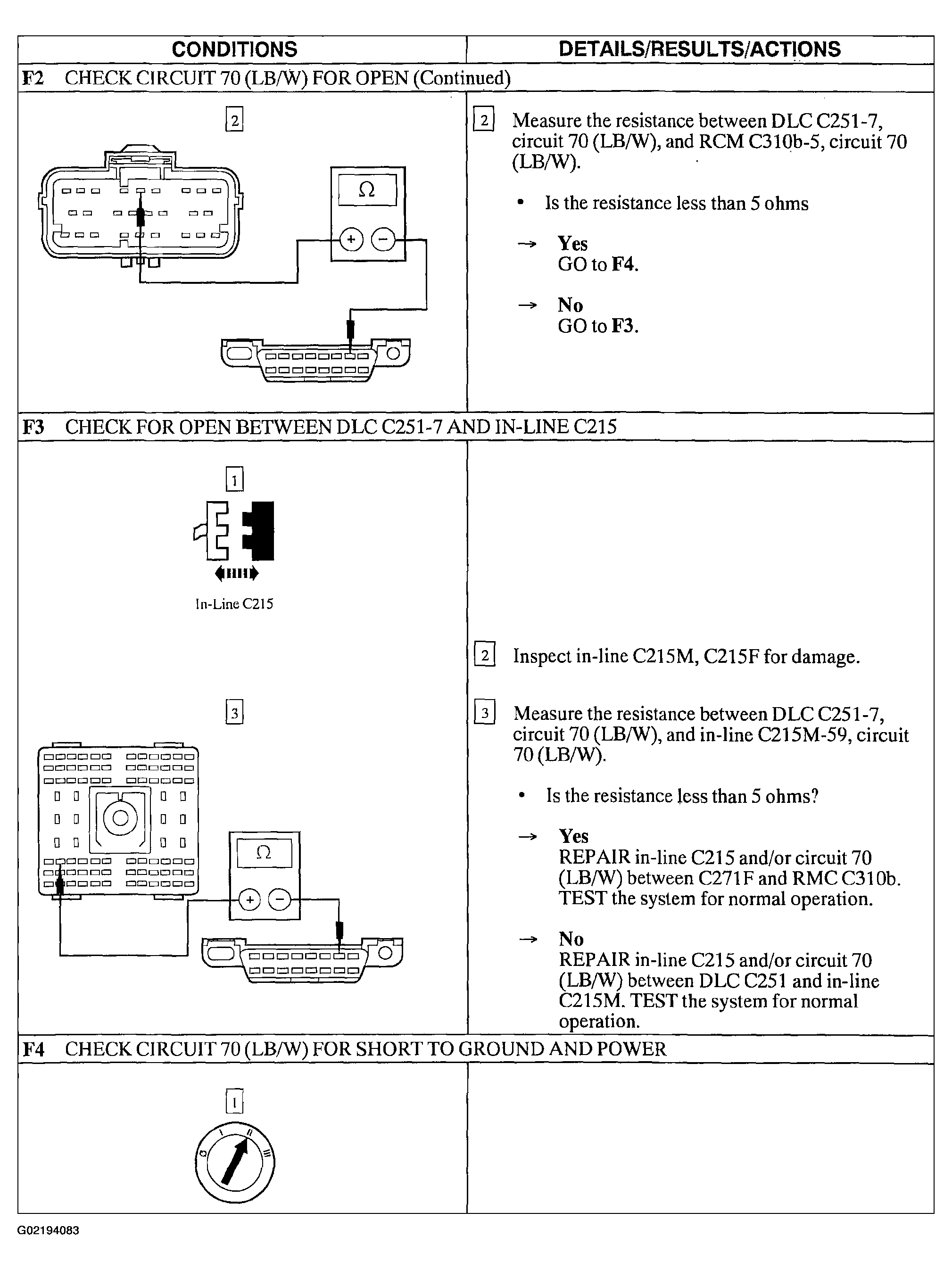

Fig 2: Pinpoint Test F: The Module Does Not Respond To The Diagnostic Tool - Restraint Control Module (RCM) (Steps F2 Cont.-F4)

Courtesy of FORD MOTOR CO.

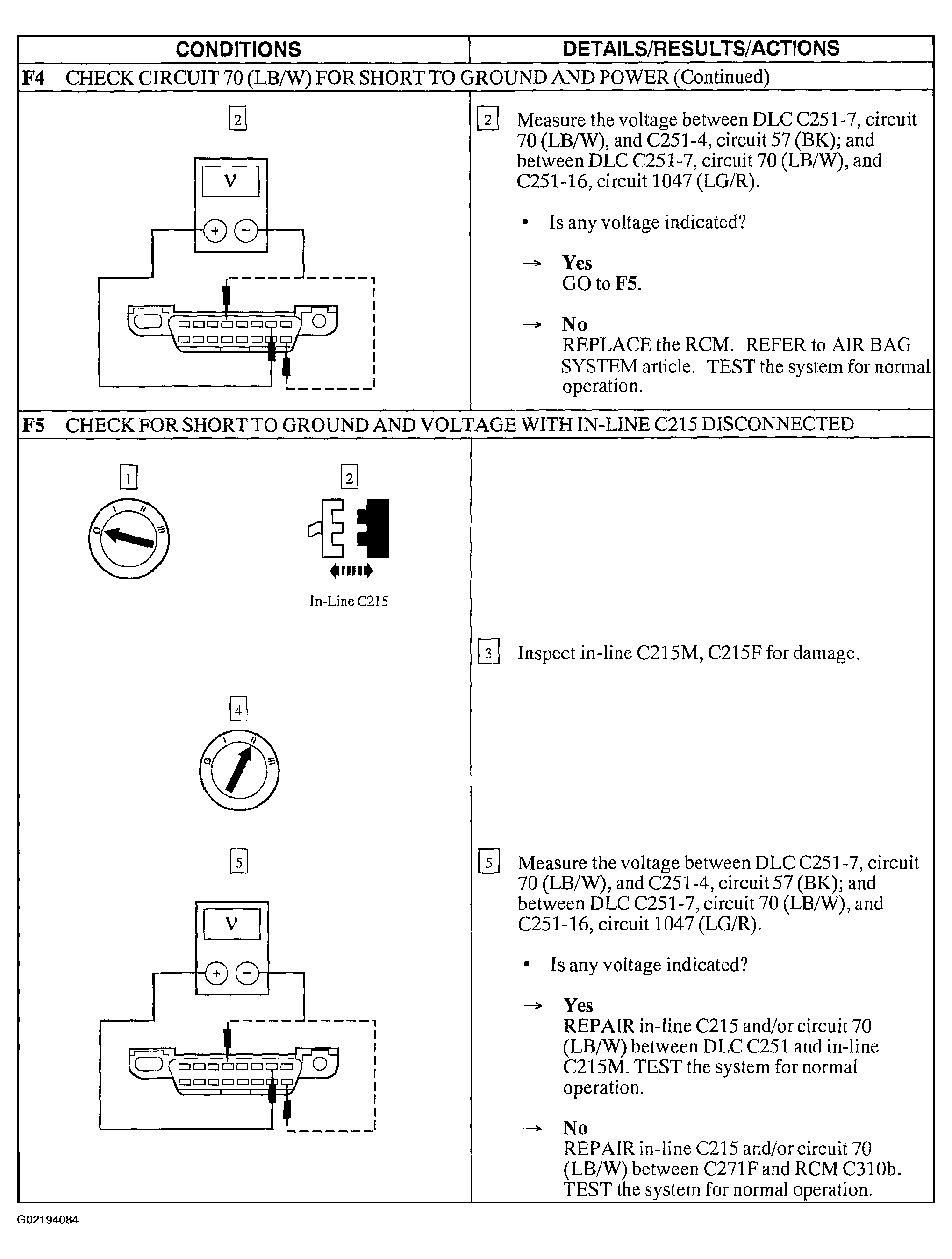

Fig 3: Pinpoint Test F: The Module Does Not Respond To The Diagnostic Tool - Restraint Control Module (RCM) (Steps F4 Cont. & F5)

Courtesy of FORD MOTOR CO.
