Pinpoint Test G: The Module Does Not Respond To The Diagnostic Tool - Lighting Control Module (LCM)

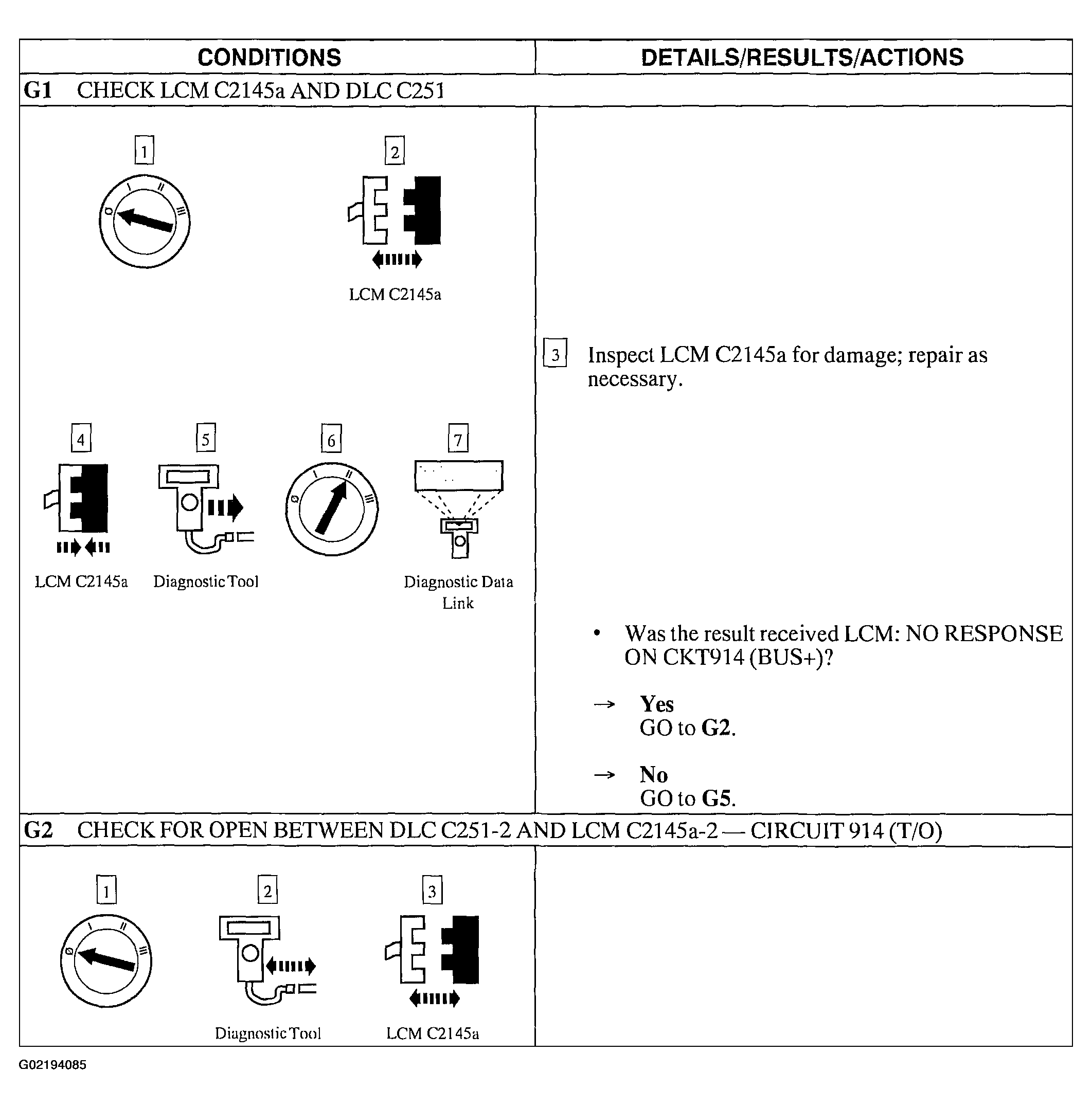

Fig 1: Pinpoint Test G: The Module Does Not Respond To The Diagnostic Tool - Lighting Control Module (LCM) (Steps G1 & G2)

Courtesy of FORD MOTOR CO.

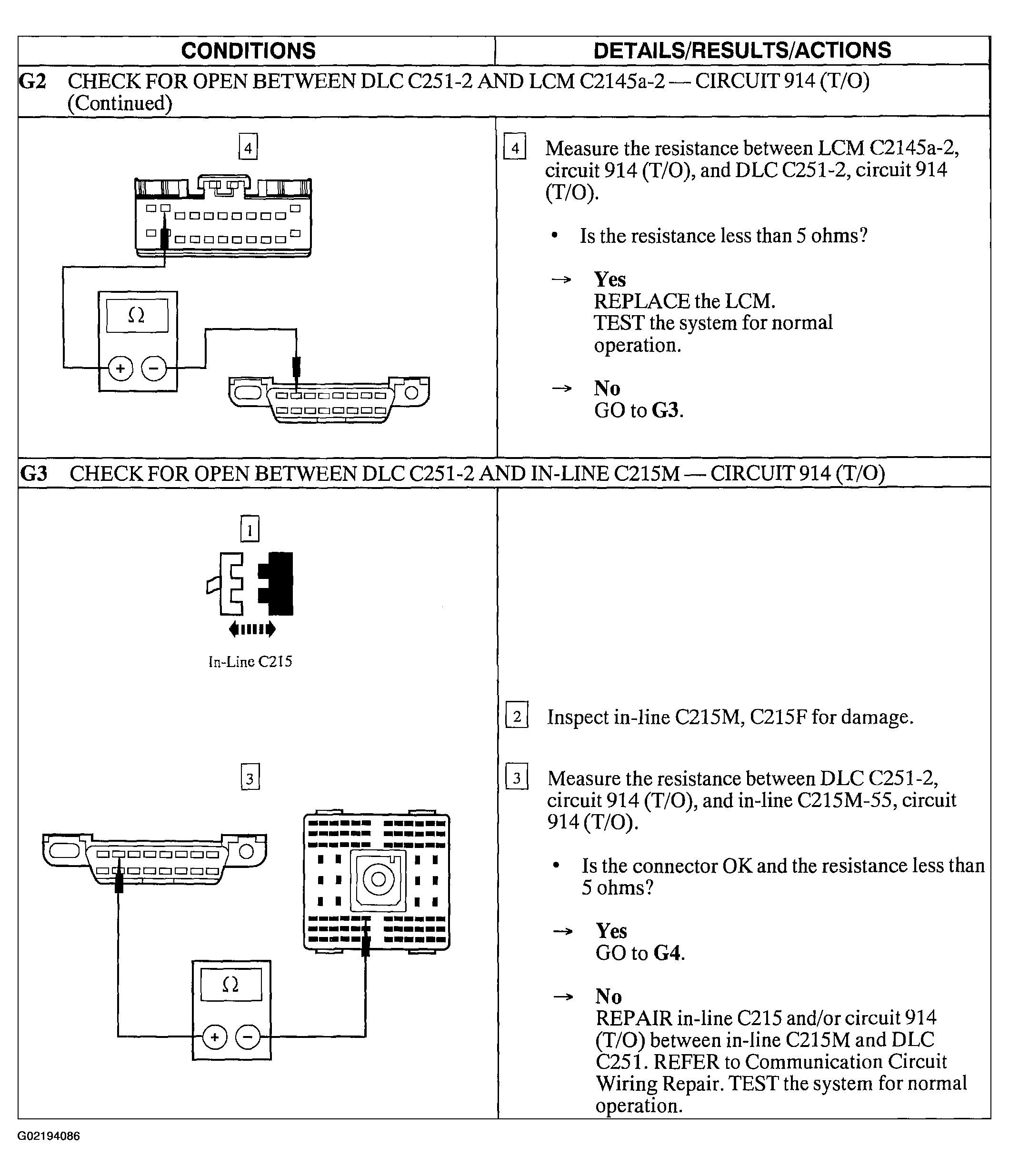

Fig 2: Pinpoint Test G: The Module Does Not Respond To The Diagnostic Tool - Lighting Control Module (LCM) (Steps G2 Cont. & G3)

Courtesy of FORD MOTOR CO.

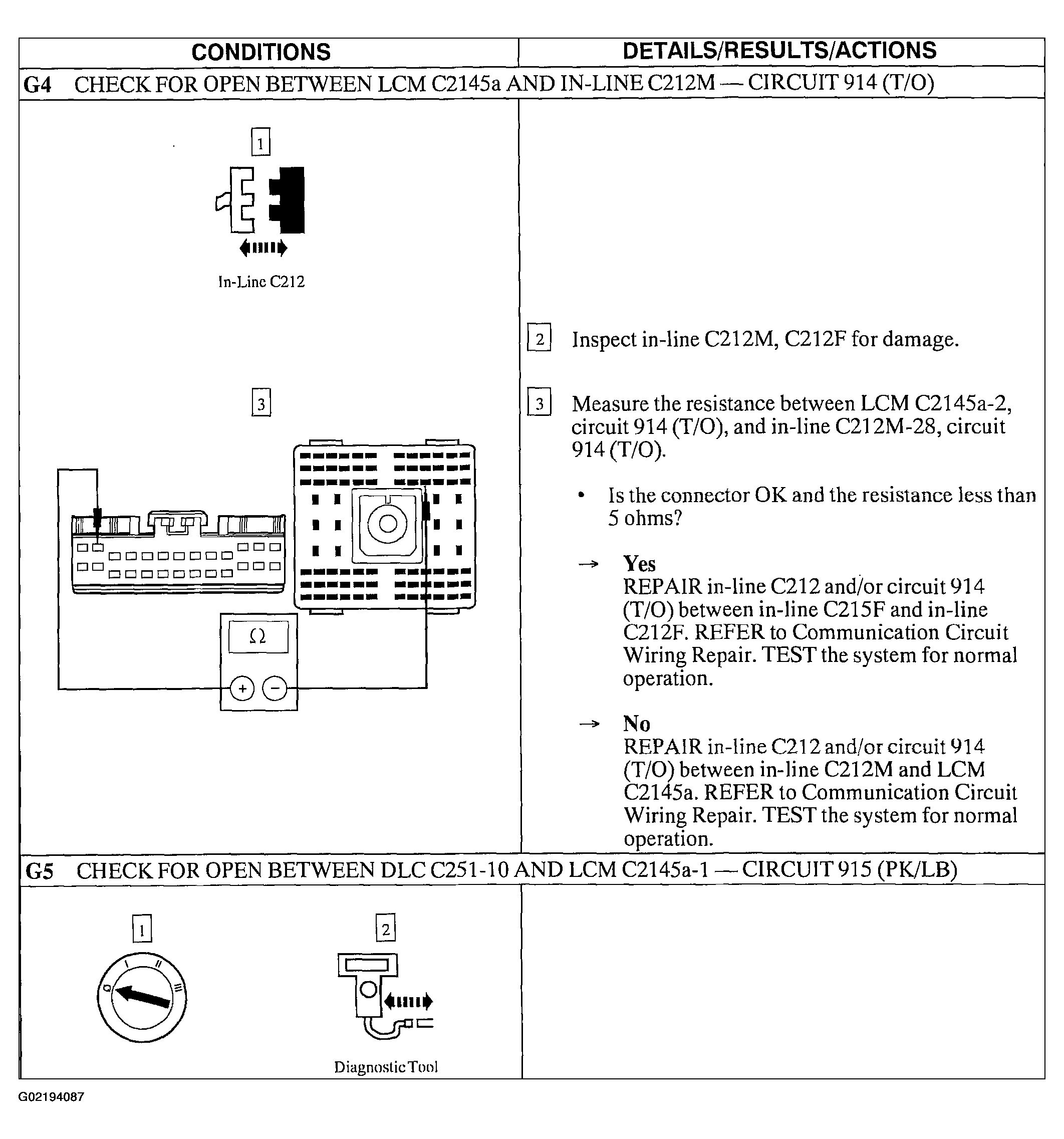

Fig 3: Pinpoint Test G: The Module Does Not Respond To The Diagnostic Tool - Lighting Control Module (LCM) (Steps G4 & G5)

Courtesy of FORD MOTOR CO.

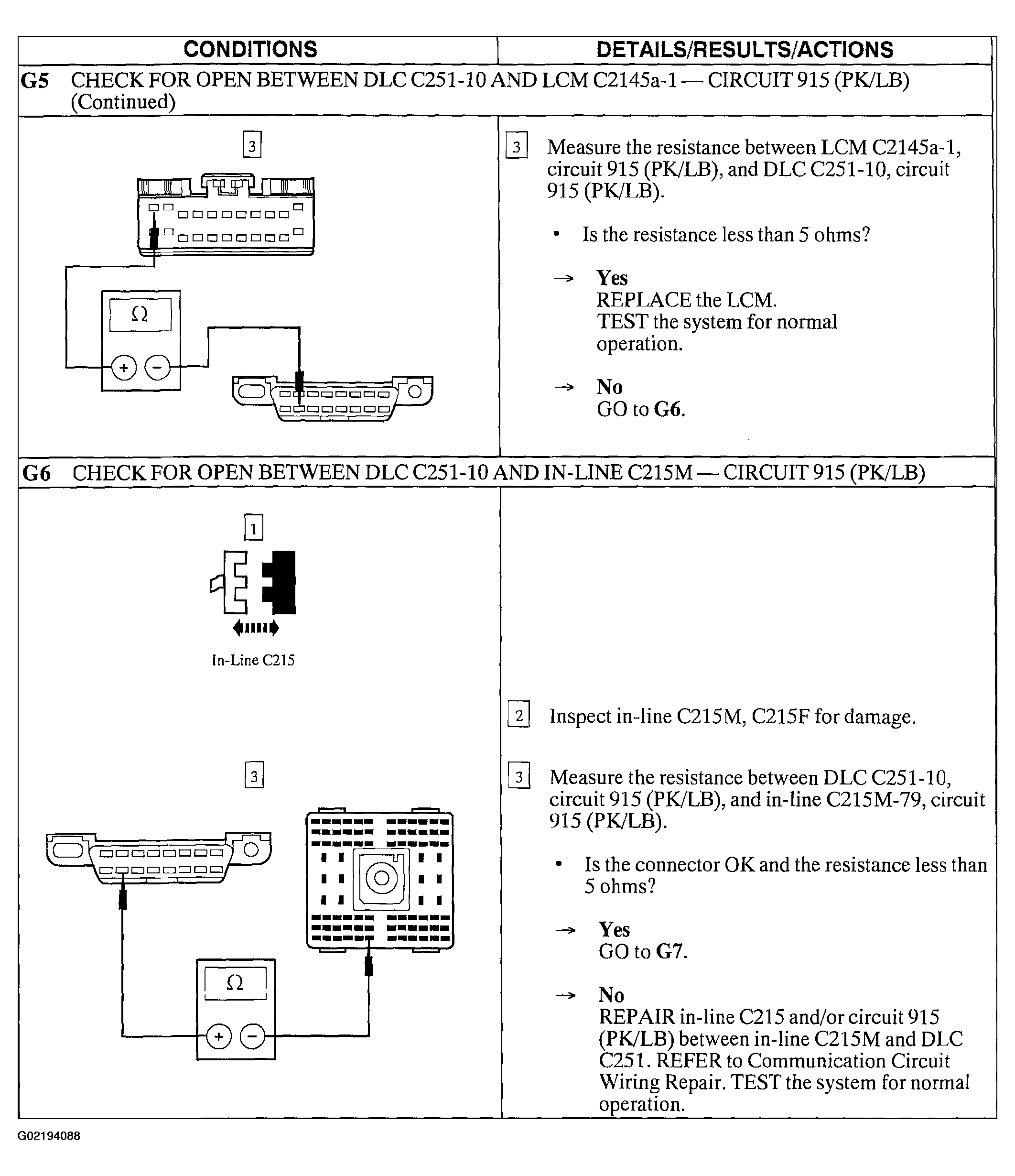

Fig 4: Pinpoint Test G: The Module Does Not Respond To The Diagnostic Tool - Lighting Control Module (LCM) (Steps G5 Cont. & G6)

Courtesy of FORD MOTOR CO.

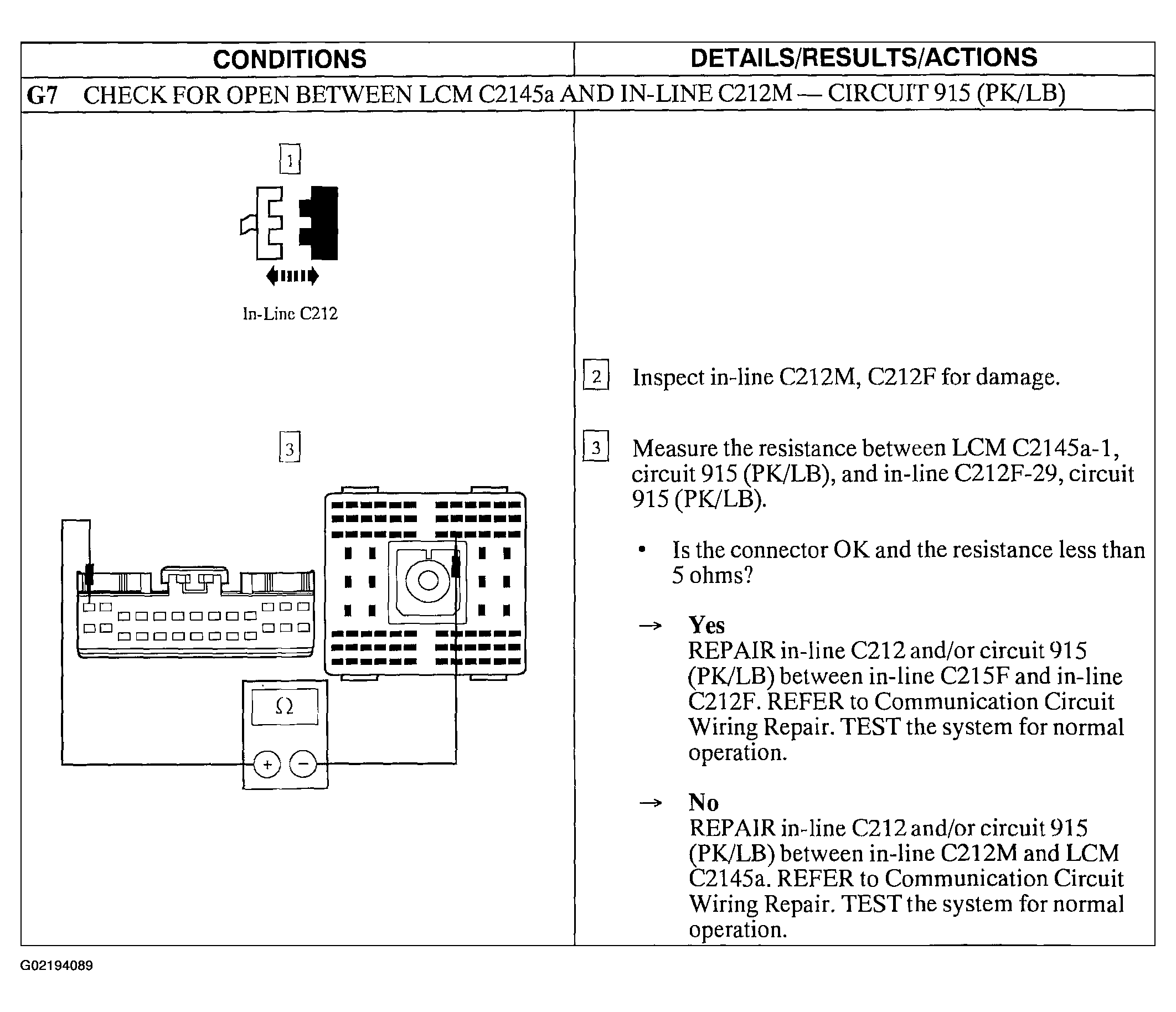

Fig 5: Pinpoint Test G: The Module Does Not Respond To The Diagnostic Tool - Lighting Control Module (LCM) (Step G7)

Courtesy of FORD MOTOR CO.
