Pinpoint Test J: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (PCM)

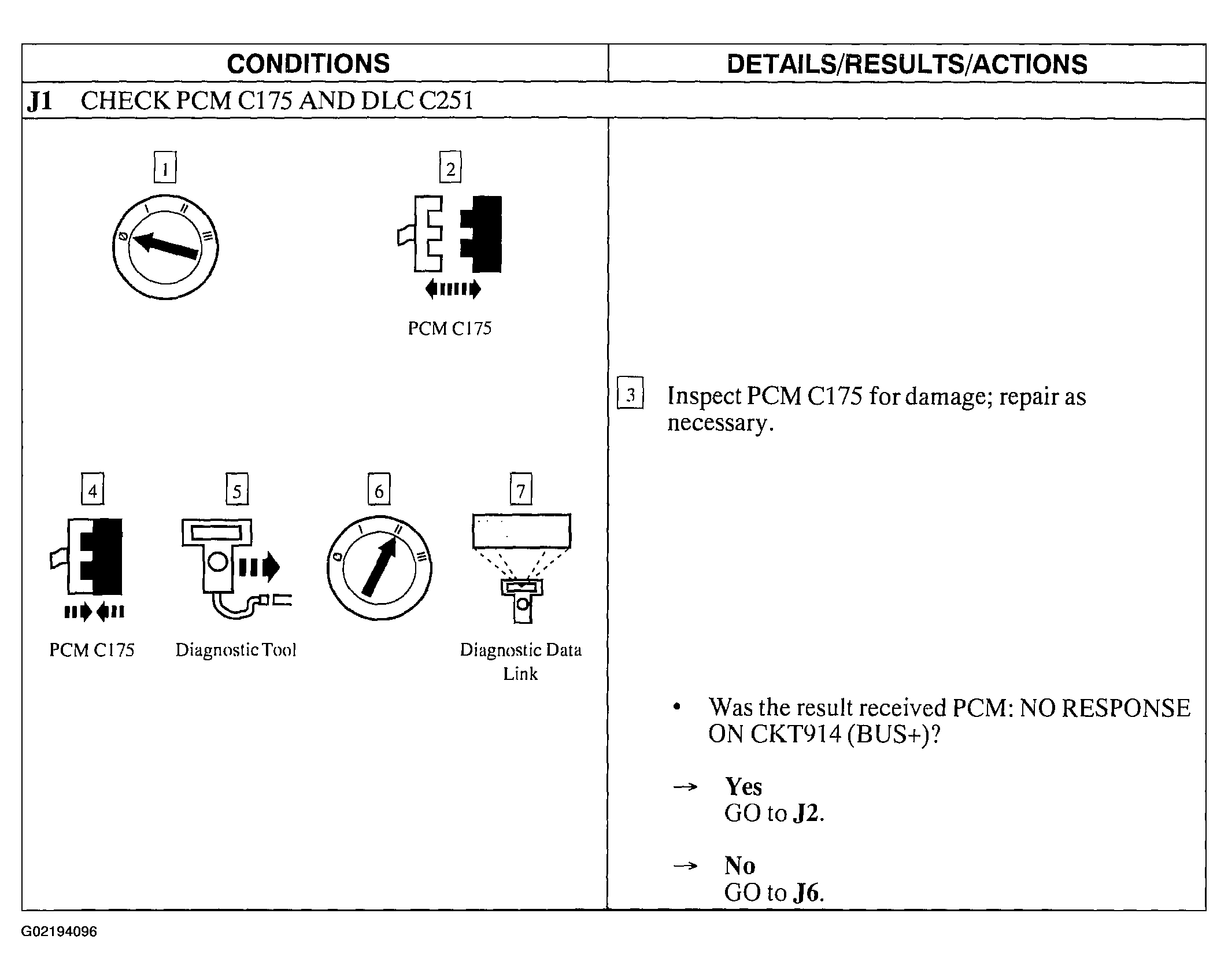

Fig 1: Pinpoint Test J: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (PCM) (Step J1)

Courtesy of FORD MOTOR CO.

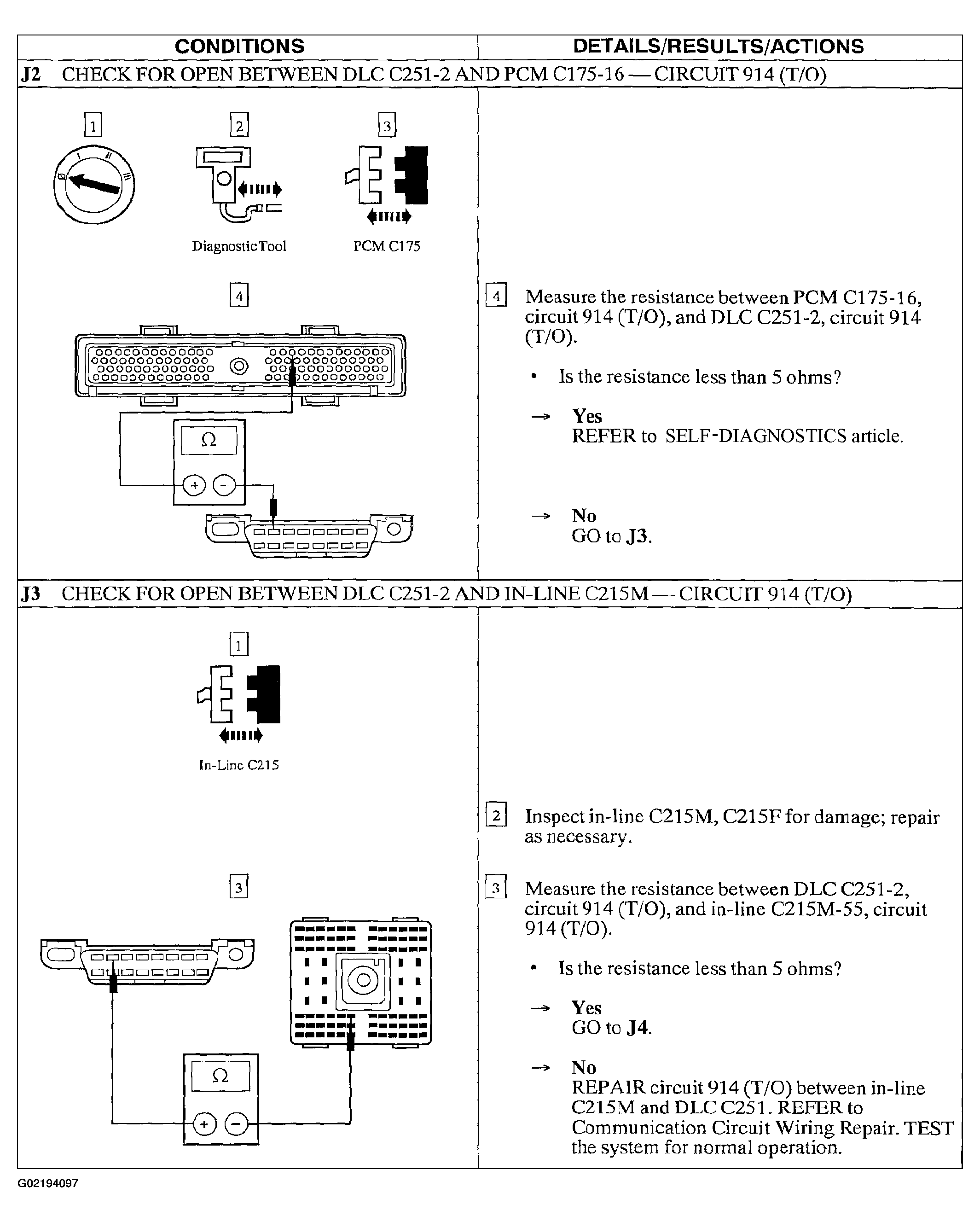

Fig 2: Pinpoint Test J: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (PCM) (Steps J2 & J3)

Courtesy of FORD MOTOR CO.

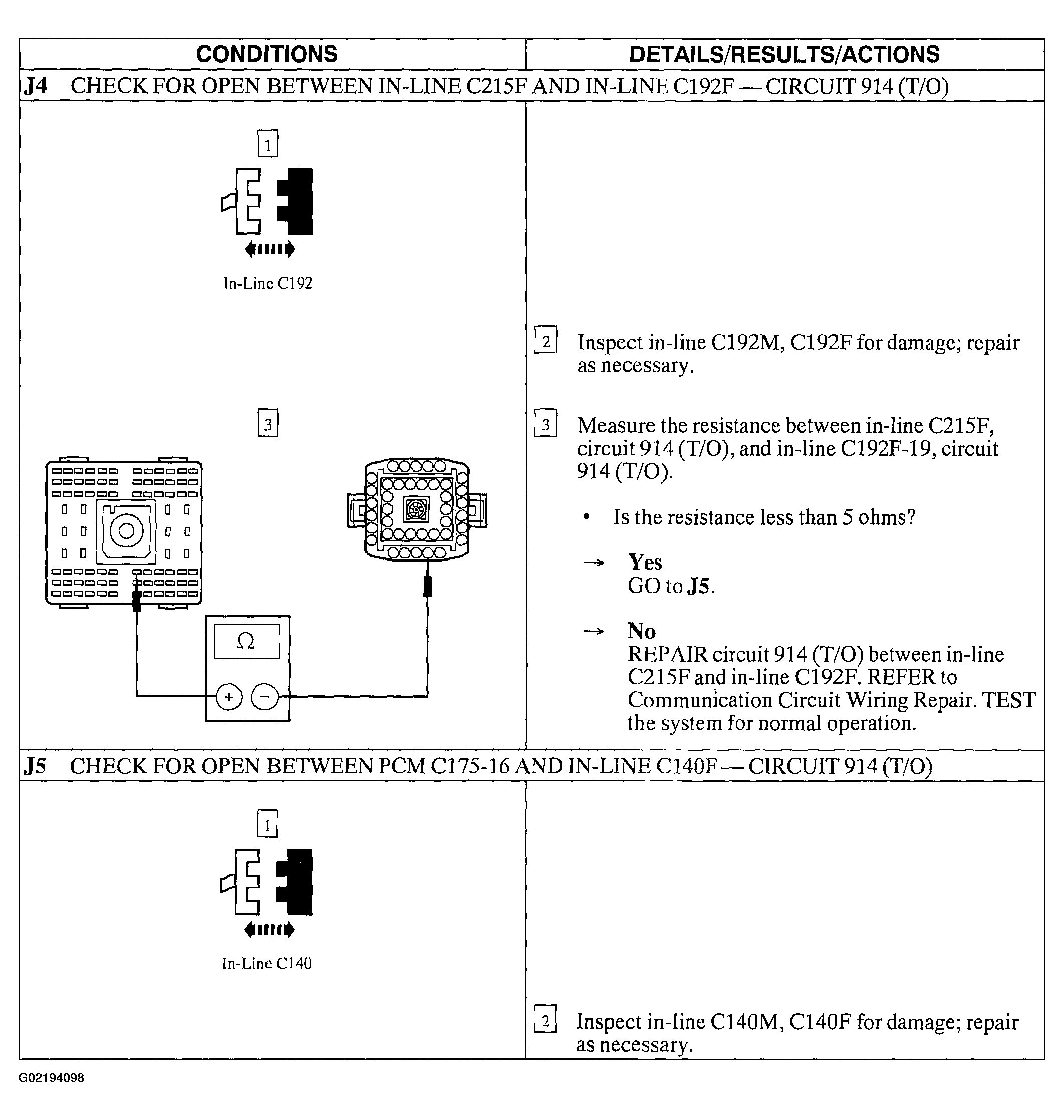

Fig 3: Pinpoint Test J: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (PCM) (Steps J4 & J5)

Courtesy of FORD MOTOR CO.

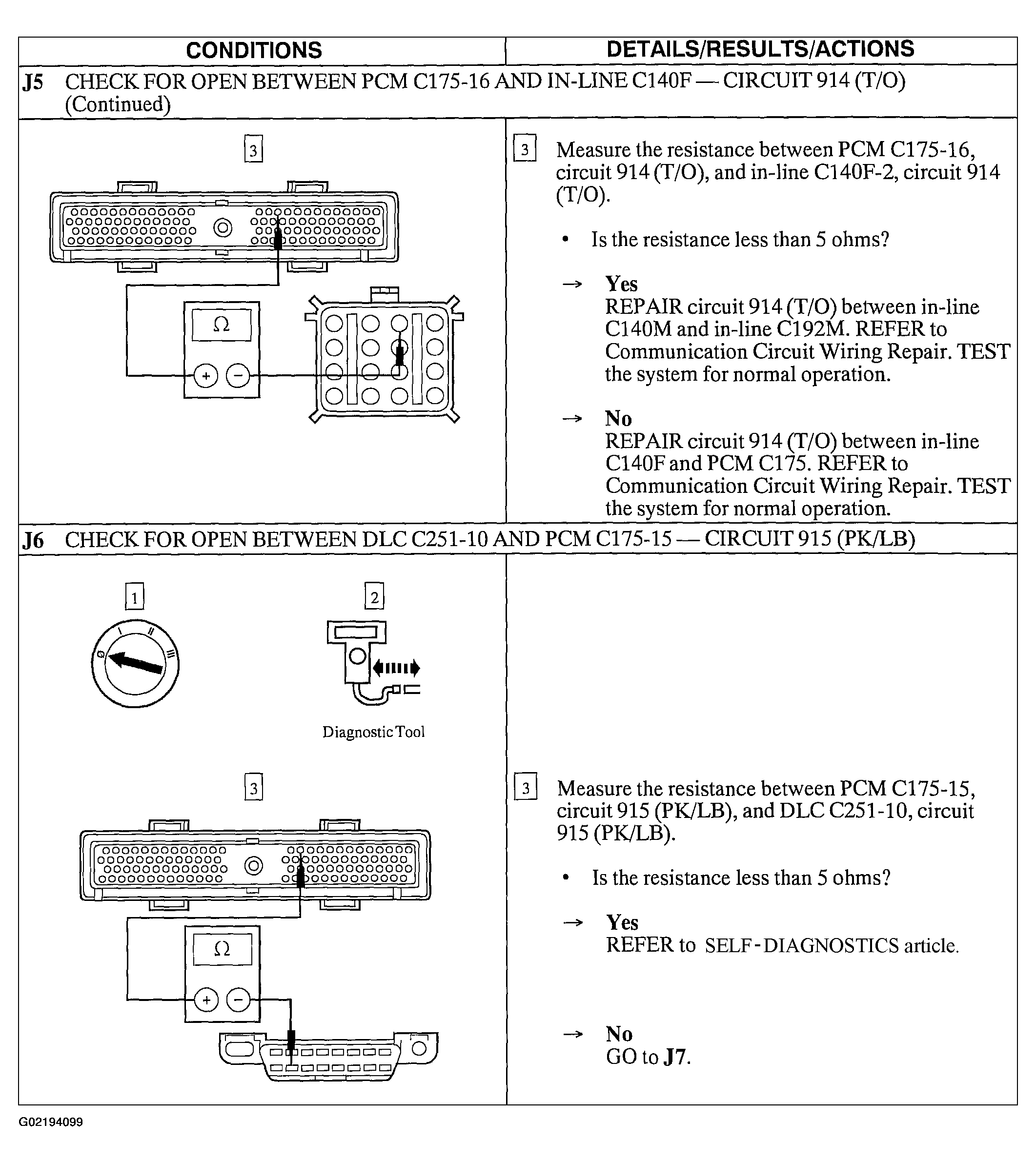

Fig 4: Pinpoint Test J: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (PCM) (Steps J5 Cont. & J6)

Courtesy of FORD MOTOR CO.

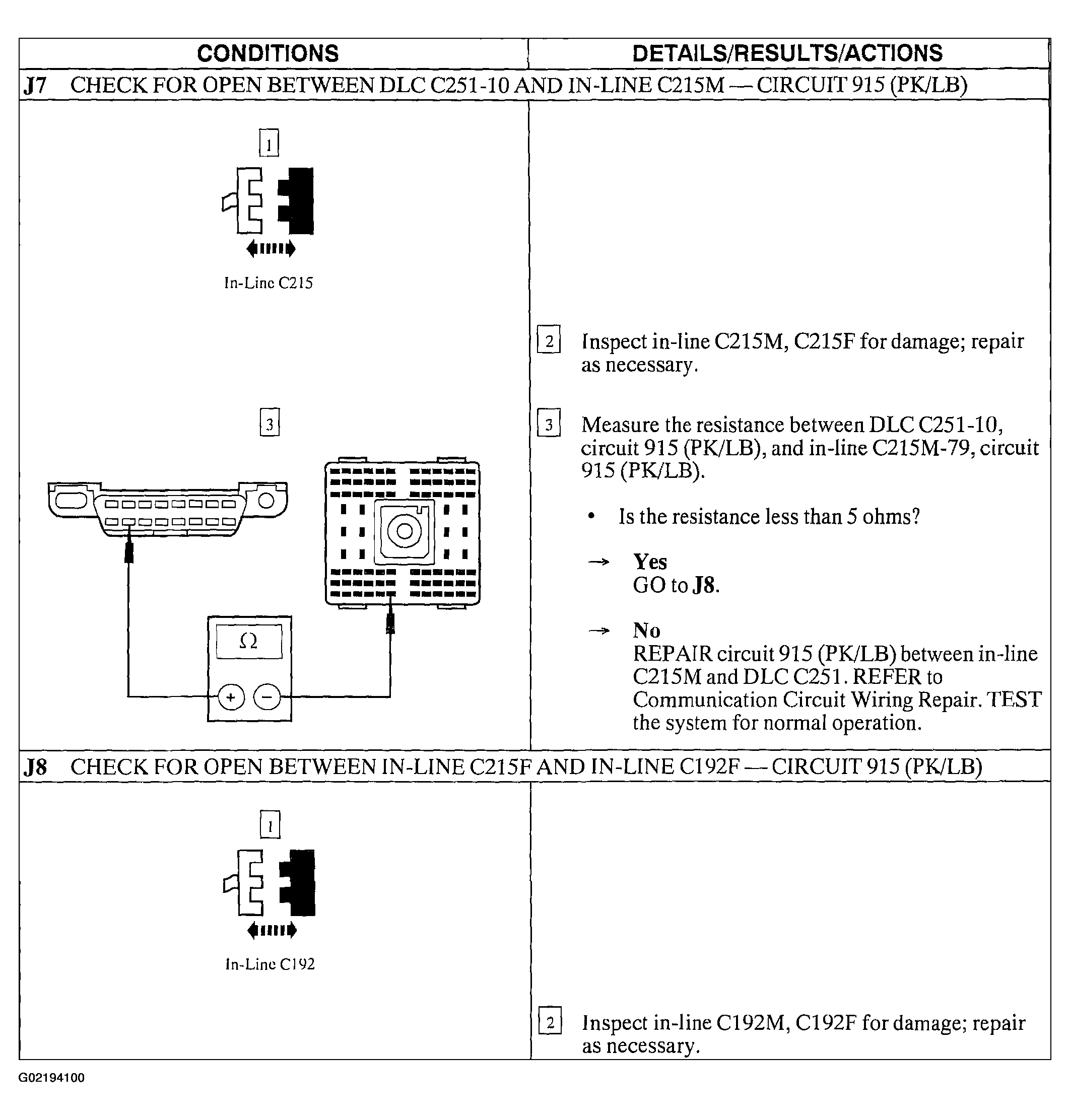

Fig 5: Pinpoint Test J: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (PCM) (Steps J7 & J8)

Courtesy of FORD MOTOR CO.

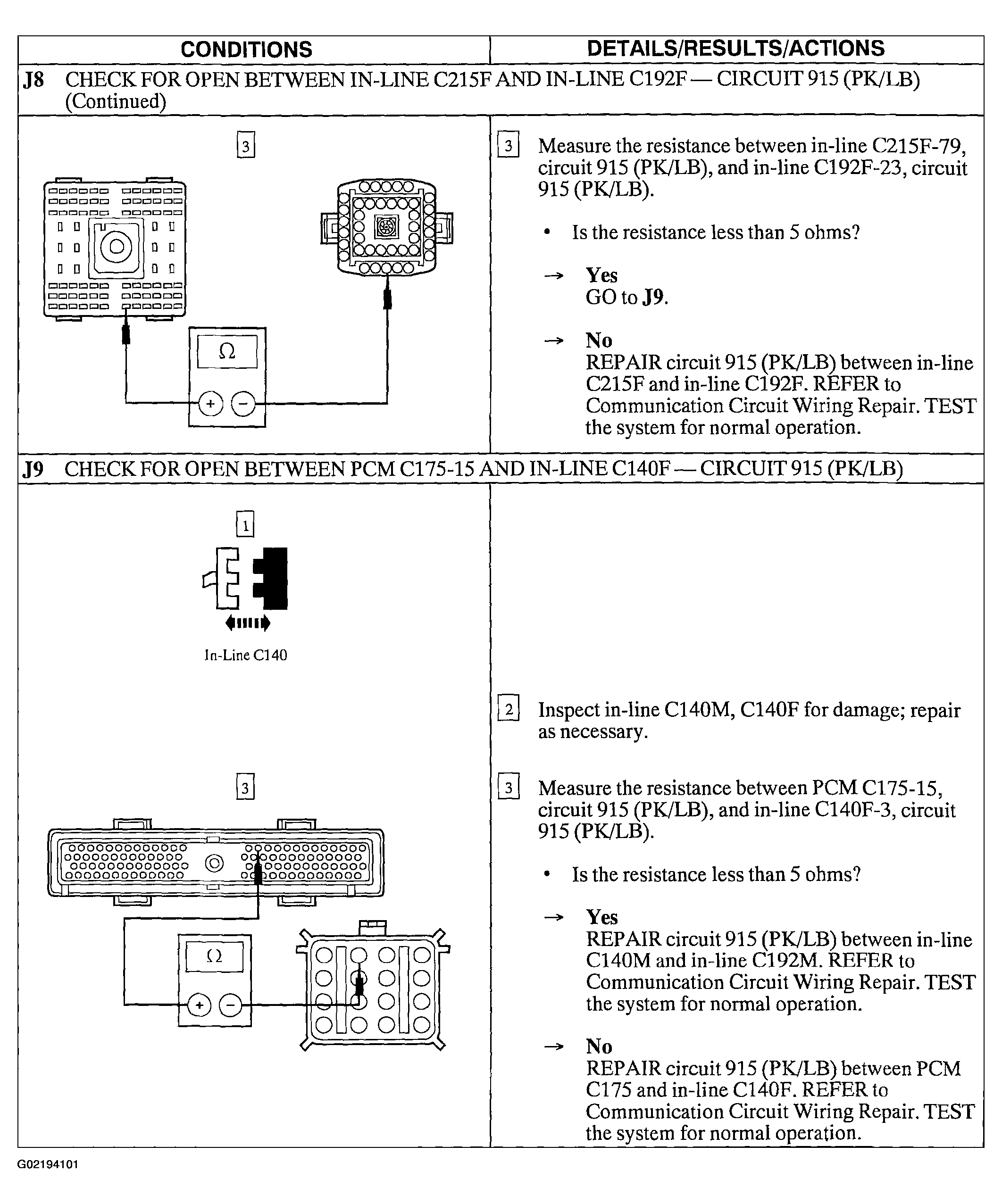

Fig 6: Pinpoint Test J: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (PCM) (Steps J8 Cont. & J9)

Courtesy of FORD MOTOR CO.
