Pinpoint Test K: The Module Does Not Respond To The Diagnostic Tool - Remote Emergency Satellite Cellular Unit (RESCU) Module

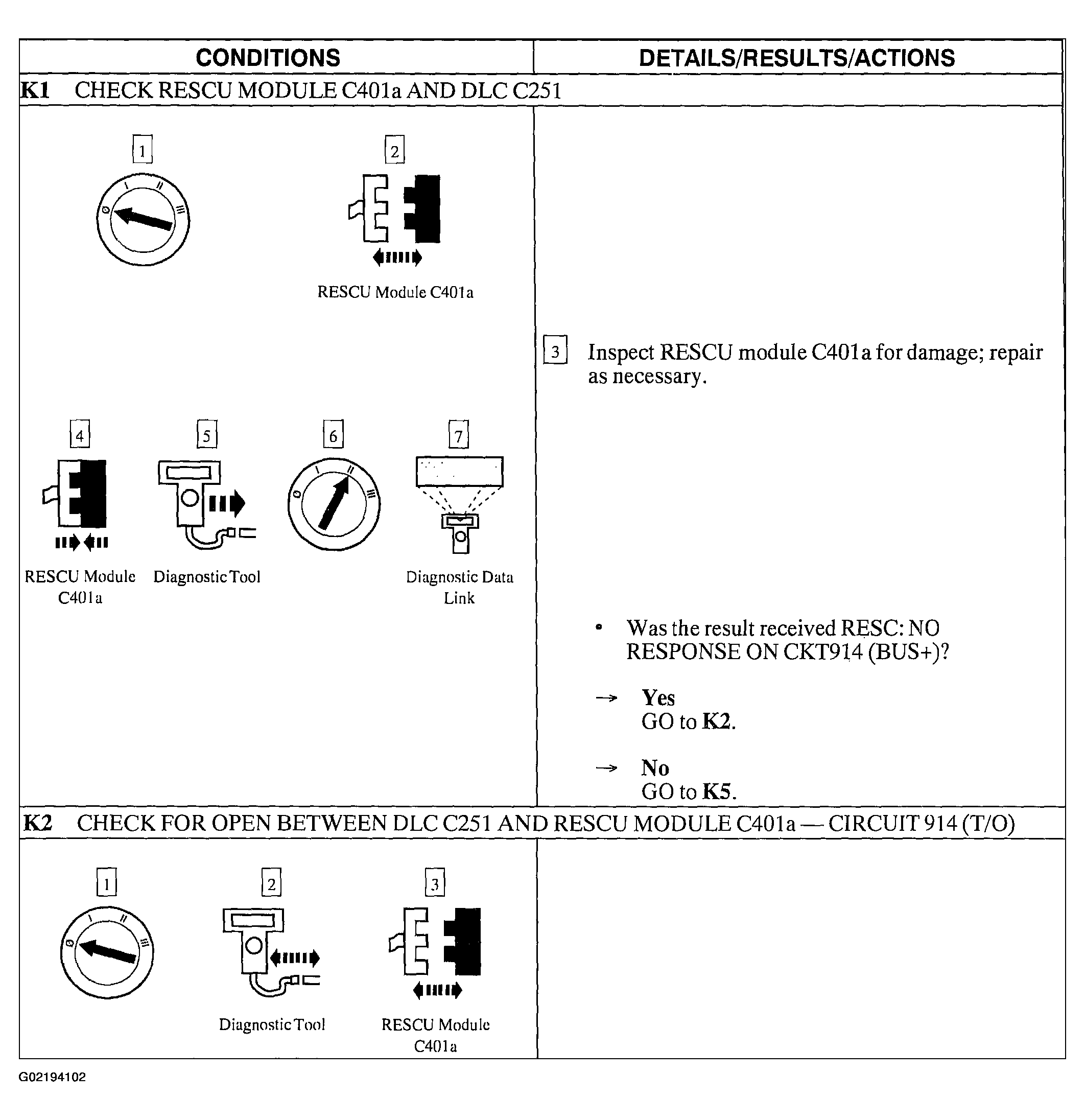

Fig 1: Pinpoint Test K: The Module Does Not Respond To The Diagnostic Tool - Remote Emergency Satellite Cellular Unit (RESCU) Module (Steps K1 & K2)

Courtesy of FORD MOTOR CO.

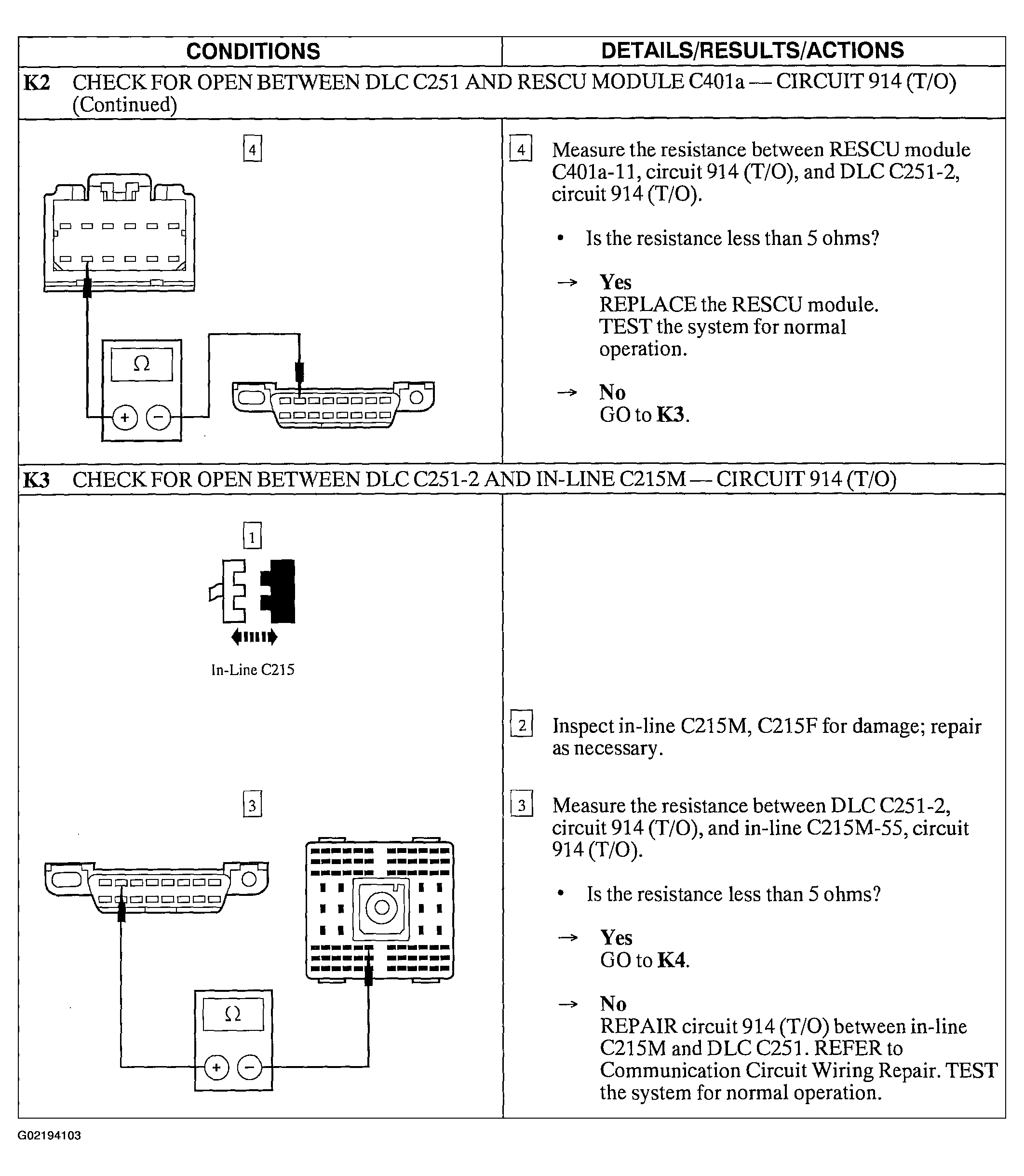

Fig 2: Pinpoint Test K: The Module Does Not Respond To The Diagnostic Tool - Remote Emergency Satellite Cellular Unit (RESCU) Module (Steps K2 Cont. & K3)

Courtesy of FORD MOTOR CO.

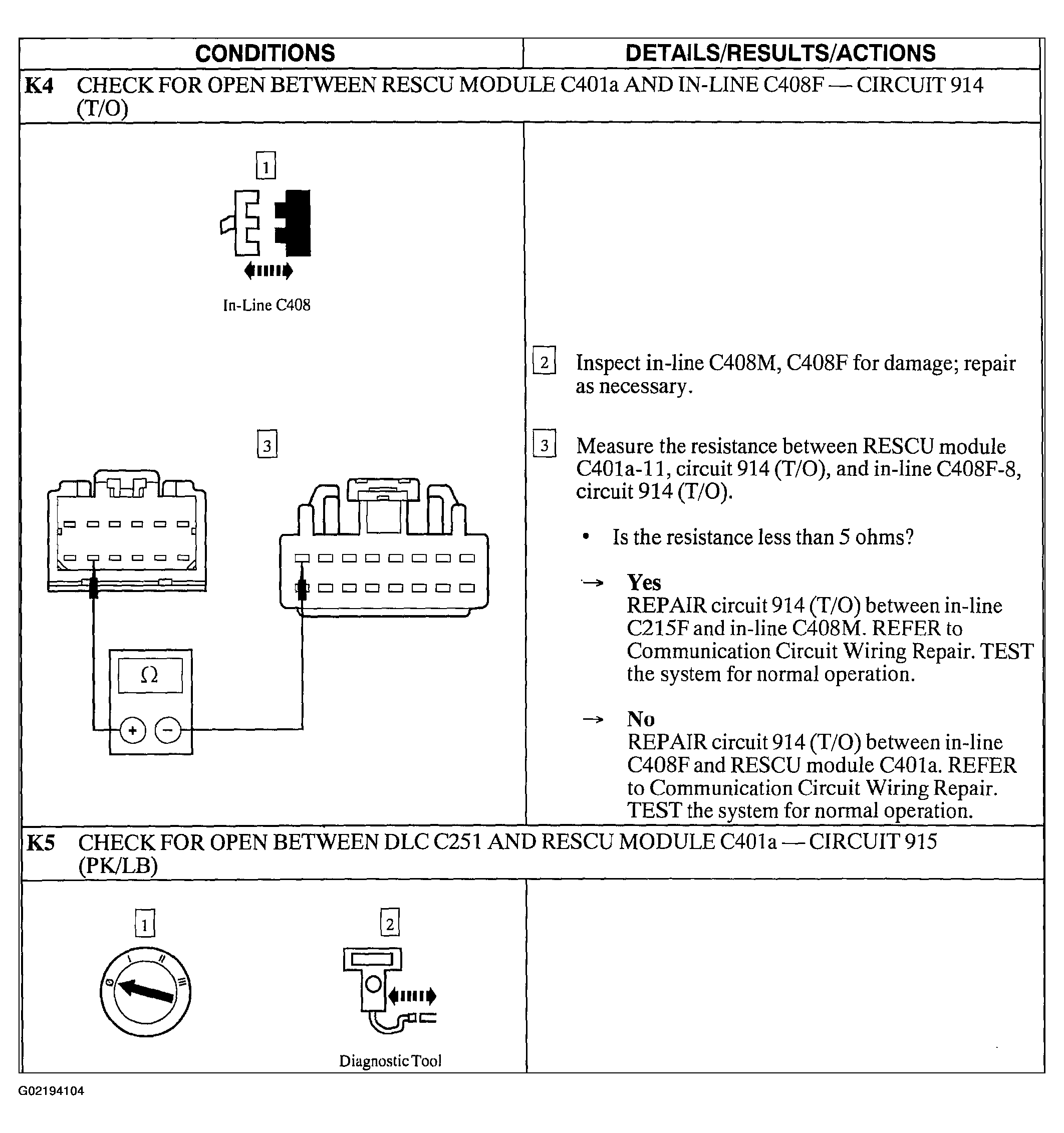

Fig 3: Pinpoint Test K: The Module Does Not Respond To The Diagnostic Tool - Remote Emergency Satellite Cellular Unit (RESCU) Module (Steps K4 & K5)

Courtesy of FORD MOTOR CO.

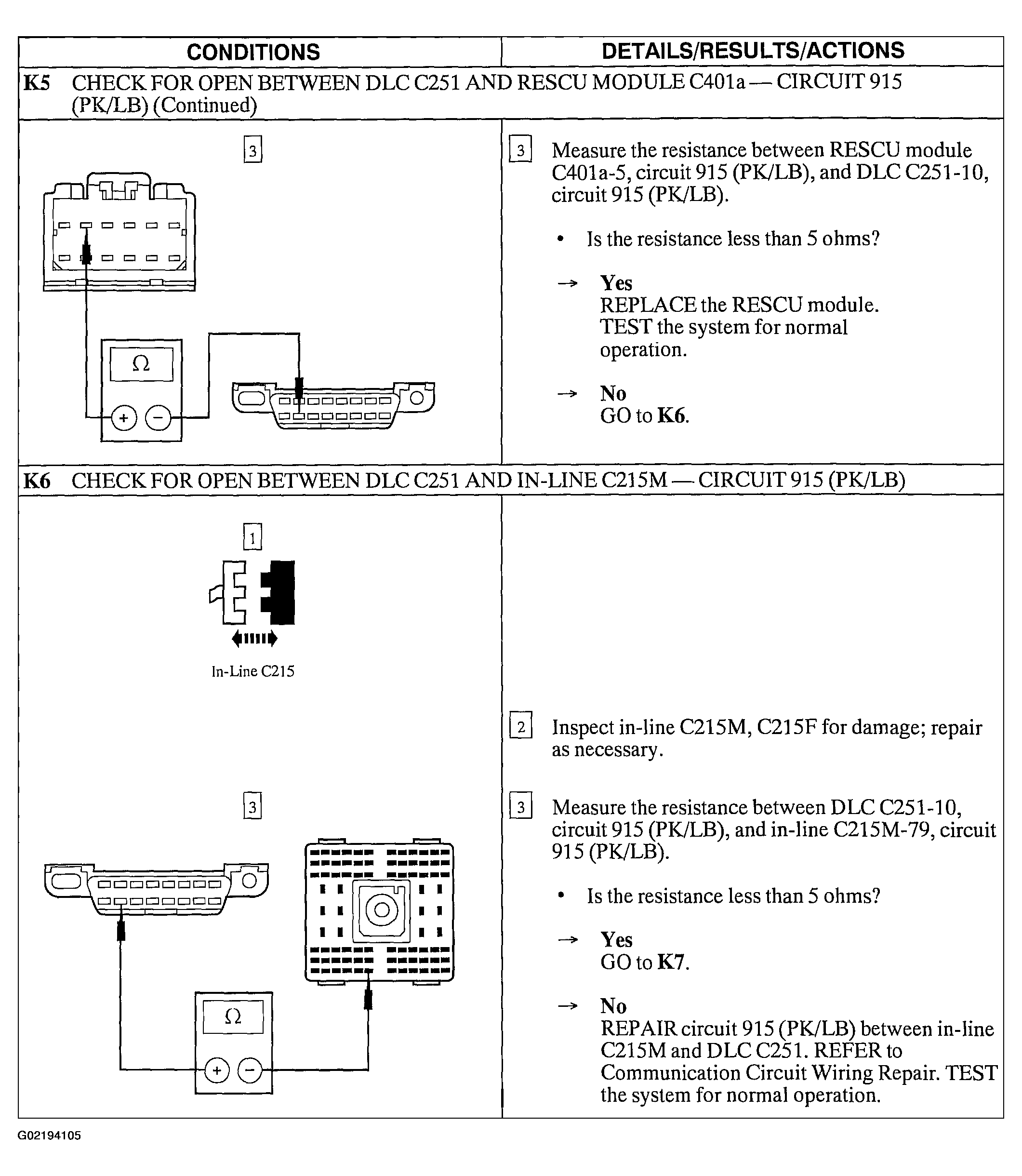

Fig 4: Pinpoint Test K: The Module Does Not Respond To The Diagnostic Tool - Remote Emergency Satellite Cellular Unit (RESCU) Module (Steps K5 Cont. & K6)

Courtesy of FORD MOTOR CO.

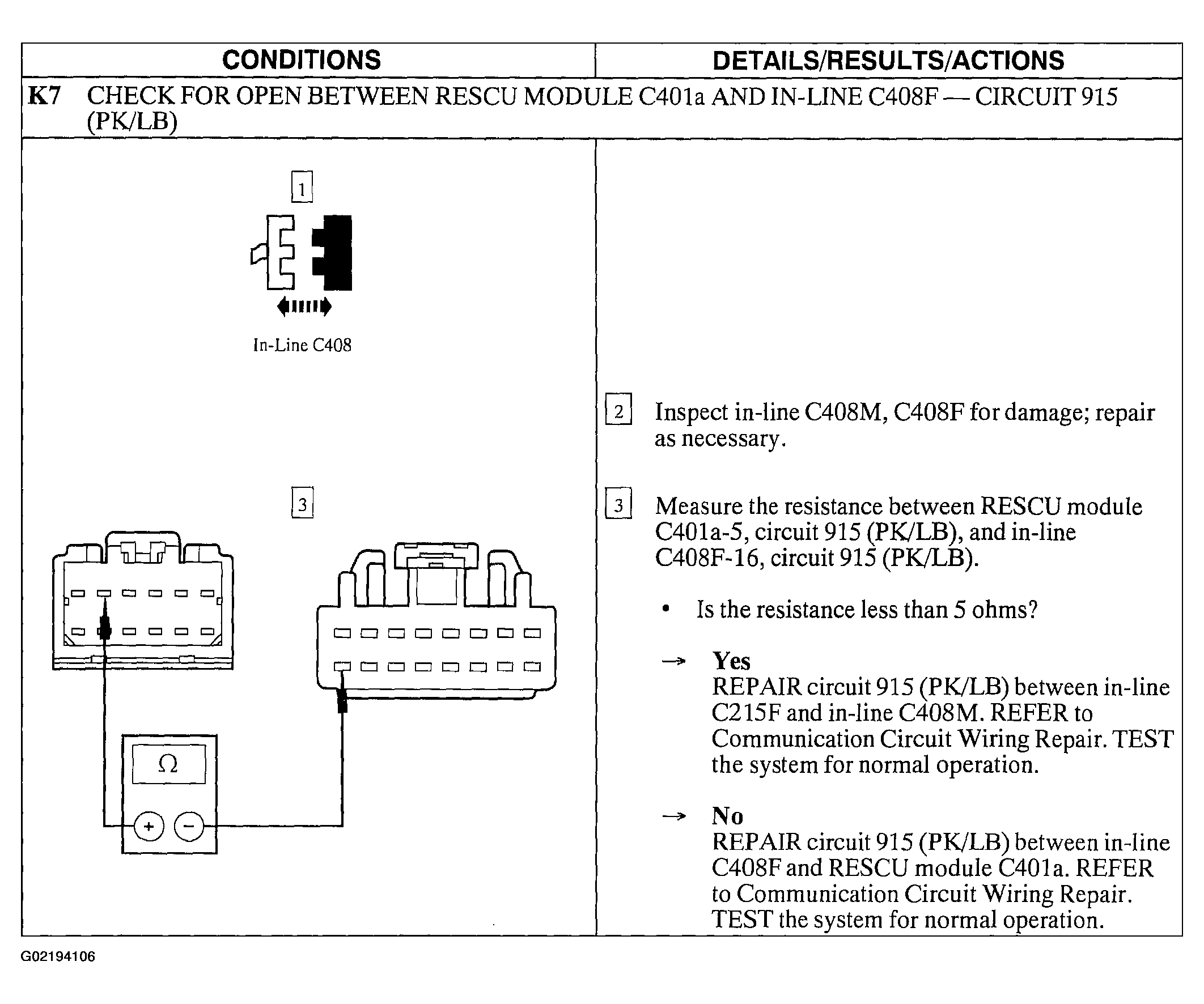

Fig 5: Pinpoint Test K: The Module Does Not Respond To The Diagnostic Tool - Remote Emergency Satellite Cellular Unit (RESCU) Module (Step K7)

Courtesy of FORD MOTOR CO.
