Pinpoint Test L: The Module Does Not Respond To The Diagnostic Tool - Vehicle Dynamics Module (VDM)

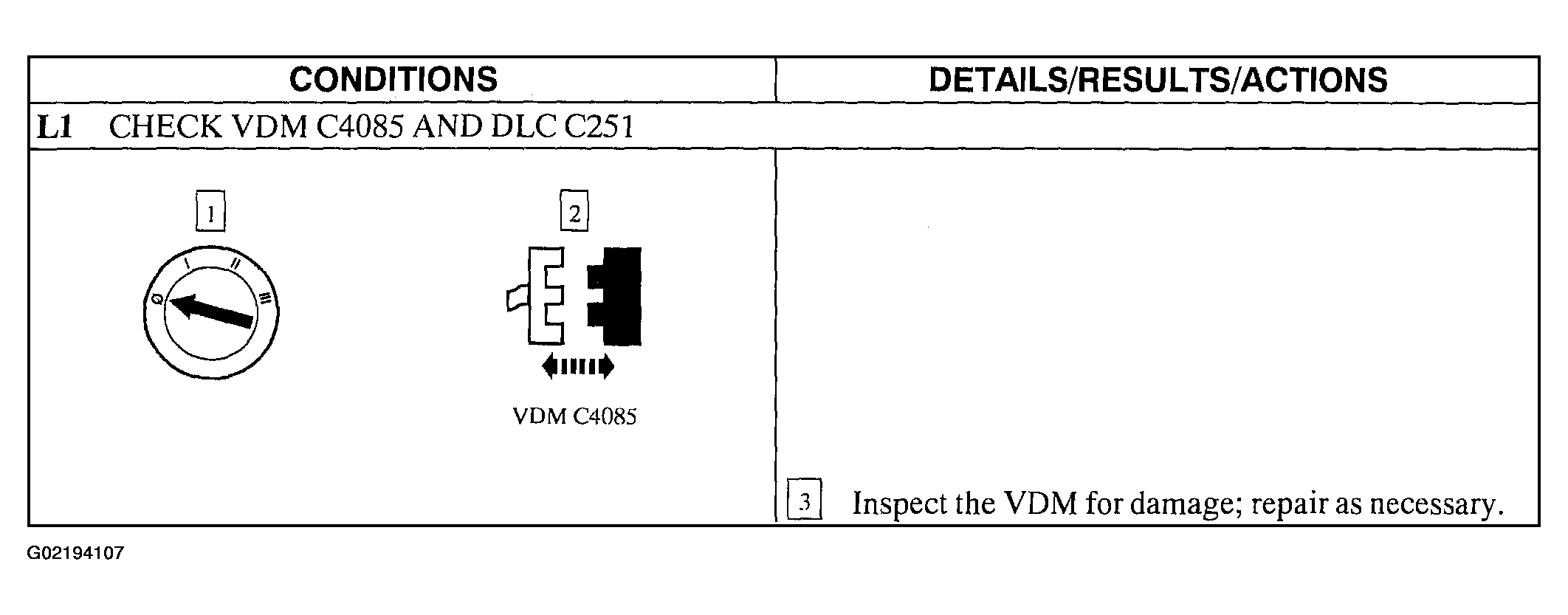

Fig 1: Pinpoint Test L: The Module Does Not Respond To The Diagnostic Tool - Vehicle Dynamics Module (VDM) (Step L1)

Courtesy of FORD MOTOR CO.

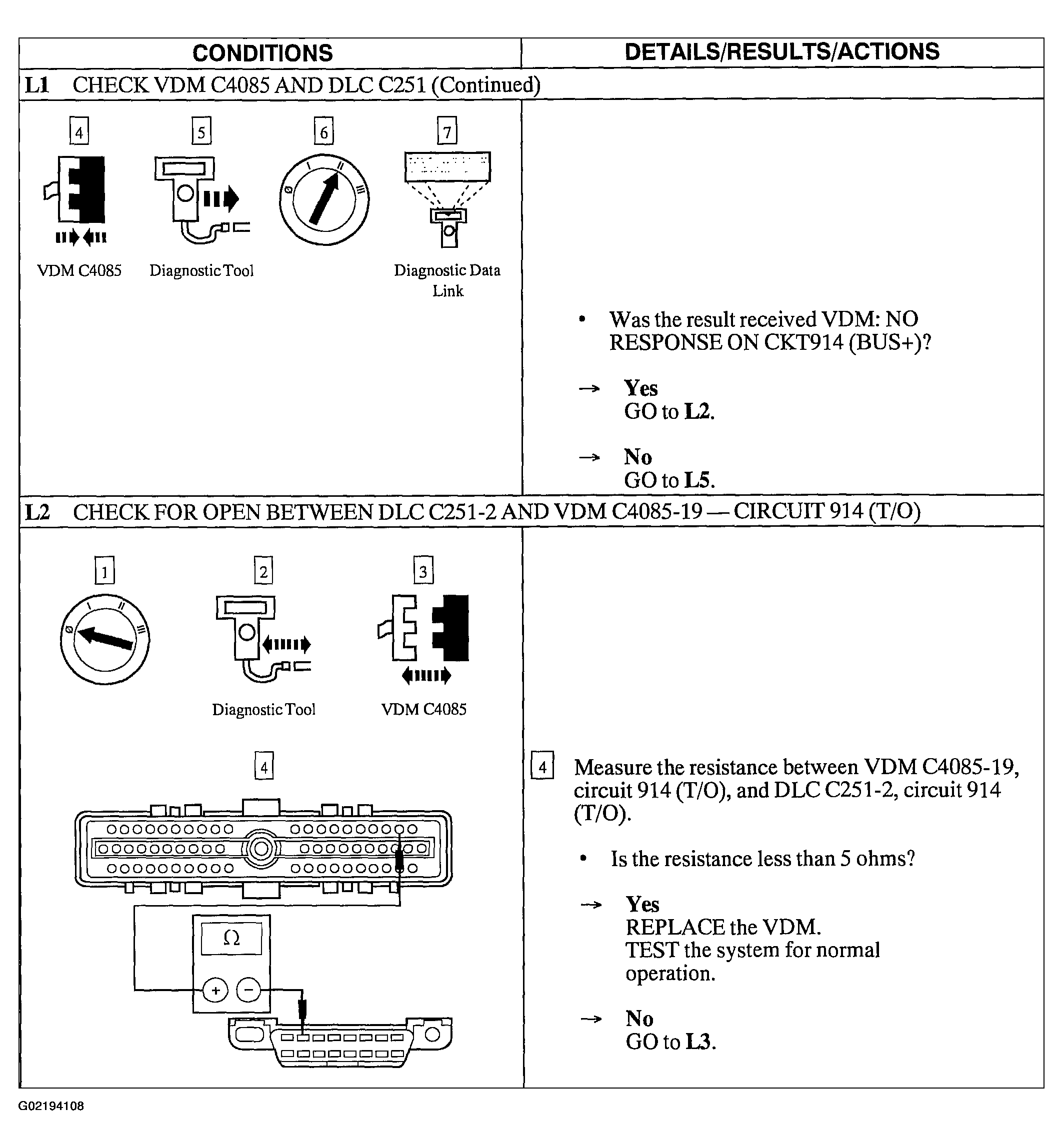

Fig 2: Pinpoint Test L: The Module Does Not Respond To The Diagnostic Tool - Vehicle Dynamics Module (VDM) (Steps L1 Cont. & L2)

Courtesy of FORD MOTOR CO.

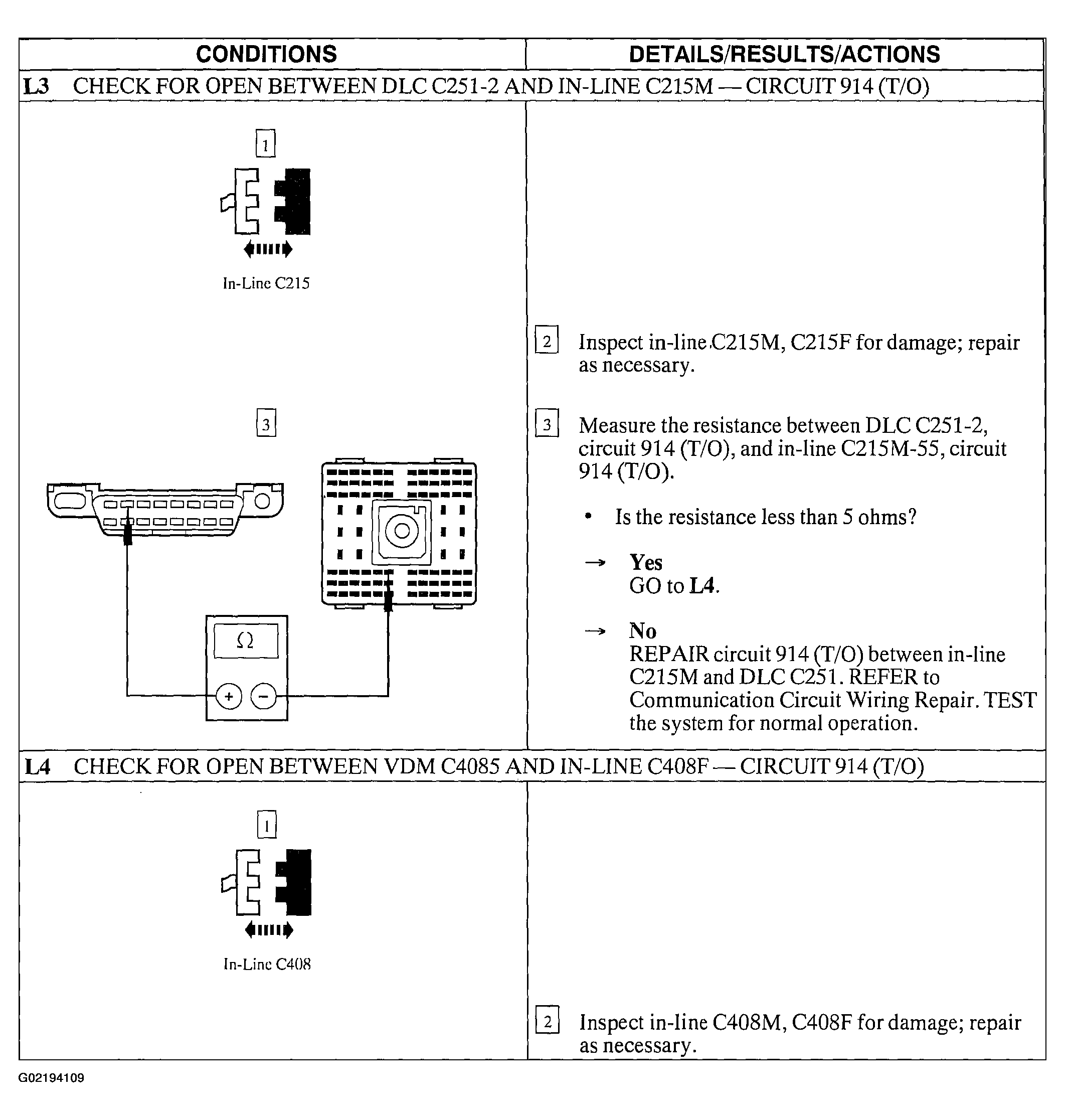

Fig 3: Pinpoint Test L: The Module Does Not Respond To The Diagnostic Tool - Vehicle Dynamics Module (VDM) (Steps L3 & L4)

Courtesy of FORD MOTOR CO.

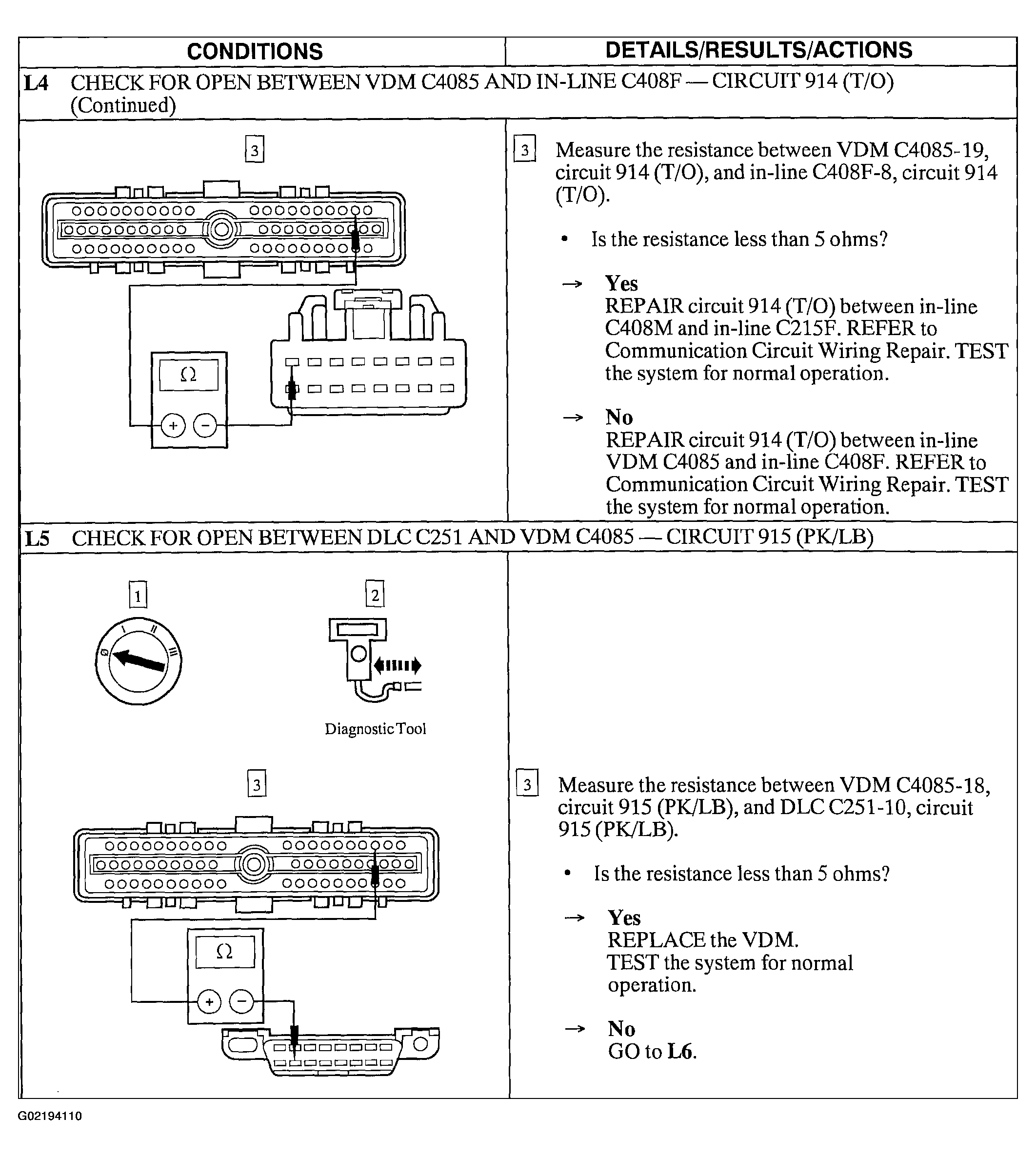

Fig 4: Pinpoint Test L: The Module Does Not Respond To The Diagnostic Tool - Vehicle Dynamics Module (VDM) (Steps L4 & L5)

Courtesy of FORD MOTOR CO.

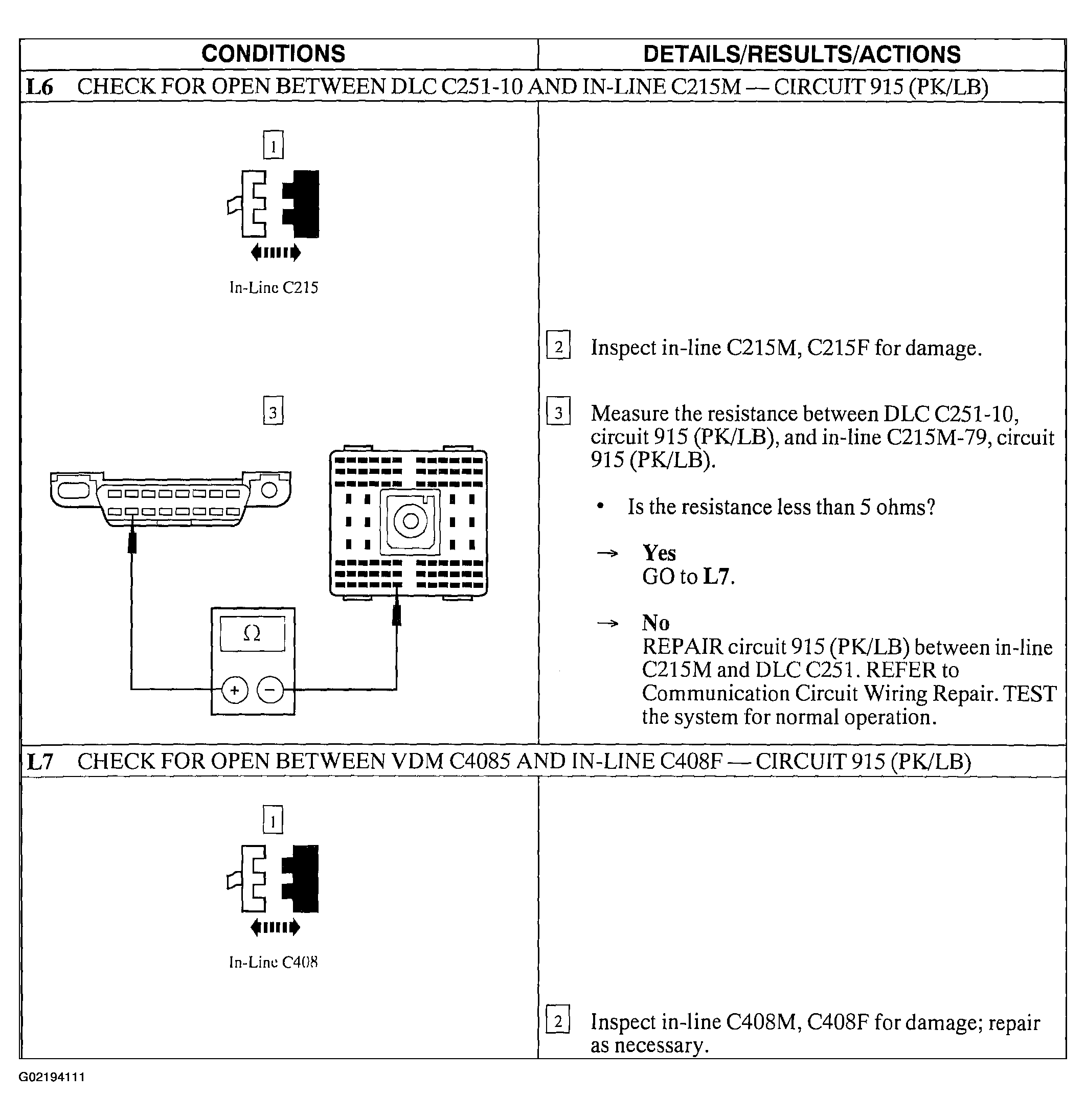

Fig 5: Pinpoint Test L: The Module Does Not Respond To The Diagnostic Tool - Vehicle Dynamics Module (VDM) (Steps L6 & L7)

Courtesy of FORD MOTOR CO.

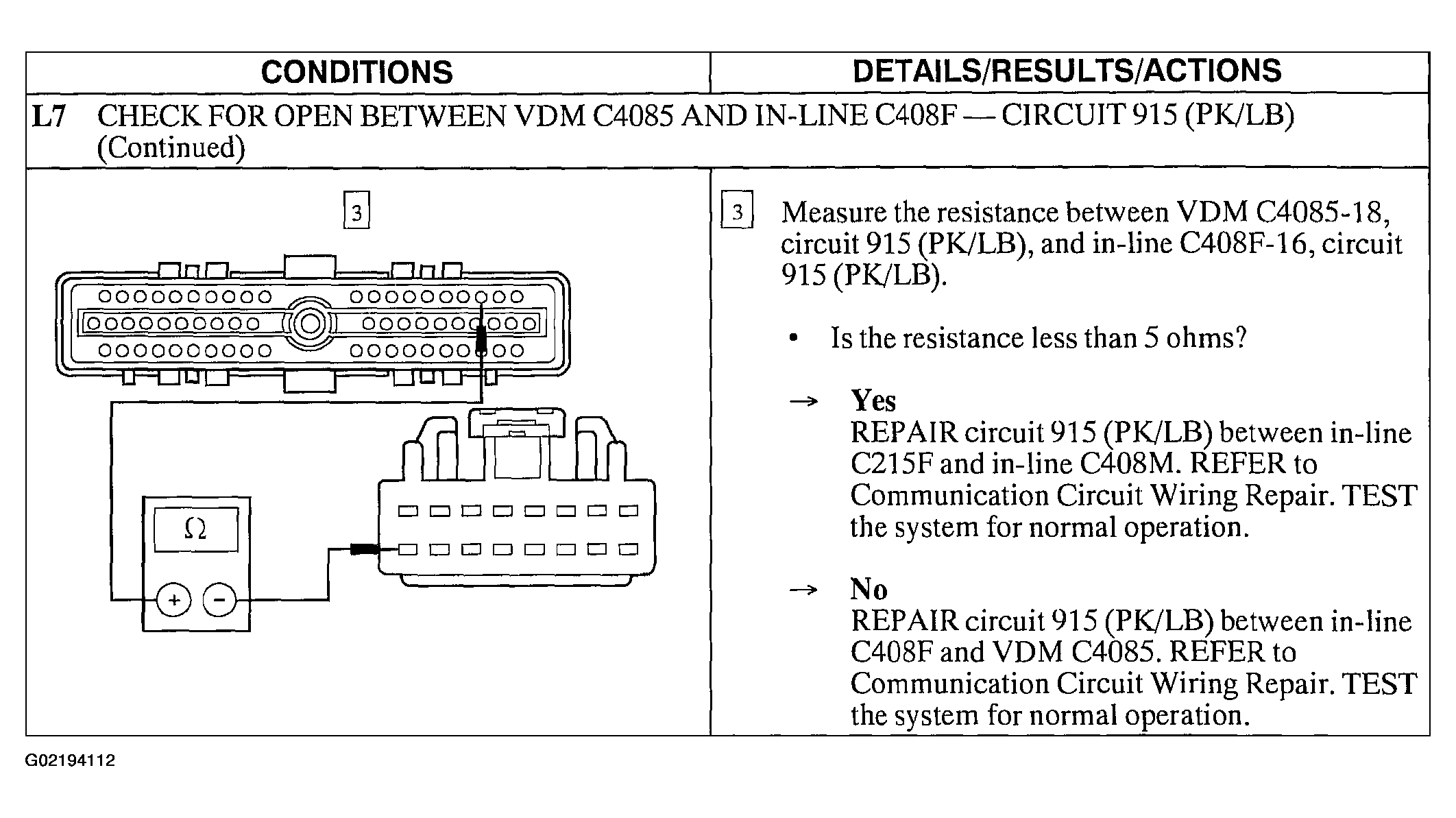

Fig 6: Pinpoint Test L: The Module Does Not Respond To The Diagnostic Tool - Vehicle Dynamics Module (VDM) (Step L7 Cont.)

Courtesy of FORD MOTOR CO.
