Sensor-In-Car Temperature: Removal

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

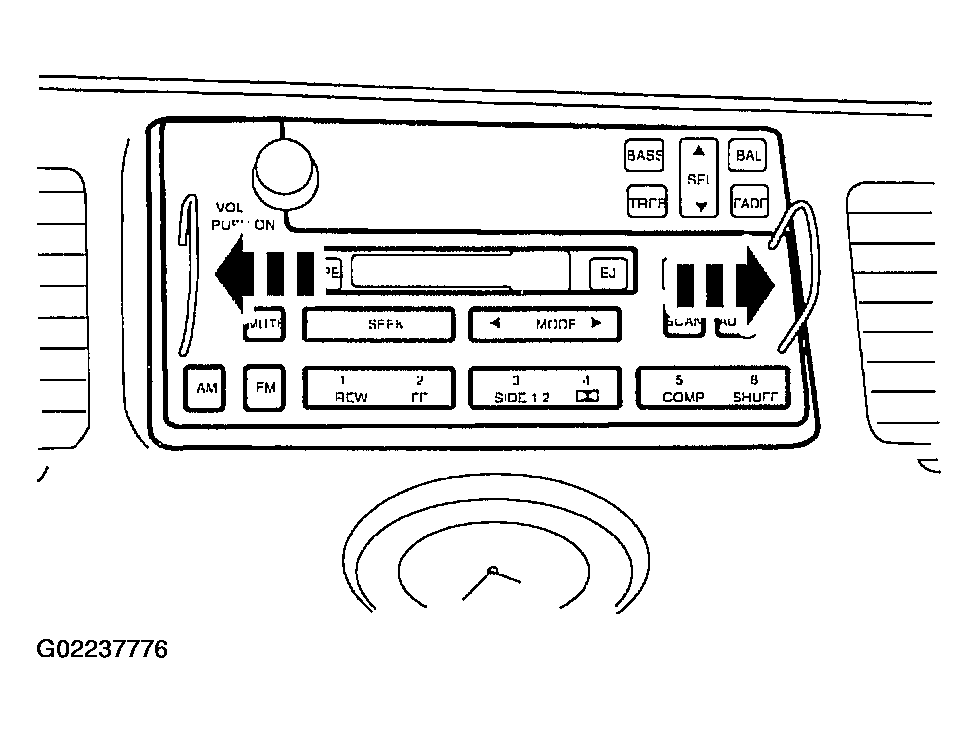

Use the special tool to remove the radio chassis.

Fig 1: Removing Radio Chassis
Courtesy of FORD MOTOR CO.

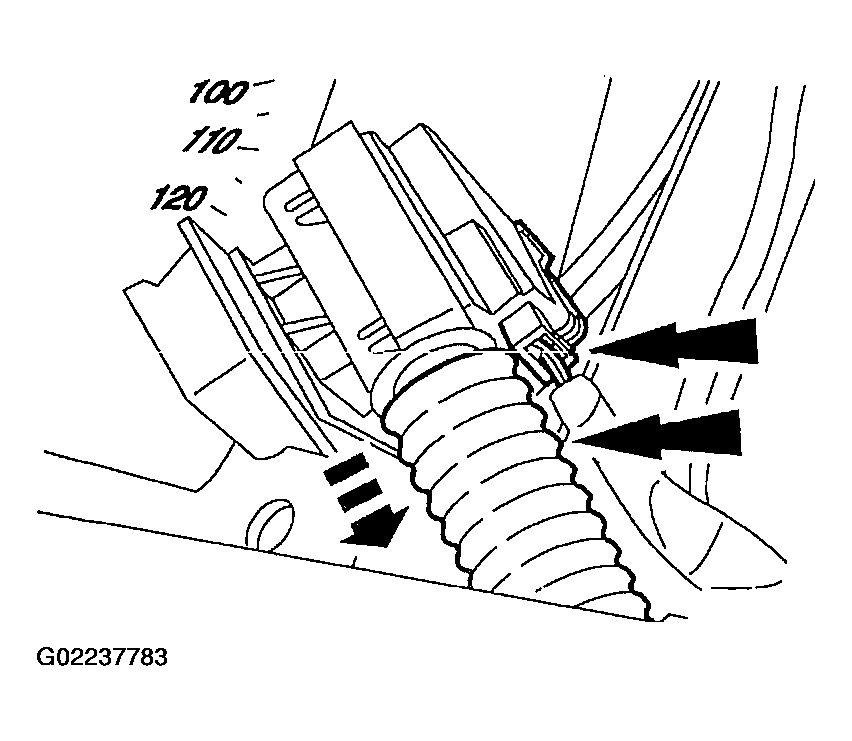

Disconnect the antenna lead and the wire harness connectors.

Fig 2: Disconnecting Antenna Lead And Wire Harness Connectors
Courtesy of FORD MOTOR CO.
Remove the screws from the radio chassis opening.

Fig 3: Removing Screws From Radio Chassis Opening
Courtesy of FORD MOTOR CO.
Remove the screws and the cluster opening finish panel.

Fig 4: Removing Screws And Cluster Opening Finish Panel
Courtesy of FORD MOTOR CO.
Disconnect the headlight and dimmer switch wire harness connectors.

Fig 5: Disconnecting Headlight And Dimmer Switch Wire Harness Connectors
Courtesy of FORD MOTOR CO.
Disconnect the clock wire harness connector.

Fig 6: Disconnecting Clock Wire Harness Connector
Courtesy of FORD MOTOR CO.
Remove the screw.

Fig 7: Removing Sensor Screw
Courtesy of FORD MOTOR CO.
Disconnect the wire harness connector and remove the sensor from the hose.

Fig 8: Disconnecting Wire Harness Connector And Remove Sensor From Hose
Courtesy of FORD MOTOR CO.
