Pinpoint Test B: No Communication With The Driver Door Module (DDM)
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

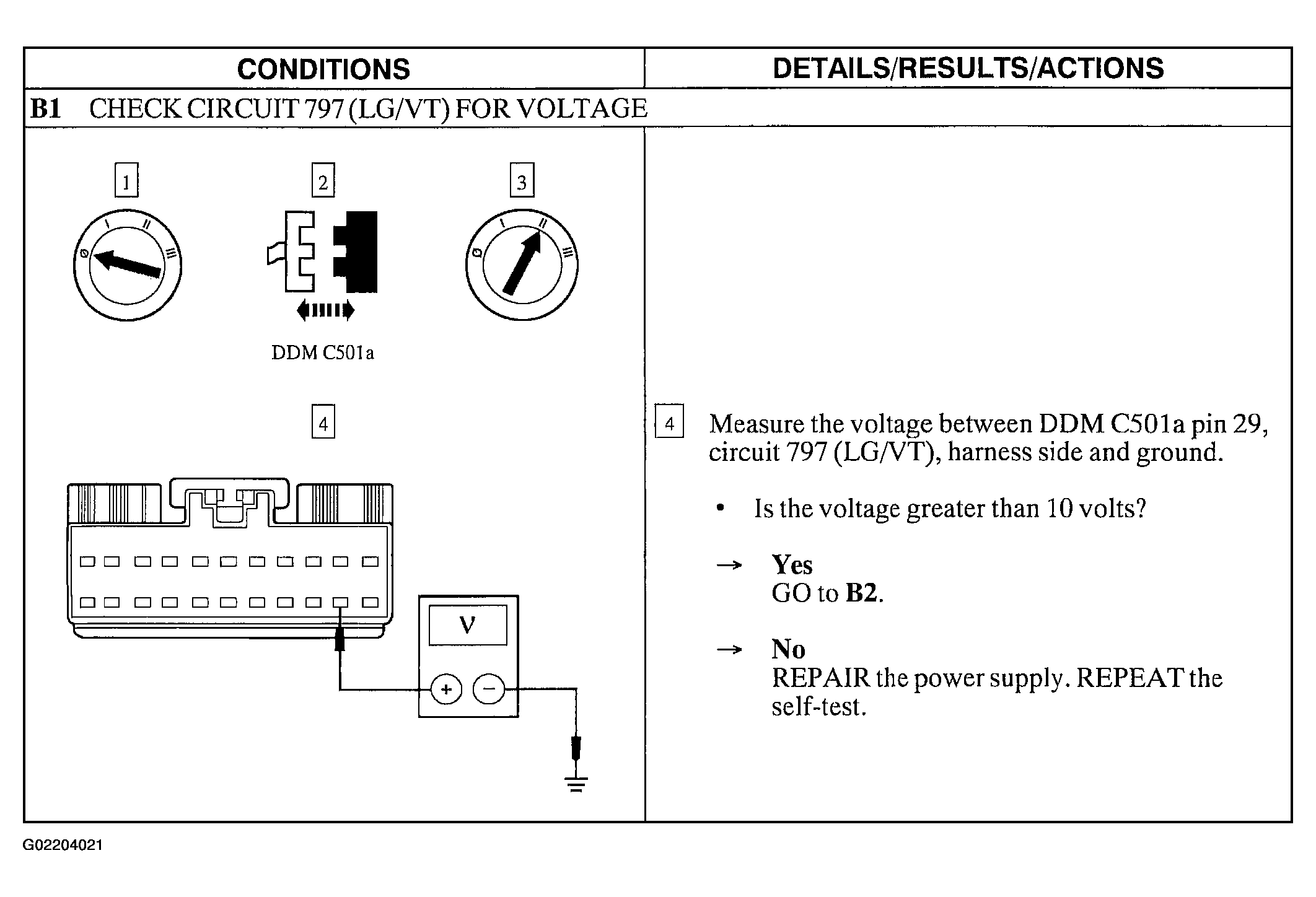

Fig 1: Pinpoint Test B: No Communication With Driver Door Module (DDM) (B1)
Courtesy of FORD MOTOR CO.

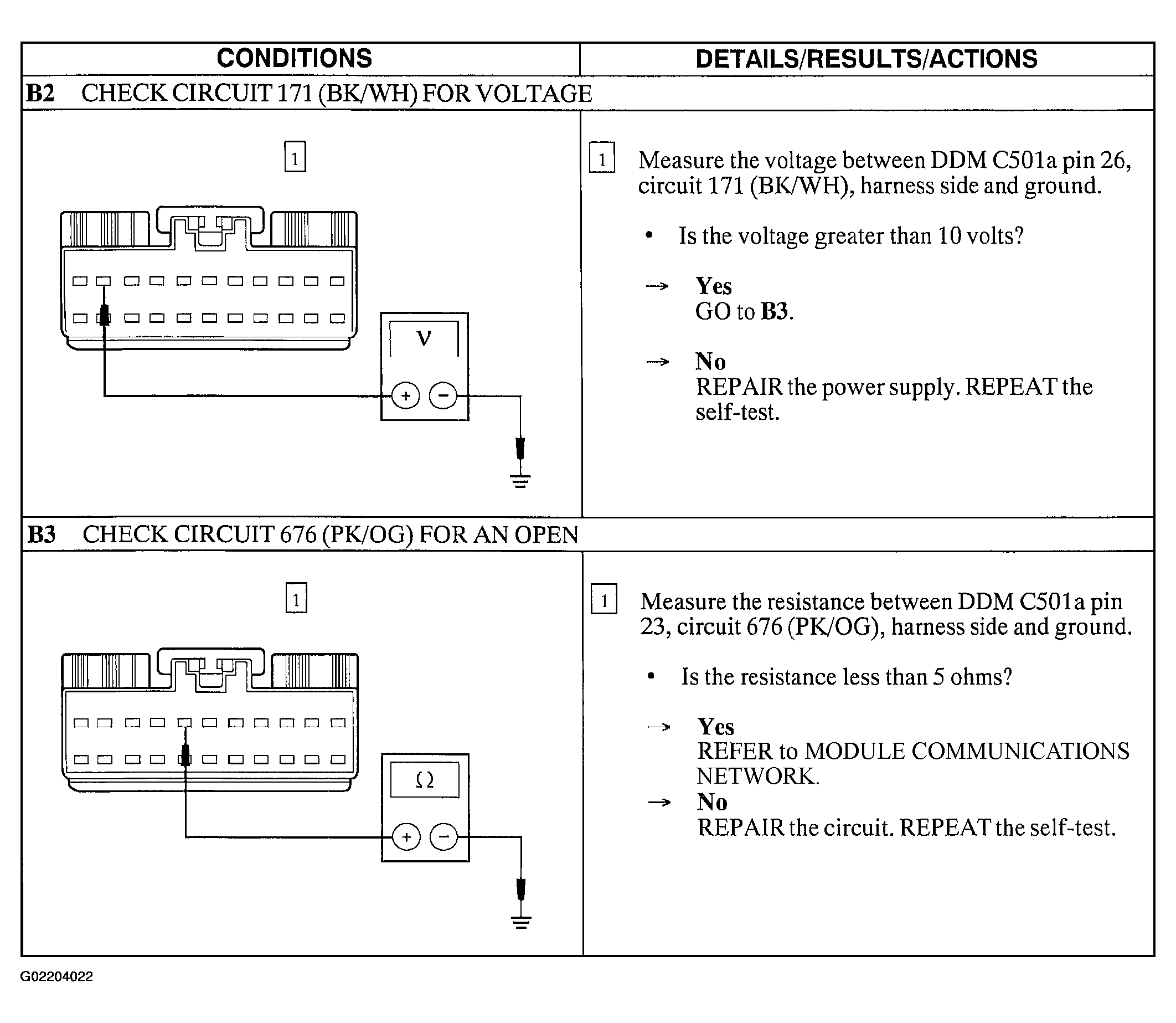

Fig 2: Pinpoint Test B: No Communication With Driver Door Module (DDM) (B2-B3)
