Steering Gear: Installation

  1. Follow the removal procedure in reverse order.

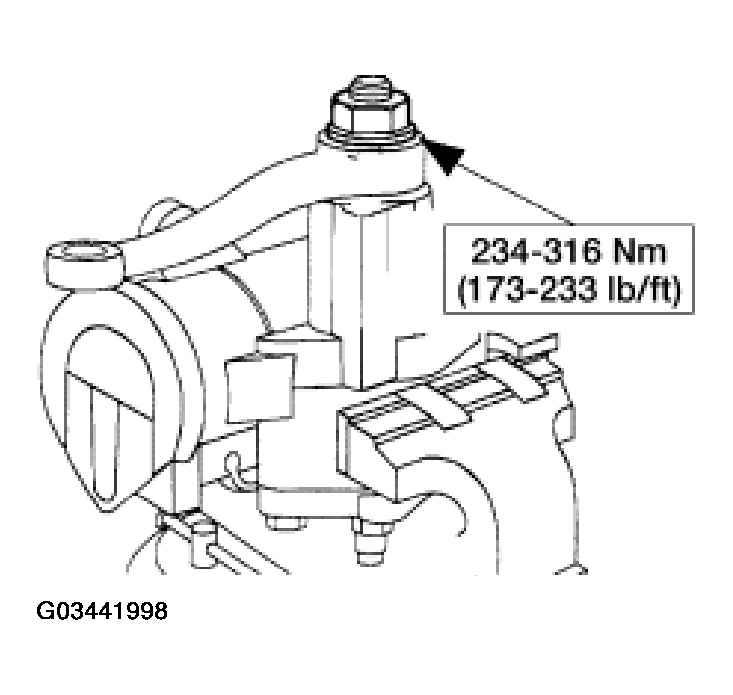

    Fig 1: Installing Nut & Lockwasher
    G03441998Courtesy of FORD MOTOR CO.

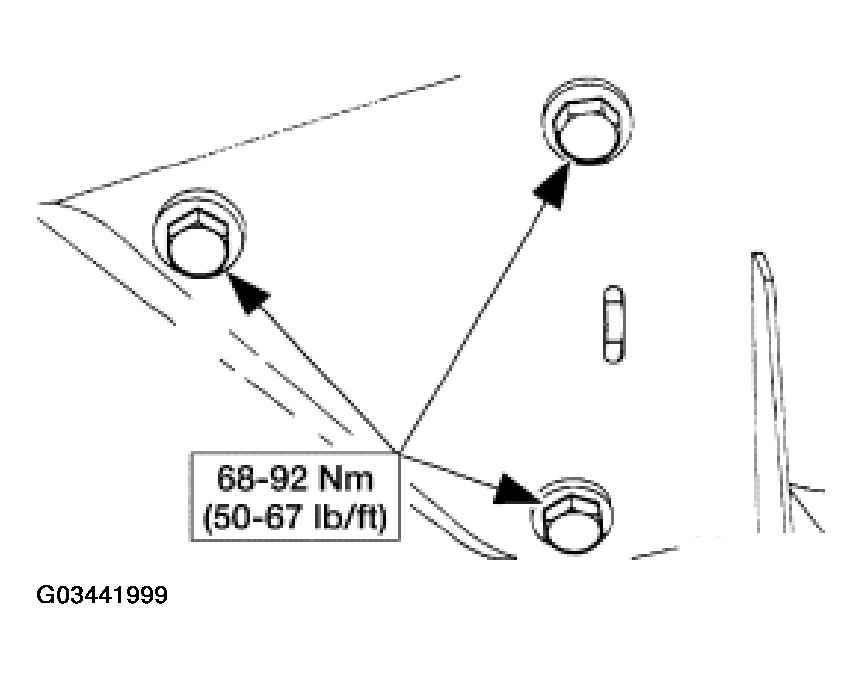

    Fig 2: Installing Steering Gear Bolts
    G03441999Courtesy of FORD MOTOR CO.

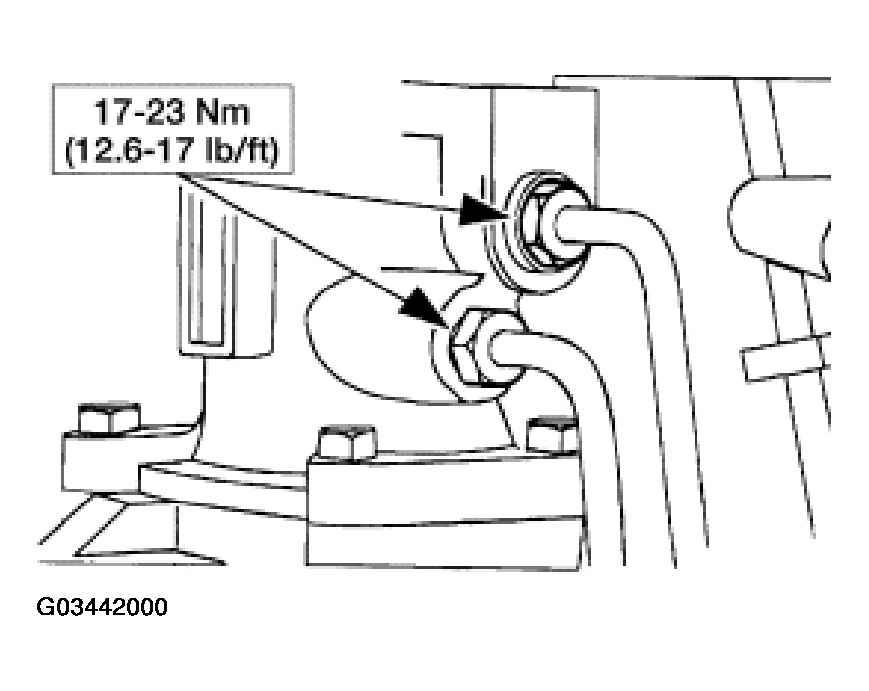

    Fig 3: Connecting Power Steering Lines
    G03442000Courtesy of FORD MOTOR CO.

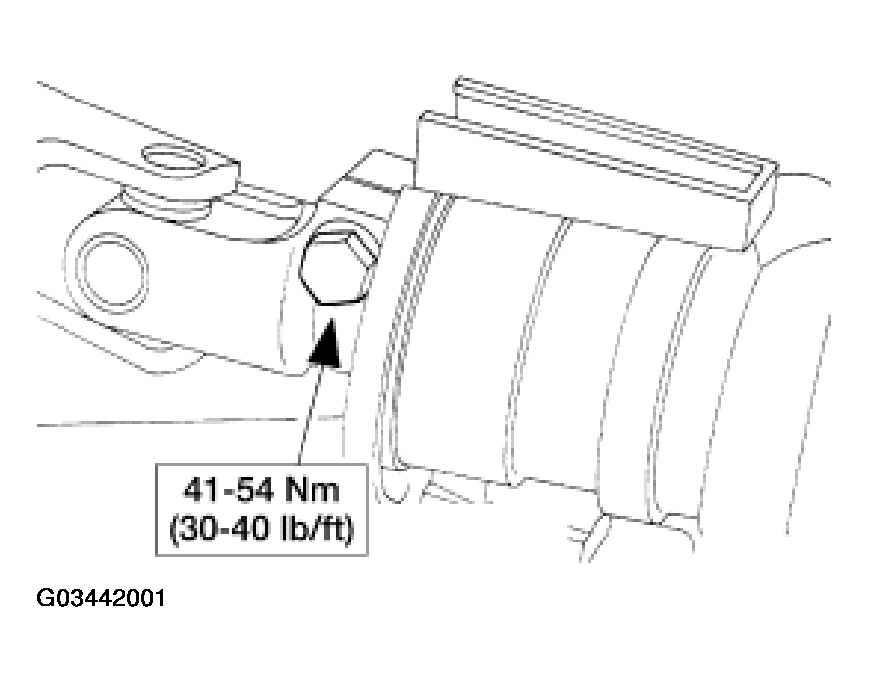

    Fig 4: Installing Pinch Bolt
    G03442001Courtesy of FORD MOTOR CO.

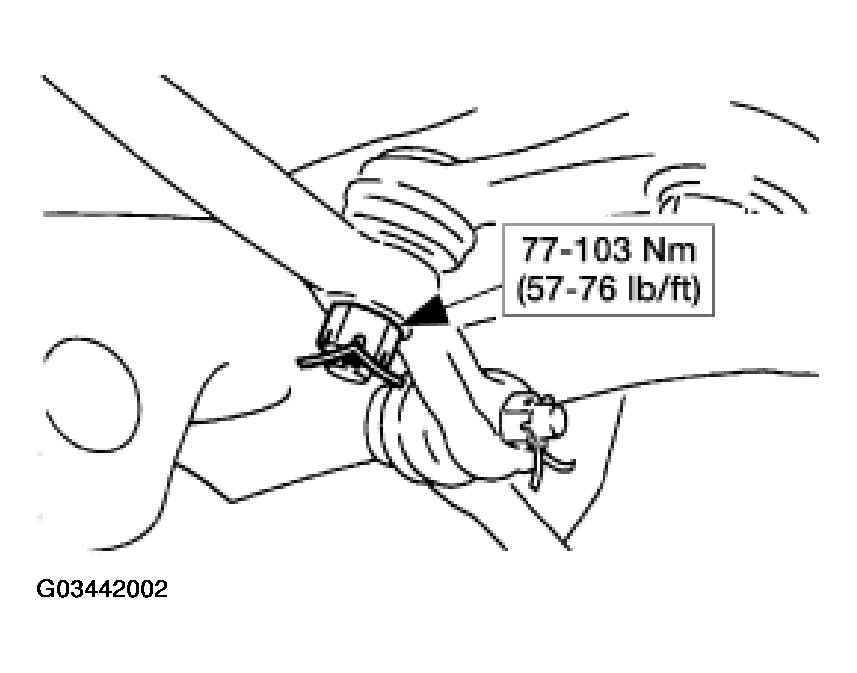

    Fig 5: Installing Steering Sector Shaft Arm Drag Link Castellated Nut
    G03442002Courtesy of FORD MOTOR CO.
  2. Fill and leak check the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
