Disassembly And Assembly: Axle: Notes

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

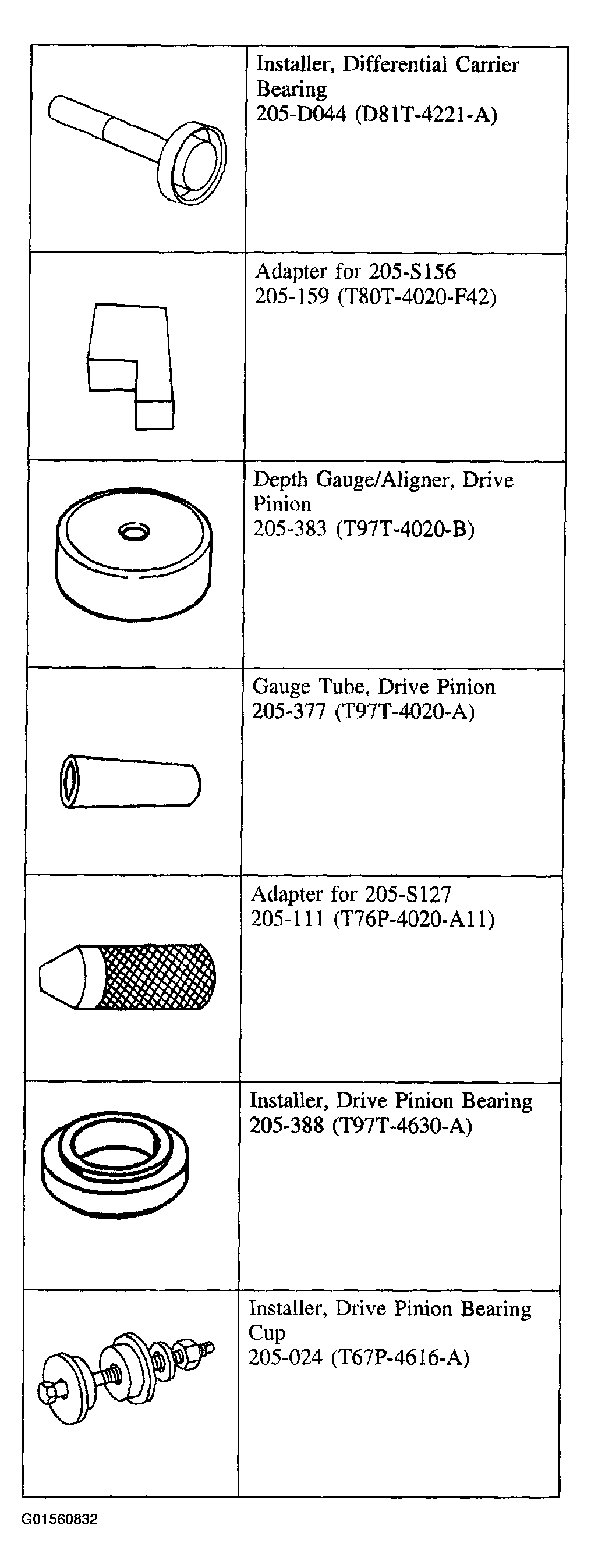

Fig 1: Identifying Special Tool(s) (1 Of 6)

Courtesy of FORD MOTOR CO.

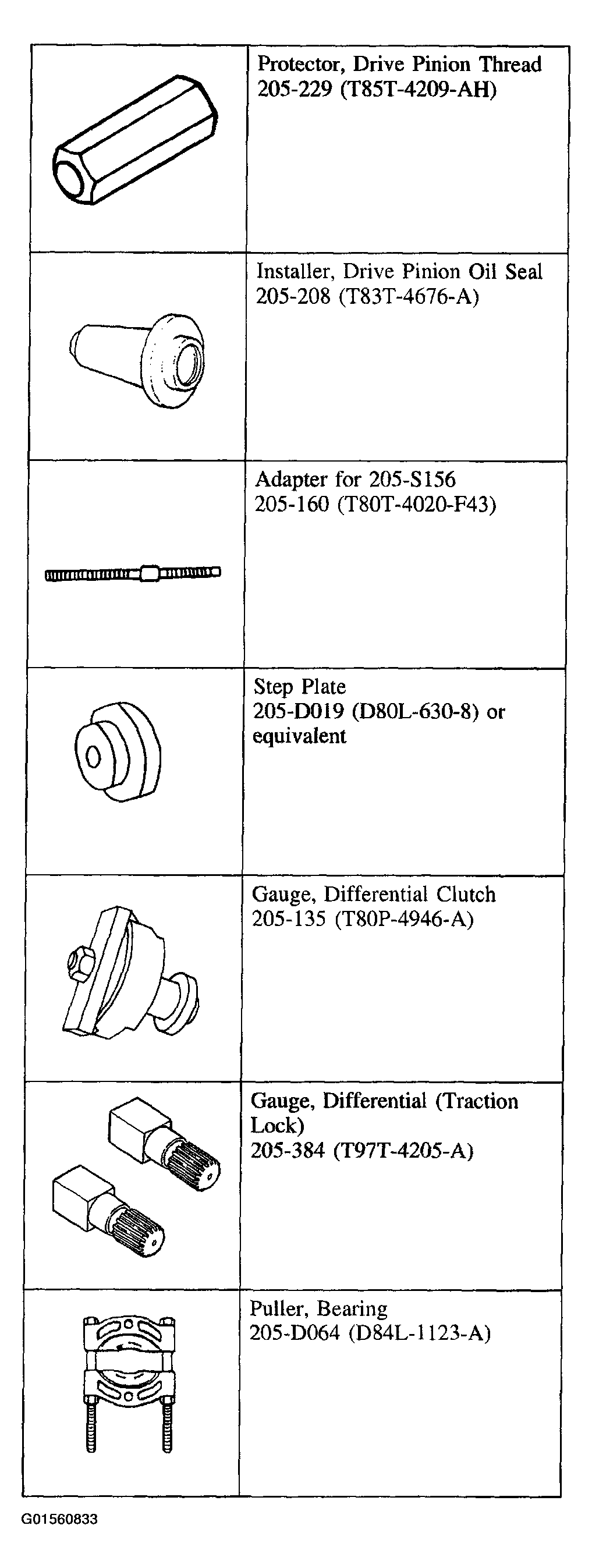

Fig 2: Identifying Special Tool(s) (2 Of 6)

Courtesy of FORD MOTOR CO.

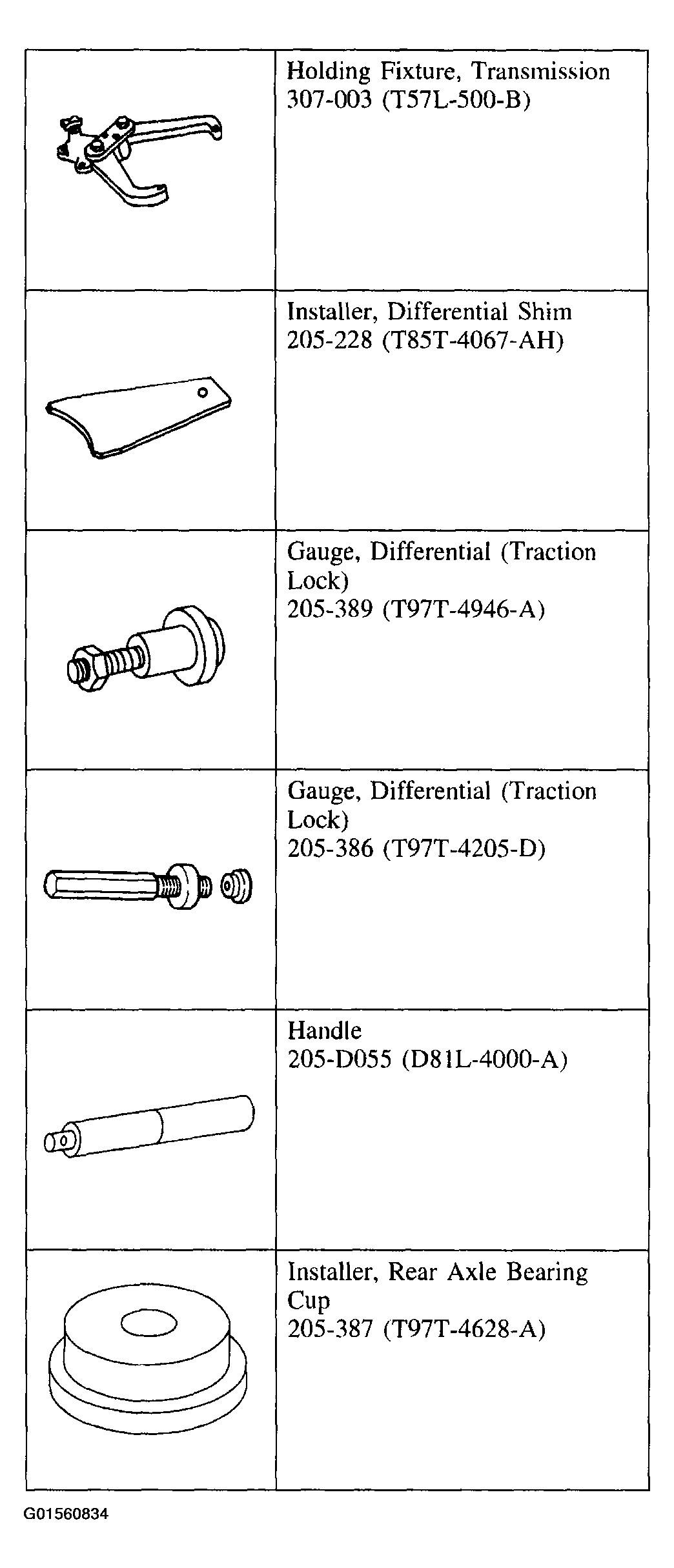

Fig 3: Identifying Special Tool(s) (3 Of 6)

Courtesy of FORD MOTOR CO.

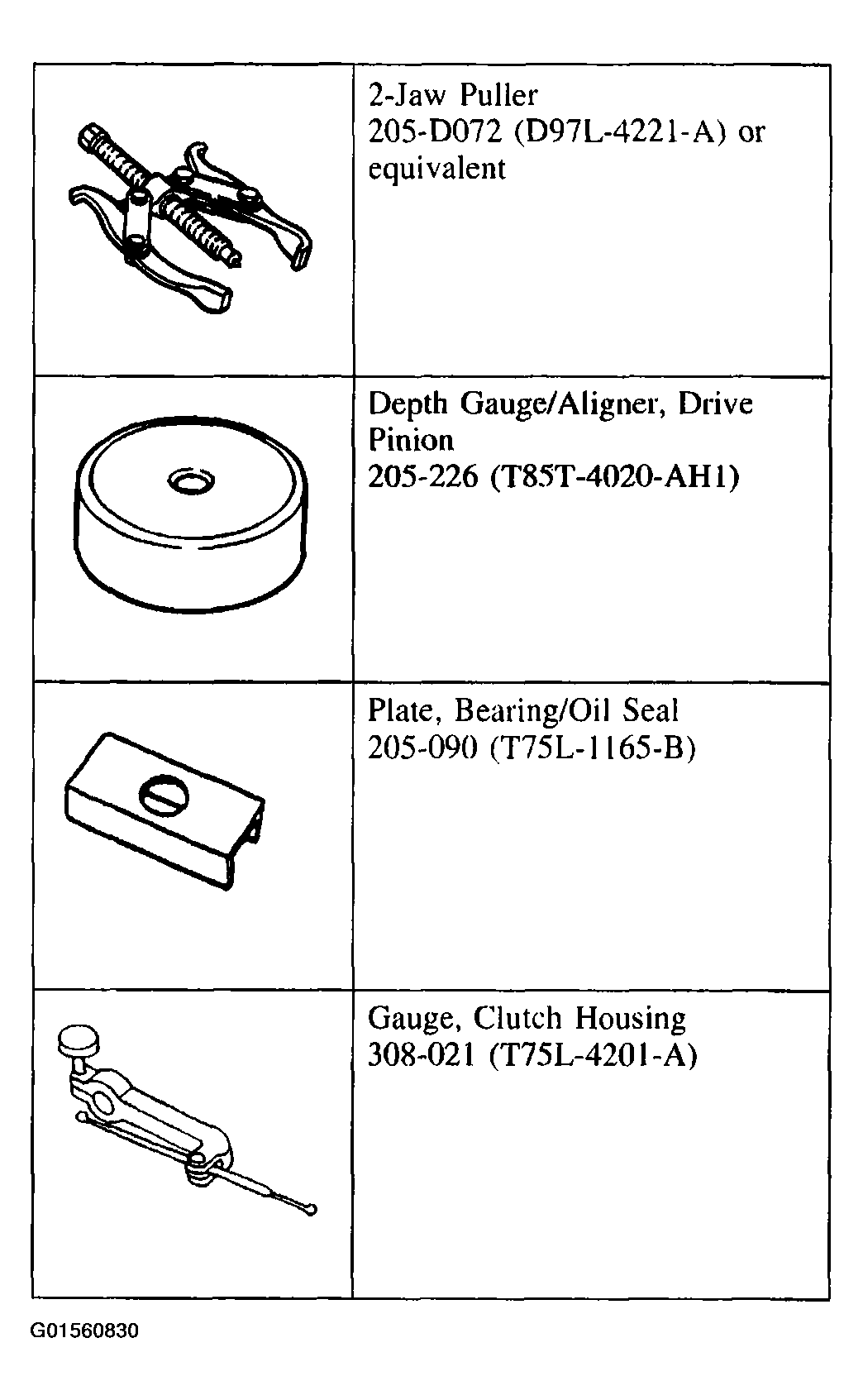

Fig 4: Identifying Special Tool(s) (4 Of 6)

Courtesy of FORD MOTOR CO.

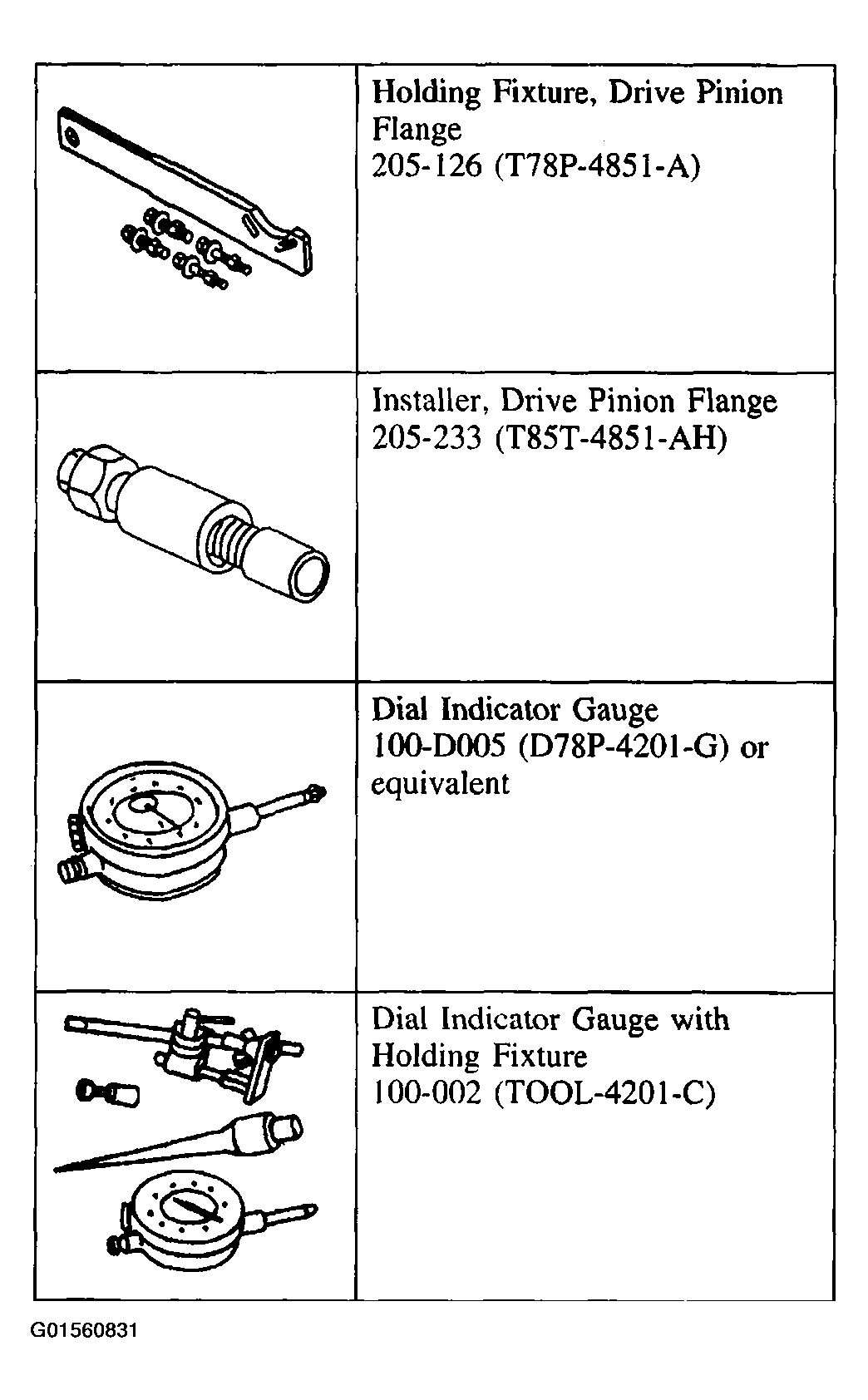

Fig 5: Identifying Special Tool(s) (5 Of 6)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Special Tool(s) (6 Of 6)

Courtesy of FORD MOTOR CO.

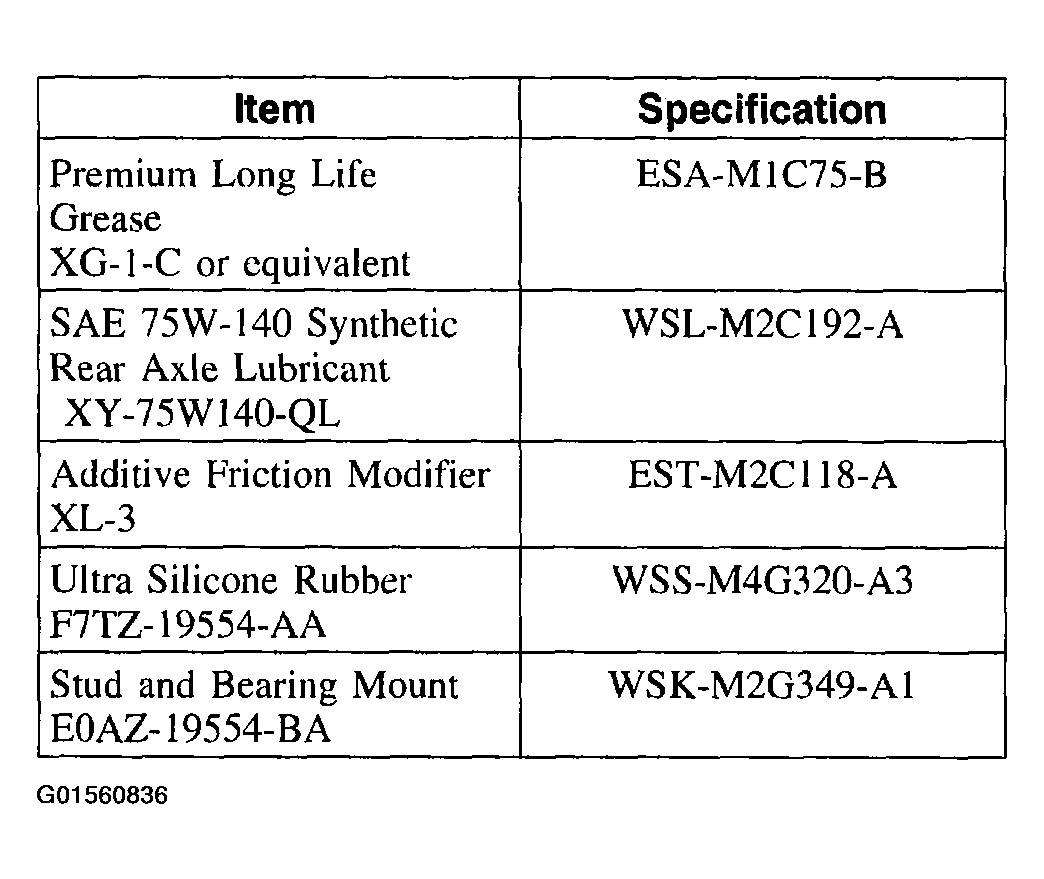

Fig 7: Identifying Material Specifications

Courtesy of FORD MOTOR CO.
