Pinpoint Test D: The Module Does Not Respond To The Diagnostic Tool - Driver Seat Module (DSM)

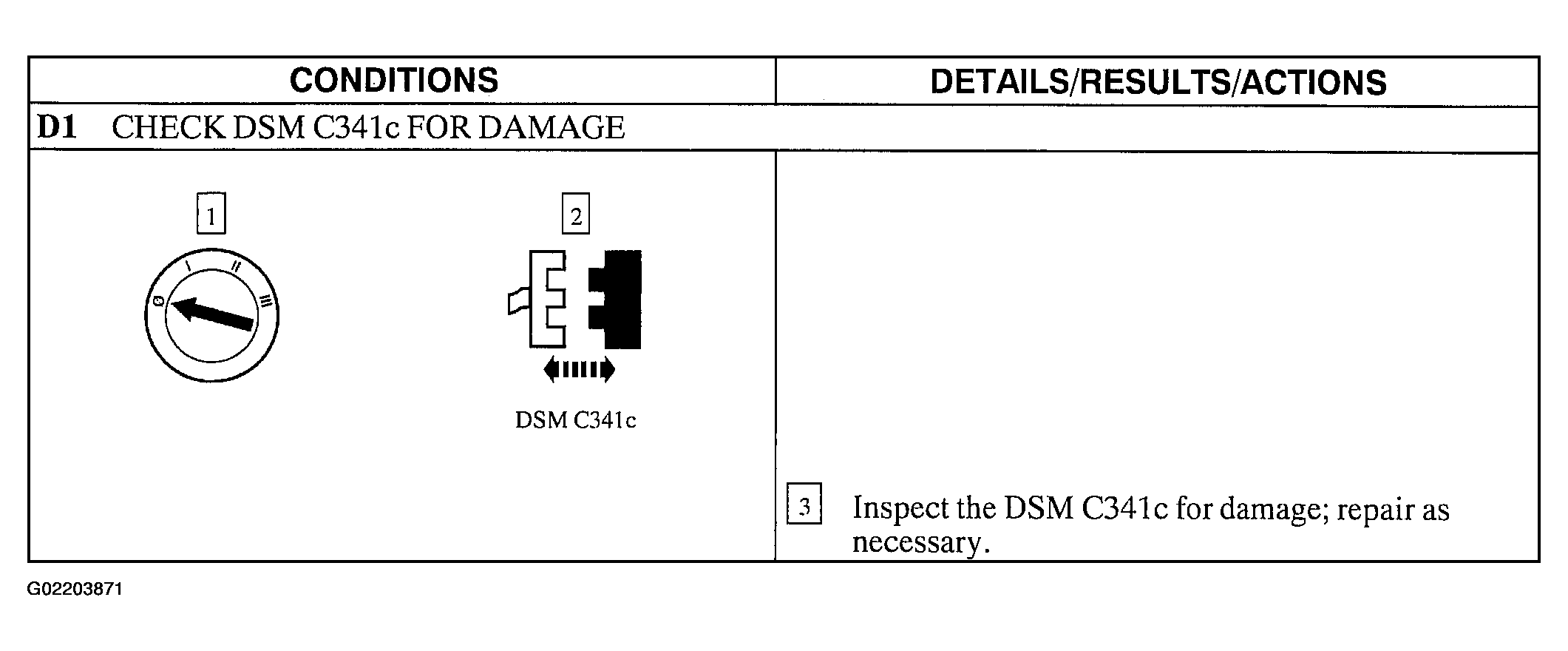

Fig 1: Pinpoint Test D: Module Does Not Respond To Diagnostic Tool - Driver Seat Module (D1)

Courtesy of FORD MOTOR CO.

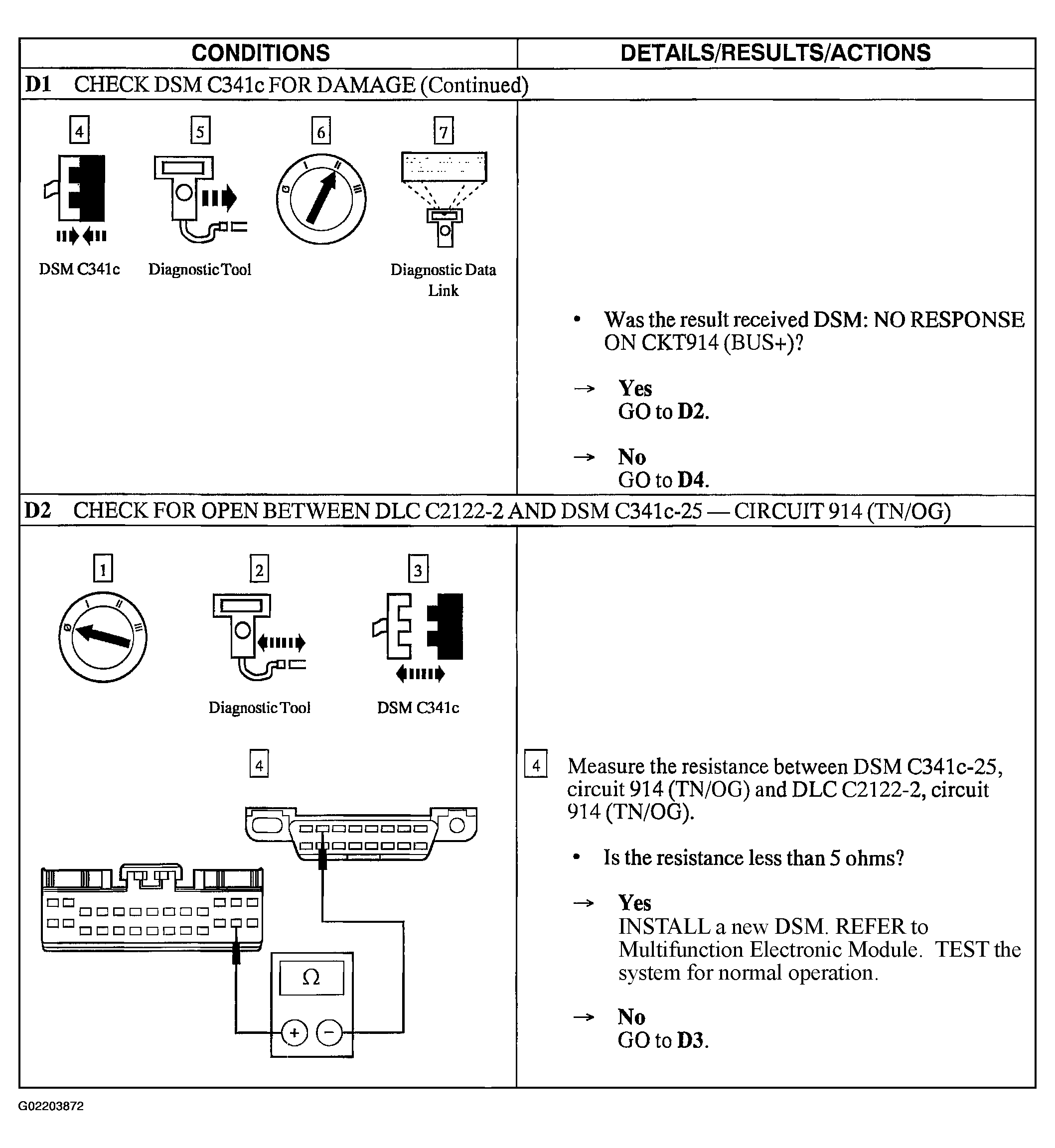

Fig 2: Pinpoint Test D: Module Does Not Respond To Diagnostic Tool - Driver Seat Module (D1 Cont.-D2)

Courtesy of FORD MOTOR CO.

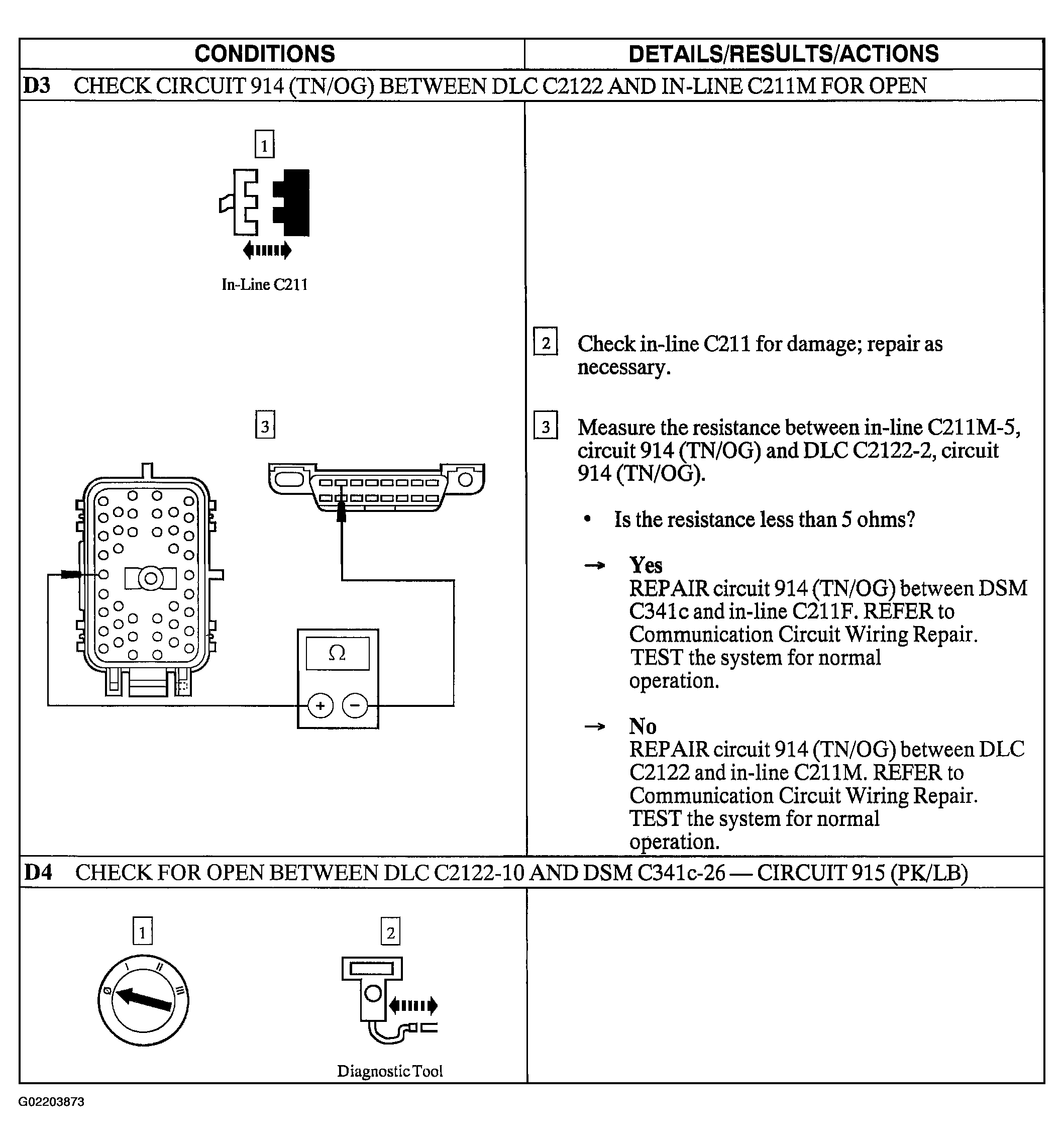

Fig 3: Pinpoint Test D: Module Does Not Respond To Diagnostic Tool - Driver Seat Module (D3-D4)

Courtesy of FORD MOTOR CO.

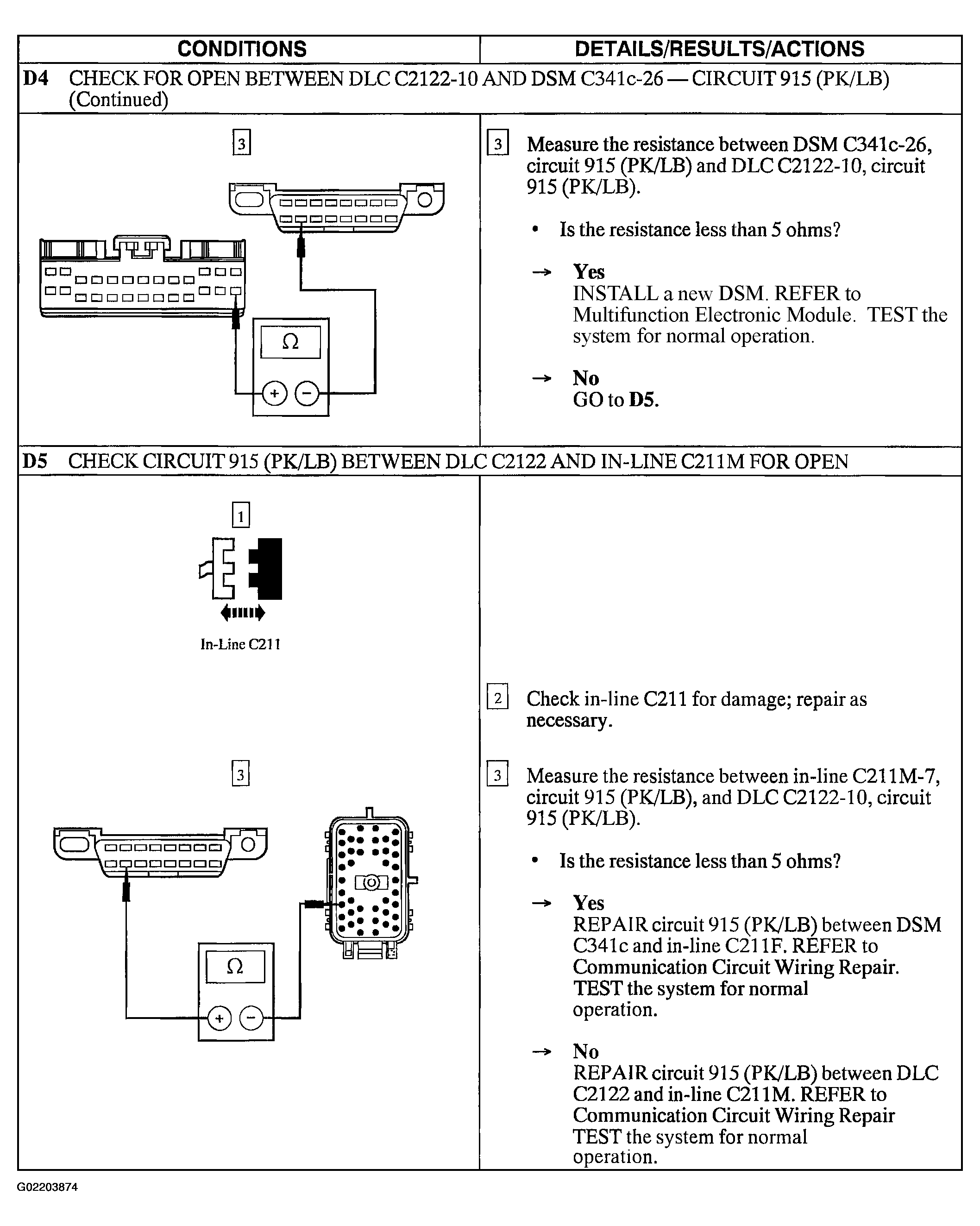

Fig 4: Pinpoint Test D: Module Does Not Respond To Diagnostic Tool - Driver Seat Module (D4 Cont.-D5)

Courtesy of FORD MOTOR CO.
