Pinpoint Test E: The Module Does Not Respond To The Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module

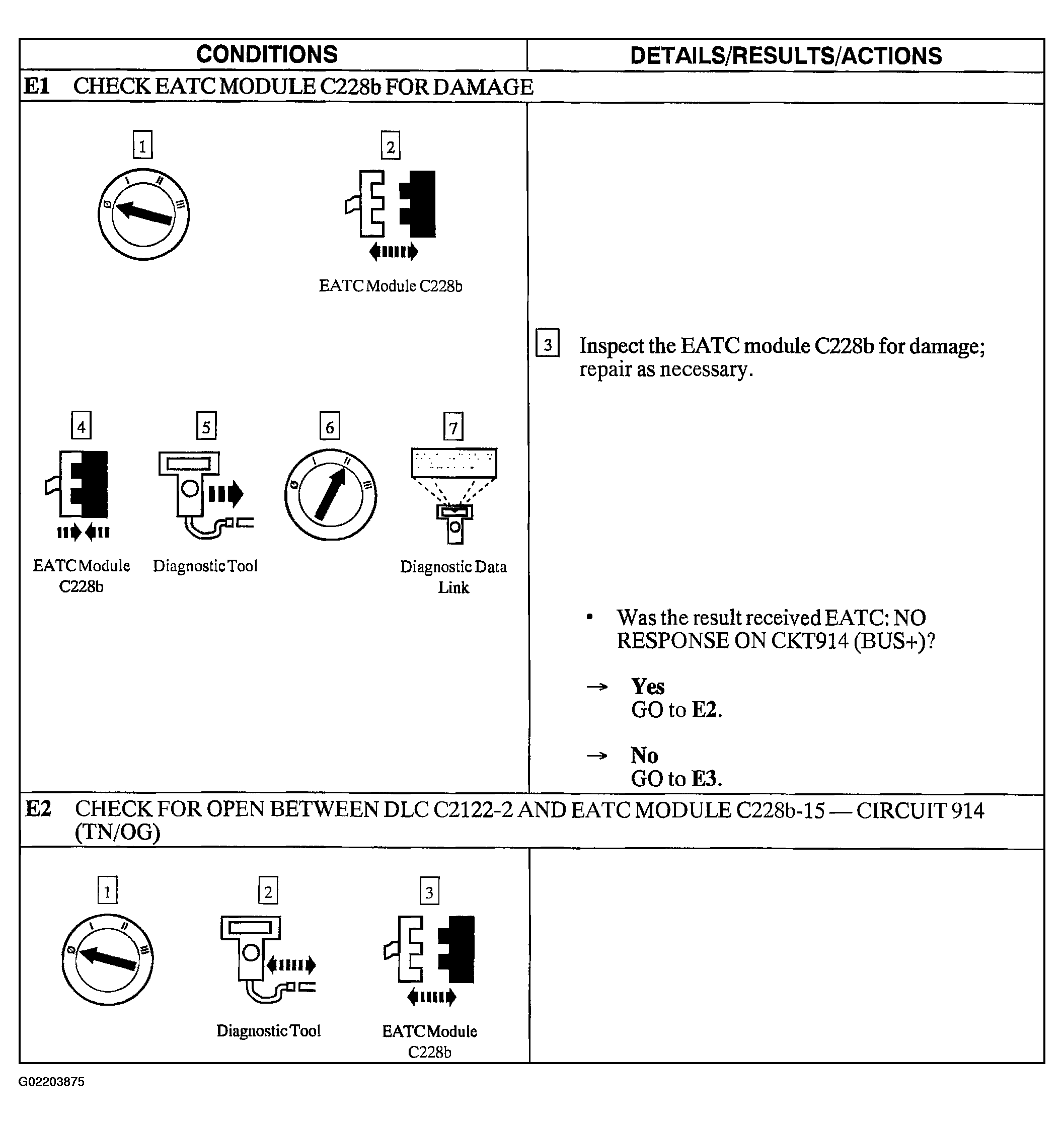

Fig 1: Pinpoint Test E: Module Does Not Respond To Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module (E1-E2)

Courtesy of FORD MOTOR CO.

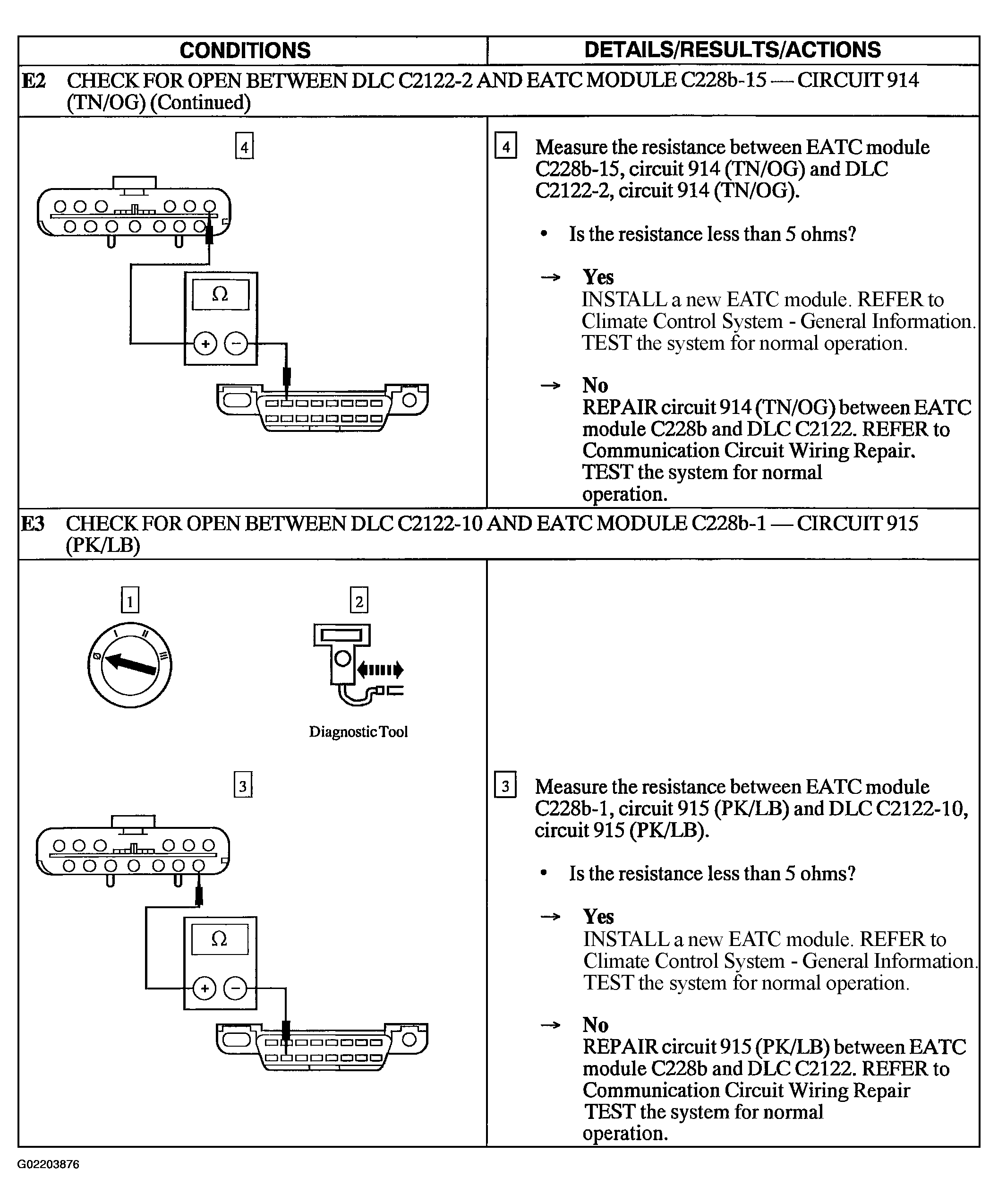

Fig 2: Pinpoint Test E: Module Does Not Respond To Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module (E2 Cont.-E3)

Courtesy of FORD MOTOR CO.
