Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo

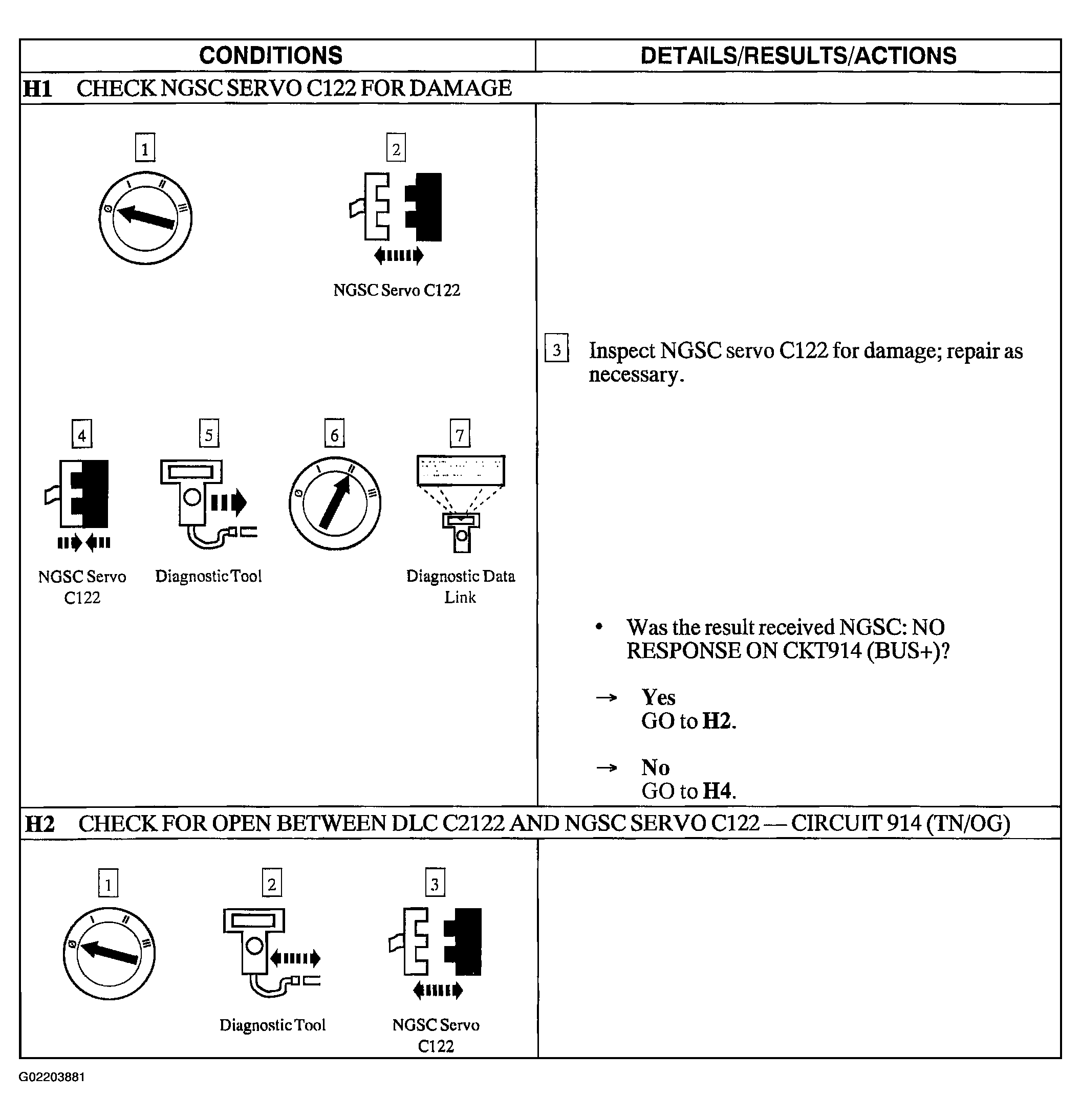

Fig 1: Pinpoint Test H: Module Does Not Respond To Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (H1-H2)

Courtesy of FORD MOTOR CO.

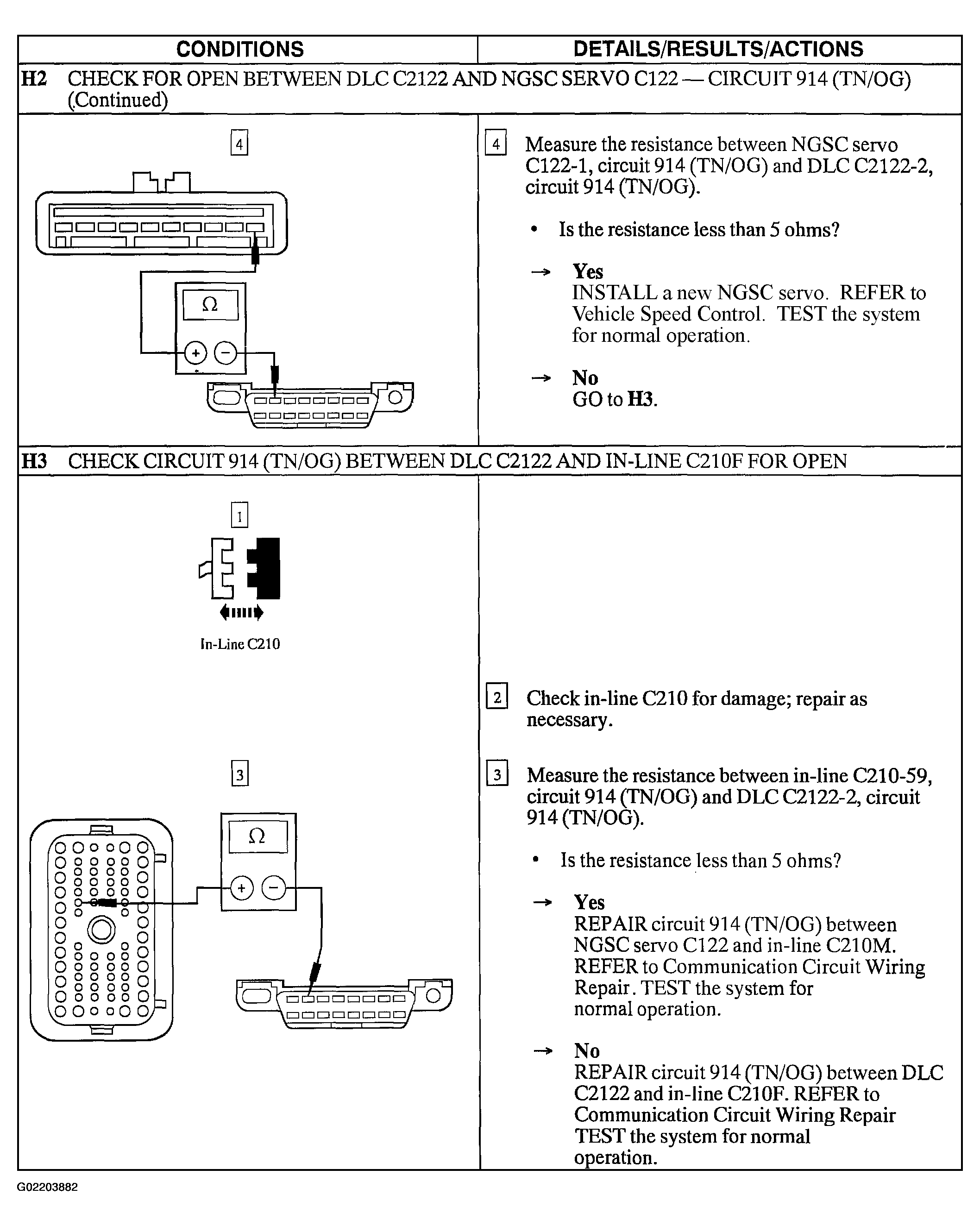

Fig 2: Pinpoint Test H: Module Does Not Respond To Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (H2 Cont.-H3)

Courtesy of FORD MOTOR CO.

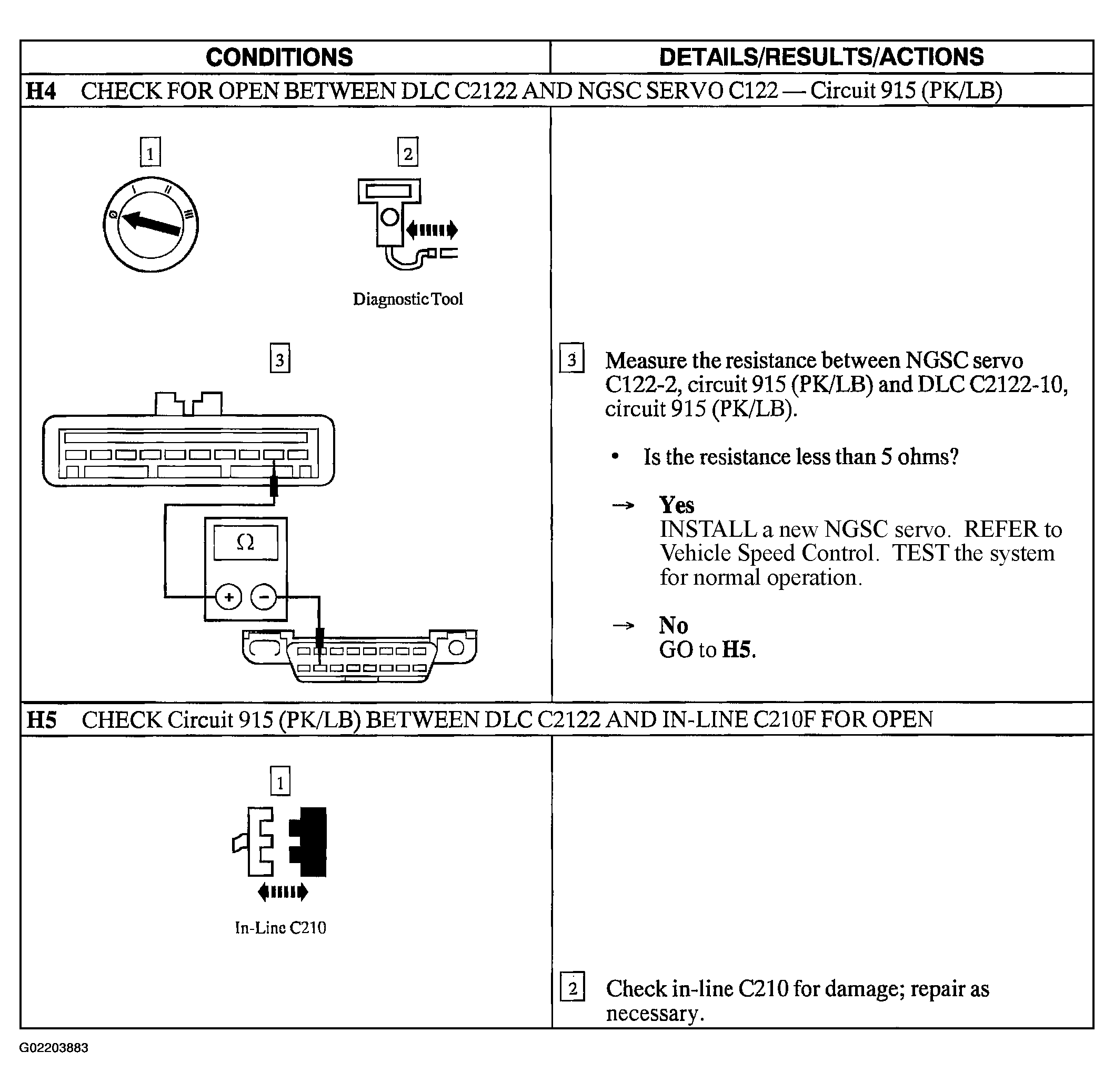

Fig 3: Pinpoint Test H: Module Does Not Respond To Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (H4-H5)

Courtesy of FORD MOTOR CO.

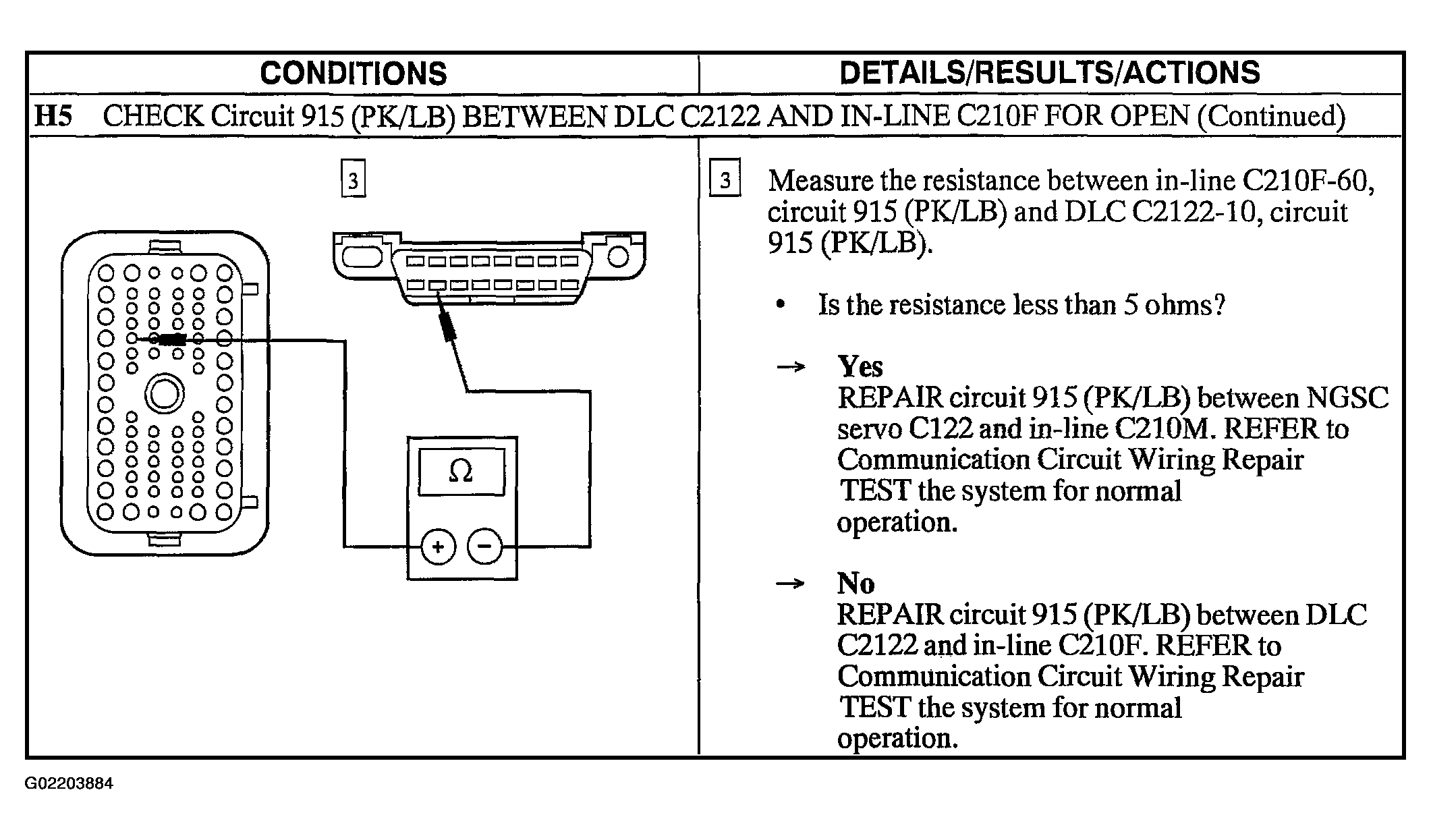

Fig 4: Pinpoint Test H: Module Does Not Respond To Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (H5)
