Pinpoint Test I: The Telematics Control Module Does Not Respond To The Diagnostic Tool

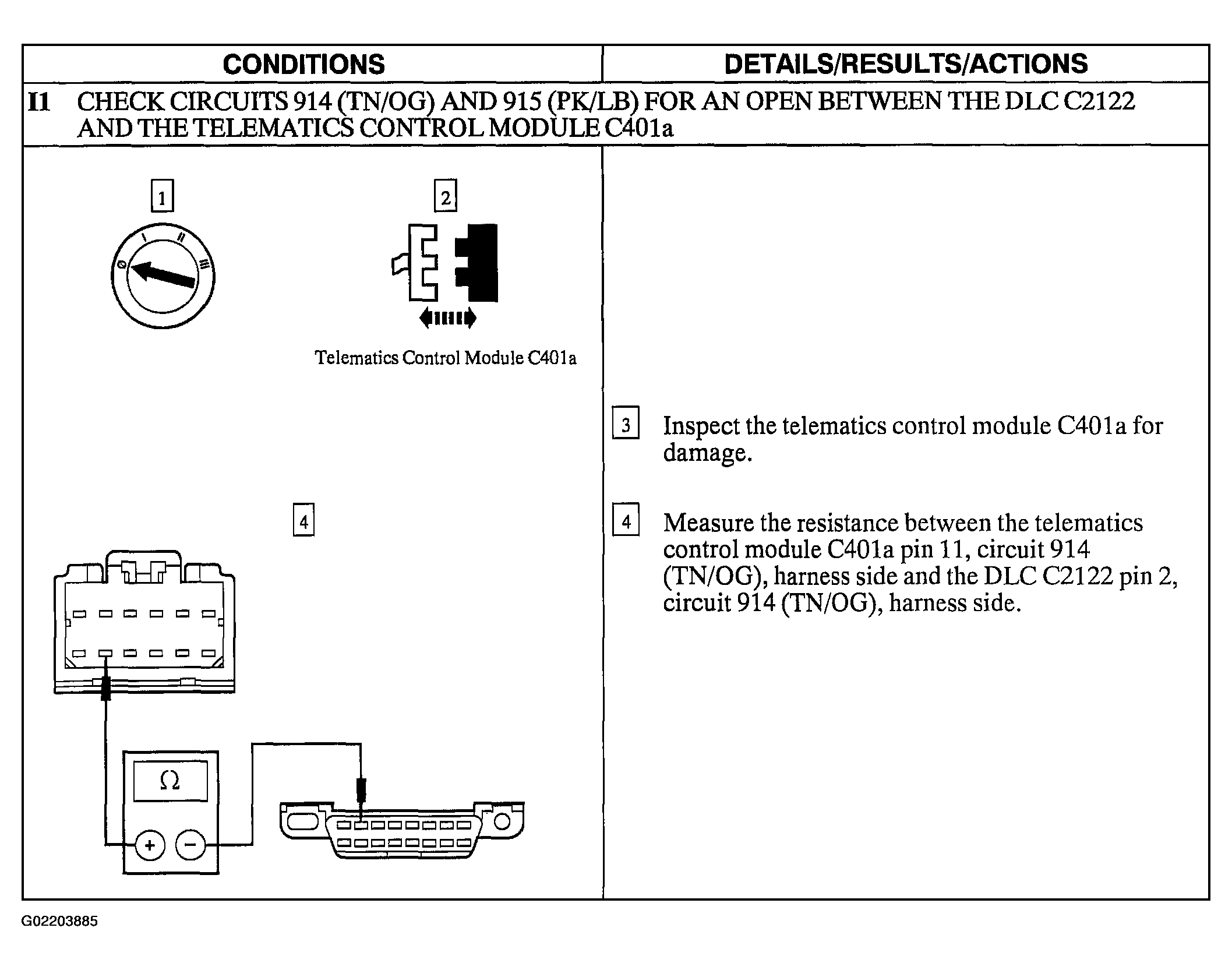

Fig 1: Pinpoint Test I: Telematics Control Module Does Not Respond To Diagnostic Tool (I1)
G02203885Courtesy of FORD MOTOR CO.

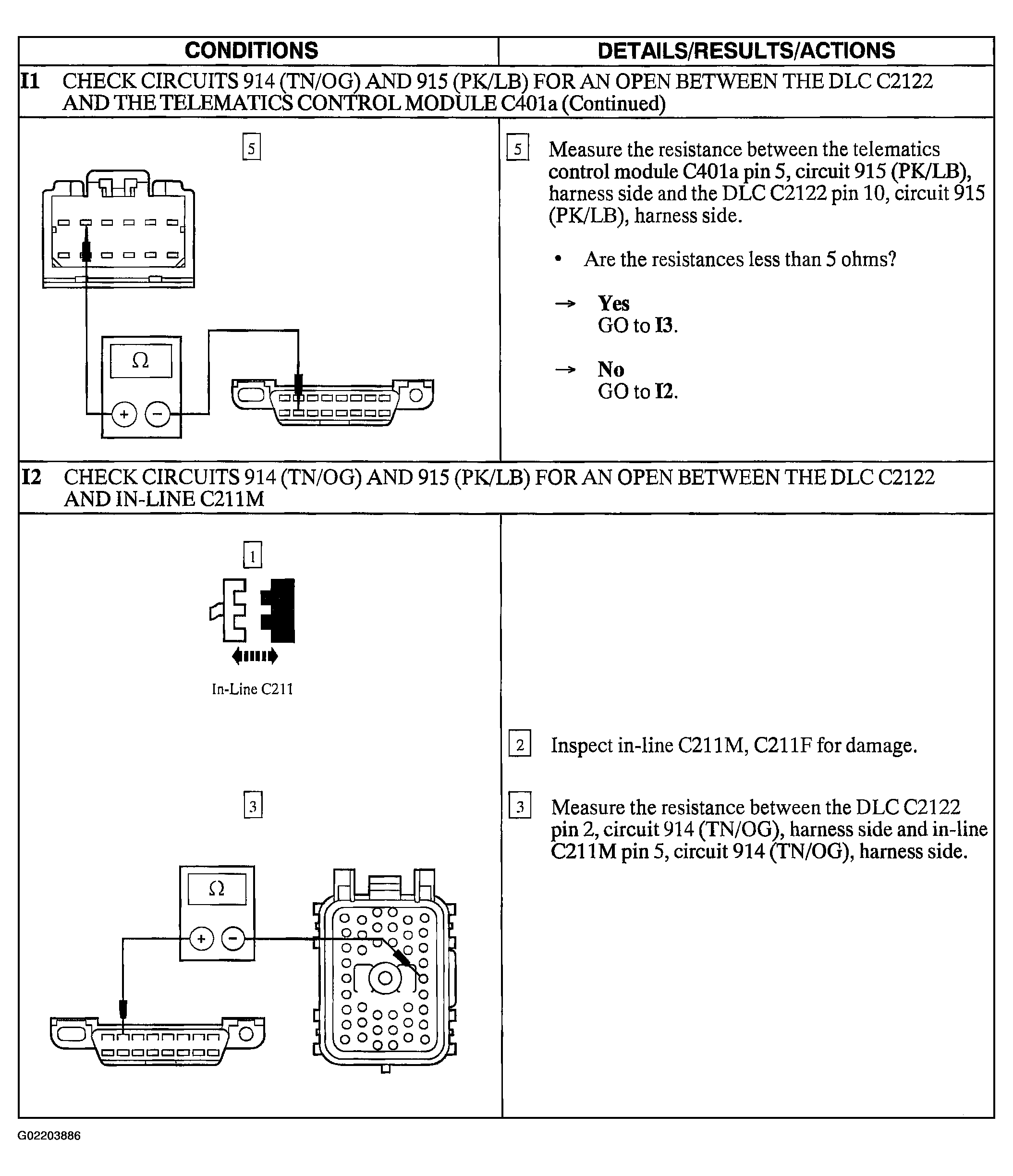

Fig 2: Pinpoint Test I: Telematics Control Module Does Not Respond To Diagnostic Tool (I1 Cont.-I2)
G02203886Courtesy of FORD MOTOR CO.

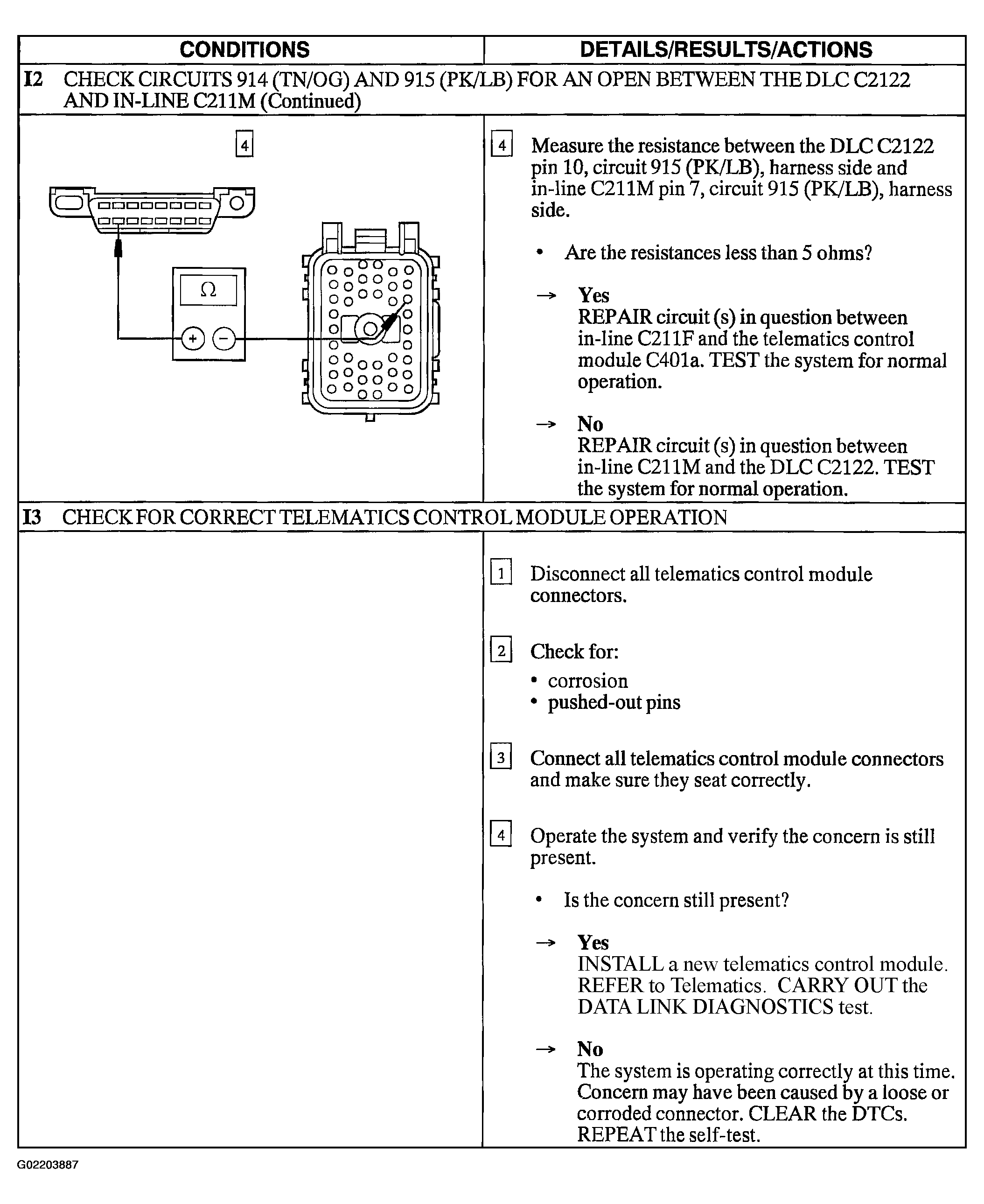

Fig 3: Pinpoint Test I: Telematics Control Module Does Not Respond To Diagnostic Tool (I2 Cont.-I3)
G02203887Courtesy of FORD MOTOR CO.
