Pinpoint Test K: The Module Does Not Respond To The Diagnostic Tool - Rear Air Suspension Module (RASM)

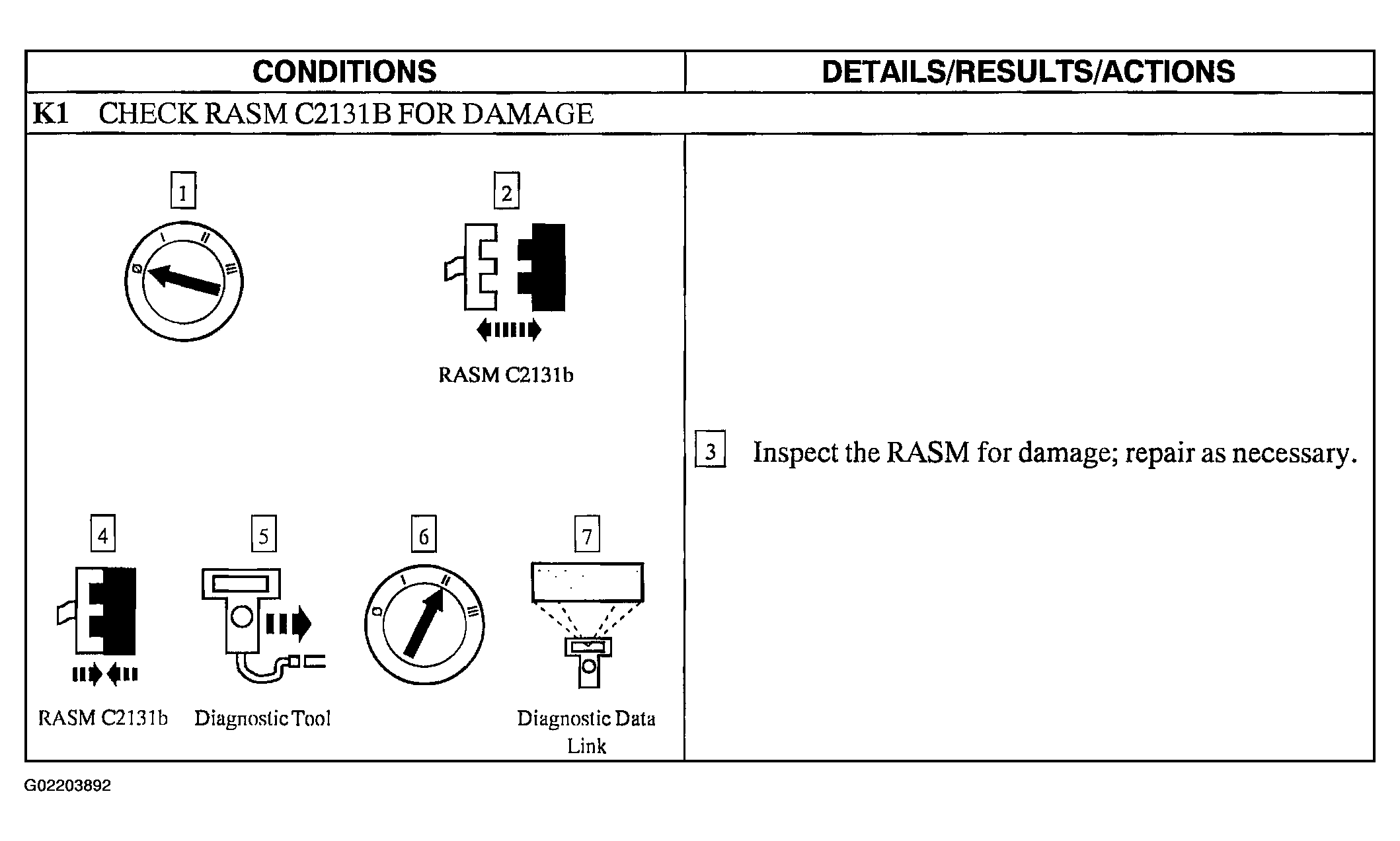

Fig 1: Pinpoint Test K: Module Does Not Respond To Diagnostic Tool - Rear Air Suspension Module (K1)

Courtesy of FORD MOTOR CO.

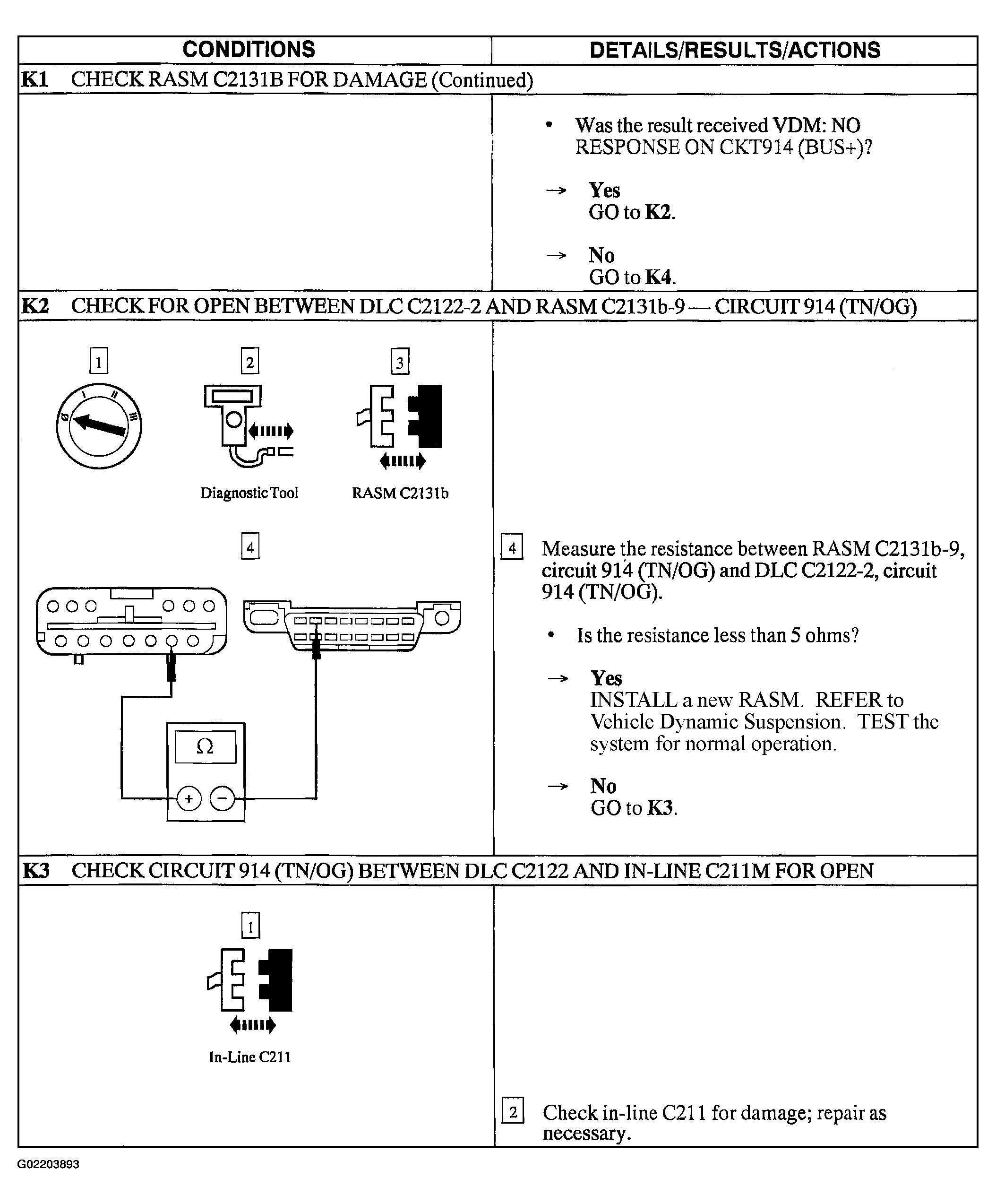

Fig 2: Pinpoint Test K: Module Does Not Respond To Diagnostic Tool - Rear Air Suspension Module (K1 Cont.-K3)

Courtesy of FORD MOTOR CO.

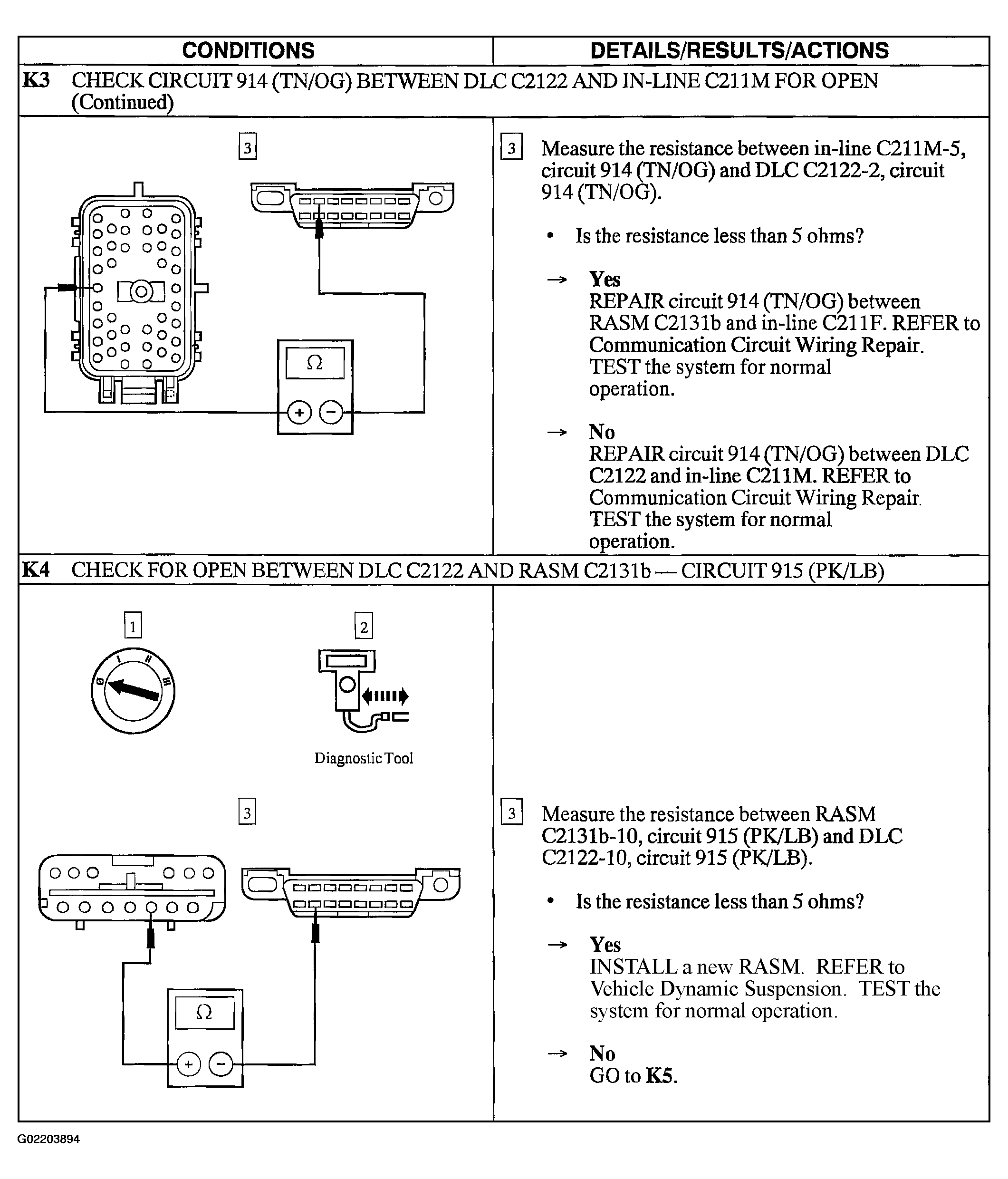

Fig 3: Pinpoint Test K: Module Does Not Respond To Diagnostic Tool - Rear Air Suspension Module (K Cont.-K4)

Courtesy of FORD MOTOR CO.

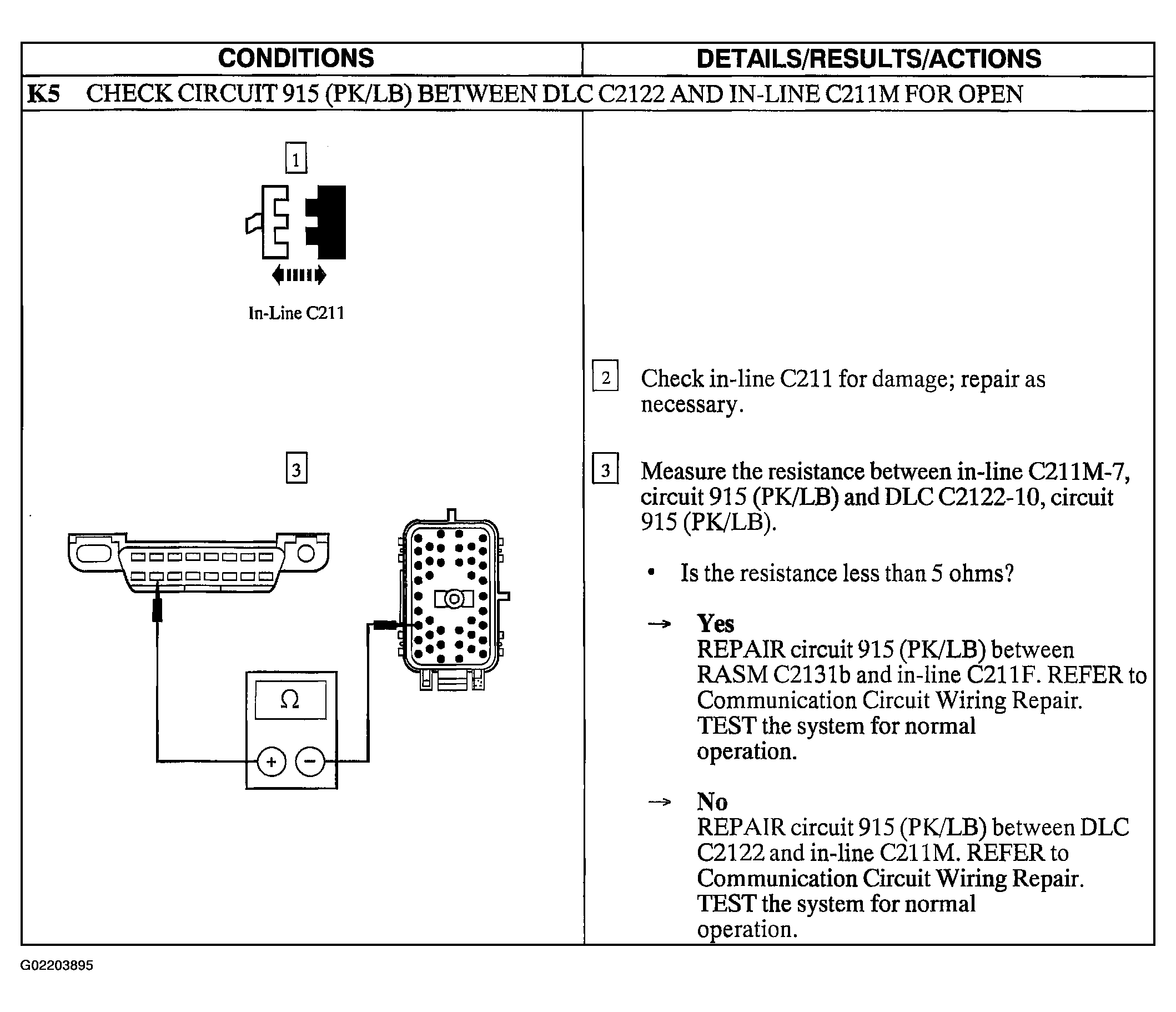

Fig 4: Pinpoint Test K: Module Does Not Respond To Diagnostic Tool - Rear Air Suspension Module (K5)

Courtesy of FORD MOTOR CO.
