Pinpoint Test B: No Communication With The Driver Seat Module-Unable To Carry Out The Driver Seat Module Self-Test

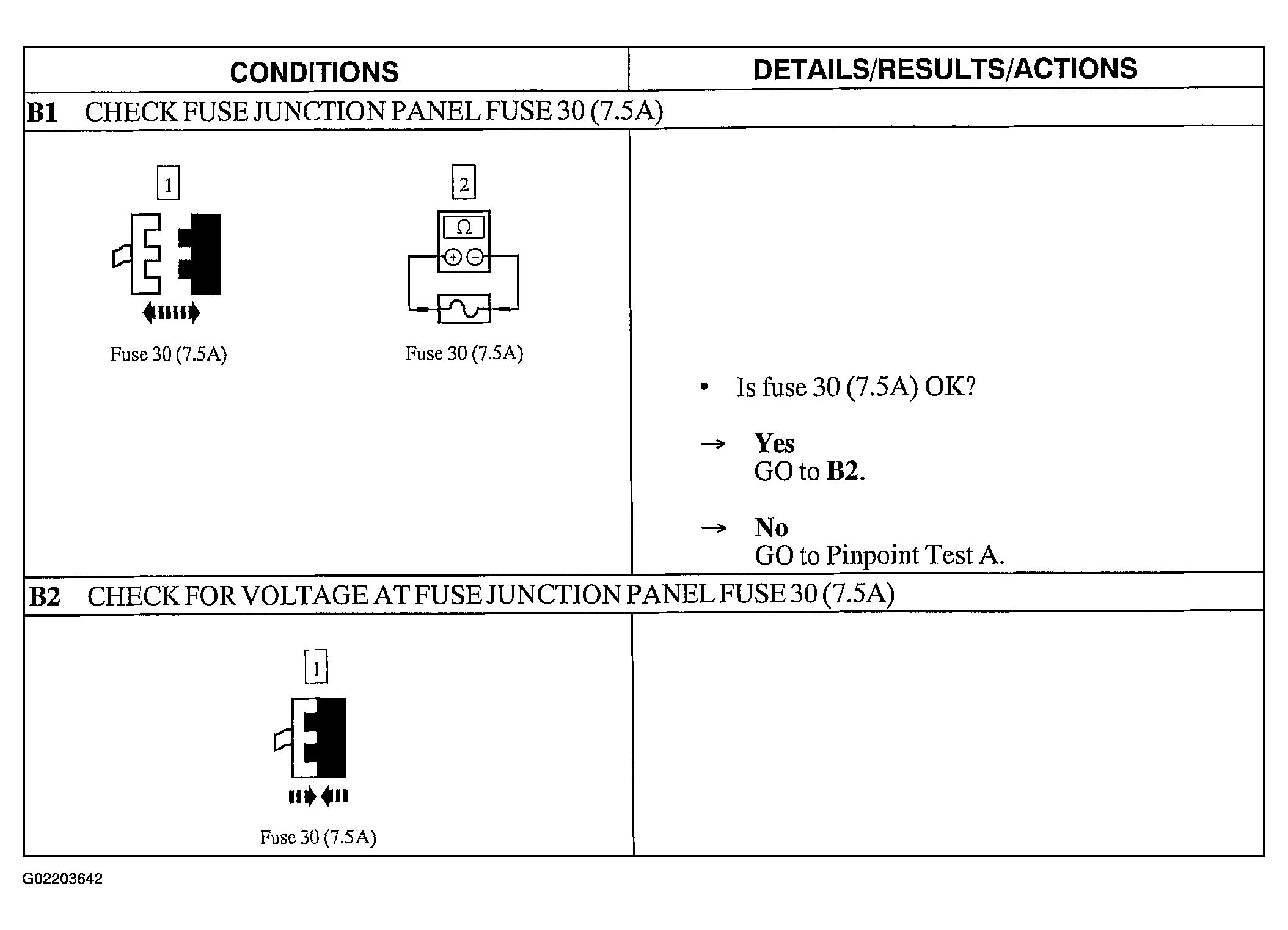

Fig 1: Pinpoint Test B: No Communication With Driver Seat Module - Unable To Carry Out Driver Seat Module Self-Test (B1 - B2)
G02203642Courtesy of FORD MOTOR CO.

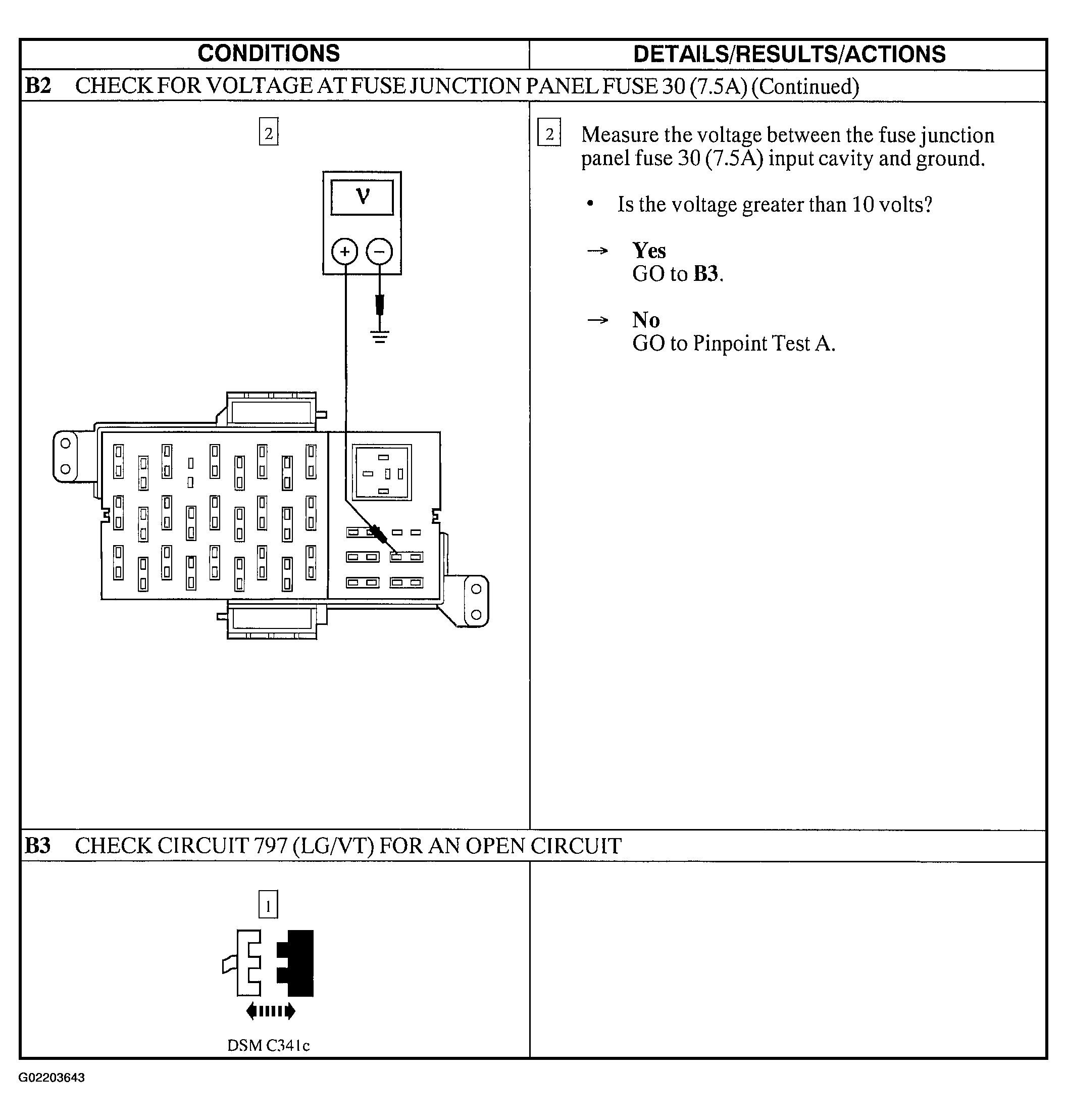

Fig 2: Pinpoint Test B: No Communication With Driver Seat Module - Unable To Carry Out Driver Seat Module Self-Test (B2 - B3)
G02203643Courtesy of FORD MOTOR CO.

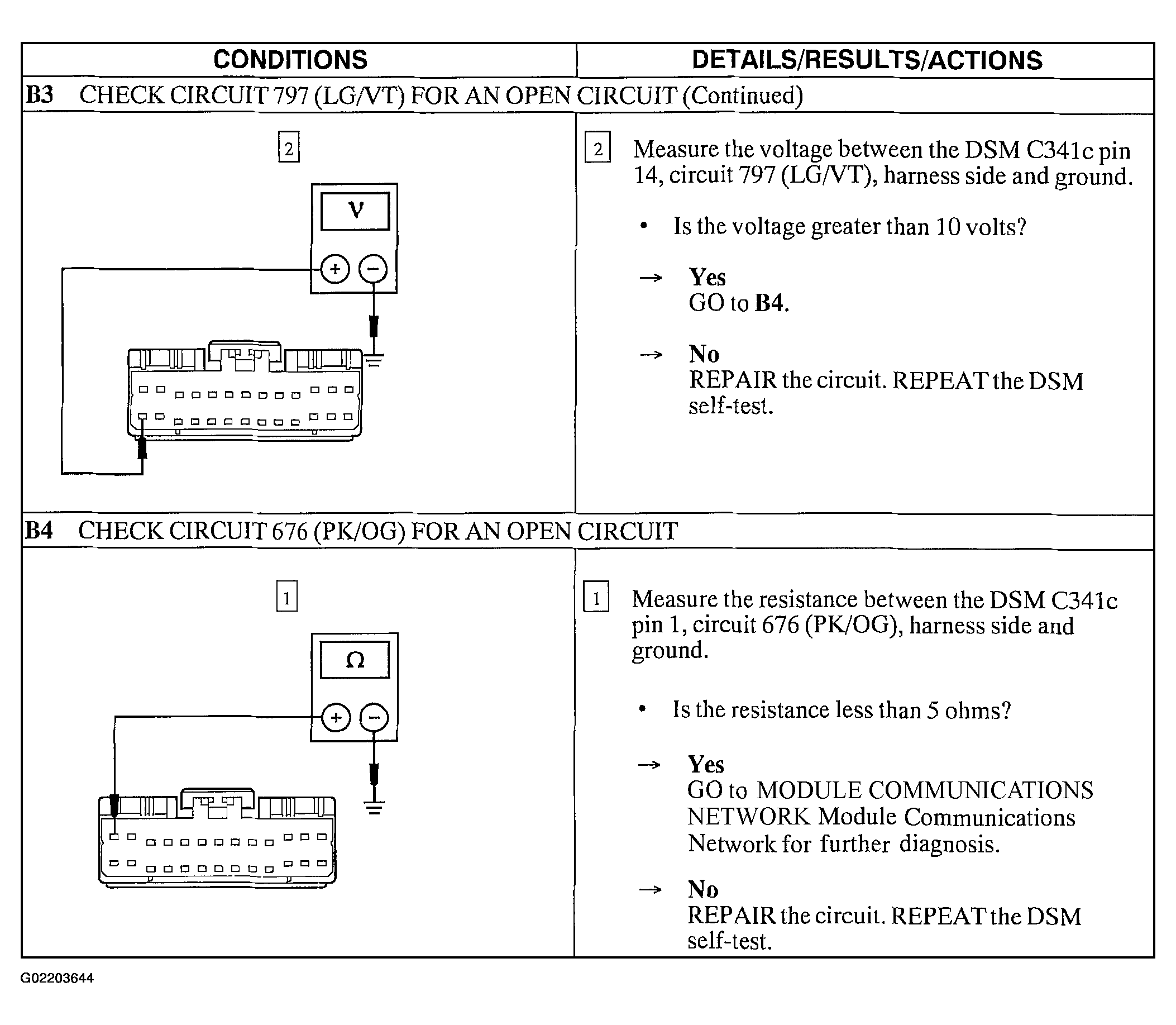

Fig 3: Pinpoint Test B: No Communication With Driver Seat Module - Unable To Carry Out Driver Seat Module Self-Test (B3 - B4)
G02203644Courtesy of FORD MOTOR CO.
