Pinpoint Test G: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

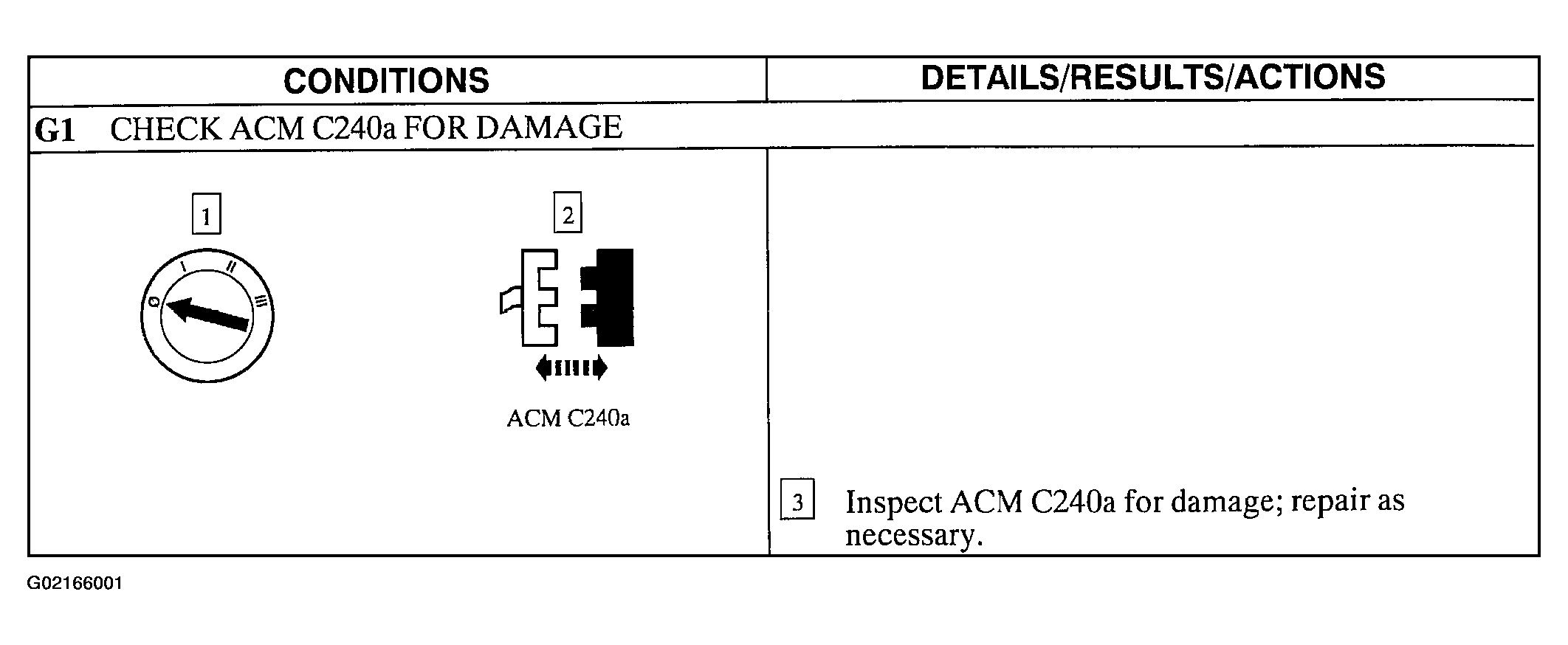

Fig 1: Pinpoint Test G: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool (Step G1)

Courtesy of FORD MOTOR CO.

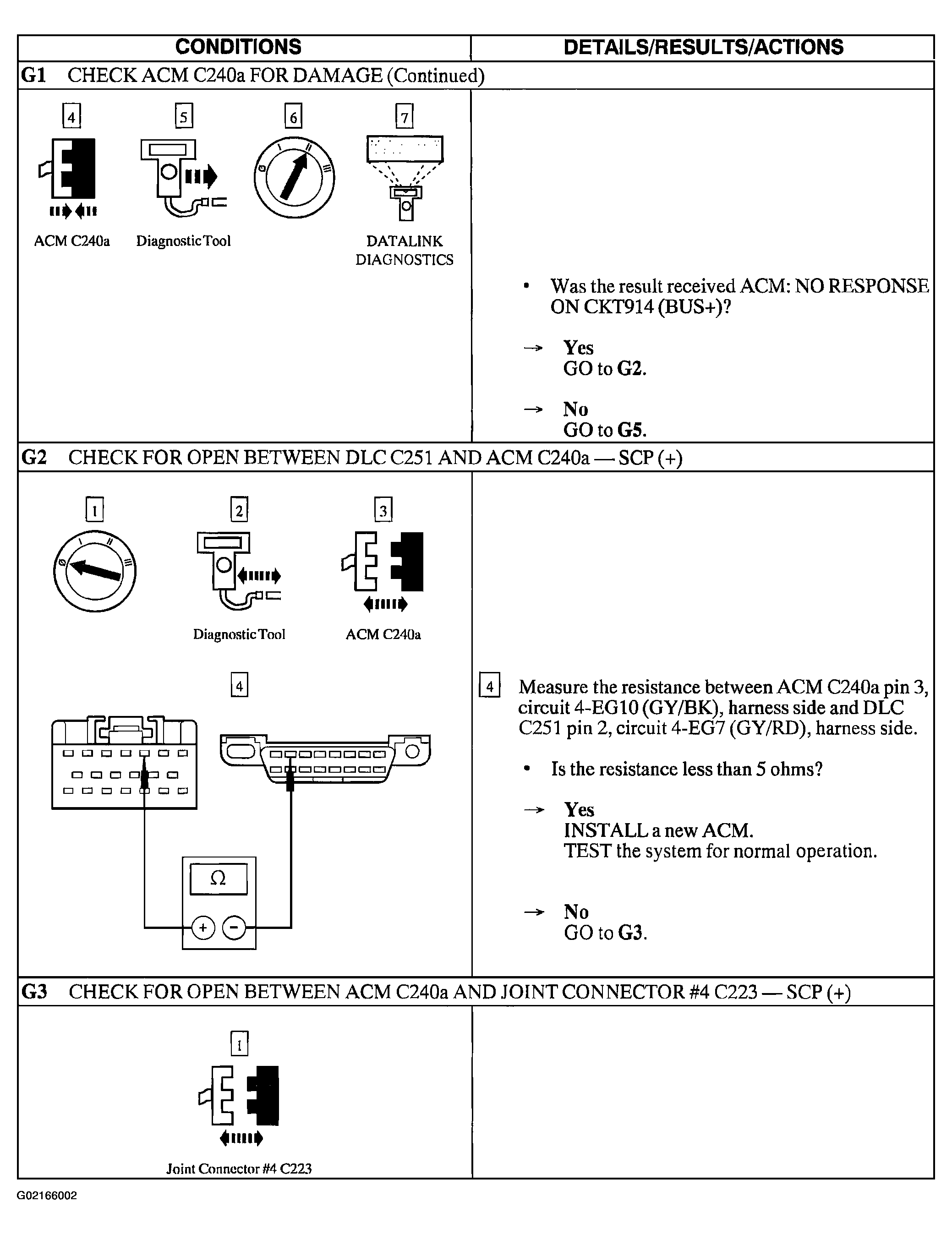

Fig 2: Pinpoint Test G: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool (Steps G1 Cont. To G3)

Courtesy of FORD MOTOR CO.

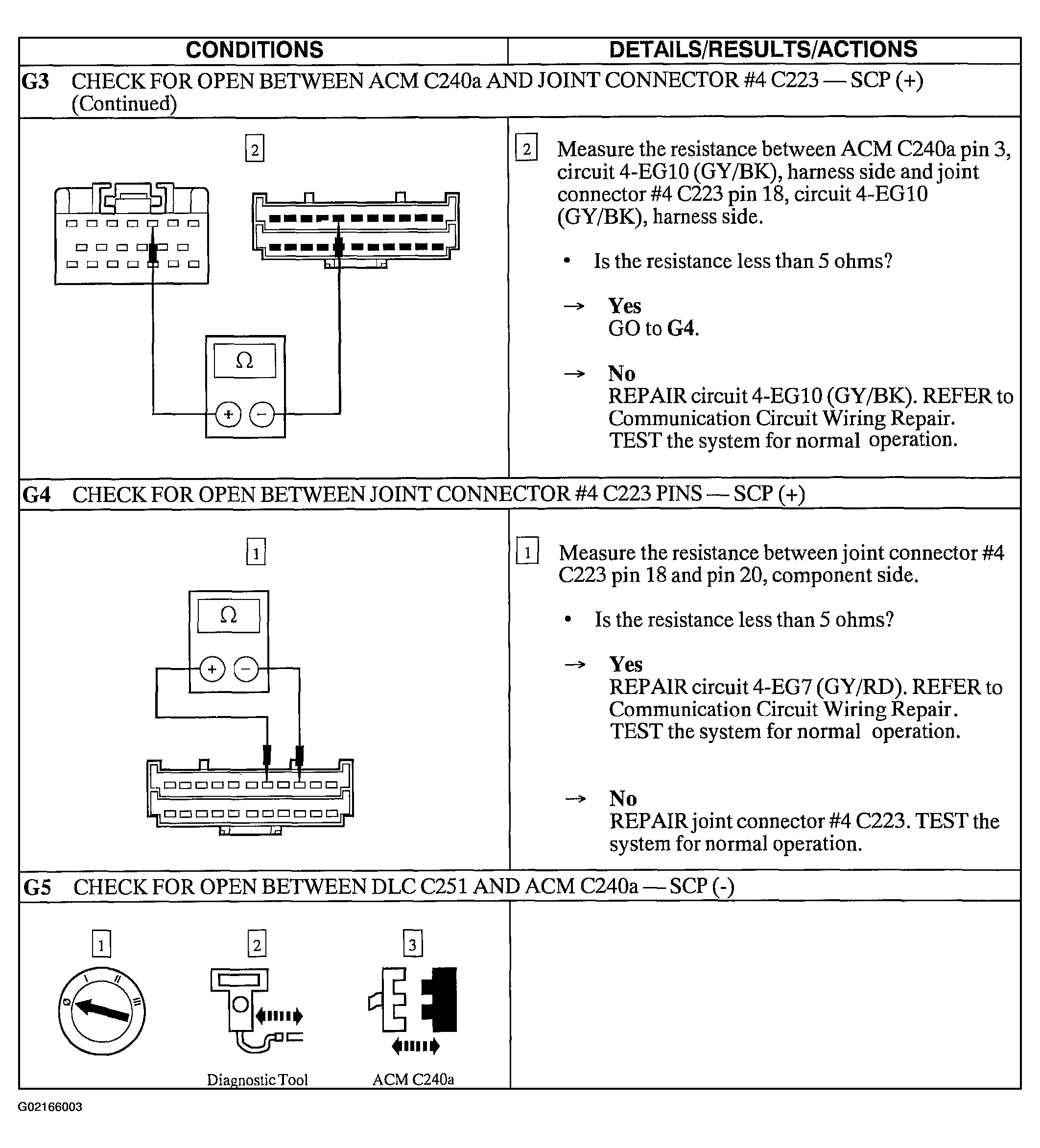

Fig 3: Pinpoint Test G: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool (Steps G3 Cont. To G5)

Courtesy of FORD MOTOR CO.

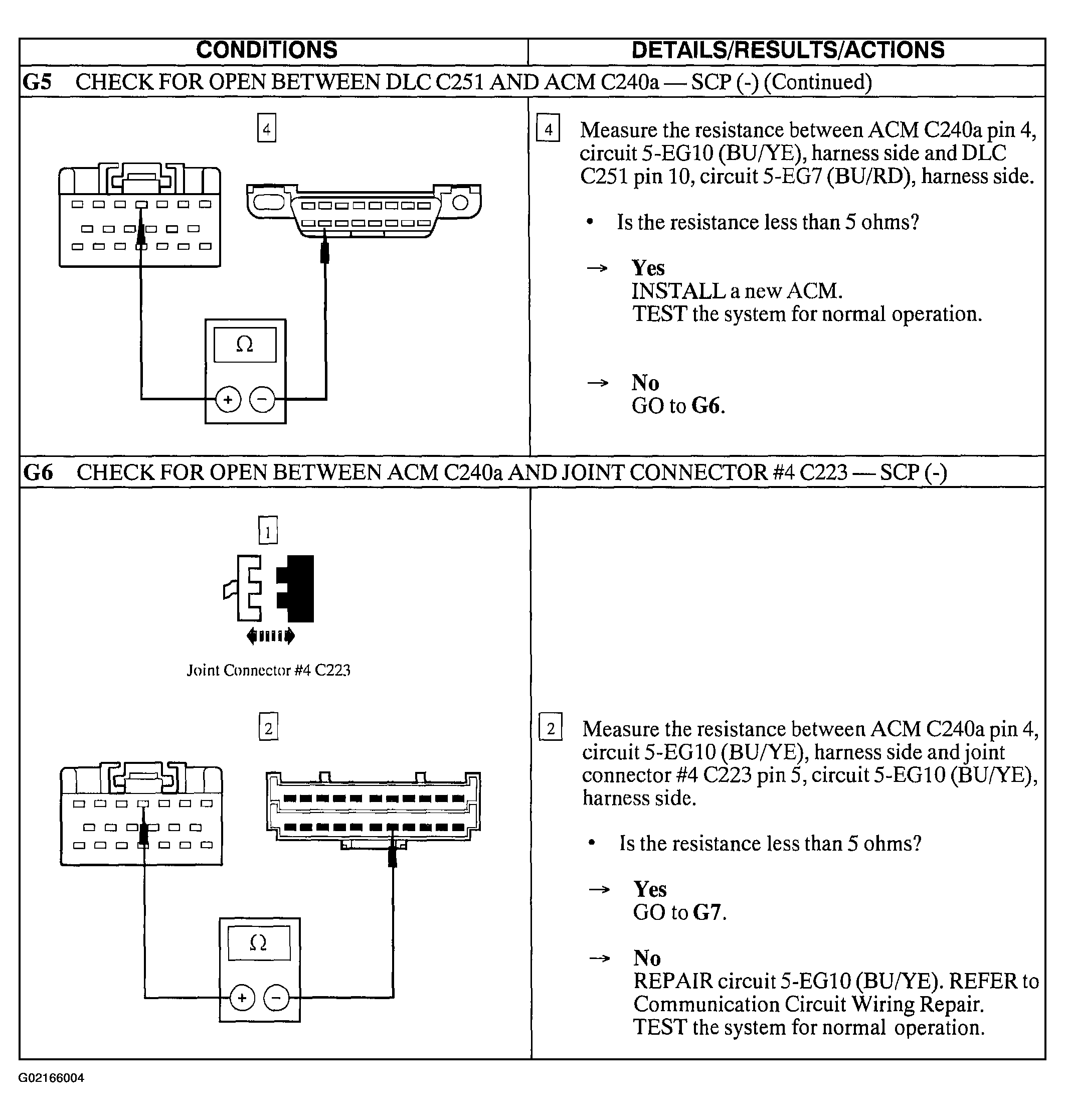

Fig 4: Pinpoint Test G: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool (Steps G5 Cont. & G6)

Courtesy of FORD MOTOR CO.

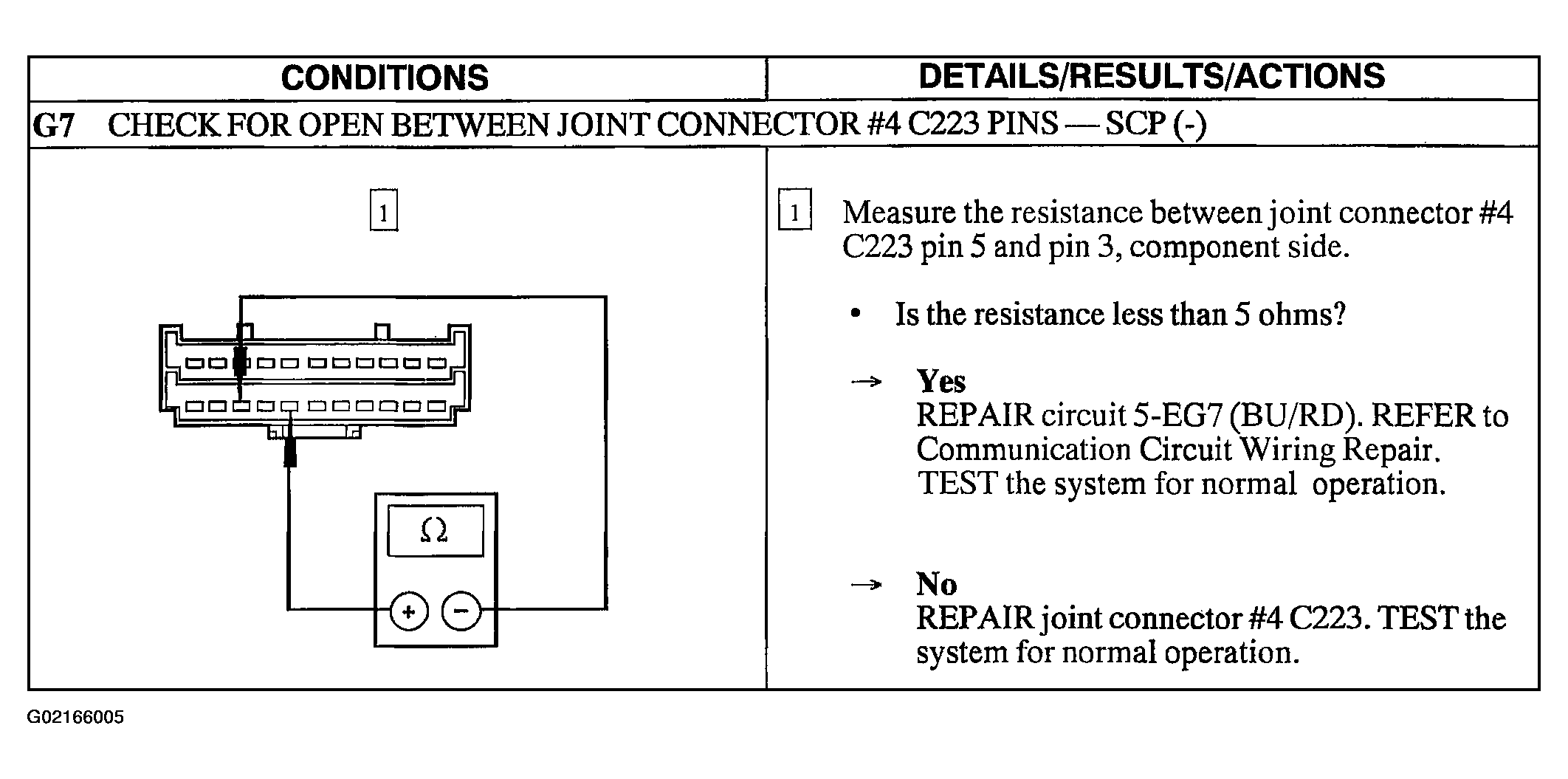

Fig 5: Pinpoint Test G: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool (Step G7)

Courtesy of FORD MOTOR CO.
