Pinpoint Test H: The Steering Column Lock Module (SCLM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

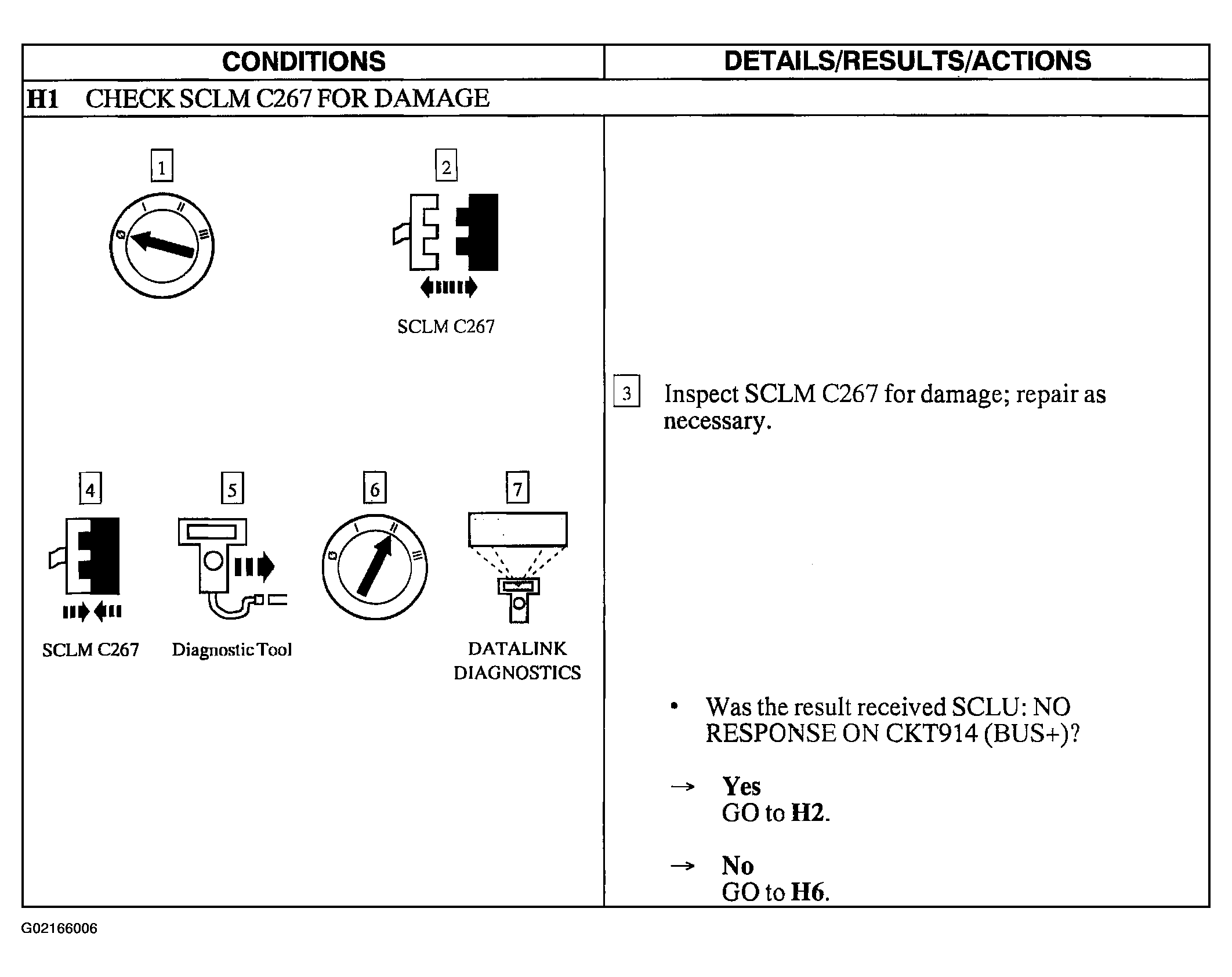

Fig 1: Pinpoint Test H: The Steering Column Lock Module (SCLM) Does Not Respond To The Diagnostic Tool (Step H1)

Courtesy of FORD MOTOR CO.

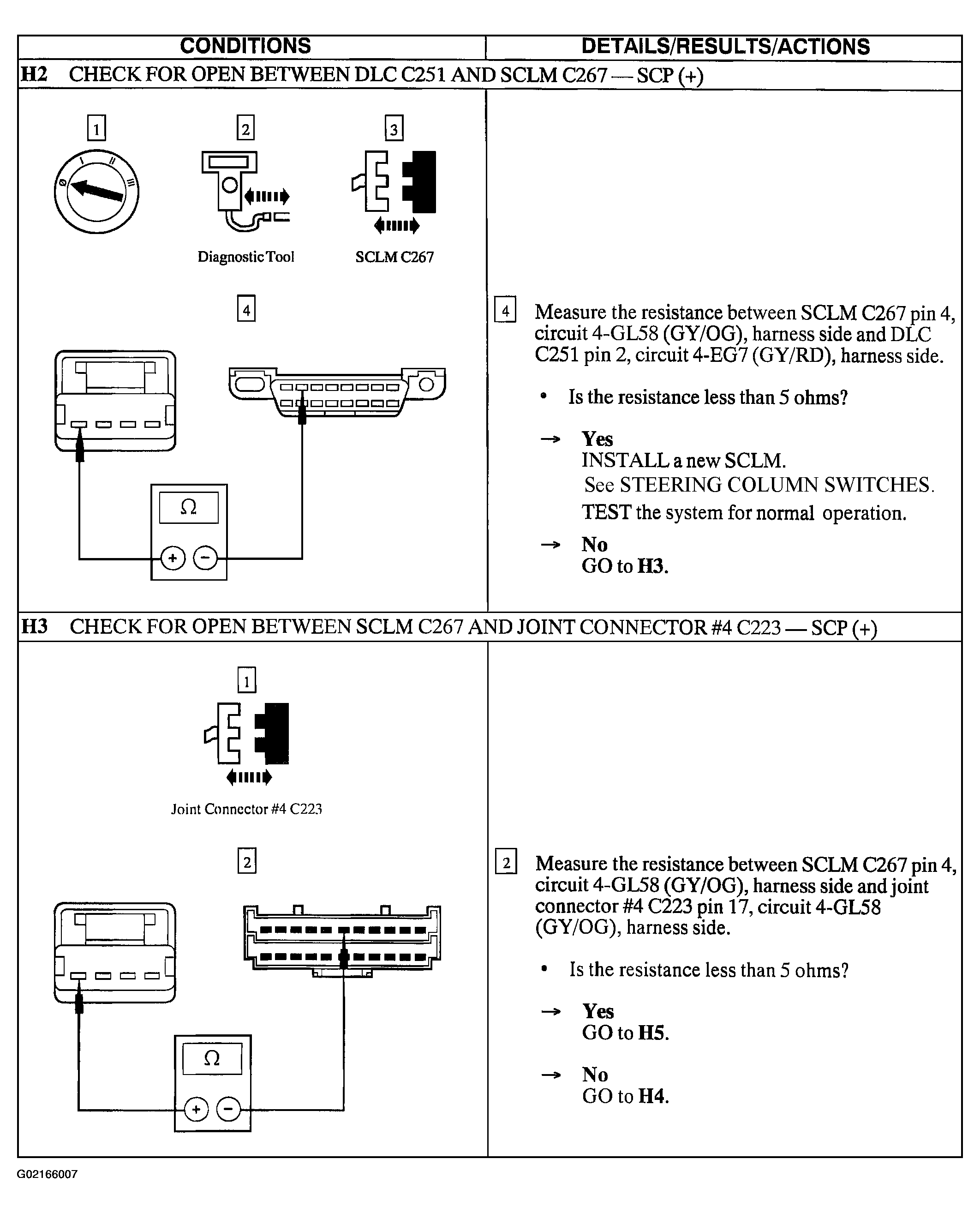

Fig 2: Pinpoint Test H: The Steering Column Lock Module (SCLM) Does Not Respond To The Diagnostic Tool (Steps H2 & H3)

Courtesy of FORD MOTOR CO.

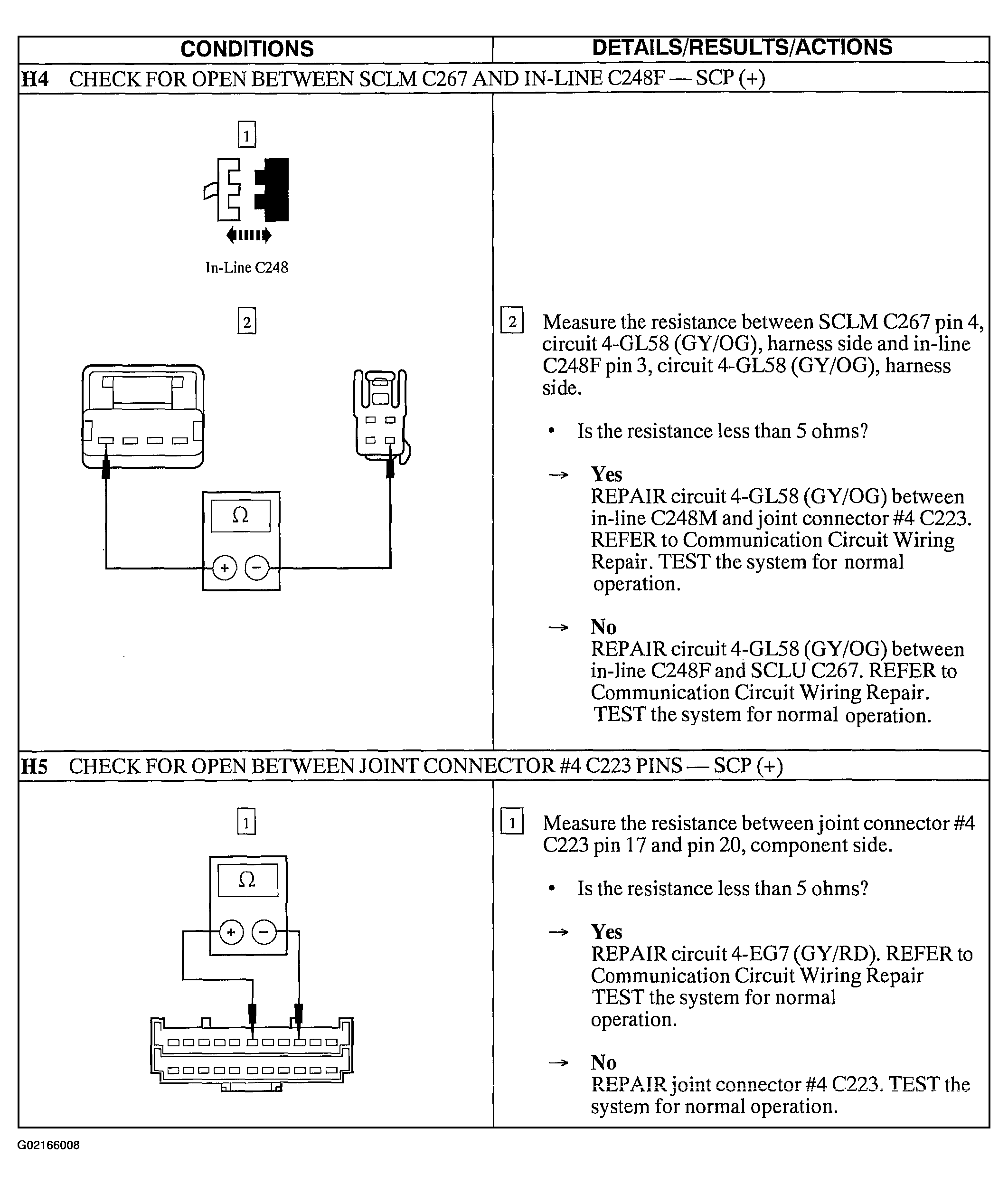

Fig 3: Pinpoint Test H: The Steering Column Lock Module (SCLM) Does Not Respond To The Diagnostic Tool (Steps H4 & H5)

Courtesy of FORD MOTOR CO.

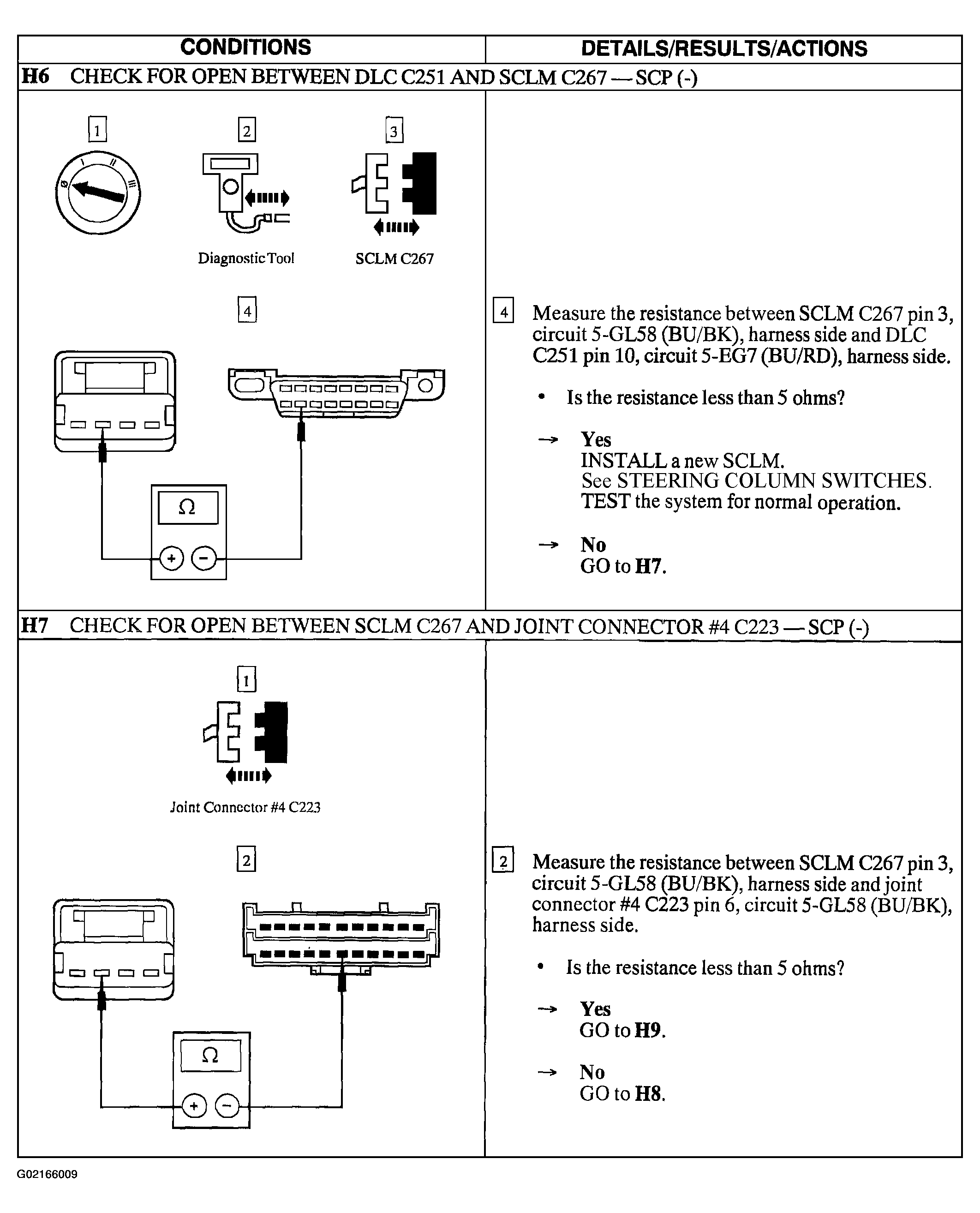

Fig 4: Pinpoint Test H: The Steering Column Lock Module (SCLM) Does Not Respond To The Diagnostic Tool (Steps H6 & H7)

Courtesy of FORD MOTOR CO.

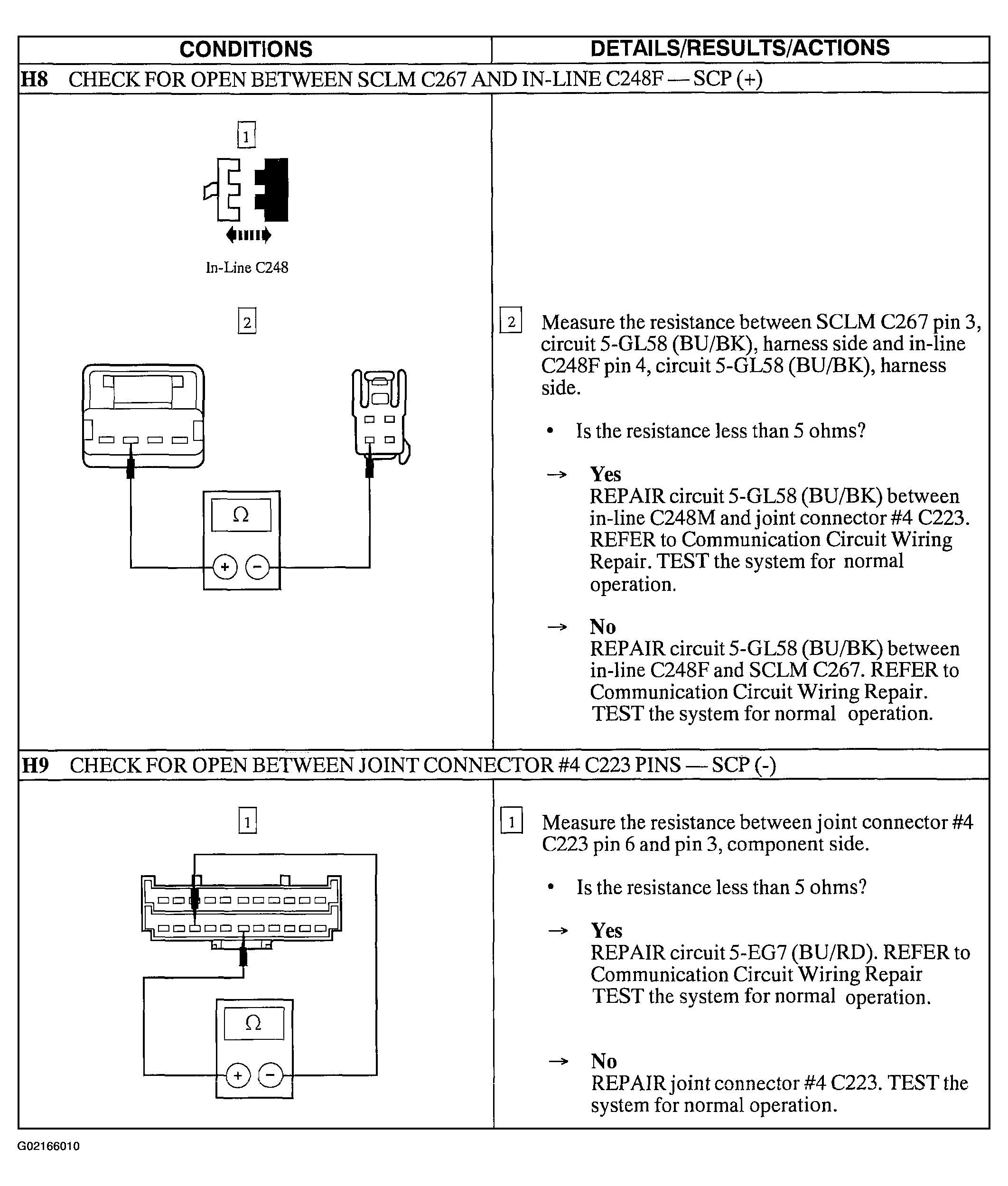

Fig 5: Pinpoint Test H: The Steering Column Lock Module (SCLM) Does Not Respond To The Diagnostic Tool (Steps H8 & H9)

Courtesy of FORD MOTOR CO.
