Pinpoint Test C: The Module Does Not Respond To The Diagnostic Tool - Driver Door Module (DDM)

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

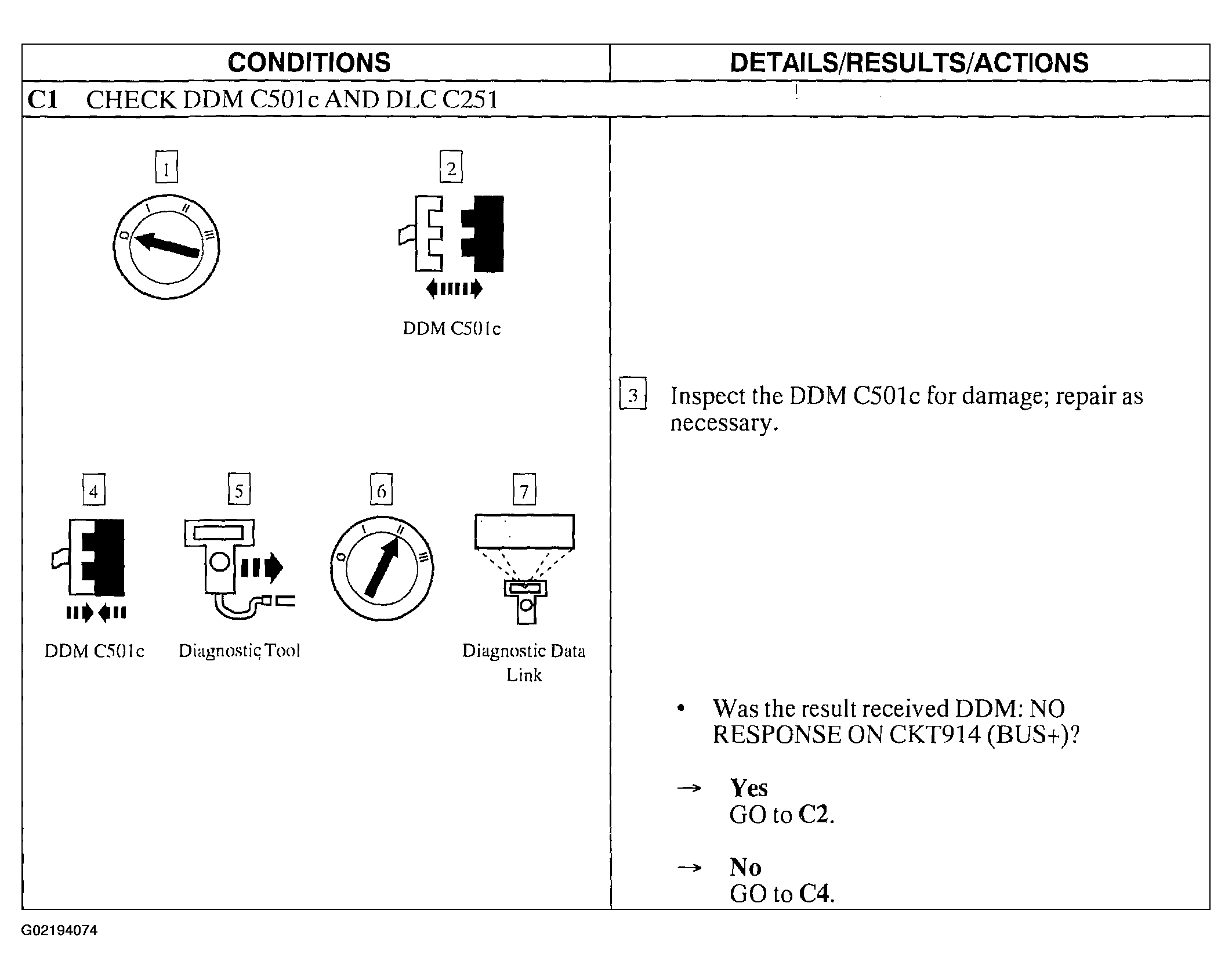

Fig 1: Pinpoint Test C: The Module Does Not Respond To The Diagnostic Tool - Driver Door Module (DDM) (Step C1)

Courtesy of FORD MOTOR CO.

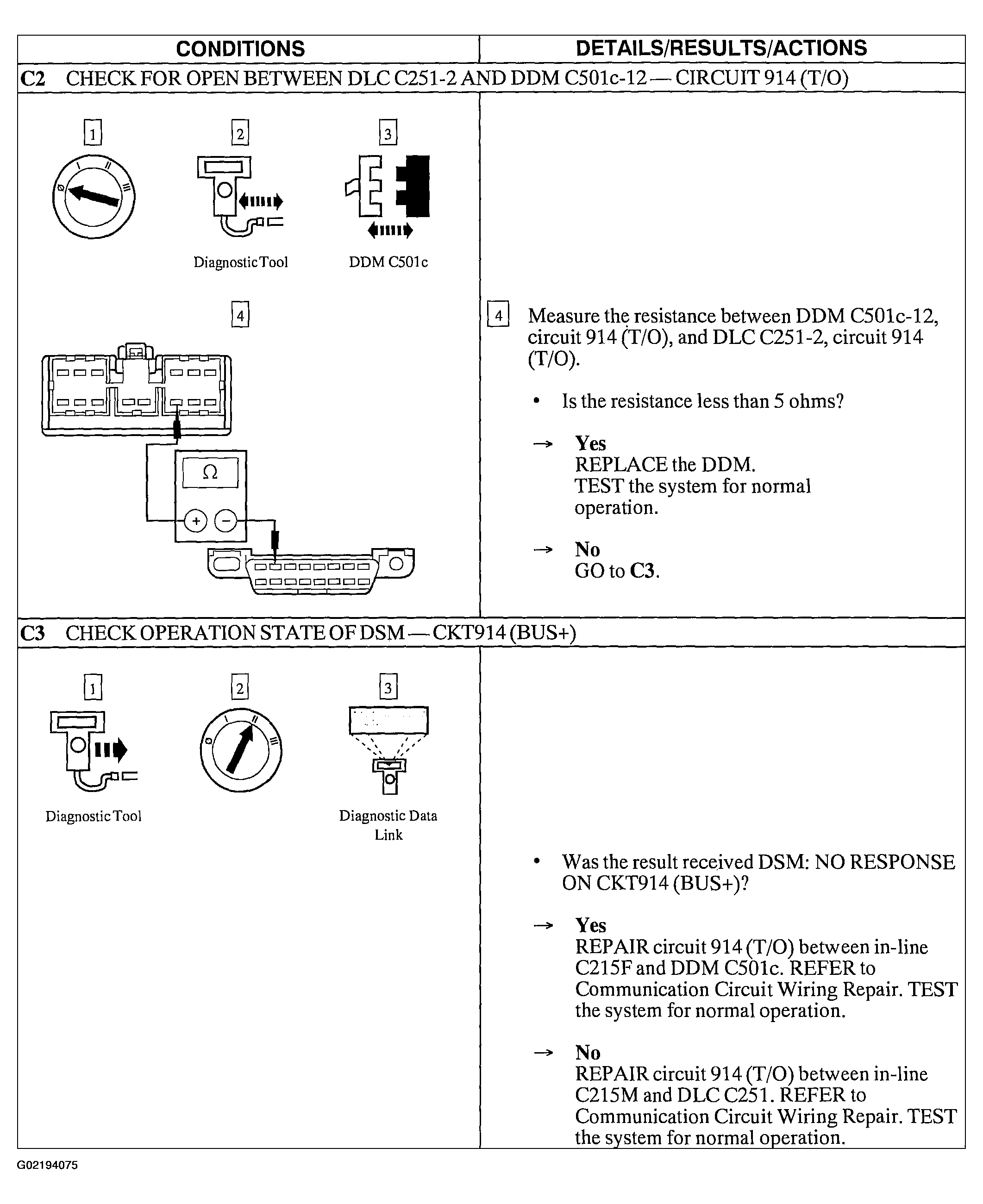

Fig 2: Pinpoint Test C: The Module Does Not Respond To The Diagnostic Tool - Driver Door Module (DDM) (Steps C2 & C3)

Courtesy of FORD MOTOR CO.

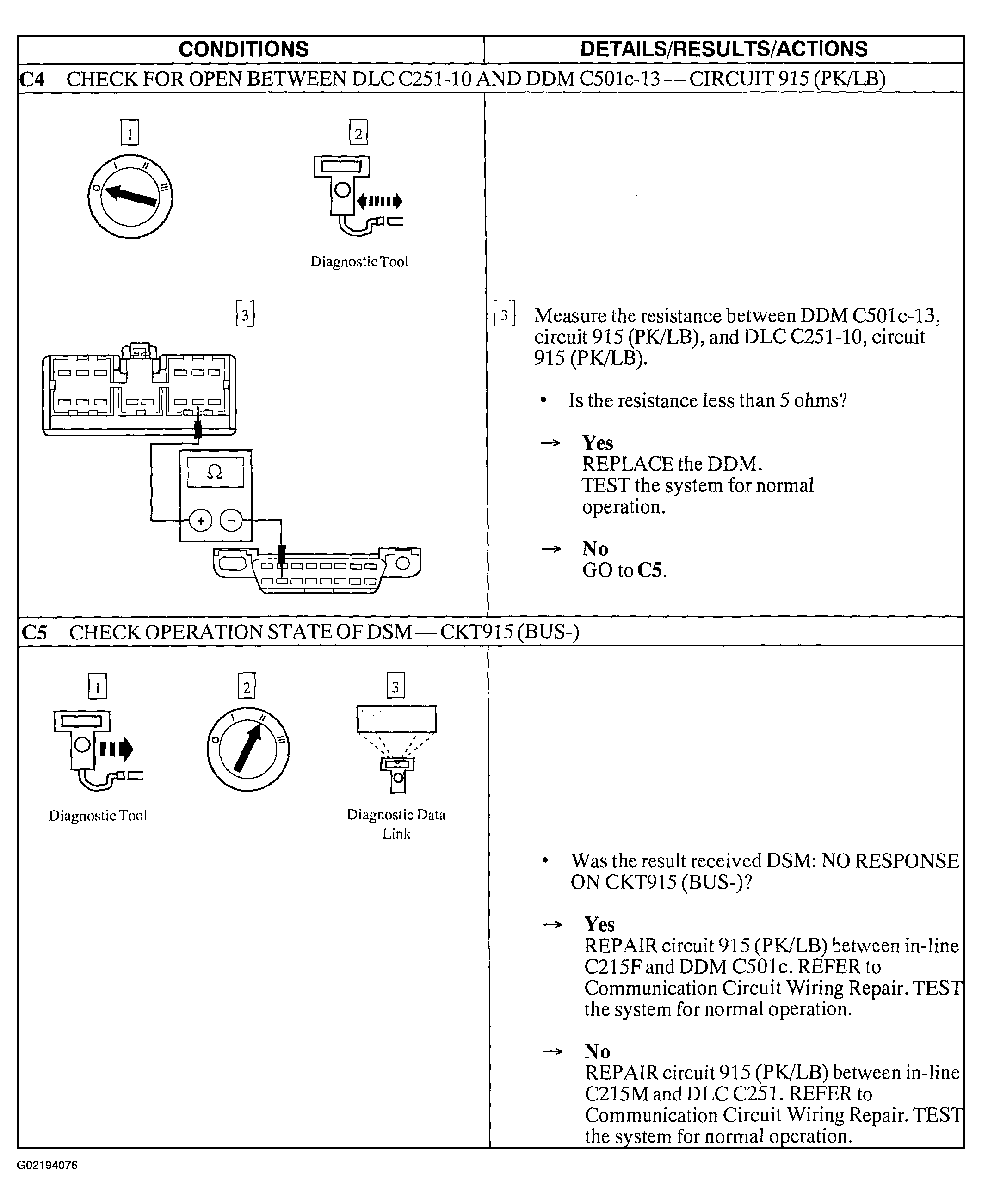

Fig 3: Pinpoint Test C: The Module Does Not Respond To The Diagnostic Tool - Driver Door Module (DDM) (Steps C4 & C5)

Courtesy of FORD MOTOR CO.
