Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

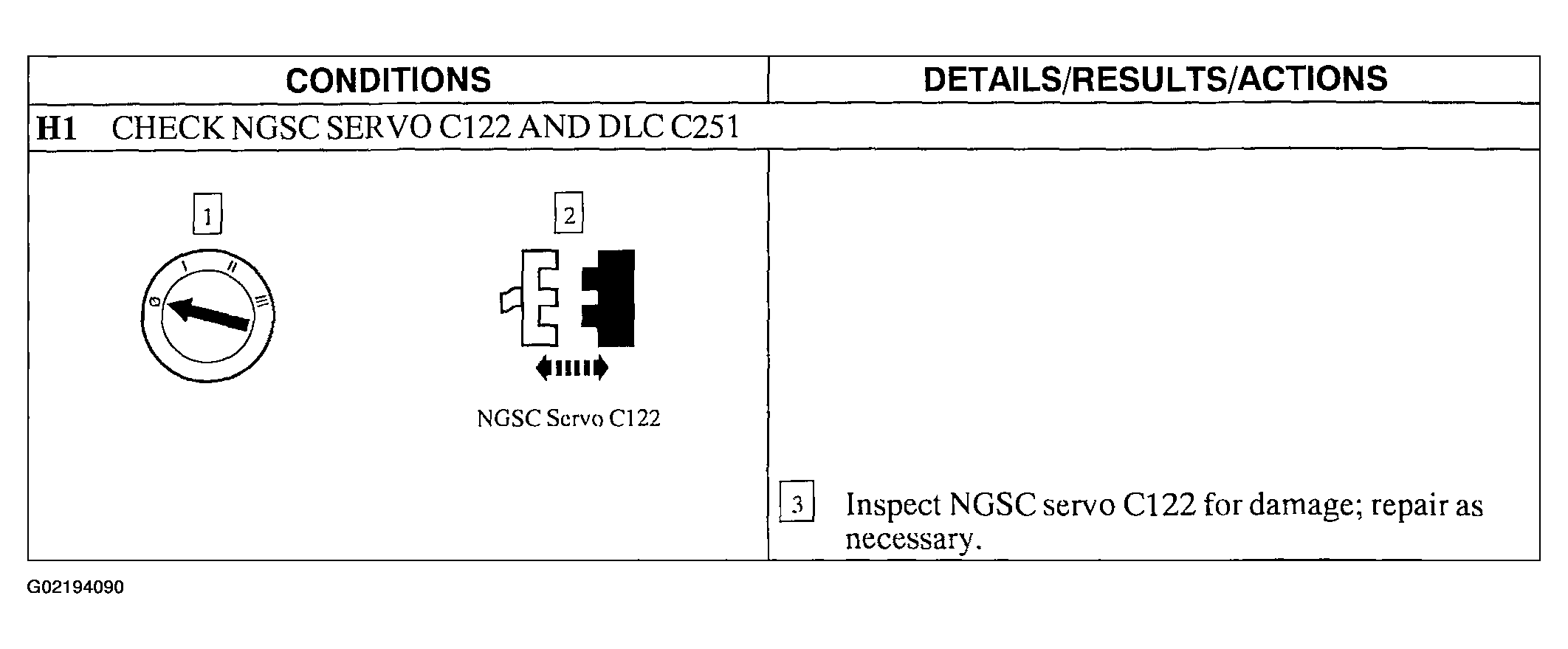

Fig 1: Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (Step H1)
G02194090Courtesy of FORD MOTOR CO.

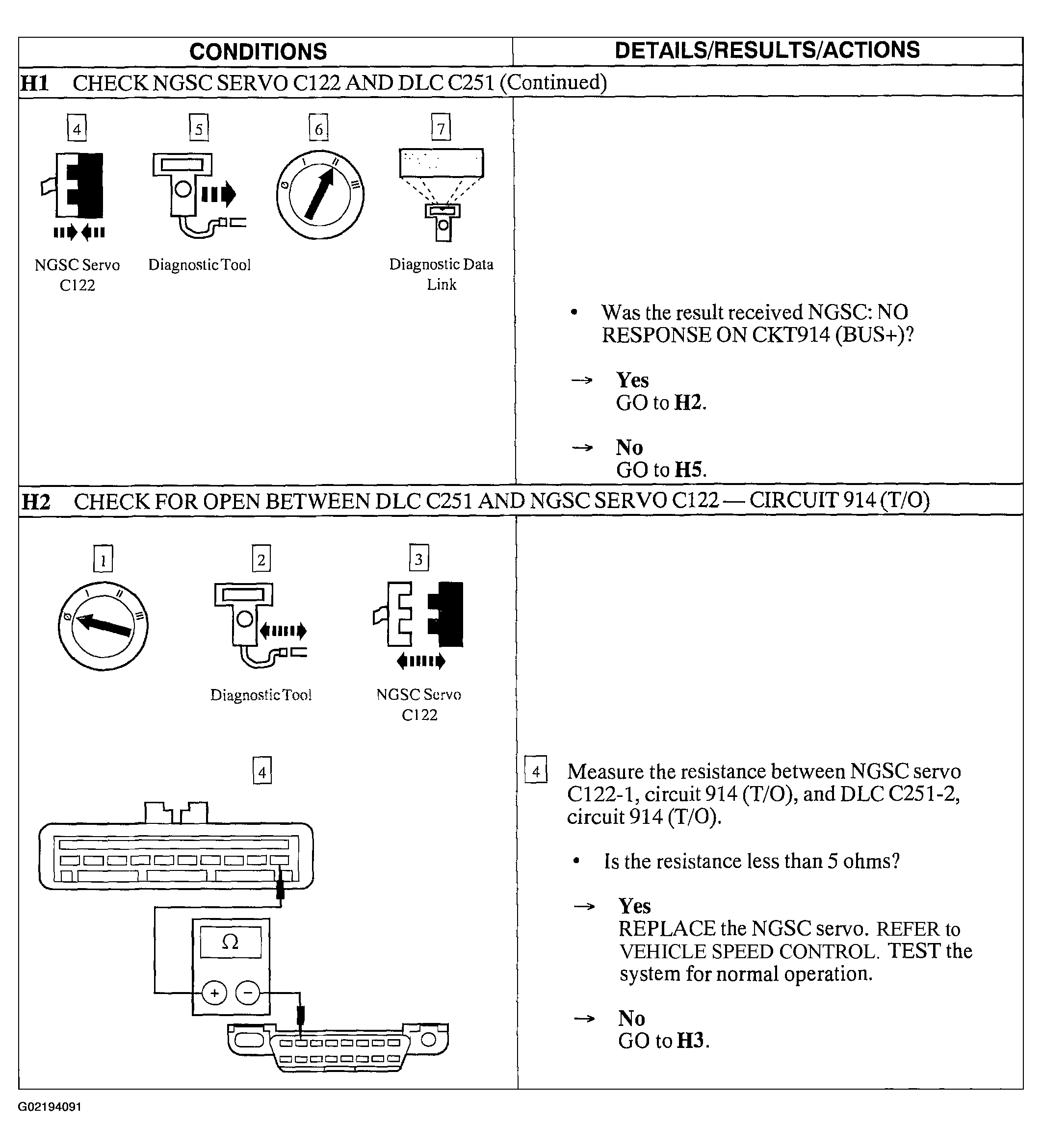

Fig 2: Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (Steps H1 Cont. & H2)
G02194091Courtesy of FORD MOTOR CO.

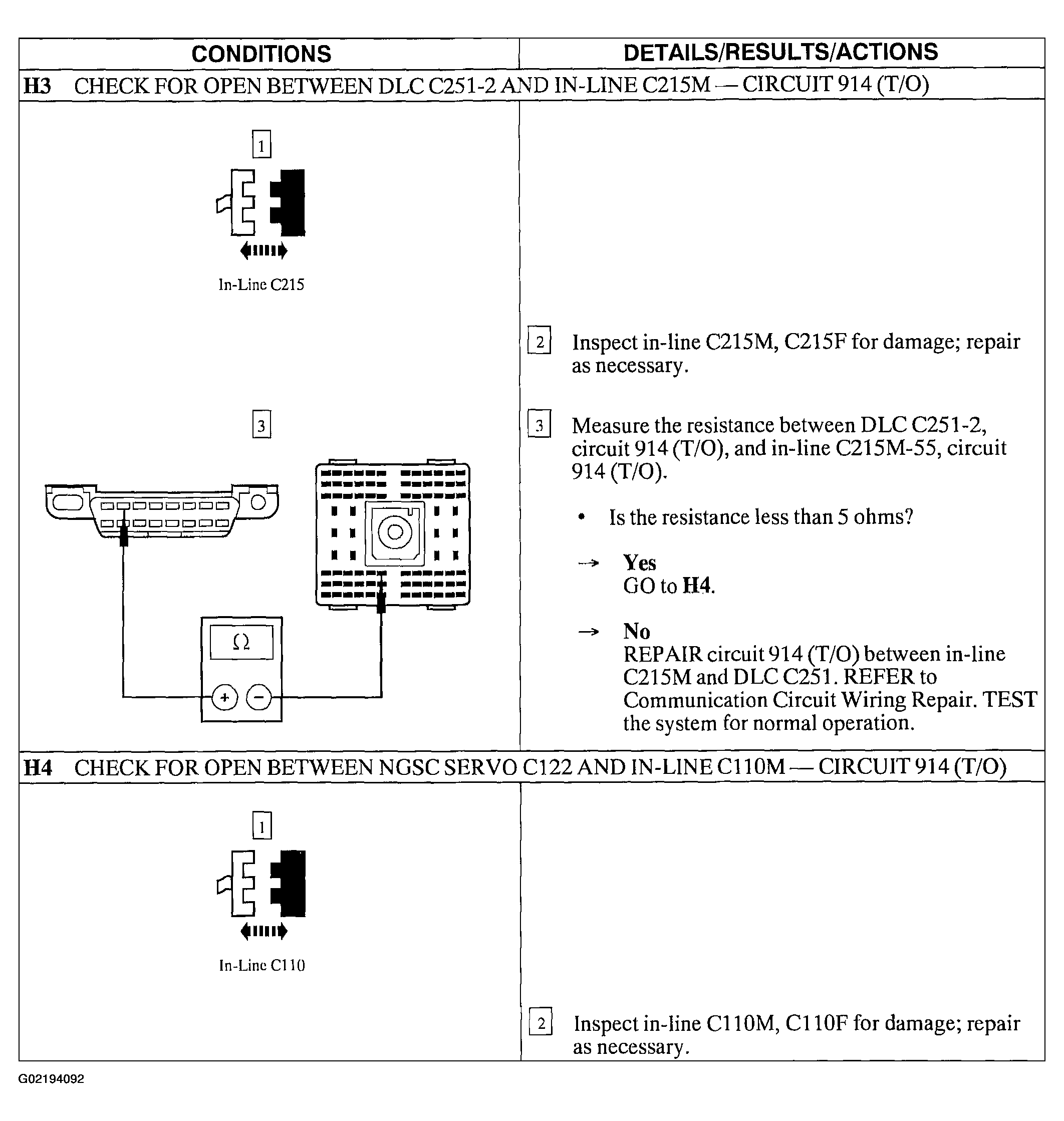

Fig 3: Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (Steps H3 & H4)
G02194092Courtesy of FORD MOTOR CO.

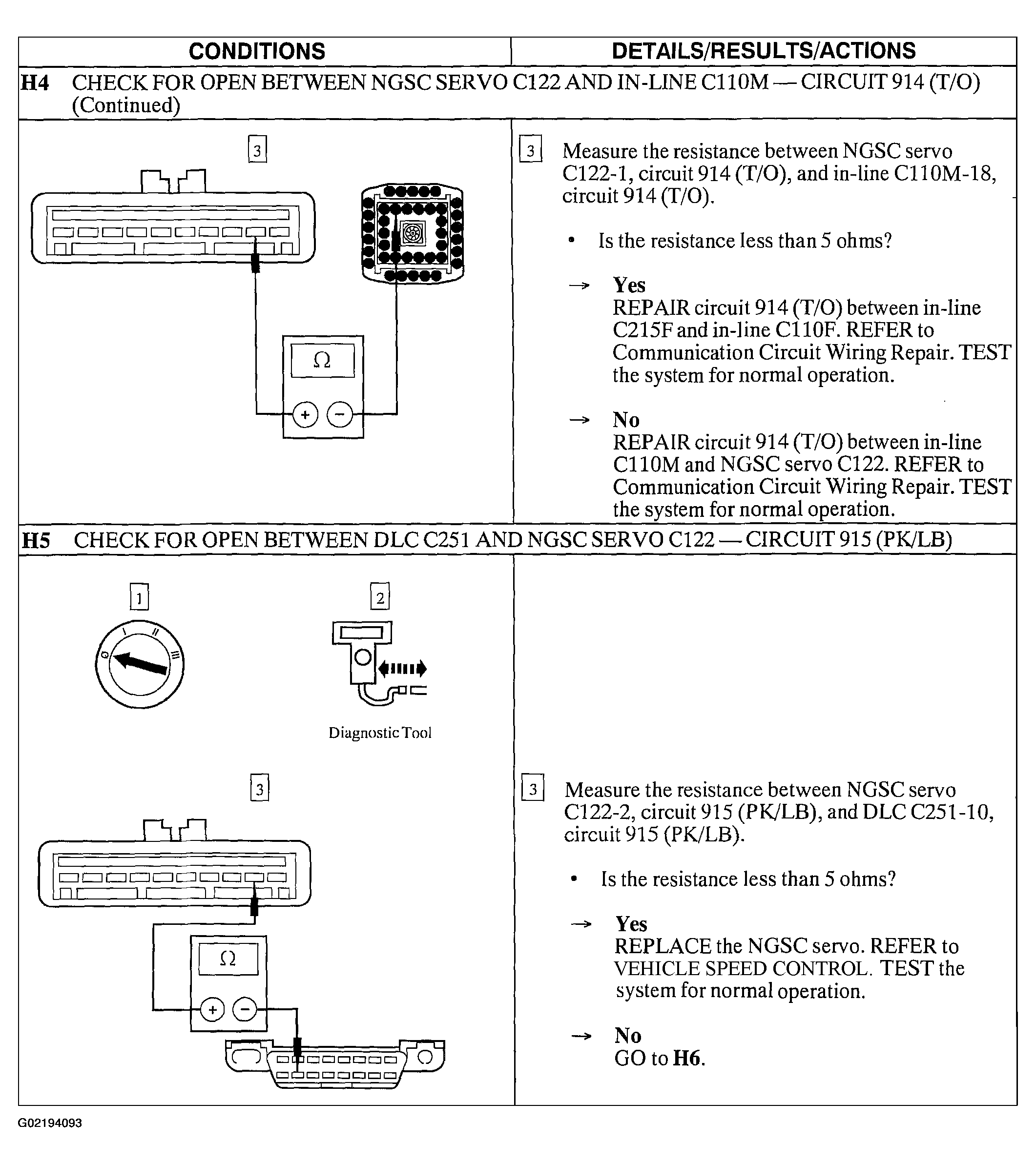

Fig 4: Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (Steps H4 Cont. & H5)
G02194093Courtesy of FORD MOTOR CO.

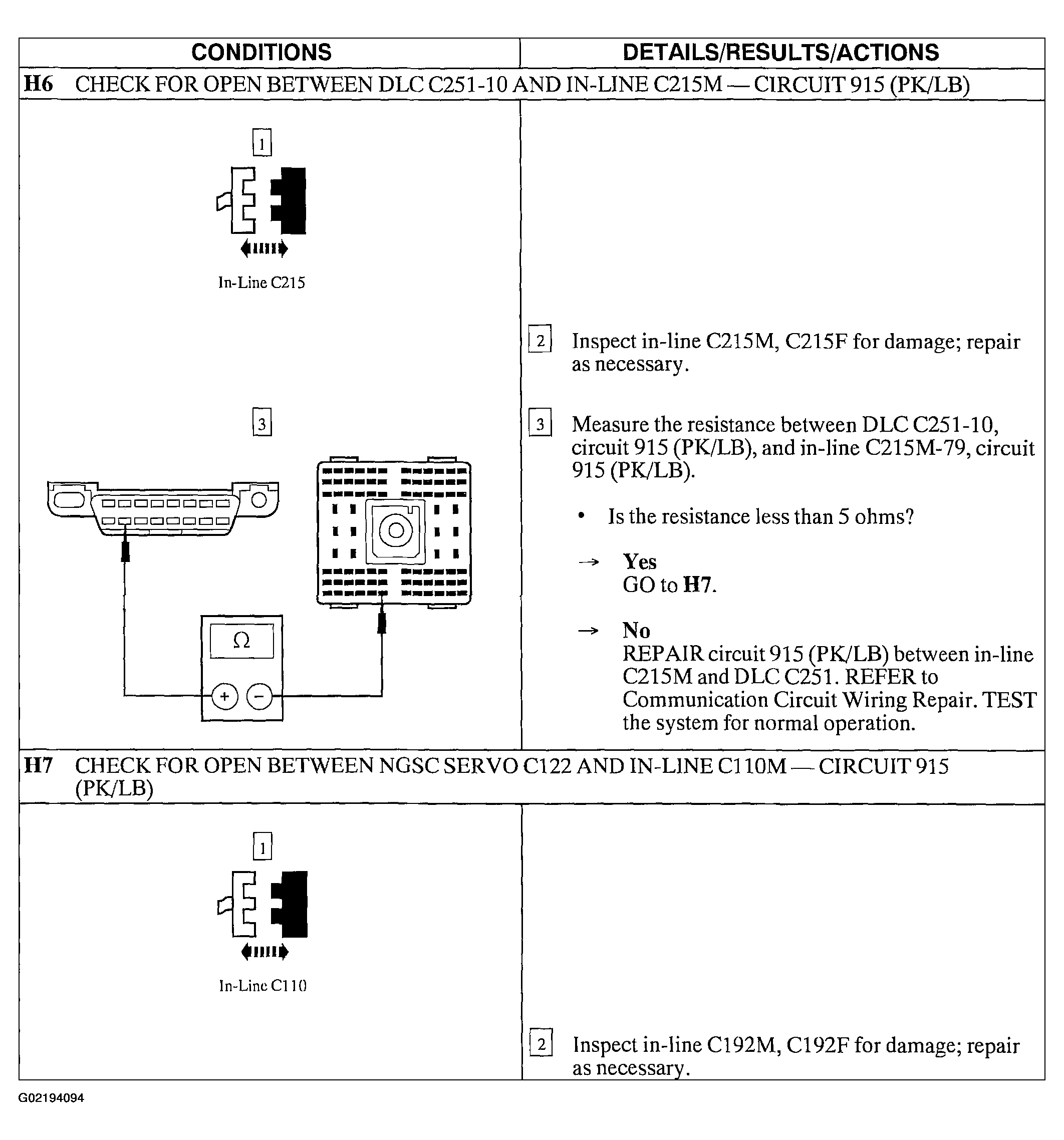

Fig 5: Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (Steps 6 & 7)
G02194094Courtesy of FORD MOTOR CO.

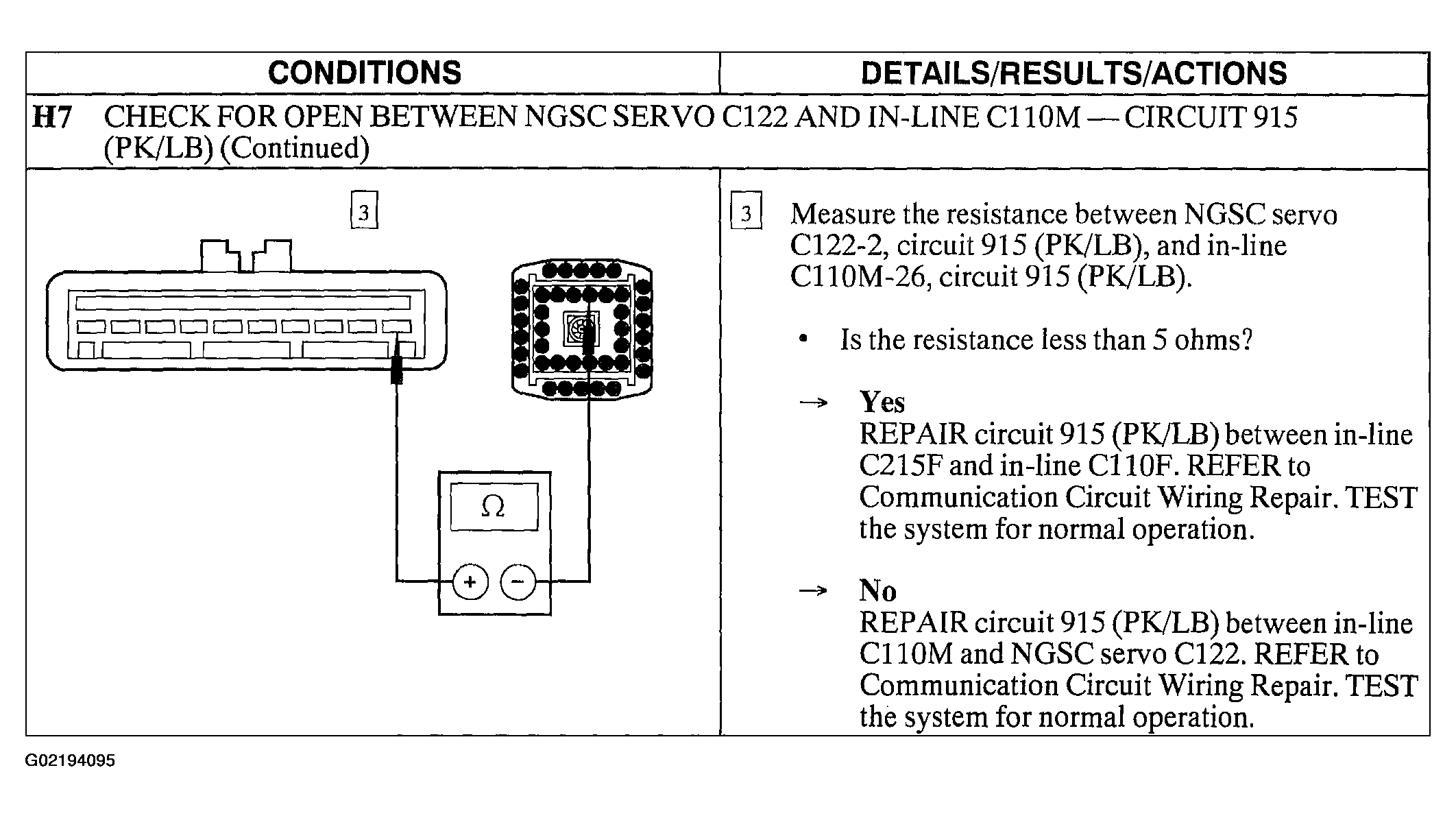

Fig 6: Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (Step H7 Cont.)
G02194095Courtesy of FORD MOTOR CO.
