Pinpoint Test M: The Module Does Not Respond To The Diagnostic Tool - Virtual Instrument Cluster (VIC)

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

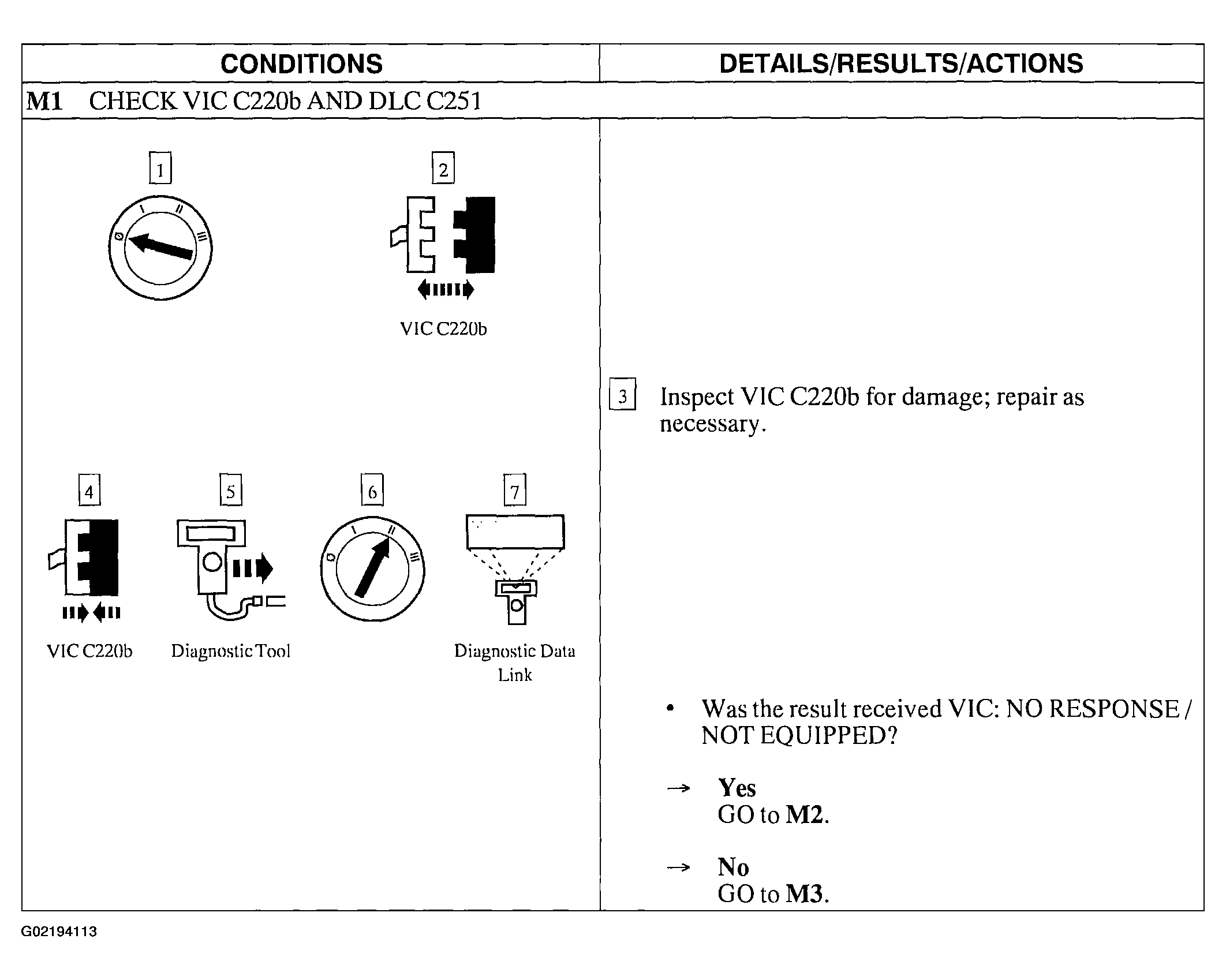

Fig 1: Pinpoint Test M: The Module Does Not Respond To The Diagnostic Tool - Virtual Instrument Cluster (VIC) (Step M1)
G02194113Courtesy of FORD MOTOR CO.

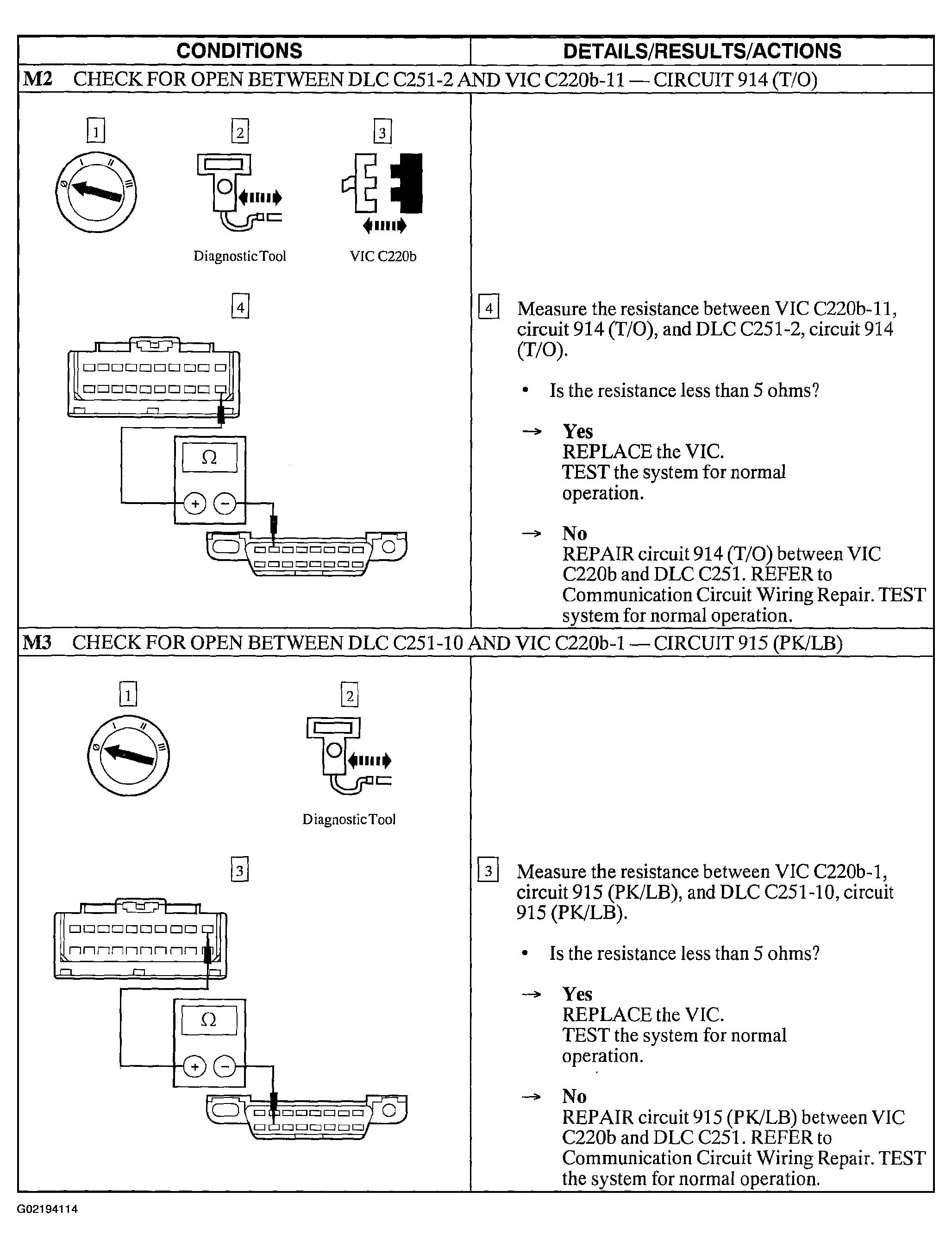

Fig 2: Pinpoint Test M: The Module Does Not Respond To The Diagnostic Tool - Virtual Instrument Cluster (VIC) (Steps M2 & M3)
G02194114Courtesy of FORD MOTOR CO.
