Pinpoint Test P: No Module/Network Communication - Diagnostic Tool Will Not Power Up
WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

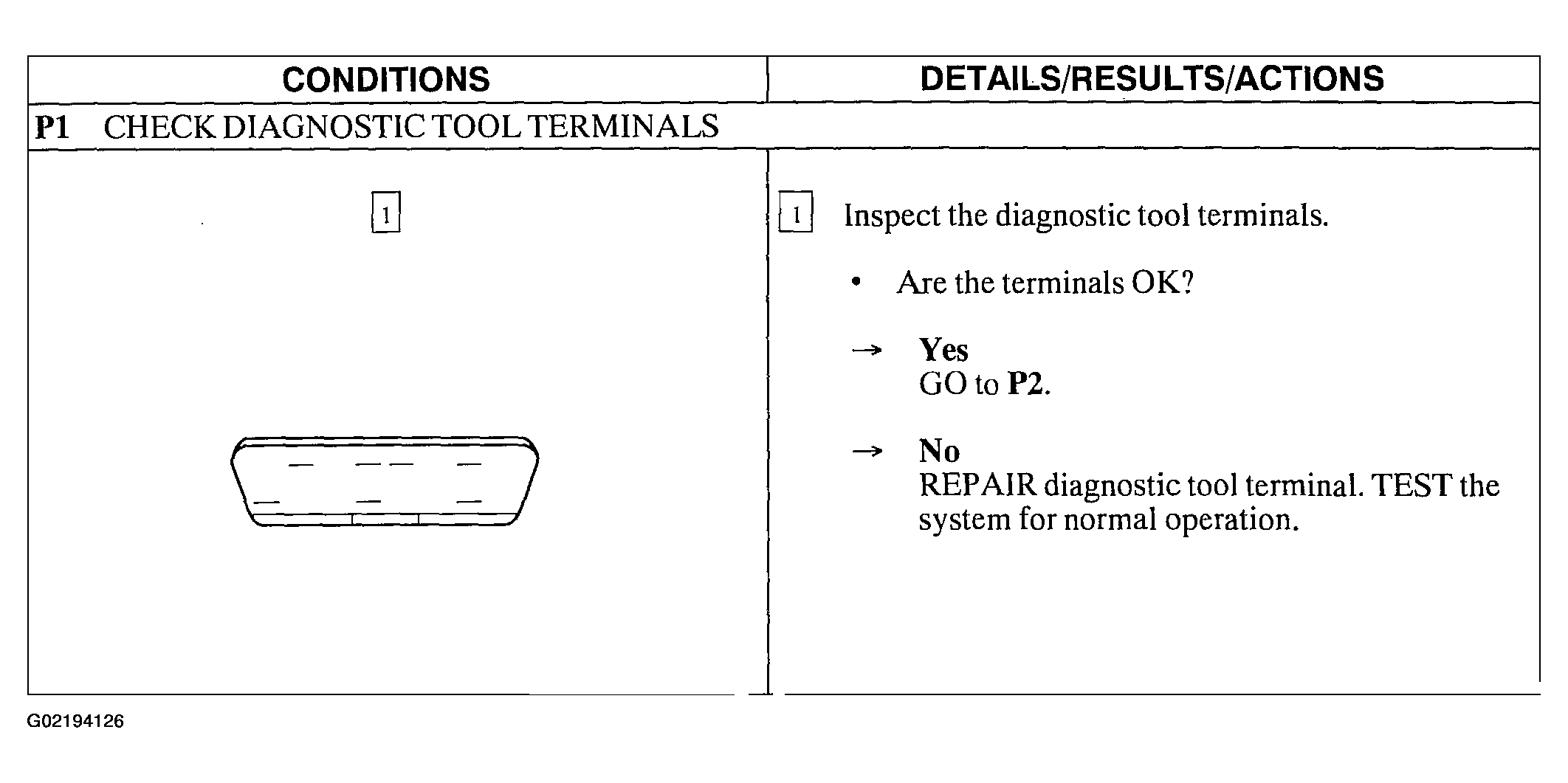

Fig 1: Pinpoint Test P: No Module/Network Communication - Diagnostic Tool Will Not Power Up (Step 1)
Courtesy of FORD MOTOR CO.

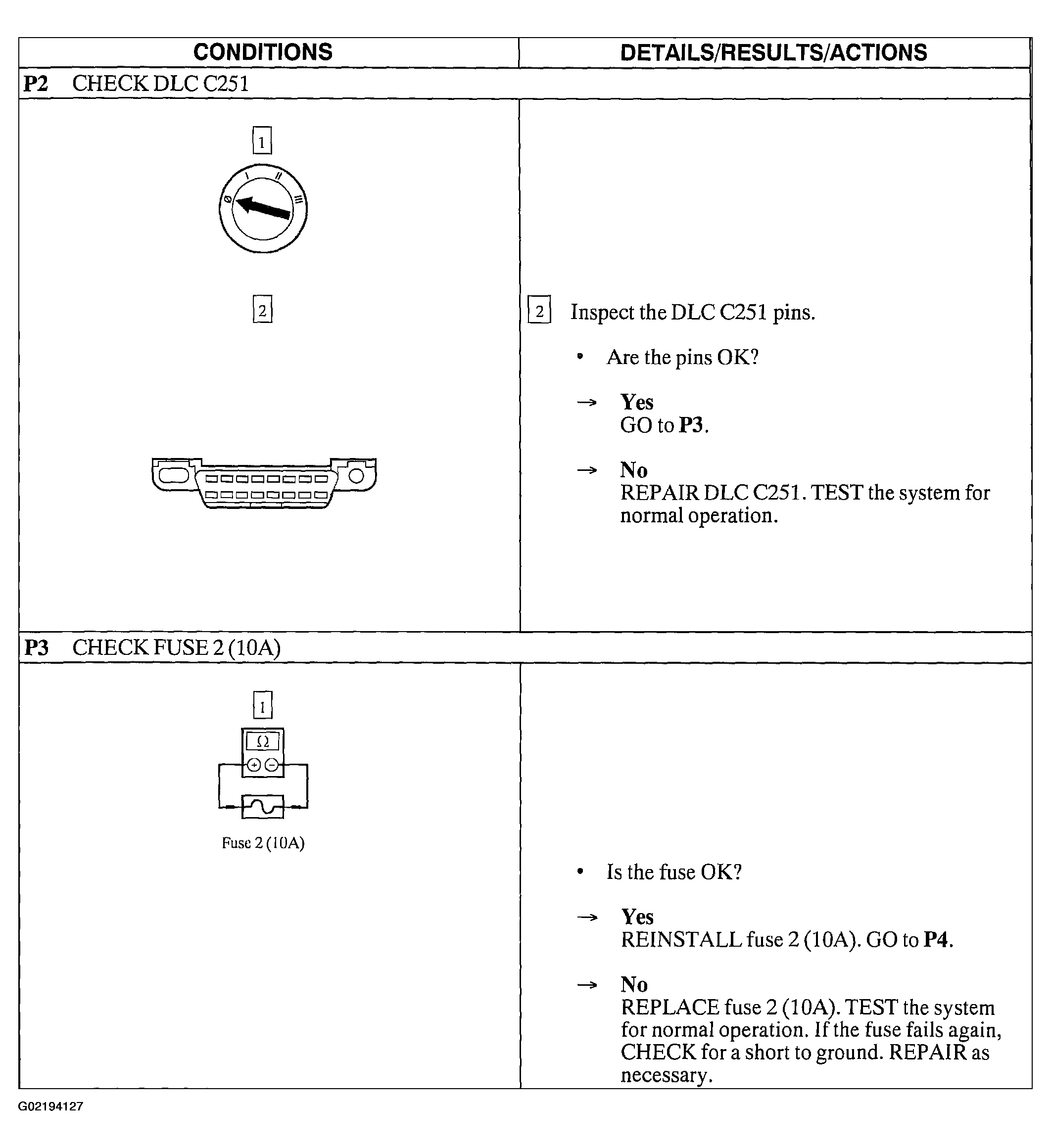

Fig 2: Pinpoint Test P: No Module/Network Communication - Diagnostic Tool Will Not Power Up (Steps P2 & P3)
Courtesy of FORD MOTOR CO.

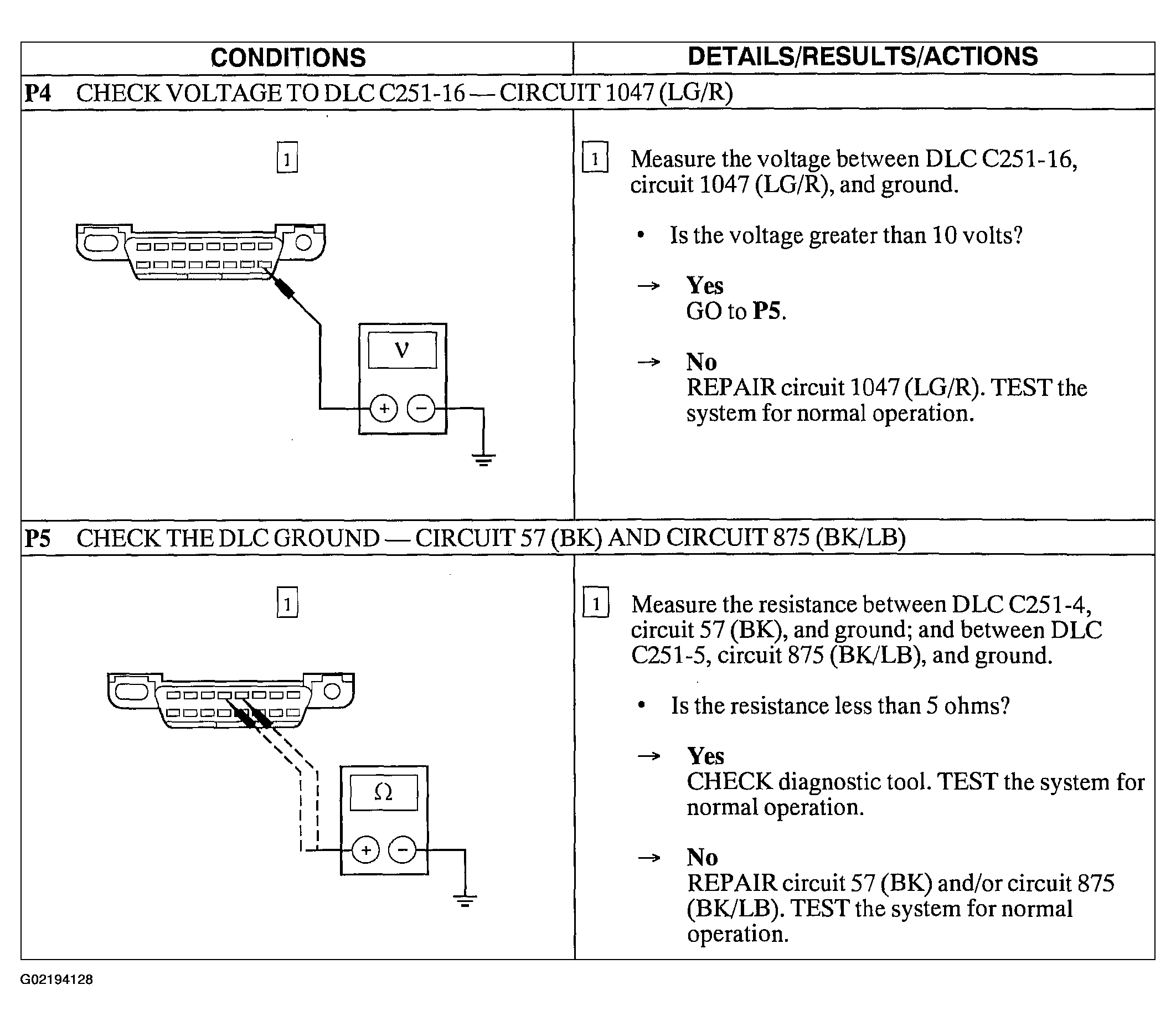

Fig 3: Pinpoint Test P: No Module/Network Communication - Diagnostic Tool Will Not Power Up (Steps P4 & P5)
