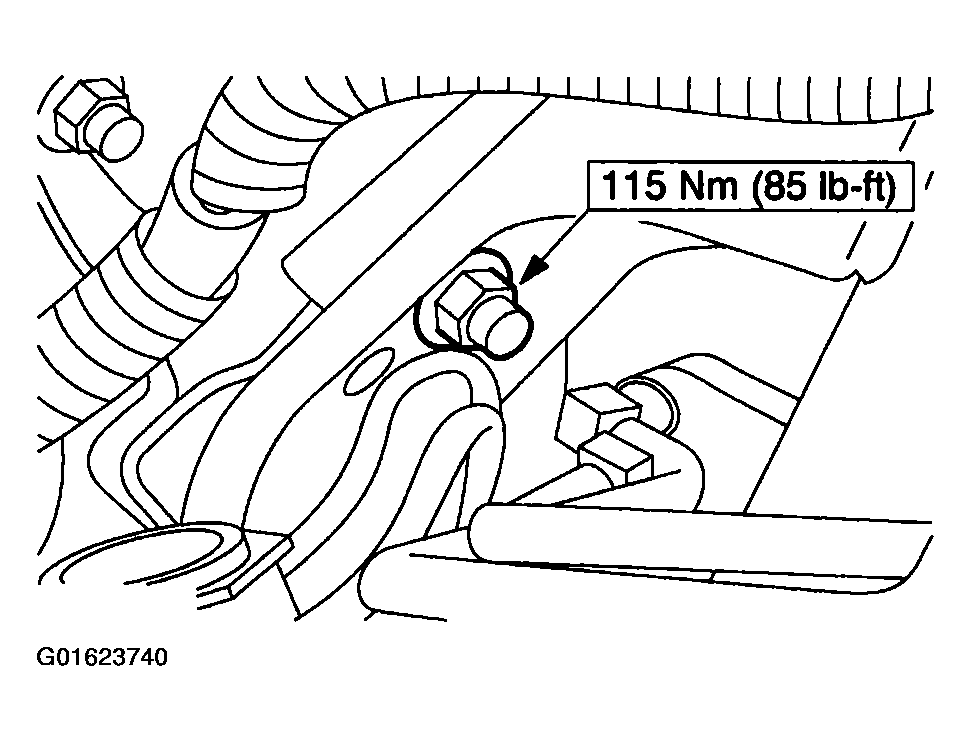

Install the RH engine insulator.
- Install the nuts.
- Install the bolts.

  Fig 1: Installing RH Engine Insulator
  Courtesy of FORD MOTOR CO.

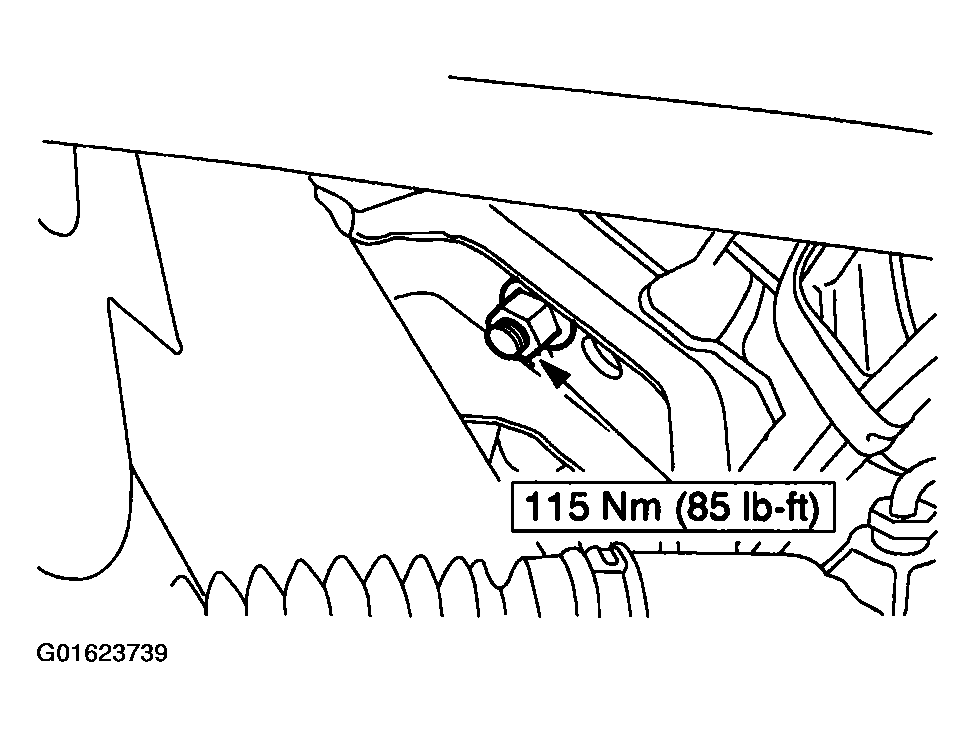

Install the LH engine insulator.

Fig 2: Installing LH Engine Insulator
Courtesy of FORD MOTOR CO.

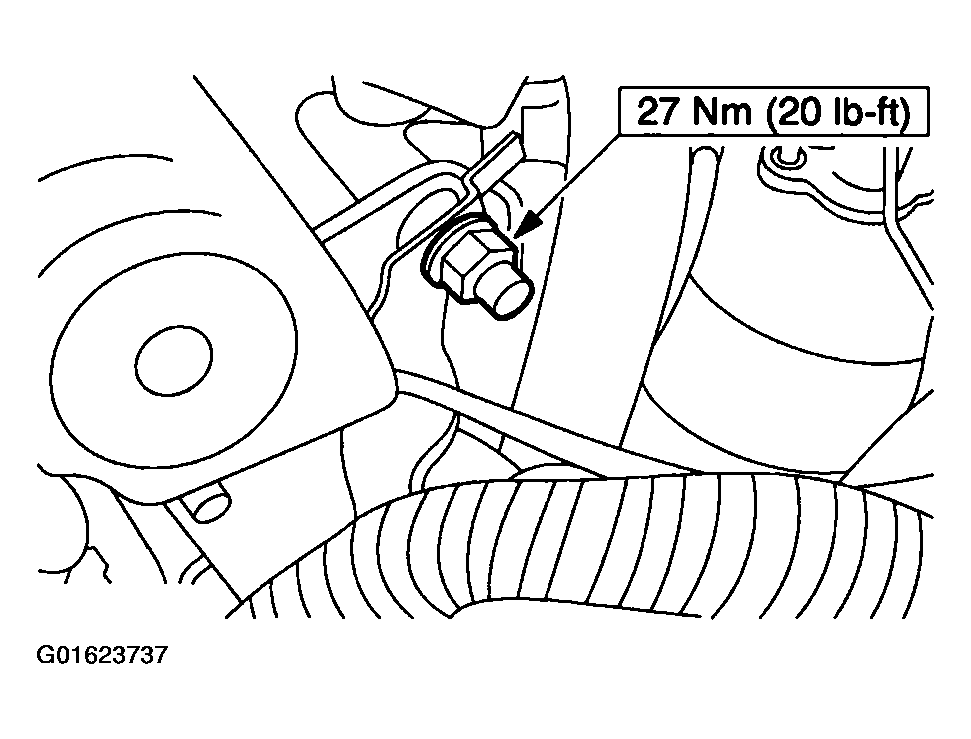

Connect the engine ground strap.

Fig 3: Connecting Engine Ground Strap
Courtesy of FORD MOTOR CO.

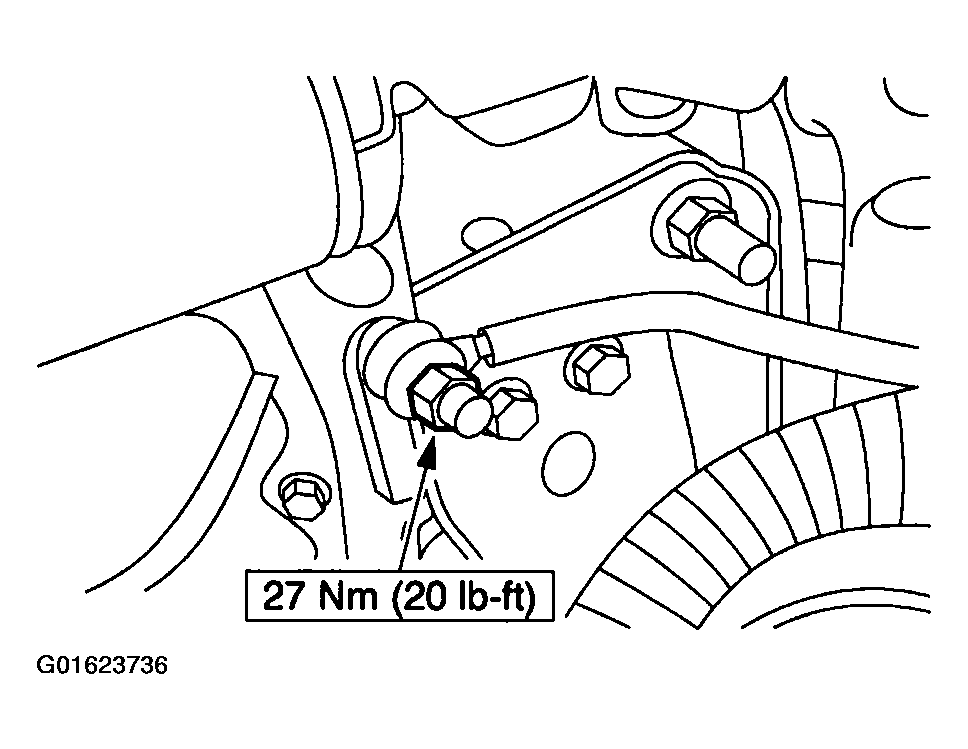

Install the bracket.

Fig 4: Installing Bracket
Courtesy of FORD MOTOR CO.
Lower the vehicle.

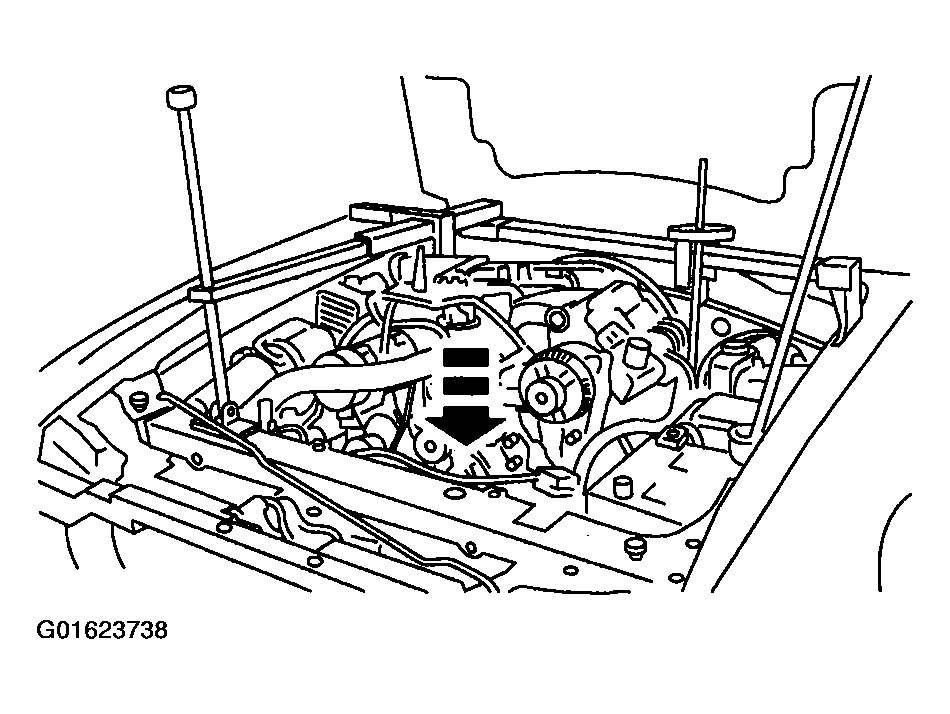

Lower the engine.

Fig 5: Lowering Engine
Courtesy of FORD MOTOR CO.
Raise the vehicle.

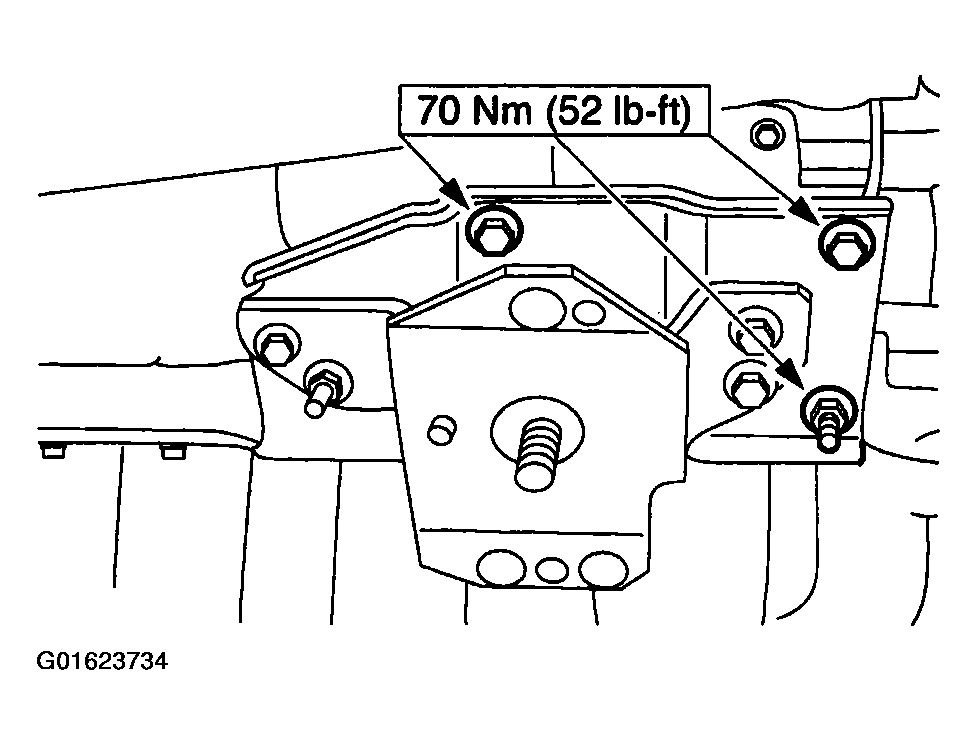

Install the RH engine mount nut.

Fig 6: Installing RH Engine Mount Nut
Courtesy of FORD MOTOR CO.

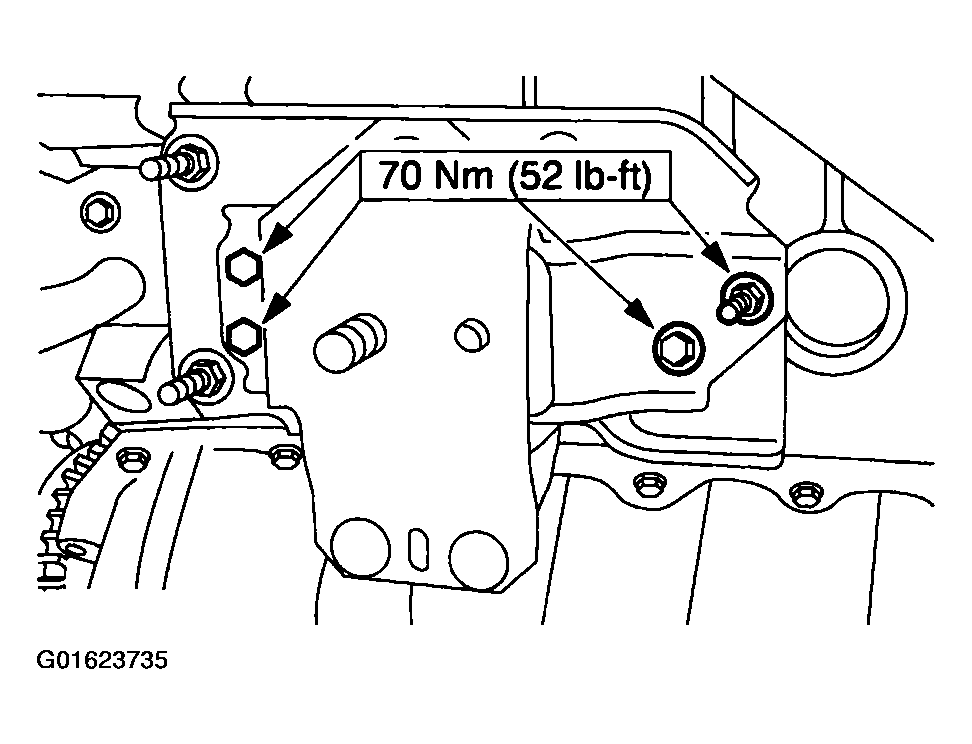

Install the LH engine mount nut.

Fig 7: Installing LH Engine Mount Nut
Courtesy of FORD MOTOR CO.
Lower the vehicle.

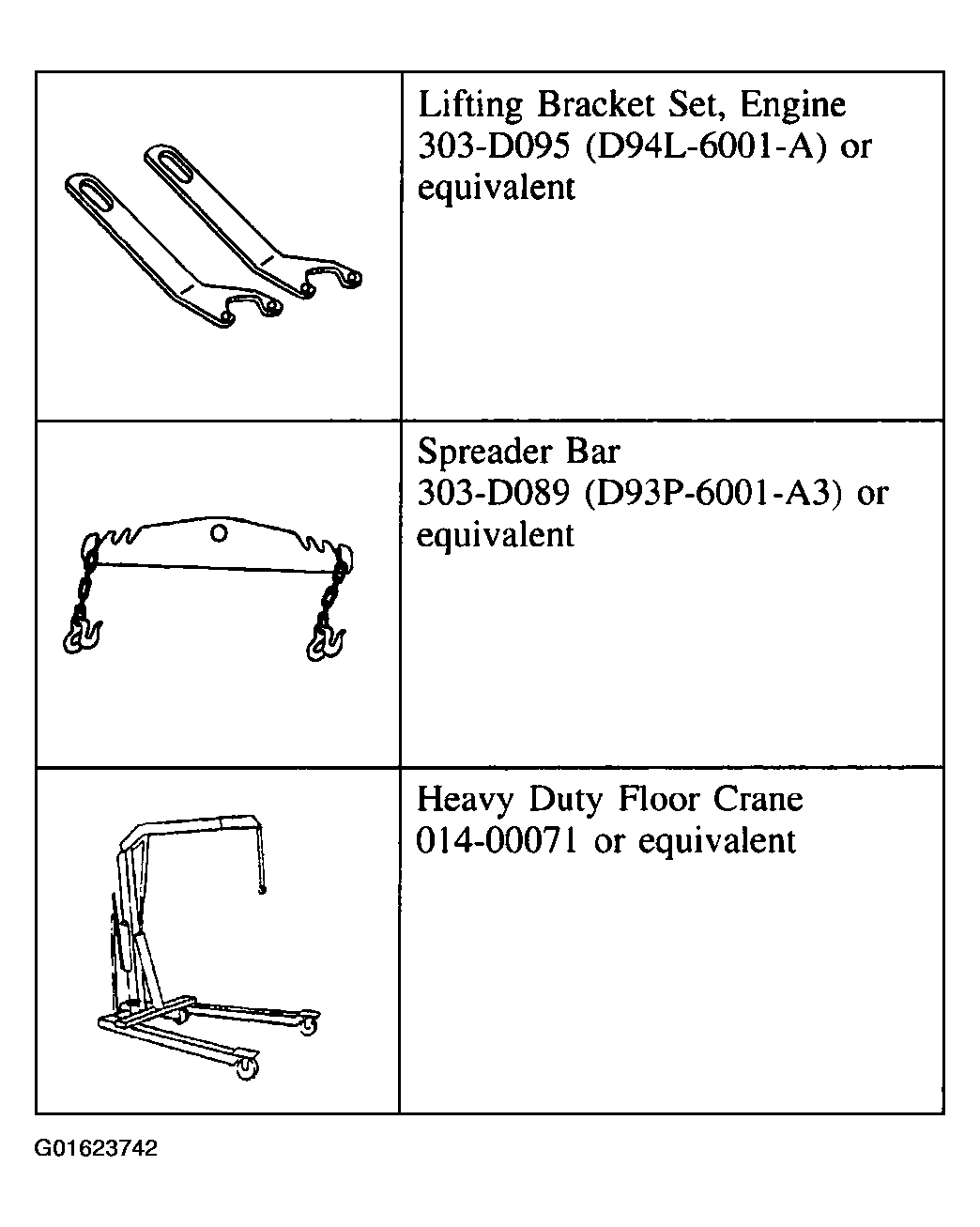

Remove the special tools.
Install the coolant recovery reservoir.

Fig 8: Installing Coolant Recovery Reservoir
Courtesy of FORD MOTOR CO.
Install the radiator sight shield.

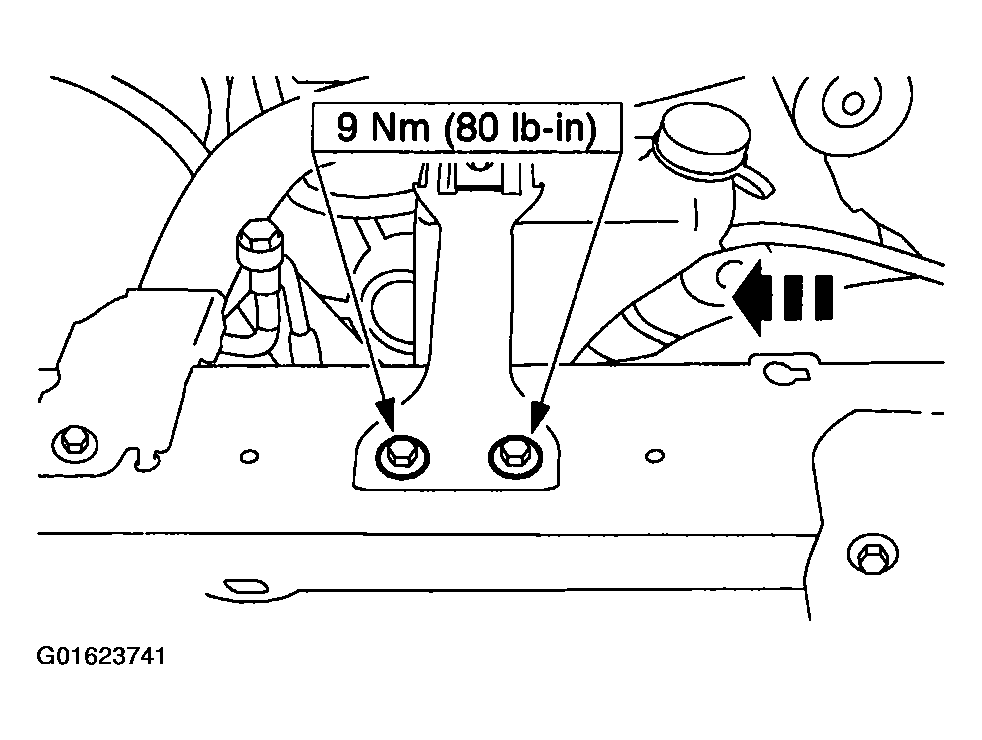

Fig 9: Installing Radiator Sight Shield
Courtesy of FORD MOTOR CO.
Install the air cleaner outlet tube. For additional information, refer to REMOVAL & INSTALLATION .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
