Multifunction Switch, Wiper/Washer Portion: Schematic

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

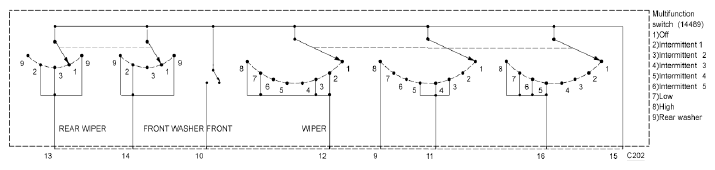

Fig 1: Multifunction Switch, Wiper/Washer Portion Schematic
G06287406Courtesy of FORD MOTOR CO.
