Main Control Valve Body - Disassembled View

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

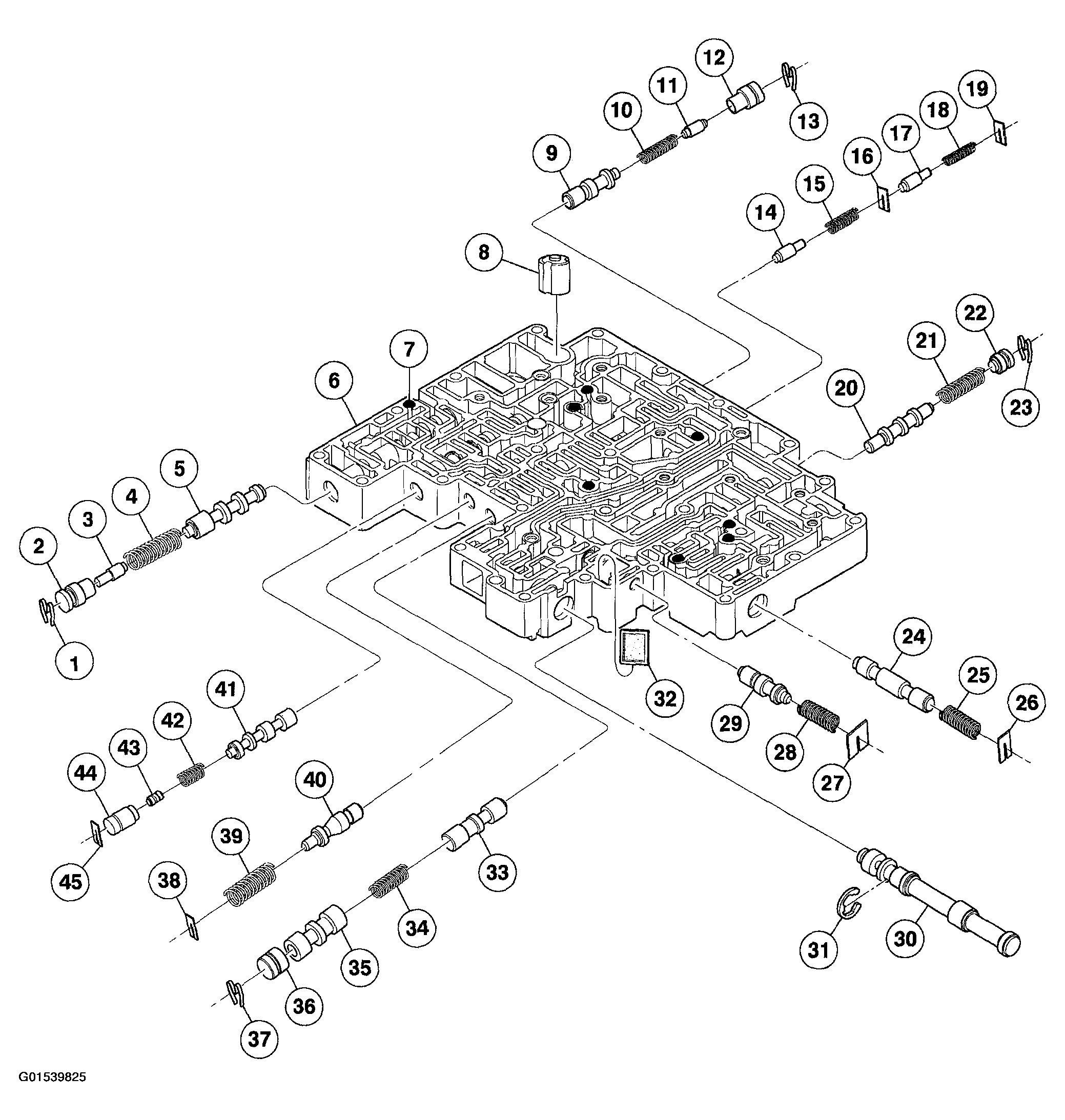

Fig 1: Main Control Valve Body - Disassembled View
G01539825Courtesy of FORD MOTOR CO.

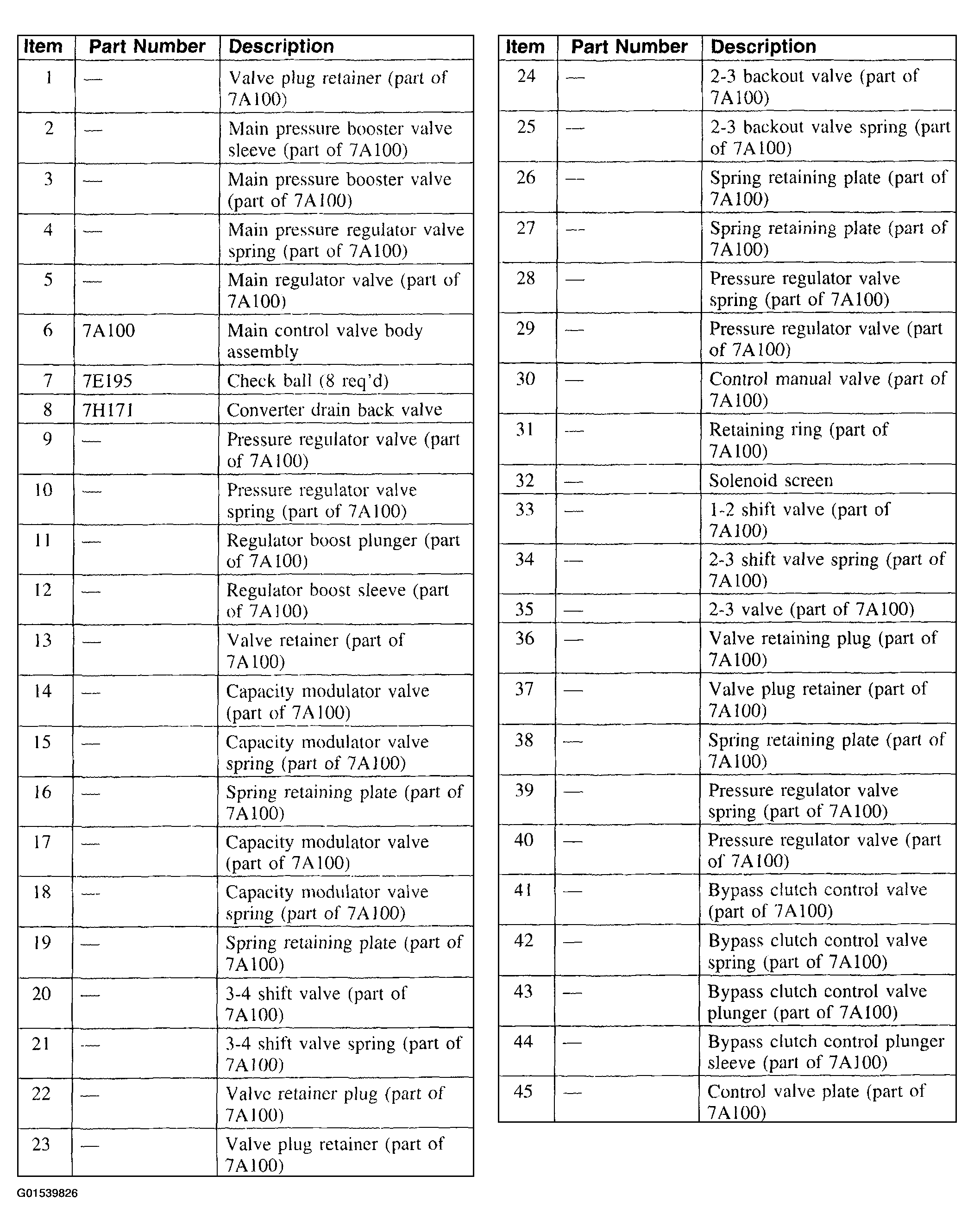

Fig 2: Main Control Valve Body (Items 1-45)
G01539826Courtesy of FORD MOTOR CO.
