Generator C102a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

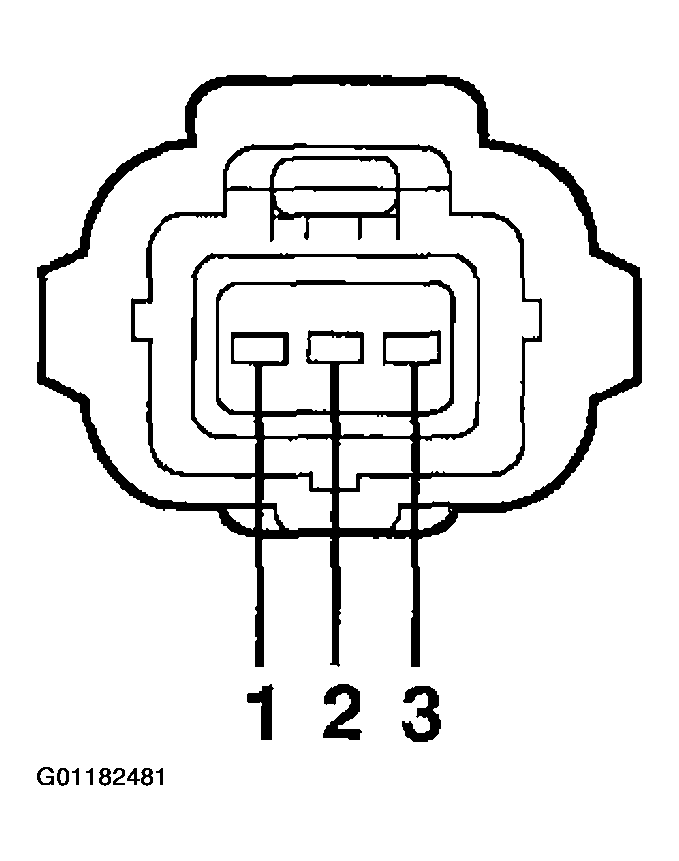

Fig 1: Identifying Generator C102a Connector Pinouts
G01182481Courtesy of FORD MOTOR CO.

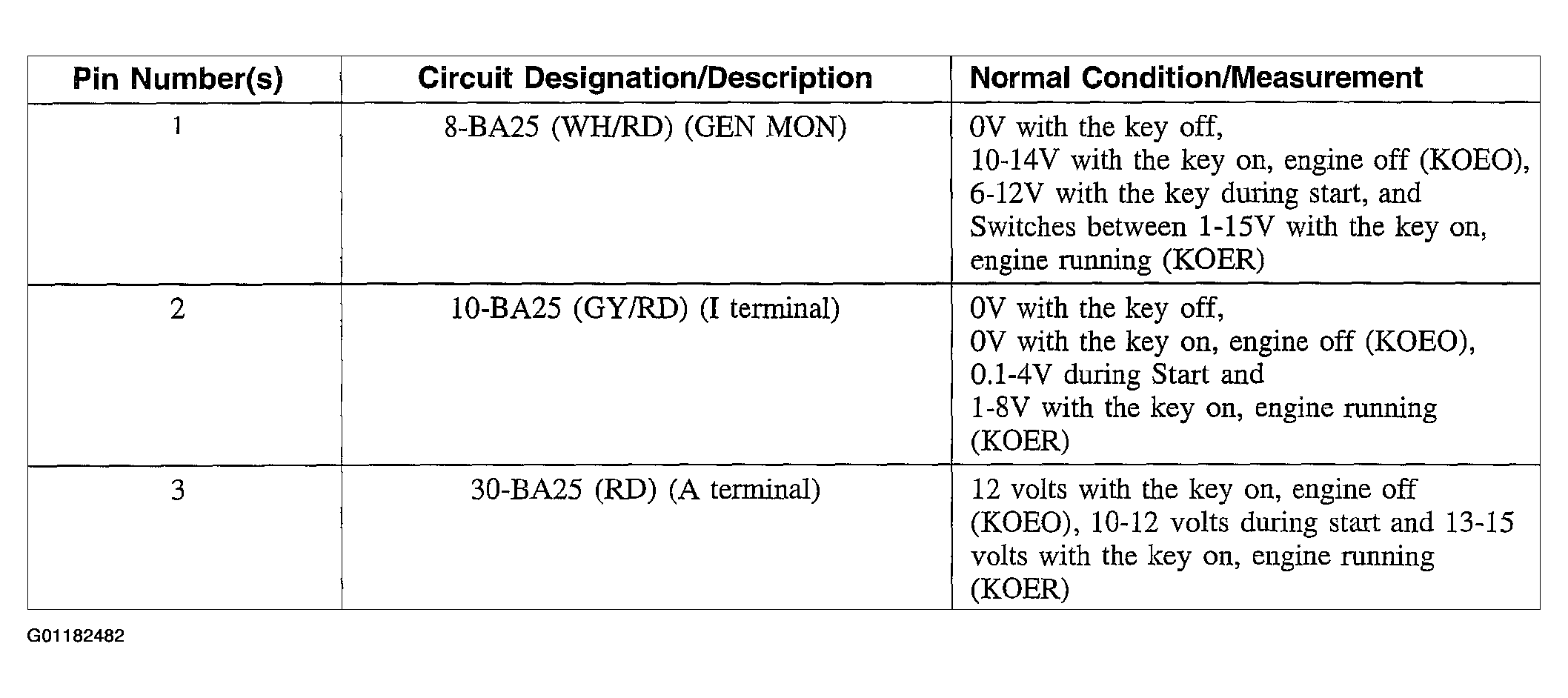

Fig 2: Generator C102a Connector Pin Reference Chart
G01182482Courtesy of FORD MOTOR CO.
