Test Procedure

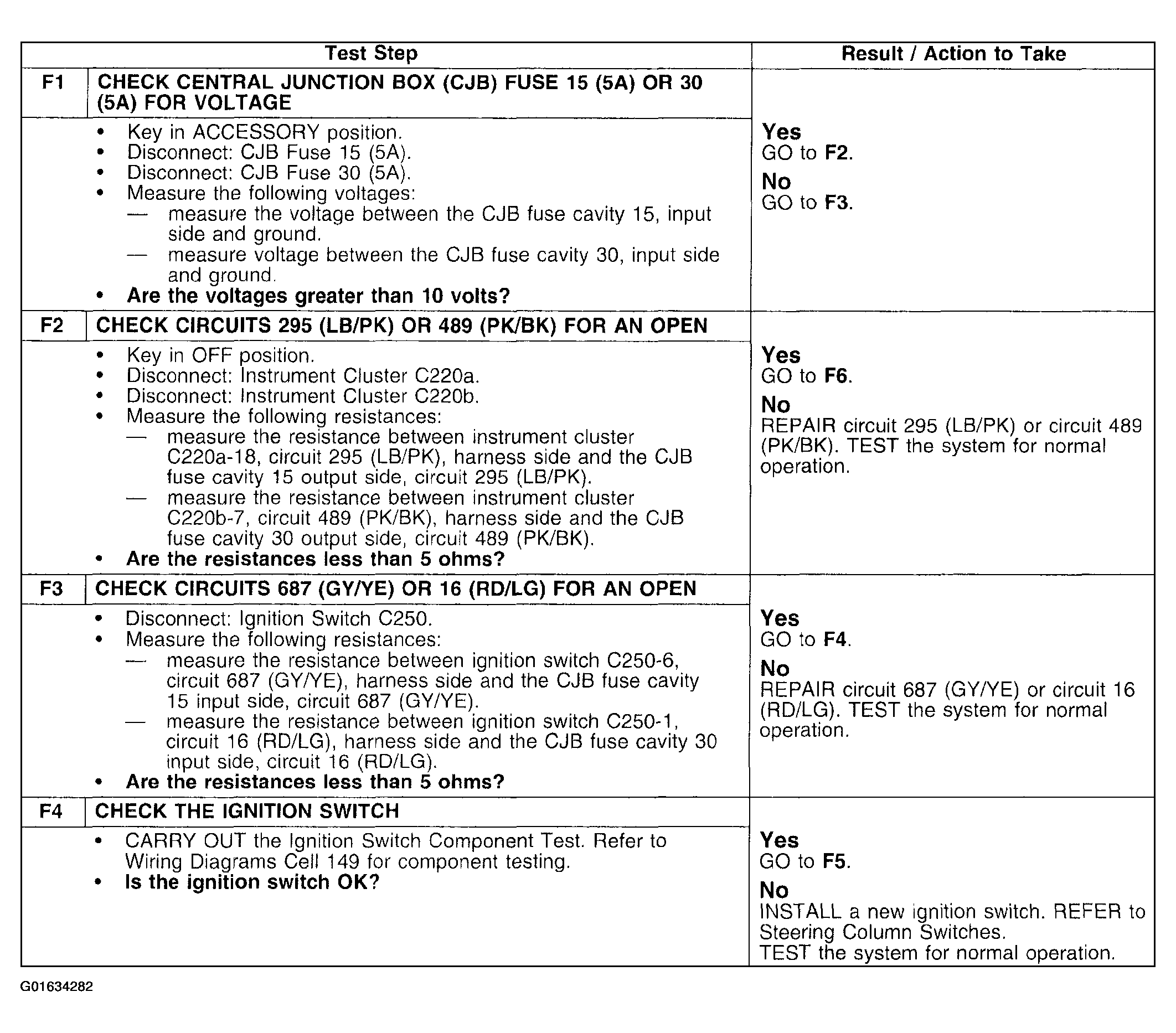

Fig 1: Pinpoint Test F: DTC B1360 - Ignition ACC/RUN Circuit Open (Steps F1-F4)
G01634282Courtesy of FORD MOTOR CO.

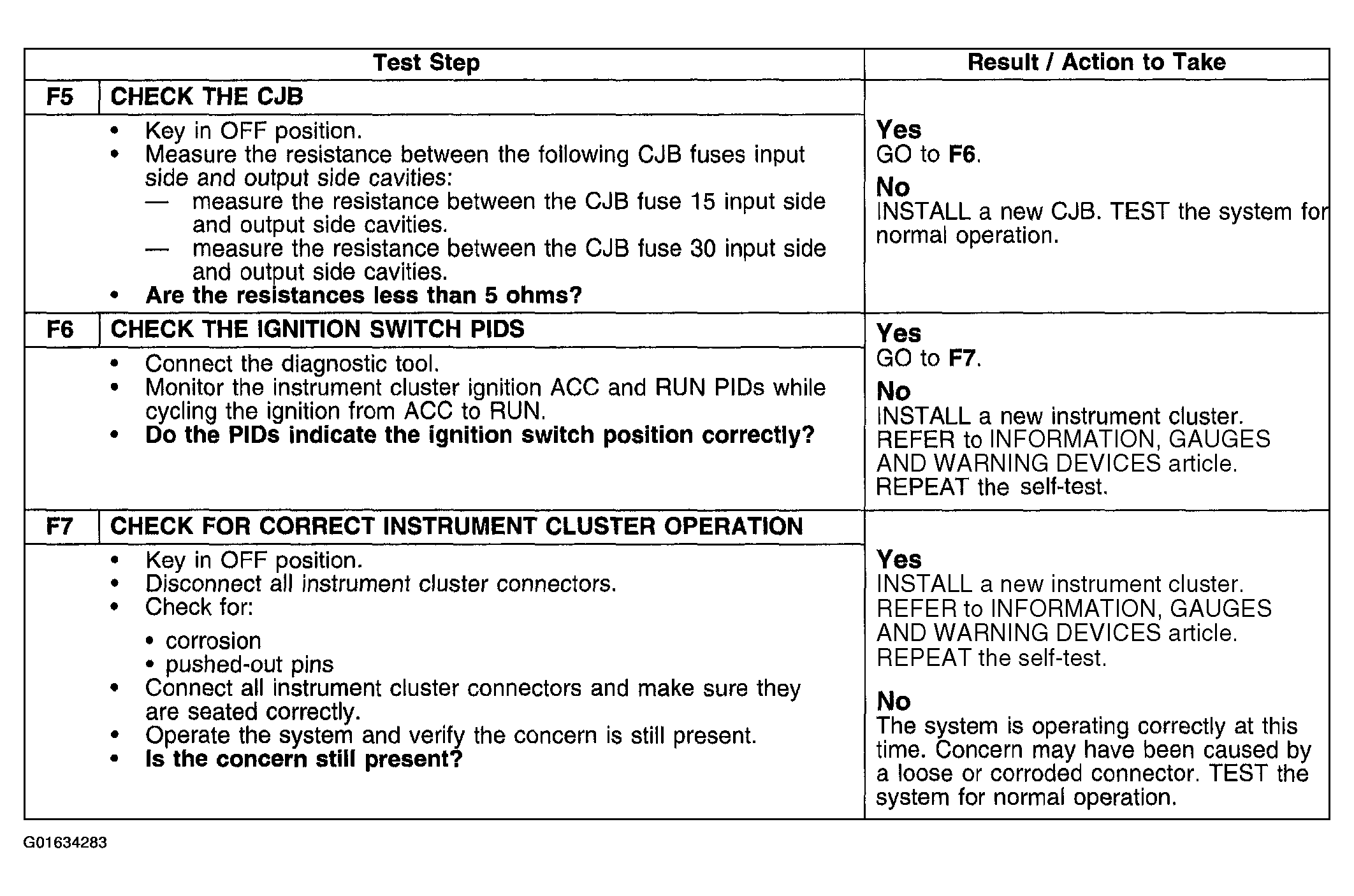

Fig 2: Pinpoint Test F: DTC B1360 - Ignition ACC/RUN Circuit Open) (Steps F5-F7)
G01634283Courtesy of FORD MOTOR CO.
