Removal And Installation: Fender: Notes

Remove the headlamp assembly. For additional information, Refer to EXTERIOR LIGHTING .
Remove the wheel and tire.
Remove the bumper cover. For additional information, Refer to FRONT BUMPER .
Position the rocker moulding aside. For additional information, Refer to MOULDINGS .
To remove individual components, only carry out the following steps.

Fig 1: Individual Components Removal Steps Chart
Courtesy of FORD MOTOR CO.
Remove the components in the order listed in Fig 2.

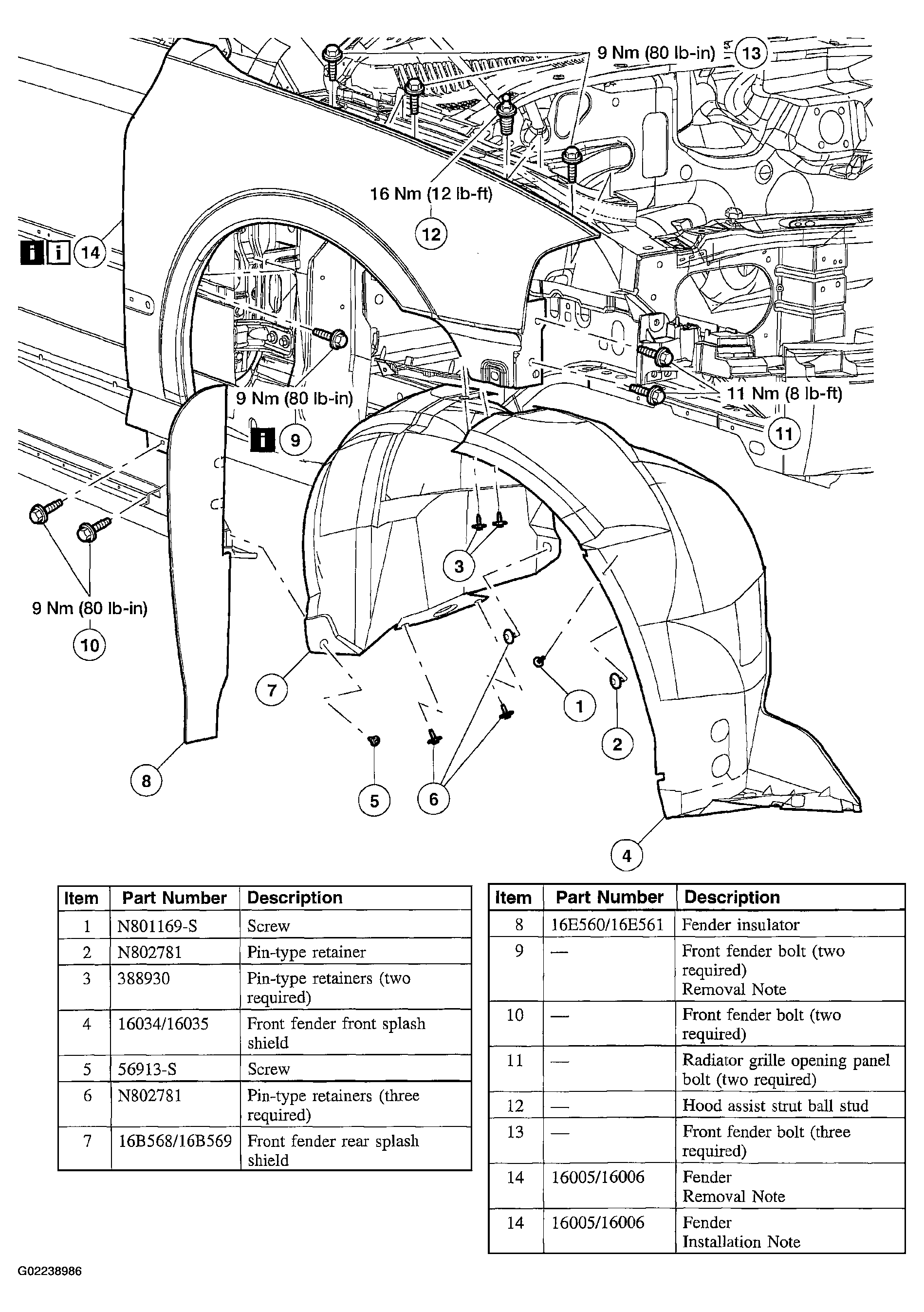

Fig 2: Identifying Fender Components And Specifications
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
