Window Control Switch: Notes

  1. Disconnect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
  2. Remove the components in the order listed in Fig 1.

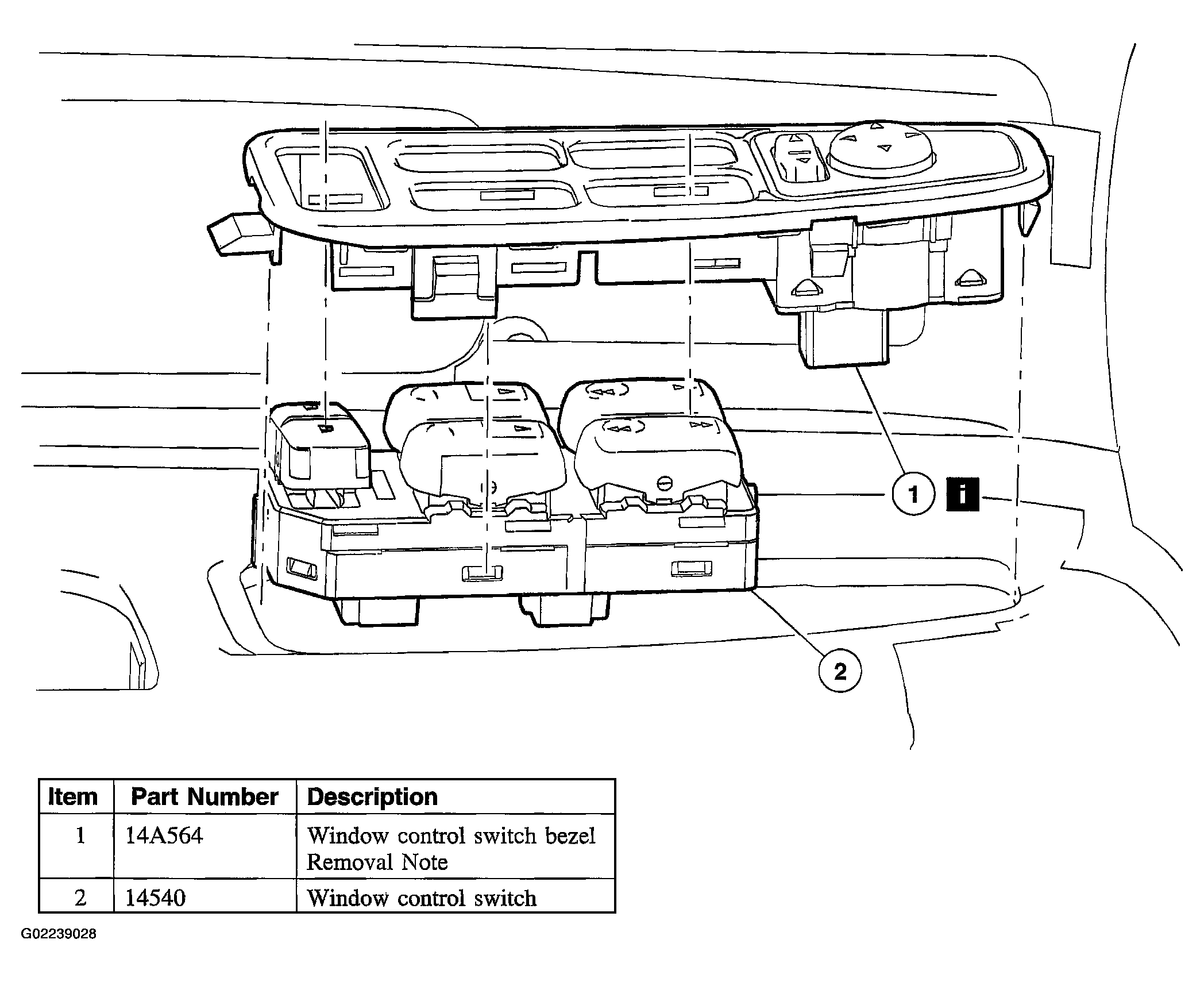

    Fig 1: Identifying Window Control Switch Components And Specifications
    G02239028Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
