Items 171 and 172: Flexplate Assembly Note
WARNING: This page is about a different variant/trim than selected.

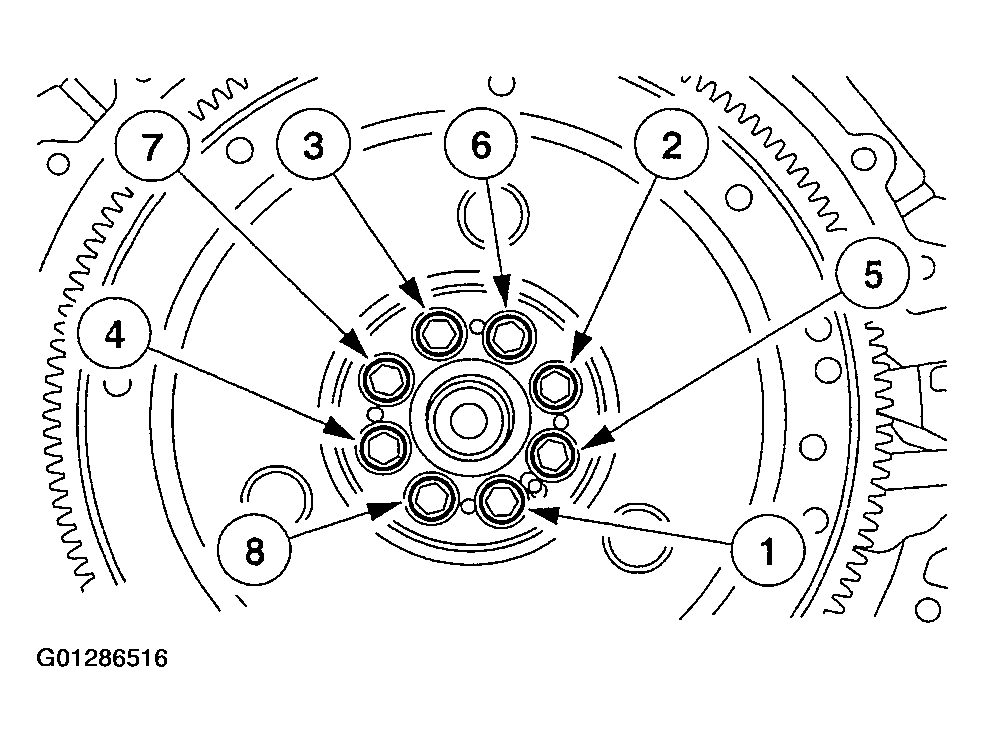

- Install the flexplate and tighten the bolts in two stages in the sequence shown.
- Stage 1: Tighten to 15 Nm (11 lb-ft).
- Stage 2: Tighten to 110 Nm (81 lb-ft).
Courtesy of FORD MOTOR CO.
