Cylinder Head: Material

WARNING: This page is about a different variant/trim than selected.
Fig 1: Material Specifications
G01286412Courtesy of FORD MOTOR CO.
  1. Remove the components in the order indicated in the following illustration and table.

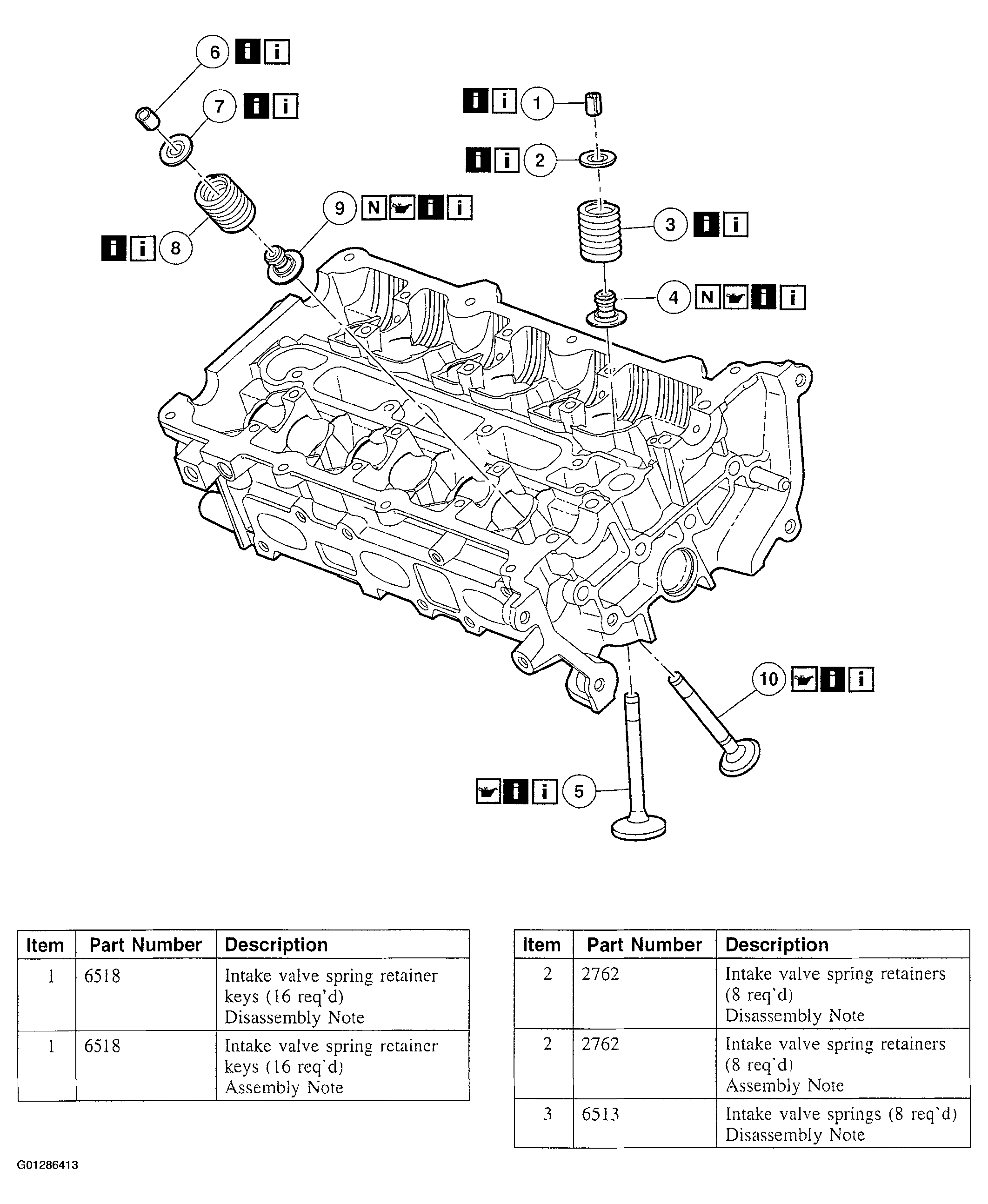

    Fig 2: Removing Intake Valve Retainer Components
    G01286413Courtesy of FORD MOTOR CO.

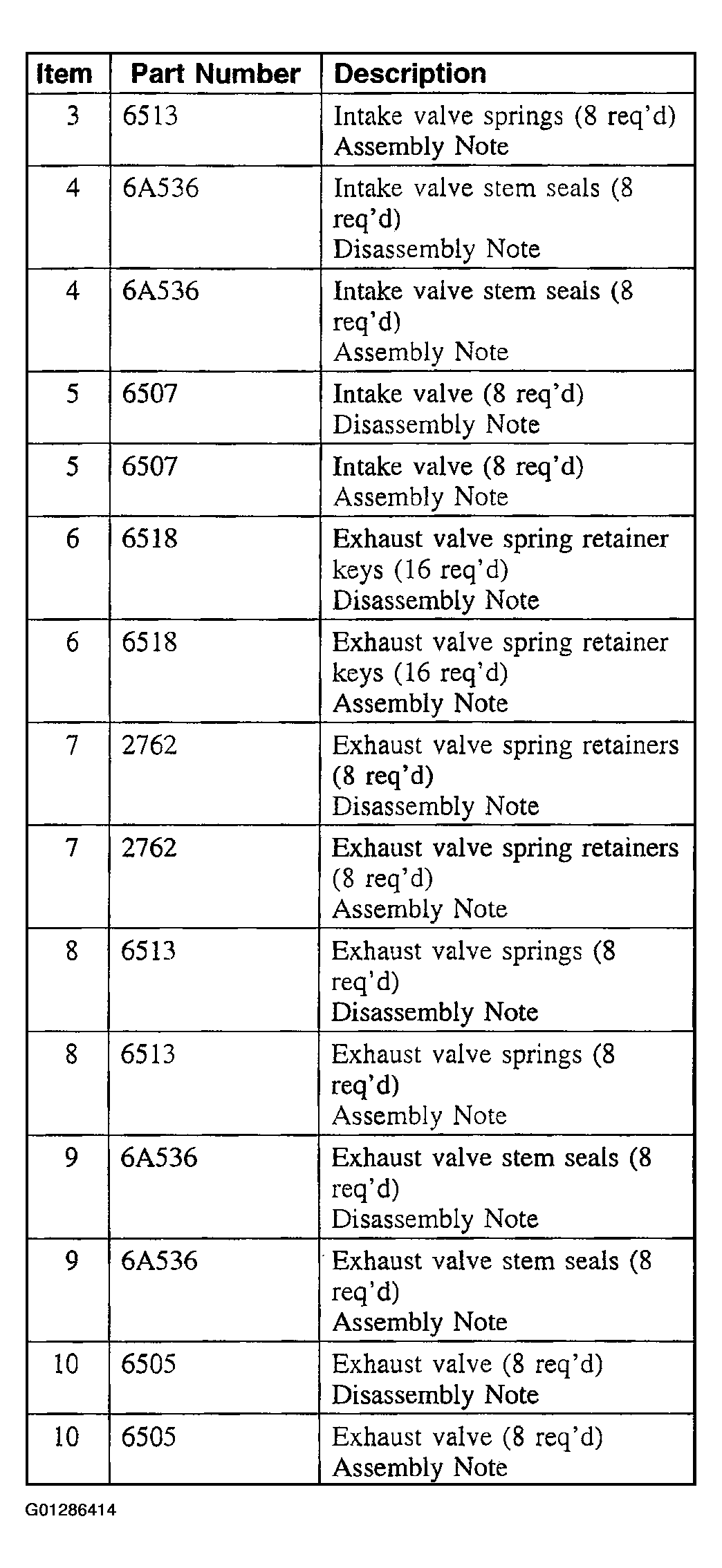

    Fig 3: Parts Description Chart
    G01286414Courtesy of FORD MOTOR CO.
  2. To assemble, reverse the disassembly procedure.
