Powertrain Control Module (PCM) C175b

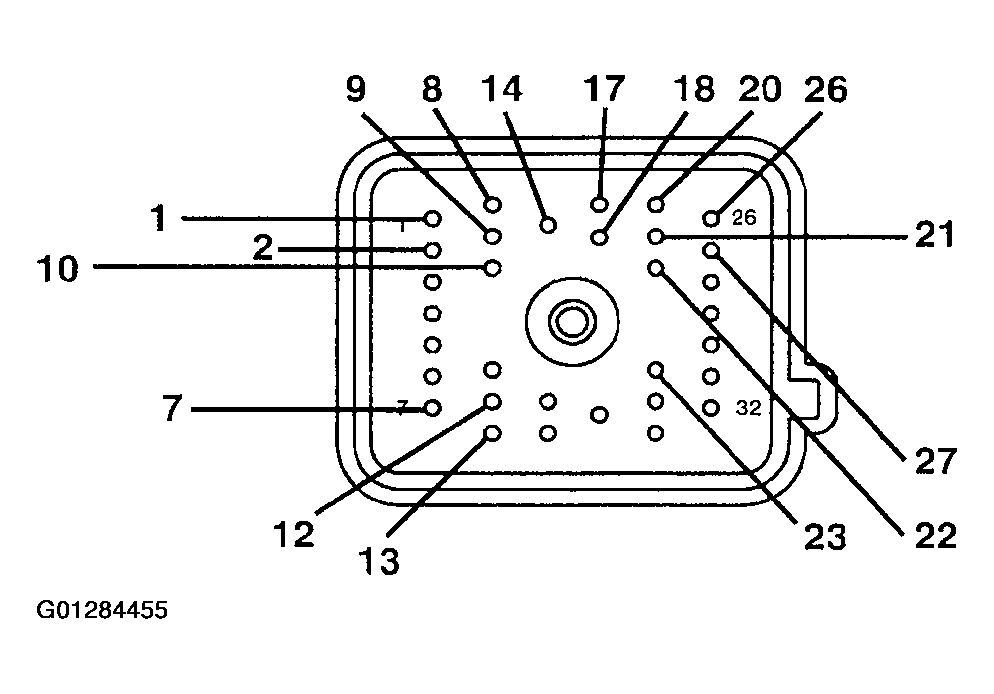

Fig 1: Identifying Powertrain Control Module (PCM) C175b Connector
G01284455Courtesy of FORD MOTOR CO.

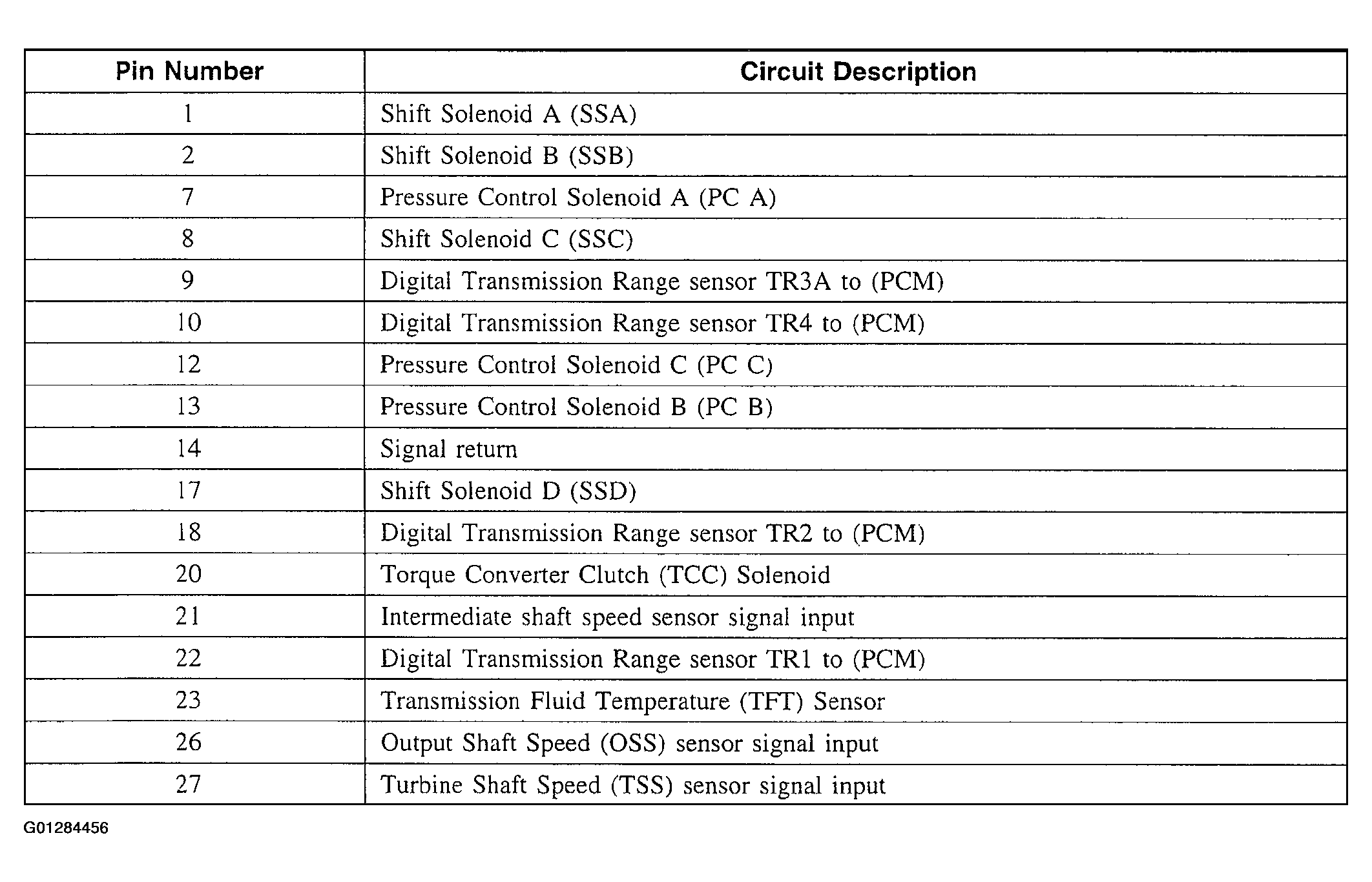

Fig 2: Connector Pins Description Chart
G01284456Courtesy of FORD MOTOR CO.
