Item 24: Main Control Valve Body Installation Note

  1. Install the special tools into the transmission case.

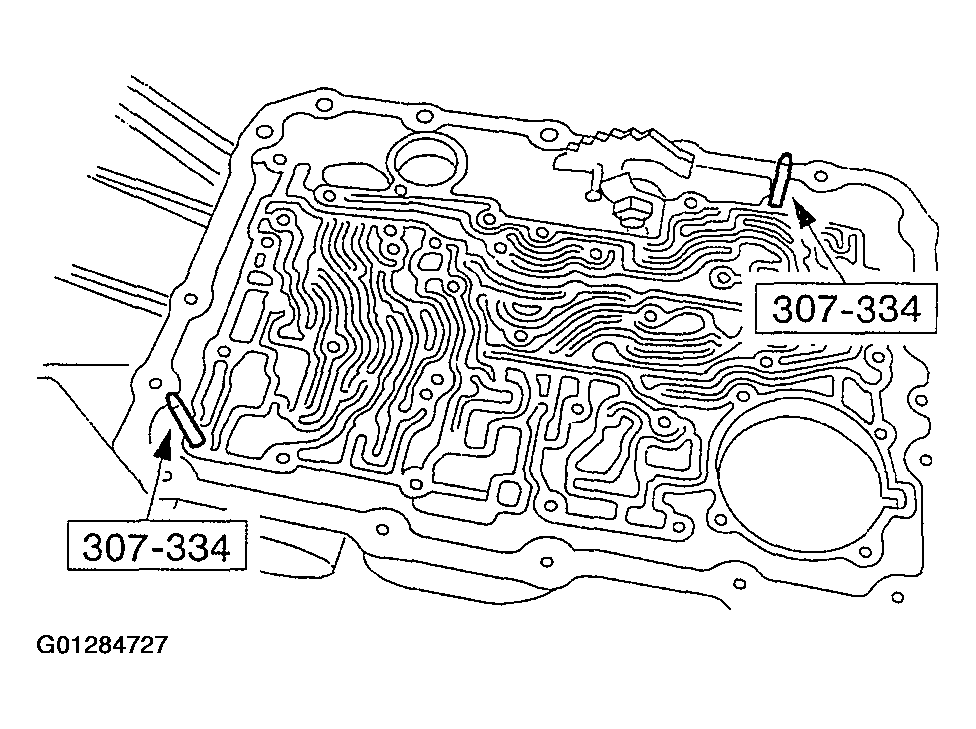

    Fig 1: Installing Special Tools Into Transmission Case
    G01284727Courtesy of FORD MOTOR CO.
