Band Adjustment And Torque Chart

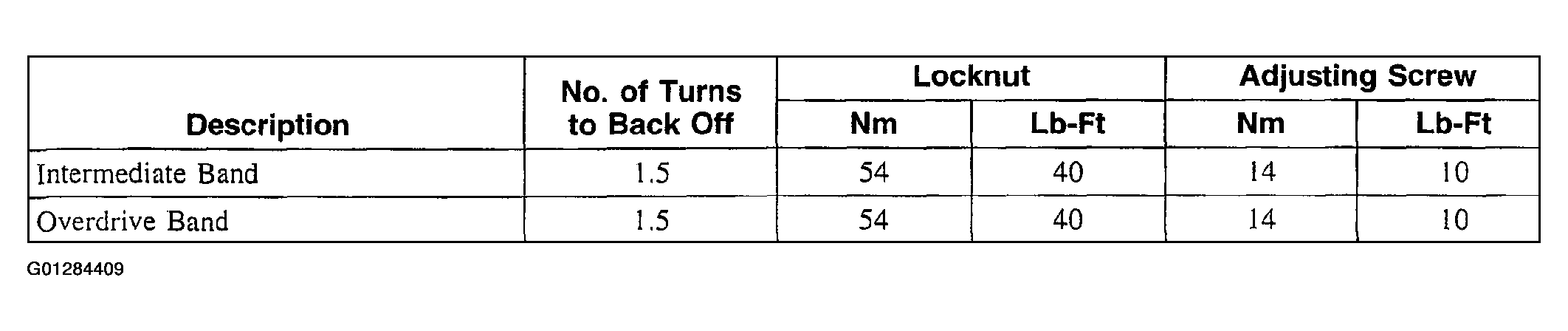

Fig 1: Band Adjustment And Torque Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
