Line Pressure Chart - 3.0L Engine

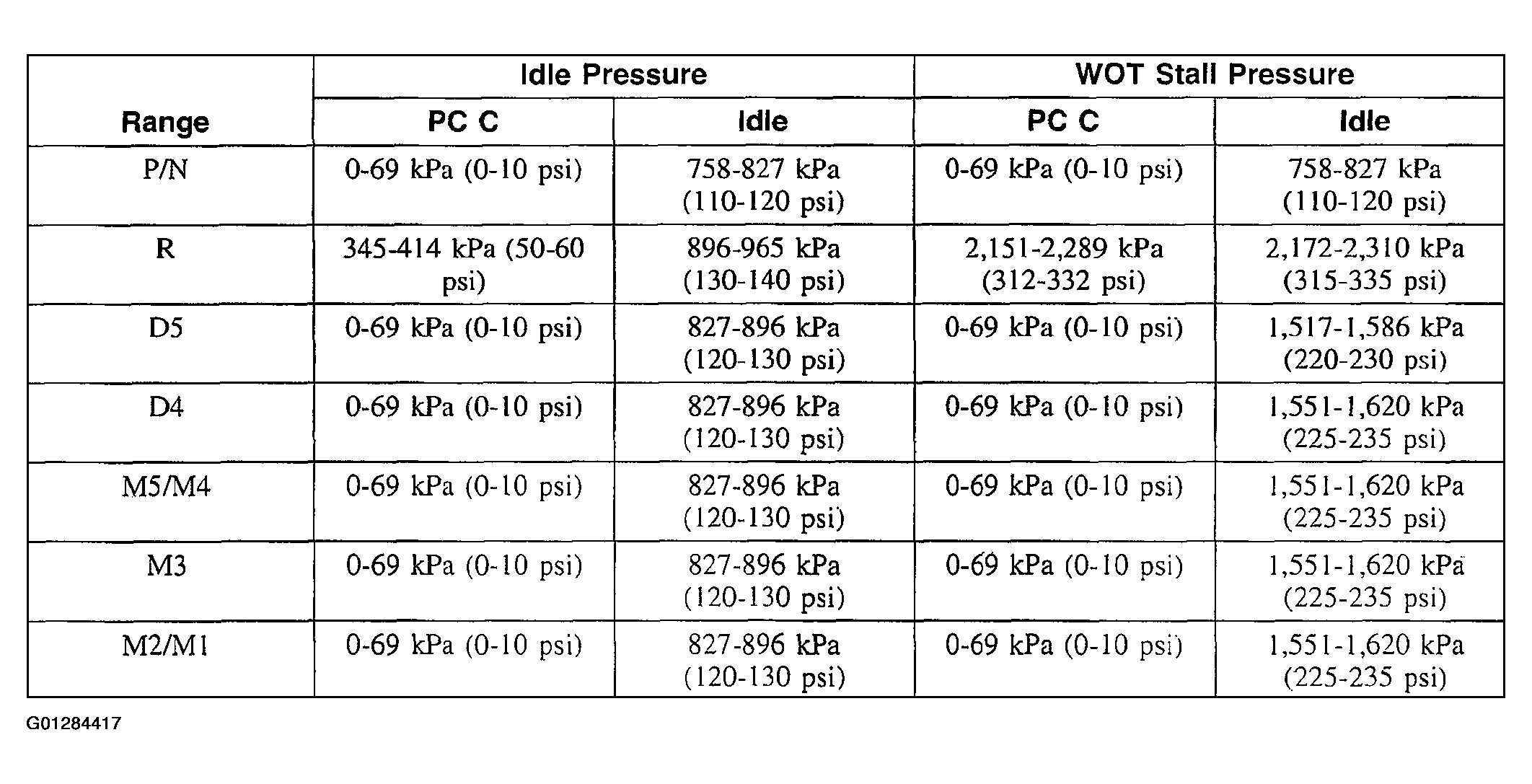

Fig 1: Line Pressure Chart - 3.0L Engine
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
