Selective Snap Rings

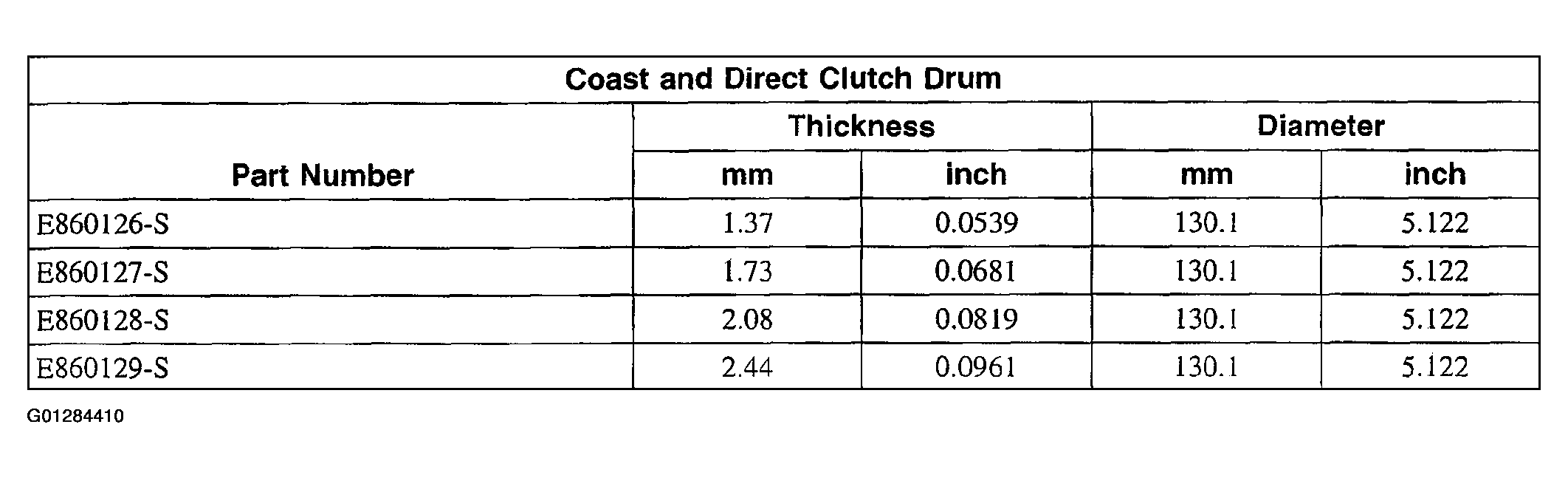

Fig 1: Snap Rings Specifications (1 Of 2)
G01284410Courtesy of FORD MOTOR CO.

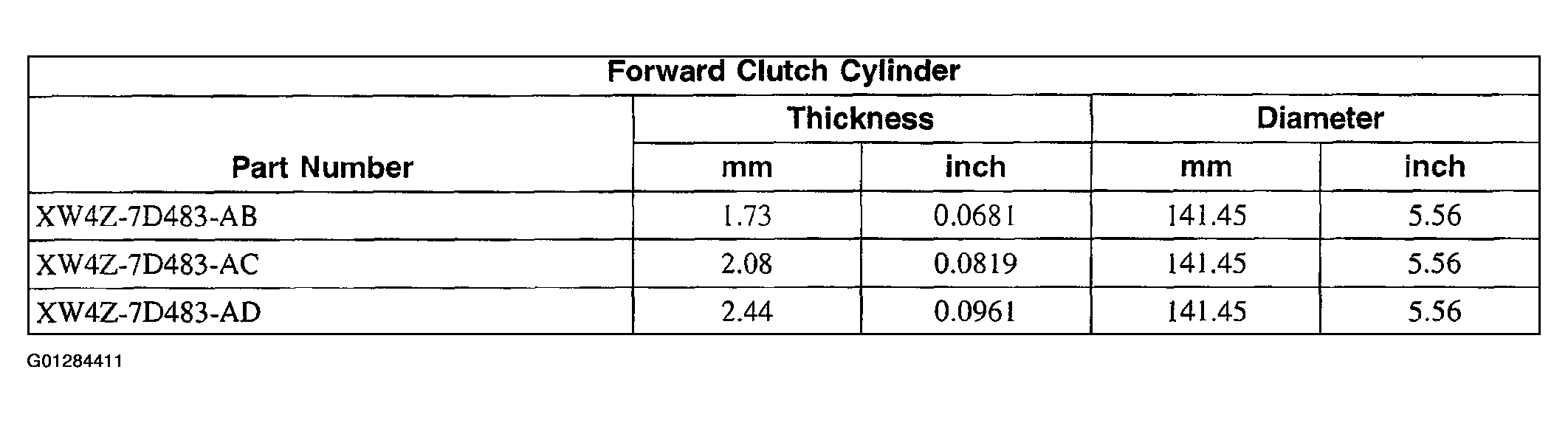

Fig 1: Snap Rings Specifications (2 Of 2)
G01284411Courtesy of FORD MOTOR CO.
