Possible Causes

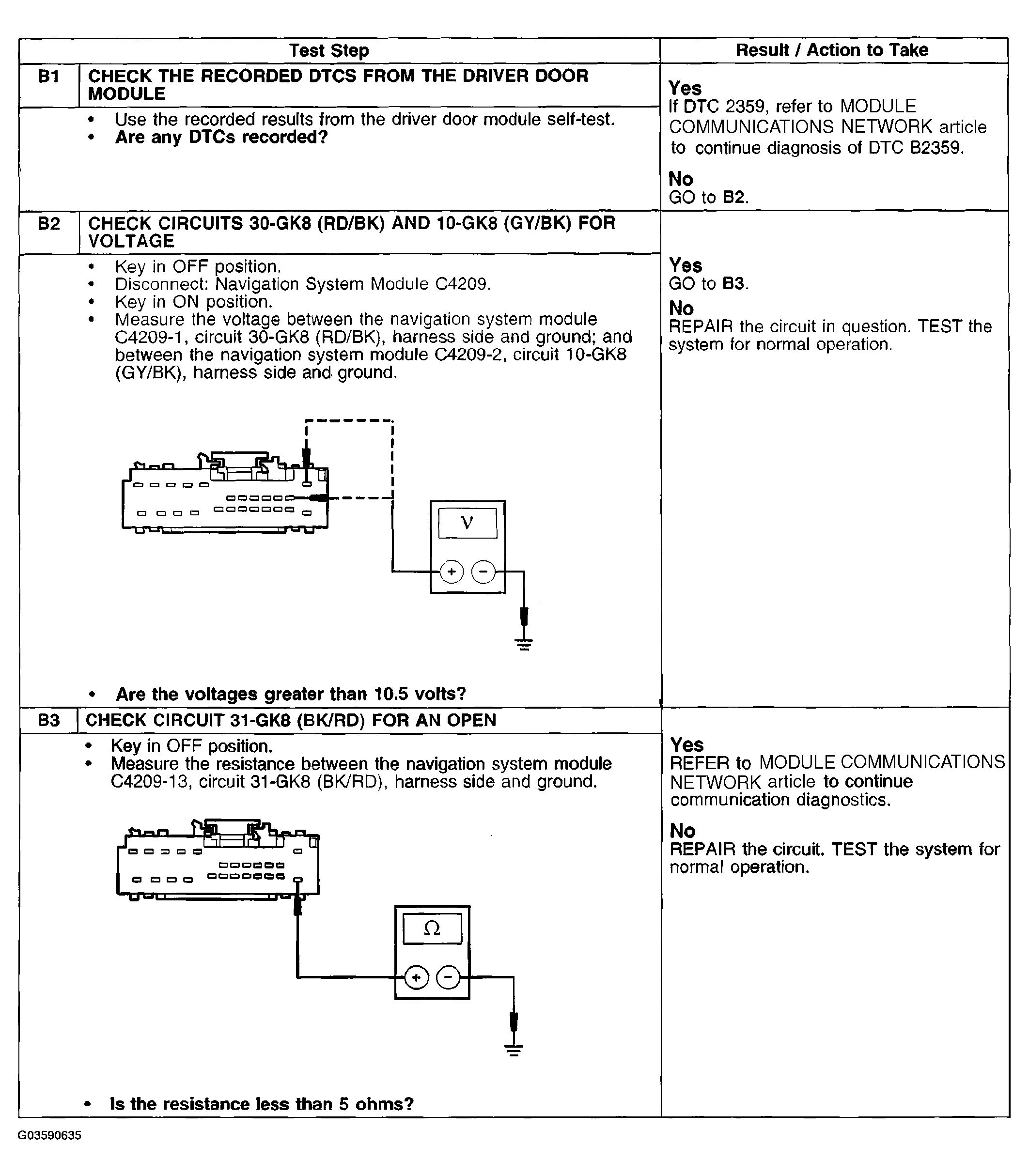

Fig 1: Pinpoint Test B: No Communication With Navigation System Module (Step B1-B3)
G03590635Courtesy of FORD MOTOR CO.
