Pinpoint Test G: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Test Step
- G1 CHECK THE ACM C240c FOR DAMAGE
- Key in OFF position.
- Disconnect: ACM C240c.
- Inspect the ACM C240c for damage.
- Is the ACM C240c OK?
Result / Action to Take
- Yes : GO to G2.
- No : REPAIR the ACM C240c as necessary. TEST the system for normal operation.
- G2 CHECK FOR AN OPEN BETWEEN THE DLC C251 AND THE ACM

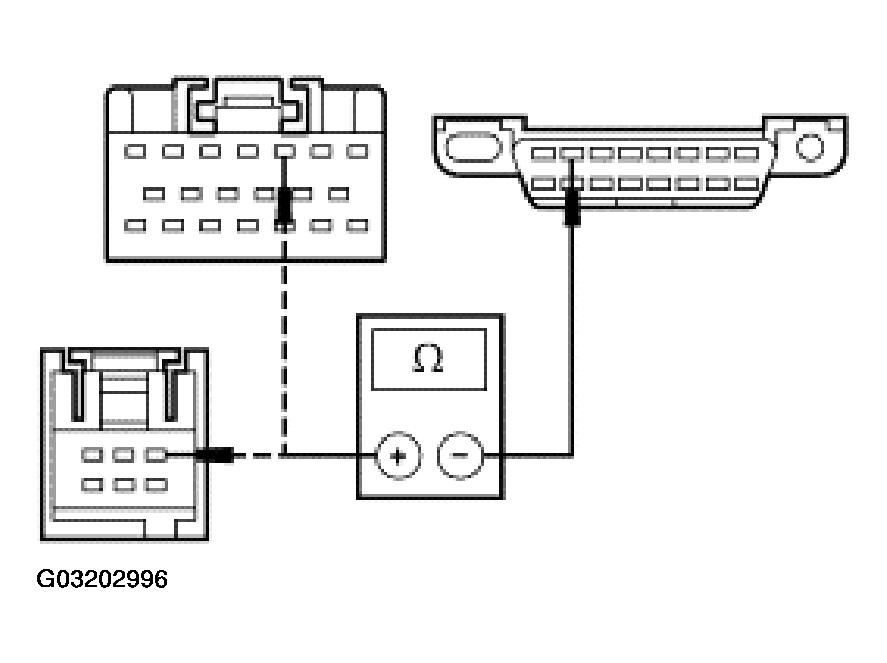

- Measure the resistance between the ACM C240c-3, circuit 4-EG10 (GY/BK), or ACM C290c-1, circuit 4-EG10 (GY/BK) DM1 00i only, harness side and the DLC C251-2, circuit 4-EG7 (GY/RD), harness side.

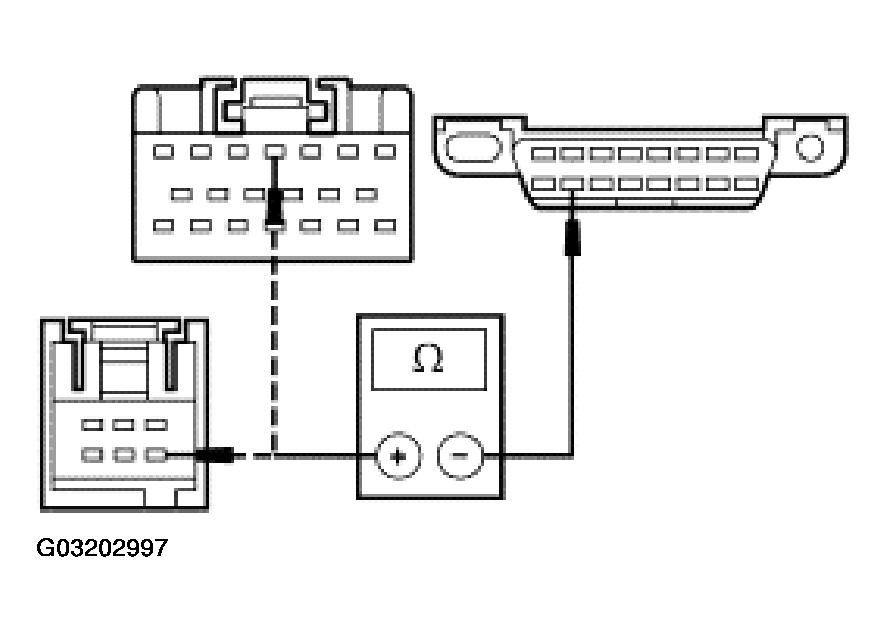

- Measure the resistance between the ACM C240c-4, circuit 5-EG10 (BU/YE), or ACM C290c-4, circuit 5-EG10 (BU/YE) DM1 00i only, harness side and the DLC C251 -10, circuit 5-EG7 (BU/RD), harness side.
- Are the resistances less than 5 ohms?
- Yes : GO to G5.
- No GO to G3.
- G3 CHECK FOR AN OPEN BETWEEN THE ACM AND JOINT CONNECTOR No. 4 C223
- Disconnect: Joint Connector No. 4 C223.

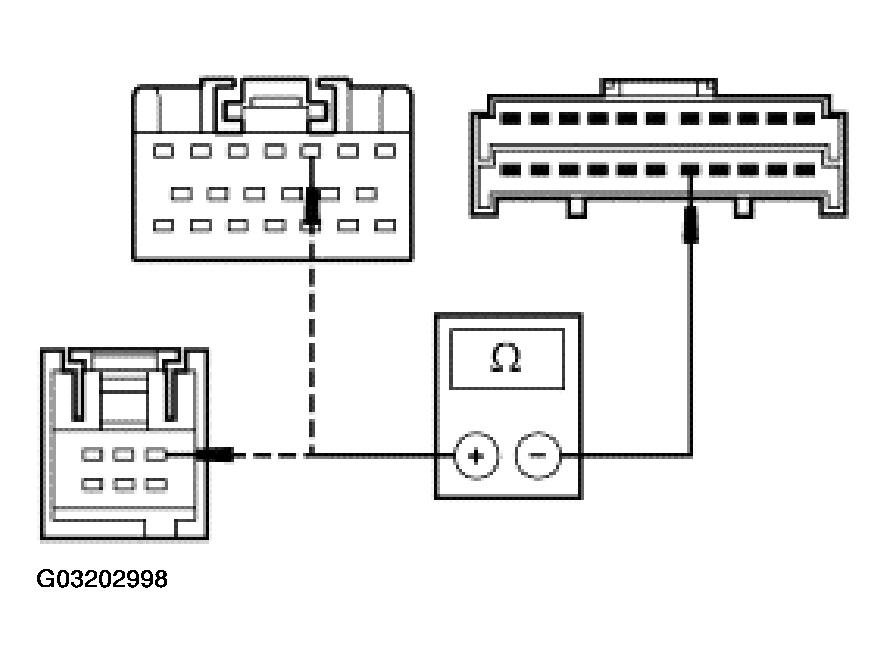

- Measure the resistance between the ACM C240c-3, circuit 4-EG10 (GY/BK), or ACM C290c-1, circuit 4-EG10 (GY/BK) DM1 00i only, harness side and joint connector No. 4 C223-16, circuit 4-EG10 (GY/BK), harness side.

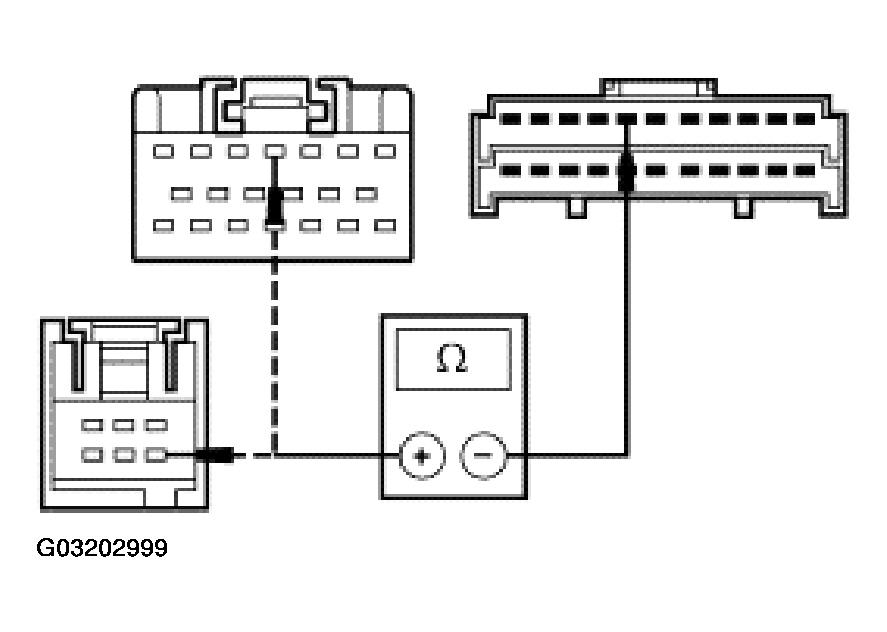

- Measure the resistance between the ACM C290c-4, circuit 5-EG10 (BU/YE), or ACM C290c-4, circuit 5-EG10 (BU/YE) DM1 00i only, harness side and joint connector No. 4 C223-7, circuit 5-EG10 (BU/YE), harness side.
- Are the resistances less than 5 ohms?
- Yes : GO to G4.
- No : REPAIR the circuit in question. TEST the system for normal operation.
- G4 CHECK JOINT CONNECTOR No. 4 FOR AN OPEN

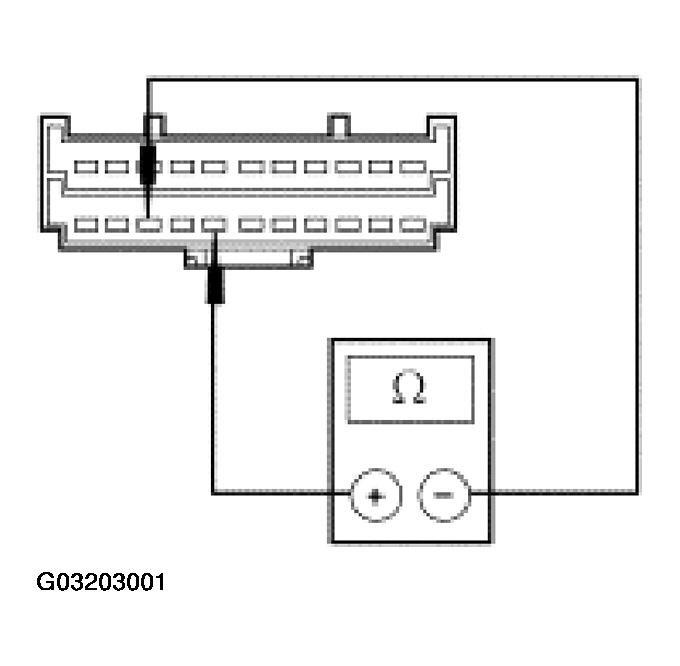

- Measure the resistance between joint connector No. 4 C223-14, component side and joint connector No. 4 C223-16, component side.

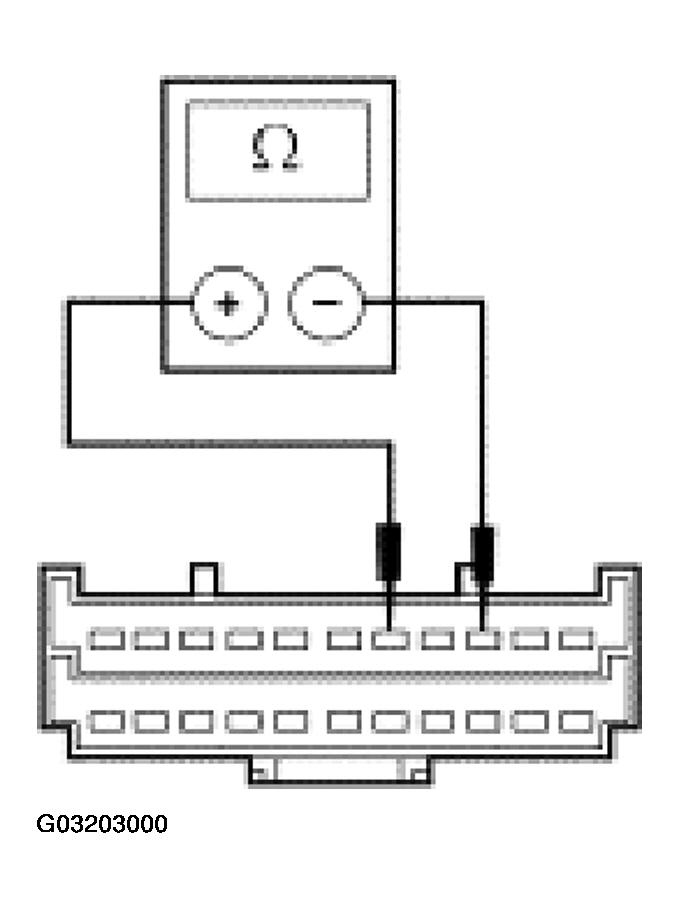

- Measure the resistance between joint connector No. 4 C223-7, component side and joint connector No. 4 C223-9, component side.
- Are the resistances less than 5 ohms?
- Yes : REPAIR the circuit in question between the DLC C251 and joint connector No.4C223. CARRY OUT the PINPOINT TEST PC: data link diagnostics network test .
- No : REPAIR joint connector No. 4 C223. TEST the system for normal operation.
- G5 CHECK FOR CORRECT ACM OPERATION
- Disconnect all the ACM connectors.
- Check for:
- corrosion
- push-out pins
- Connect all the ACM connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
- Yes
: INSTALL a new ACM. REFER to ENTERTAINMENT SYSTEM - LS
. TEST the system for normal operation.
CARRY OUT the PINPOINT TEST PC: data link diagnostics network test .
- No : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
