Pinpoint Test K: DTC B2351 - Steering Column Switch Signal Failure

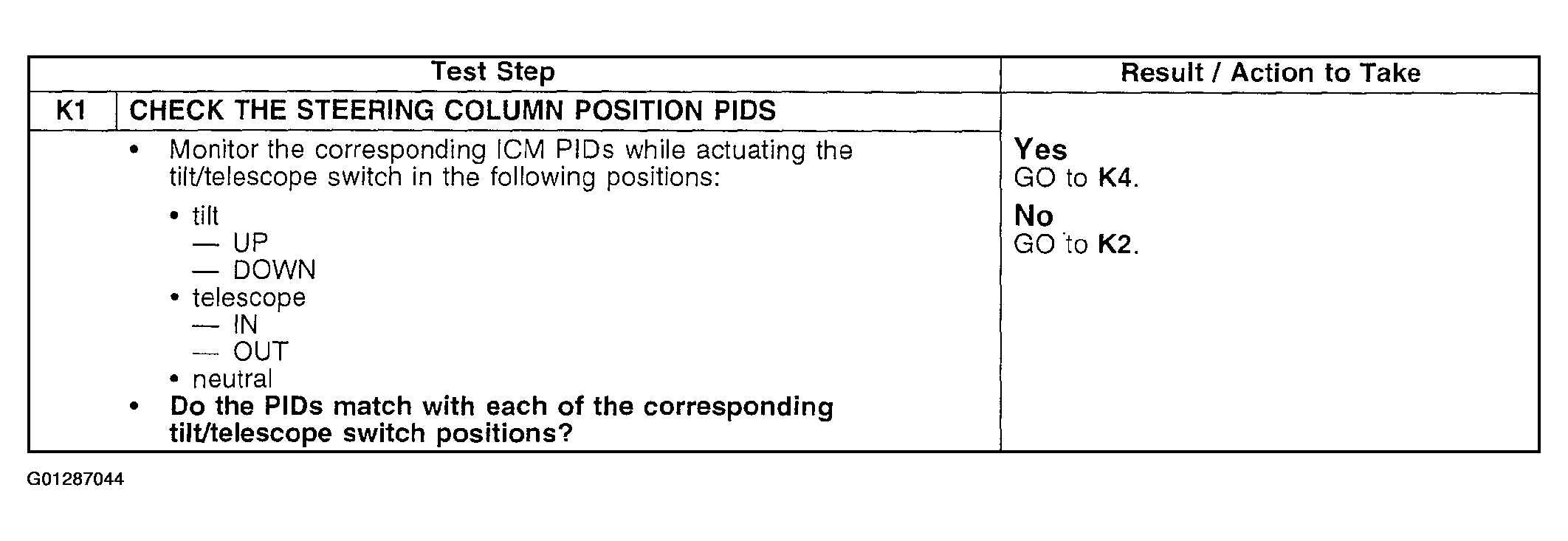

Fig 1: Pinpoint Test K: Steering Column Switch Signal Circuit Failure (Steps K1)
G01287044Courtesy of FORD MOTOR CO.

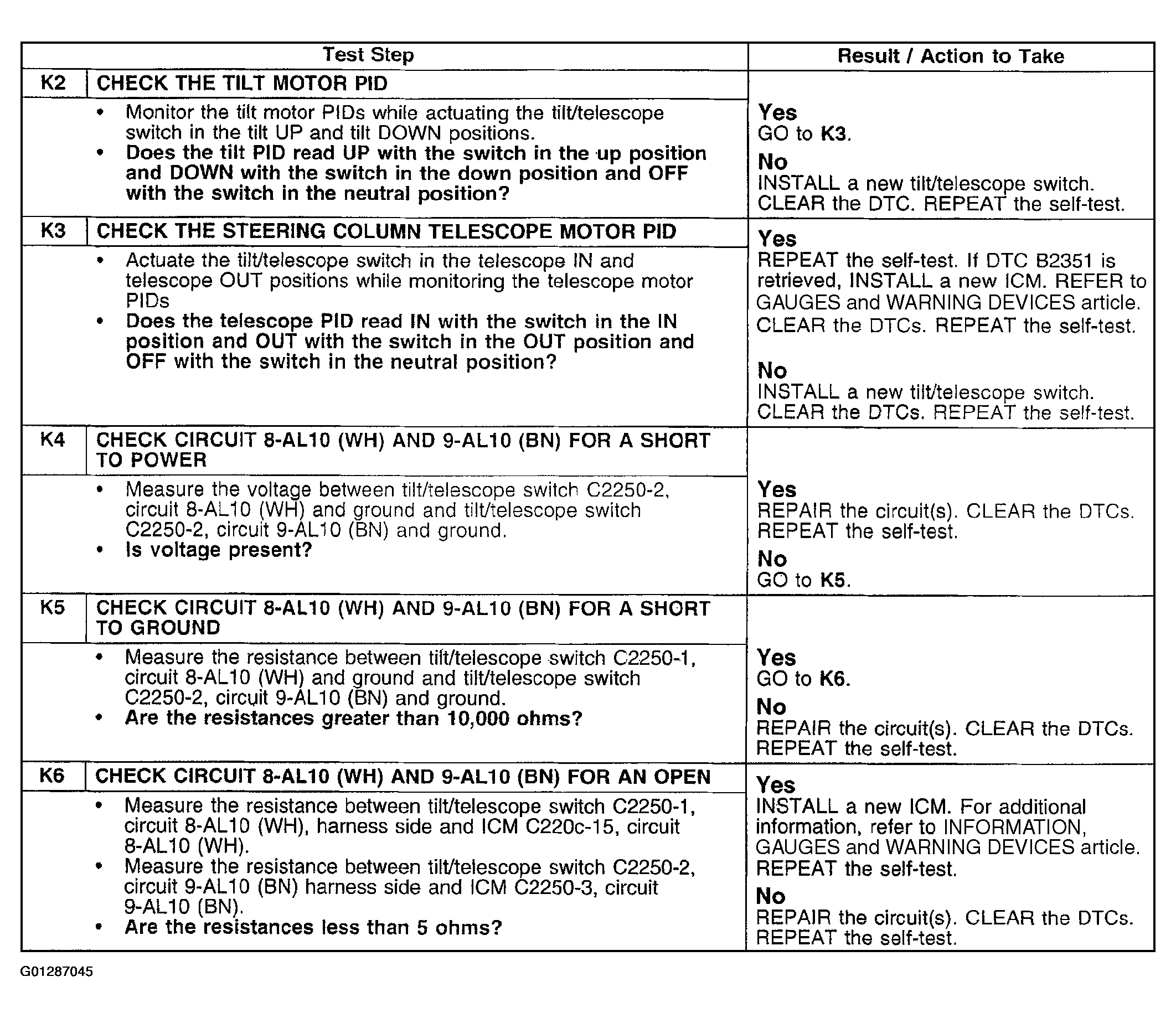

Fig 2: Pinpoint Test K: Steering Column Switch Signal Circuit Failure (Steps K2-K6)
G01287045Courtesy of FORD MOTOR CO.
