Home >> Lincoln >> 2003 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> Front Electronic Module (FEM)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

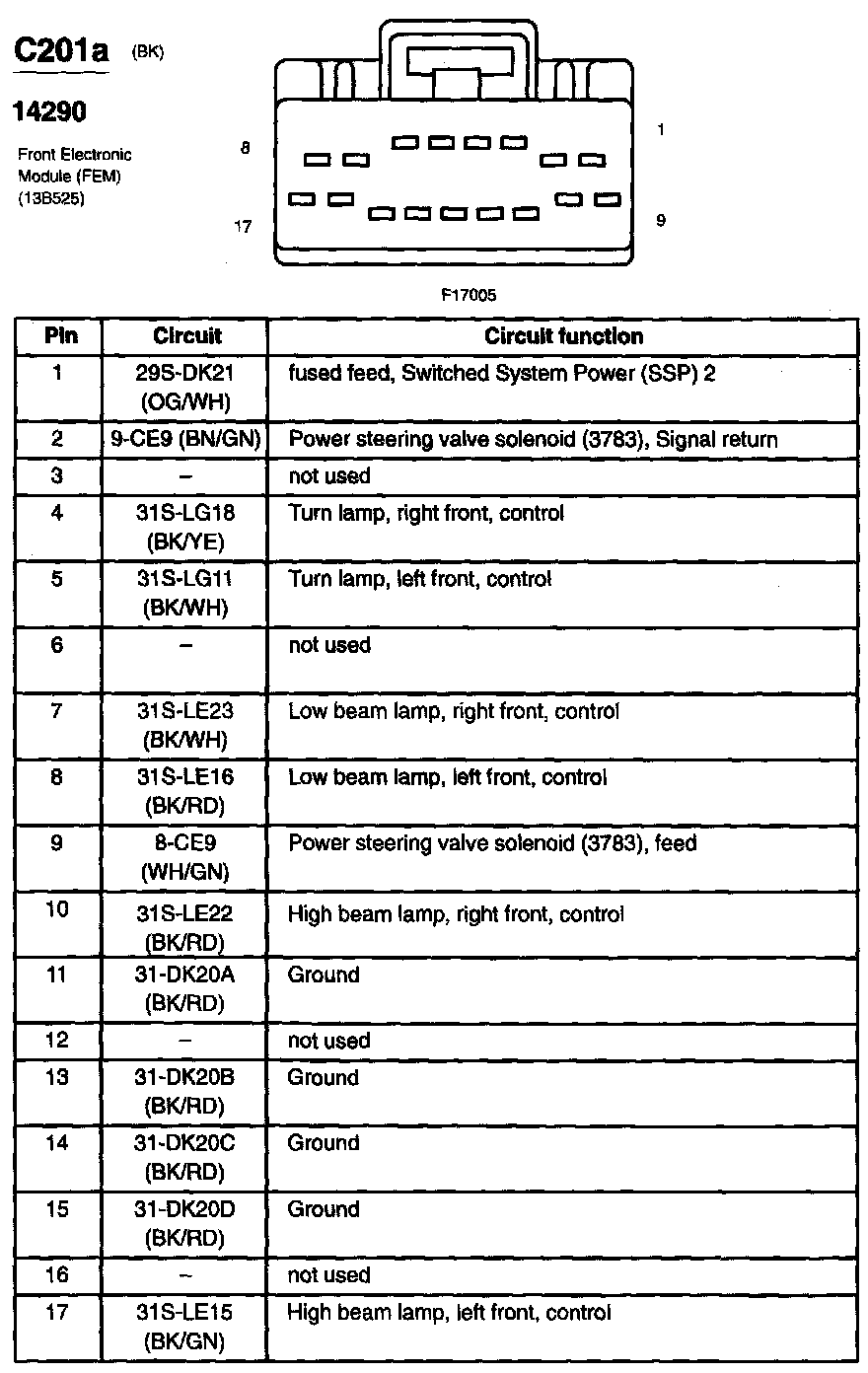

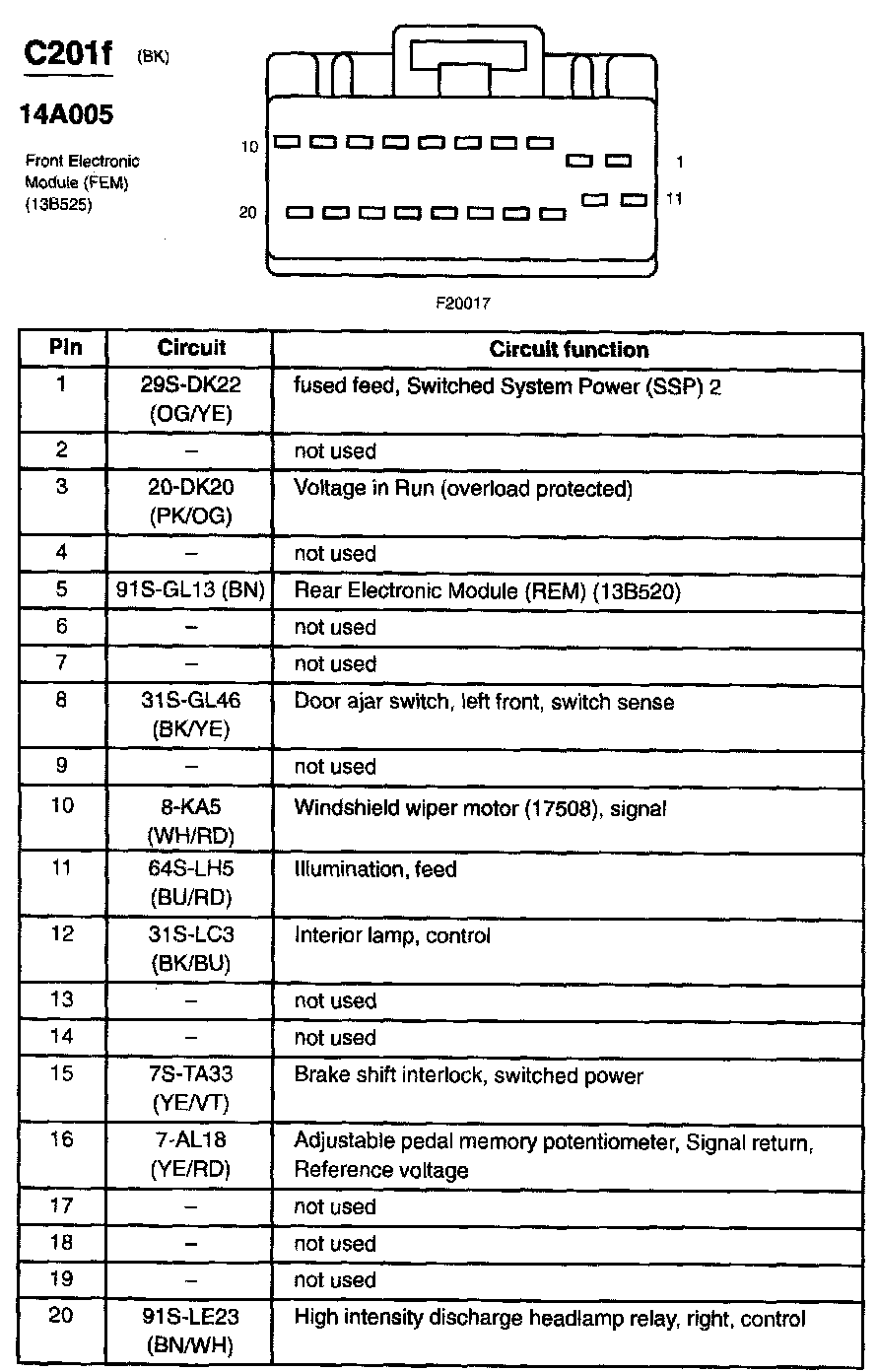

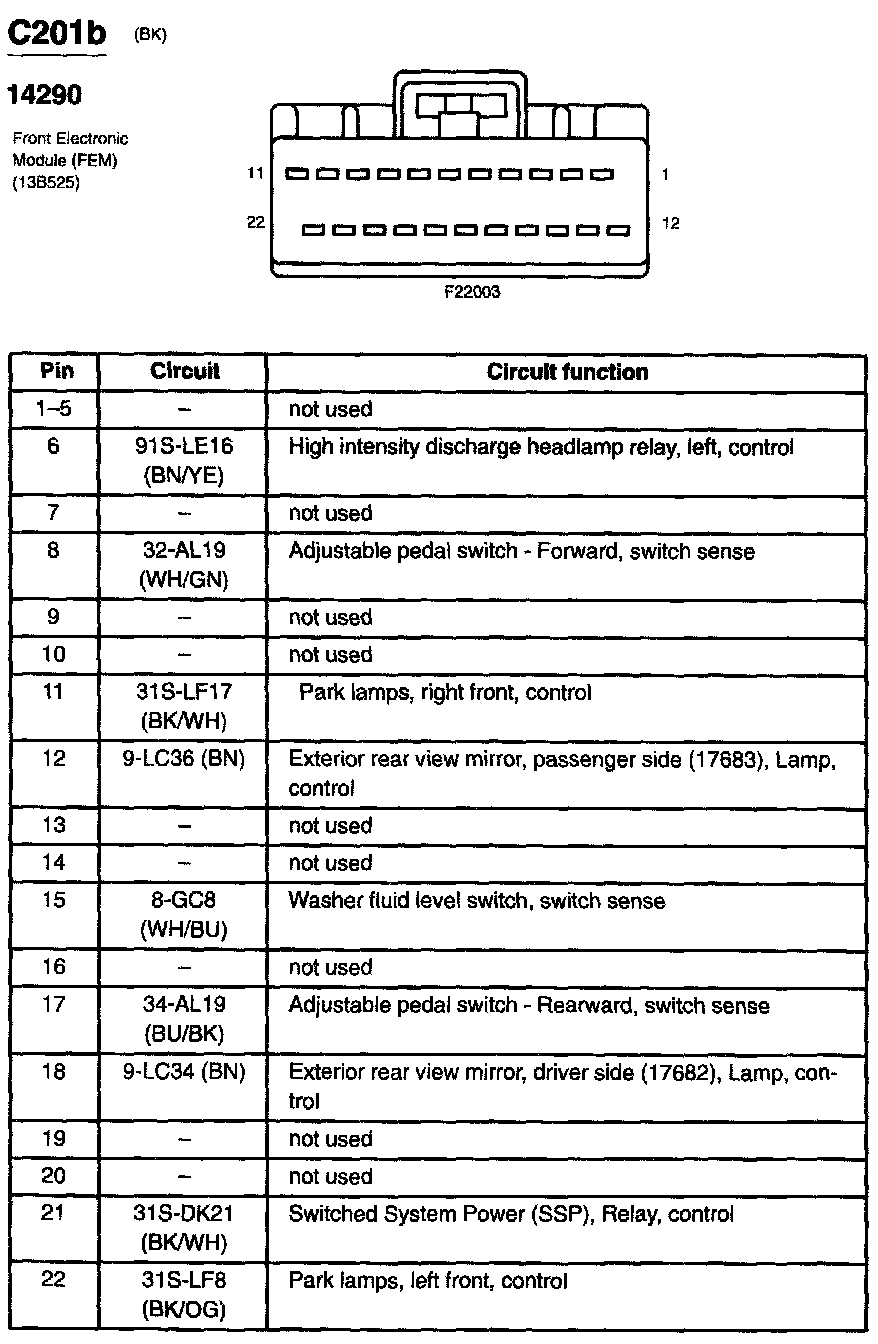

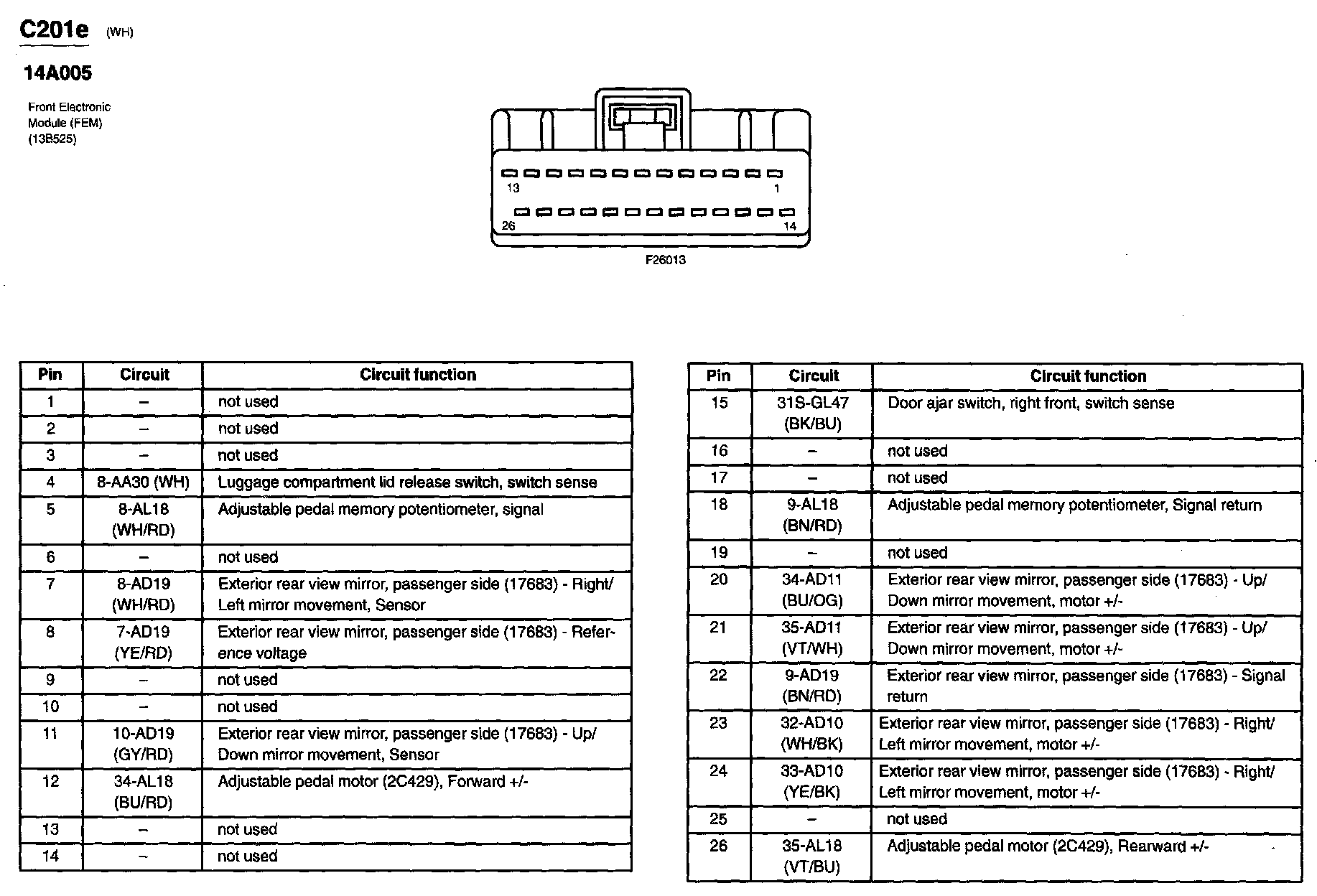

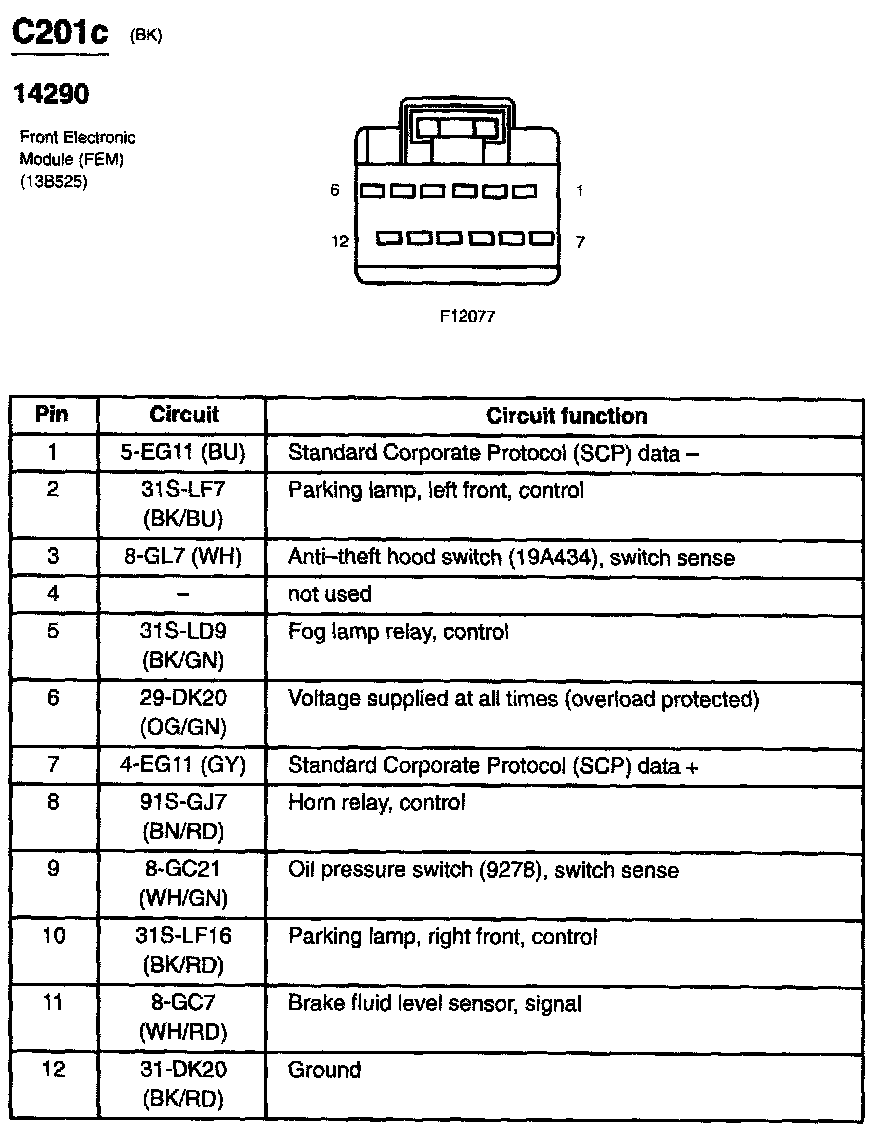

Front Electronic Module (FEM)
