Home >> Lincoln >> 2003 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Climate Controlled Seat Module, Driver Side
April 5, 2026: LEMON Manuals is launched! Read the announcement.

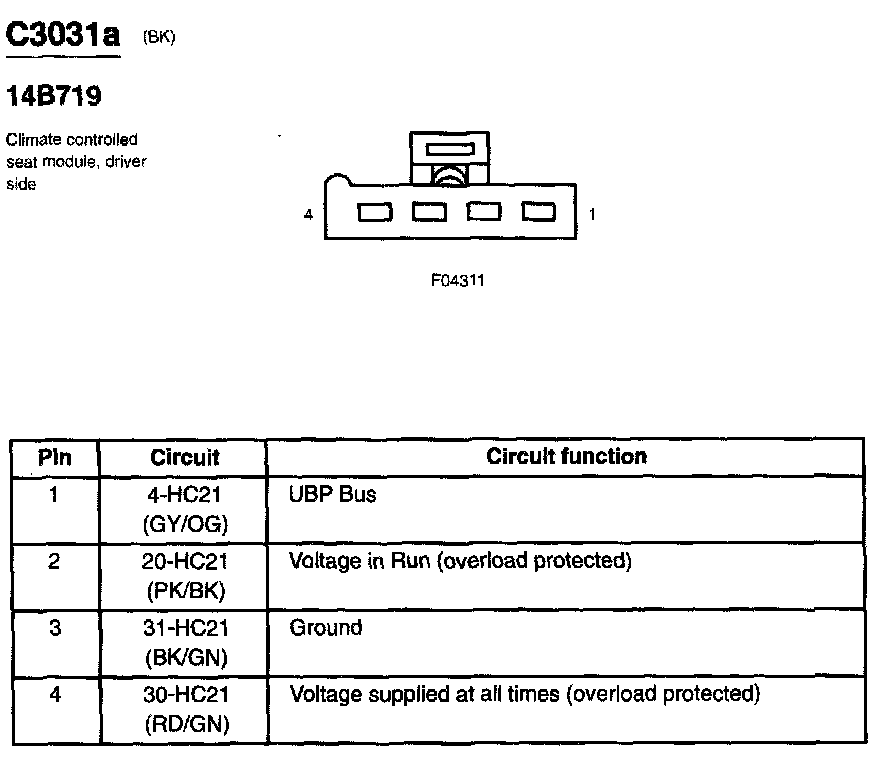

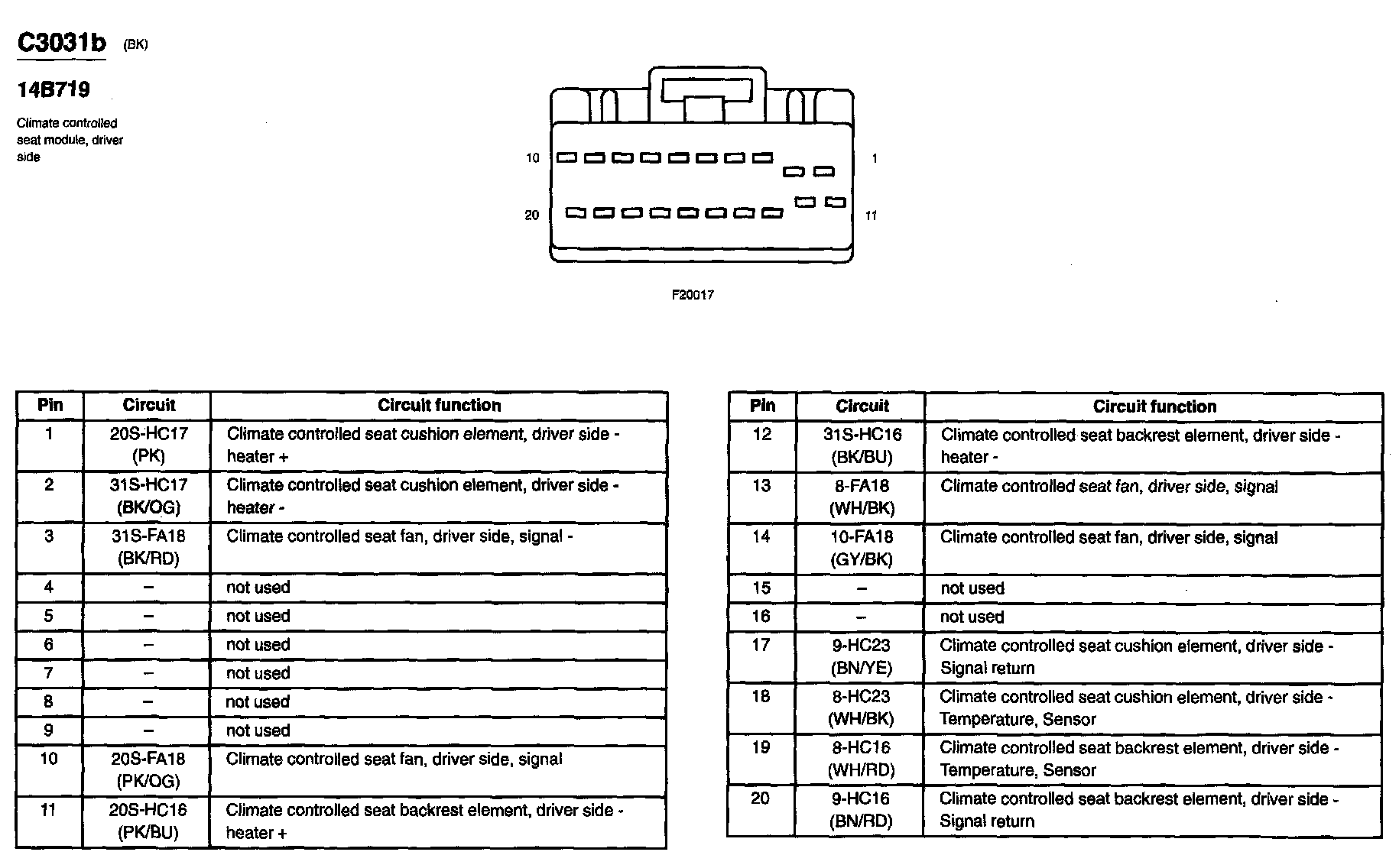

Climate Controlled Seat Module, Driver Side
