Subwoofer Amplifier C466a
WARNING:
This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

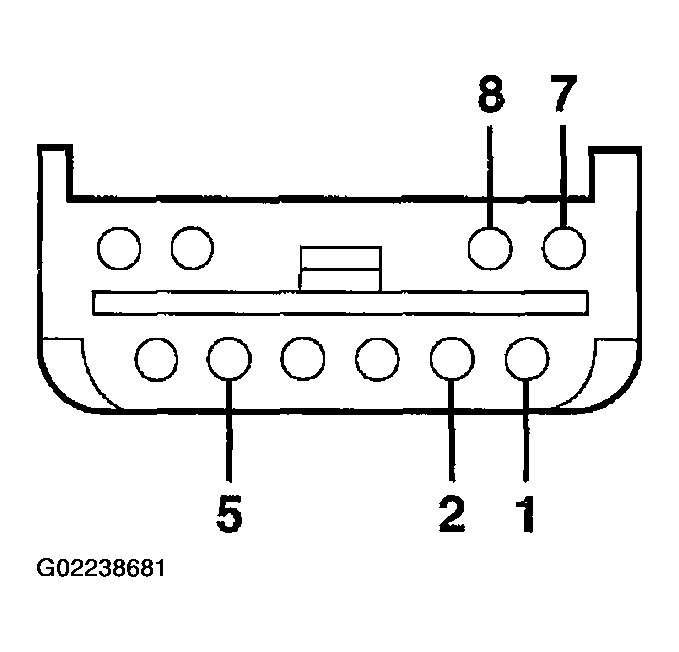

Fig 1: Identifying Subwoofer Amplifier C466a Connector Pinouts
Courtesy of FORD MOTOR CO.

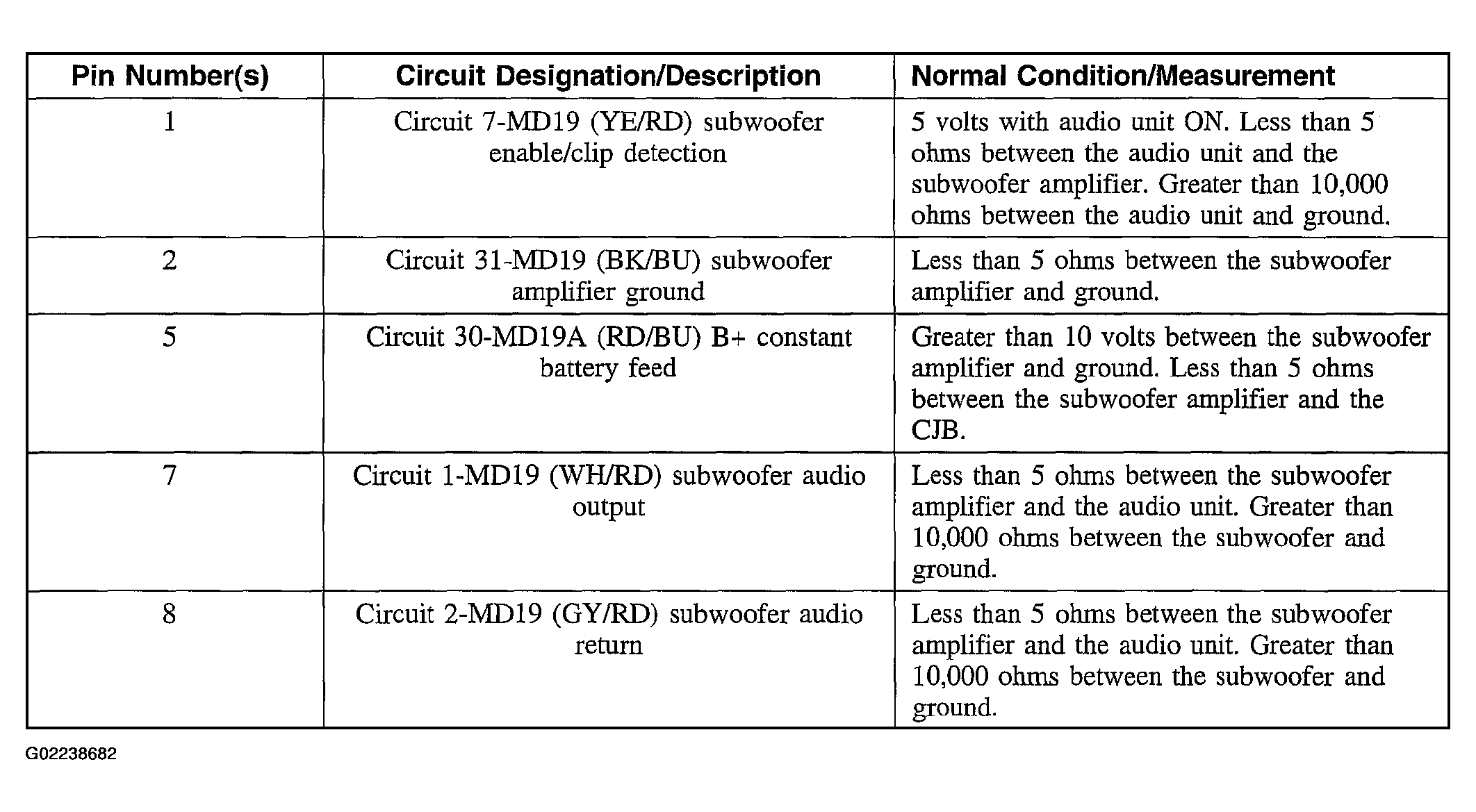

Fig 2: Subwoofer Amplifier C466a Connector Pins Reference Chart
Courtesy of FORD MOTOR CO.
