Item 1: Backrest Trim Panel Disassembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Inspect the seat back trim panel for damage. If the J-hooks are damaged or the pin-type retainers remained in the seat frame, install a new panel.

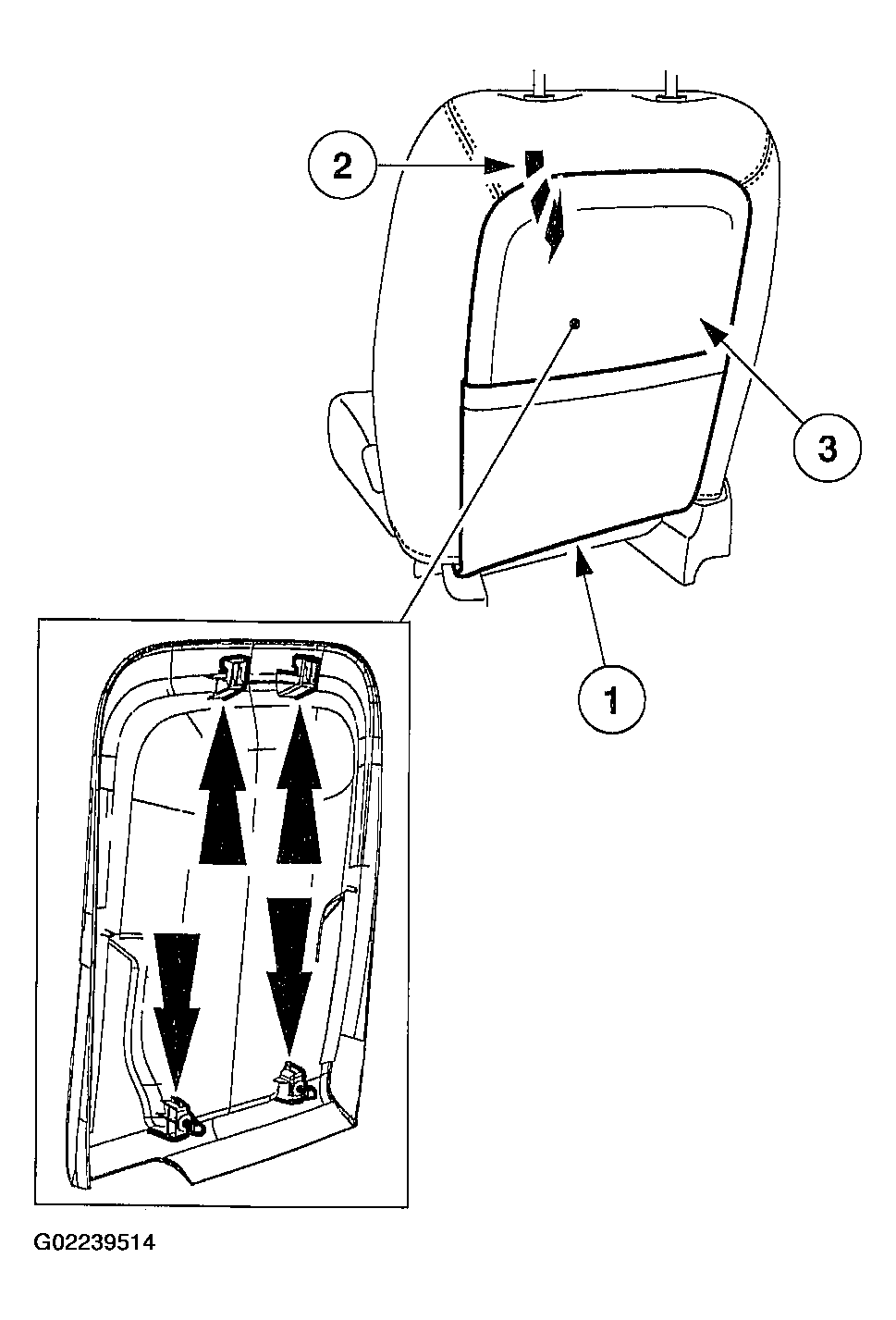

    Fig 1: Removing Seat Back Trim Panel
    G02239514Courtesy of FORD MOTOR CO.
  1. Remove the seat back trim panel.
    1. Holding the panel at bottom center, pull rearward (not up) until both lower attachments are disengaged.
    2. While pushing in at the top of the panel, slide the panel down to disengage the upper J-hooks.
    3. Remove the panel.
      • Inspect the lower panel attachments. If either pin-type retainer remained in the seat frame, install a new panel.
      • Inspect the upper panel attachments. If either J-hook is cracked or damaged, install a new panel.
      • Before installing the panel, install new pin-type retainers.
