Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NAVIGATOR

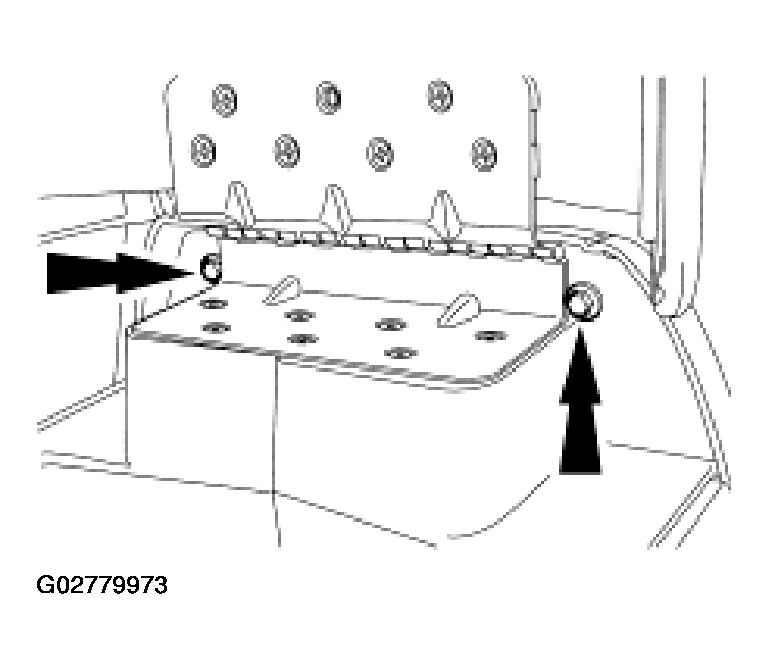

Open the front floor console cover and remove the screws.

Fig 1: Removing Screws
Courtesy of FORD MOTOR CO.

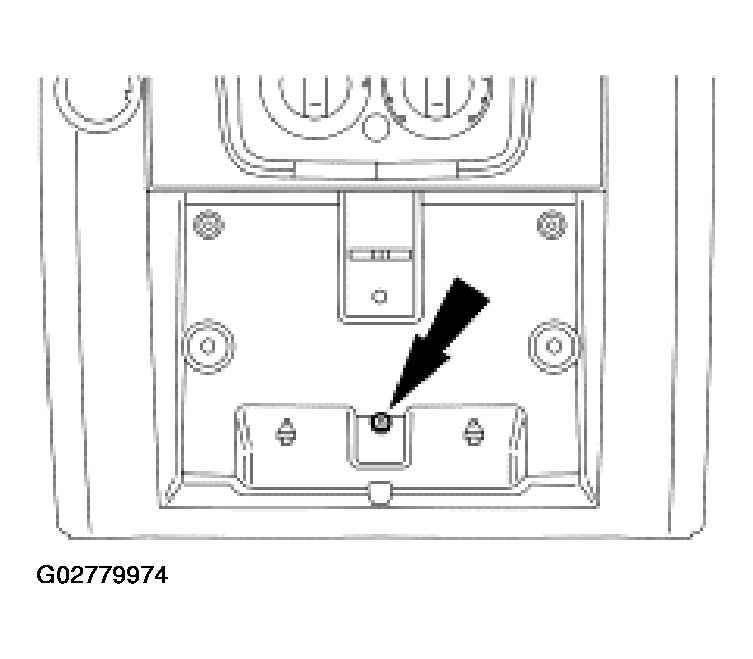

Open the cup holder and remove the screw.

Fig 2: Removing Screws
Courtesy of FORD MOTOR CO.

ALL VEHICLES

NOTE: Navigator shown, Expedition similar.

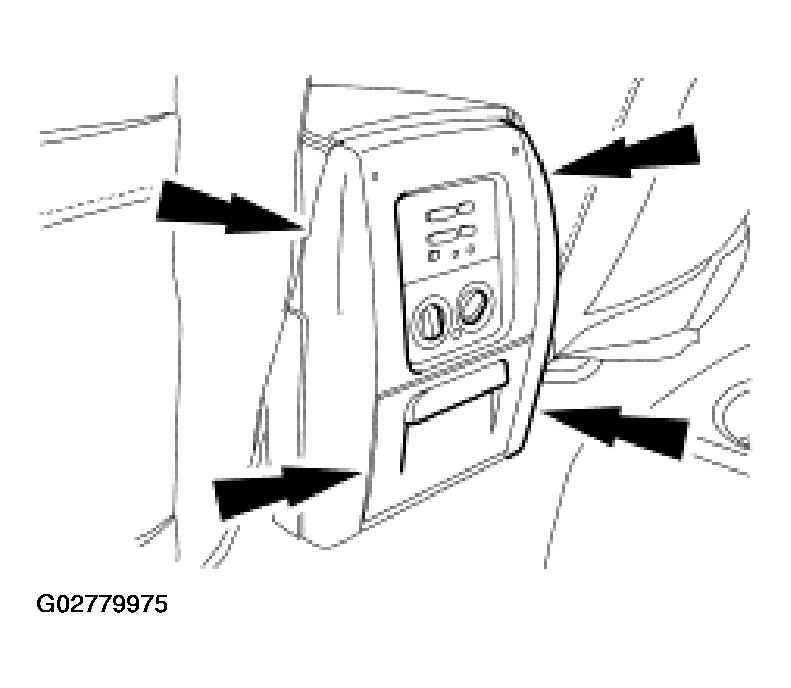

Fig 3: Removing Floor Console Rear Finish Panel

Courtesy of FORD MOTOR CO.

Disengage the clips and remove the floor console rear finish panel.
- Disconnect the electrical connectors.
Remove the screws and the rear auxiliary climate control assembly.

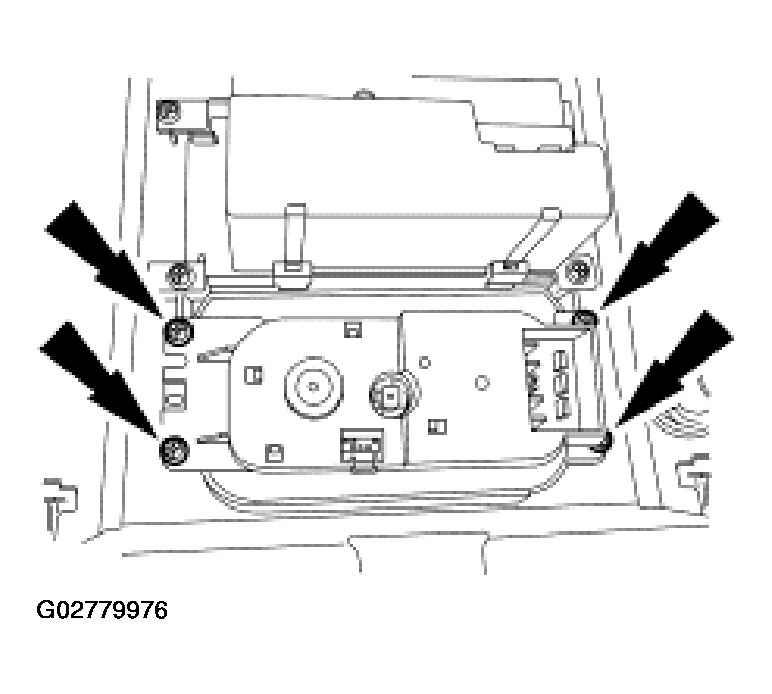

Fig 4: Removing Screws And Rear Auxiliary Climate Control Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
