Power Liftgate Encoder Wheel: Installation

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Place the new power liftgate encoder wheel on the shaft.
Install the power liftgate optical sensor.
- Snap the tabs on the side of the sensor into place.

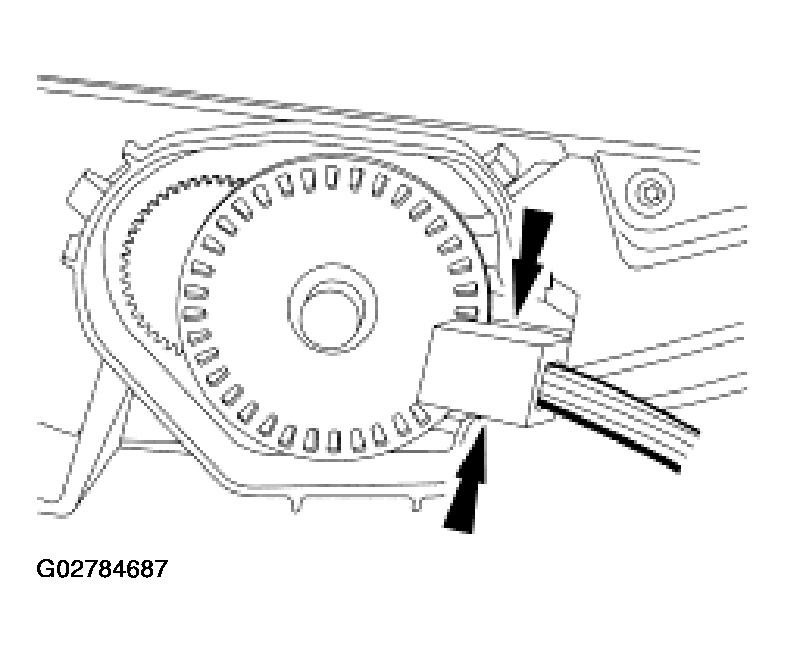

Fig 1: Installing Power Liftgate Optical Sensor
Courtesy of FORD MOTOR CO.
Replace the power liftgate encoder wheel cover.
- Snap the 3 plastic tabs into place.

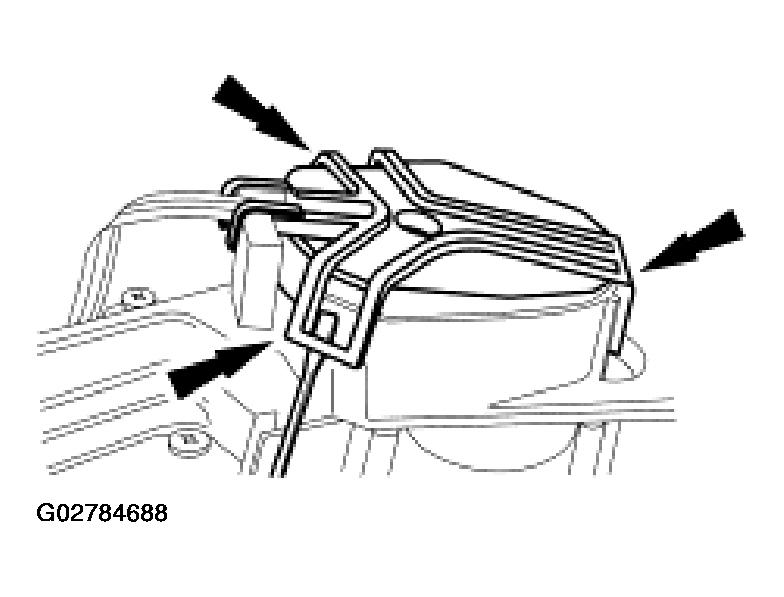

Fig 2: Identifying Plastic Tabs
Courtesy of FORD MOTOR CO.
Install the wiring harness.
Install the upper liftgate trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .

CAUTION: To avoid damaging the headliner, do not crease or bend it.

Raise the headliner.
Install the 2 rear pin-type retainers.

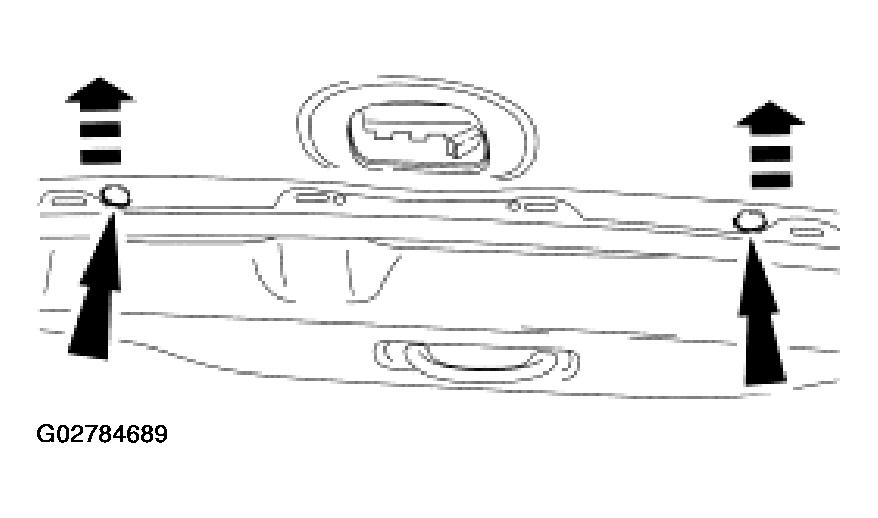

Fig 3: Identifying Rear Pin-Type Retainers
Courtesy of FORD MOTOR CO.
If equipped with rear climate control, install the 2 pin-type retainers on the headliner located near the vents.

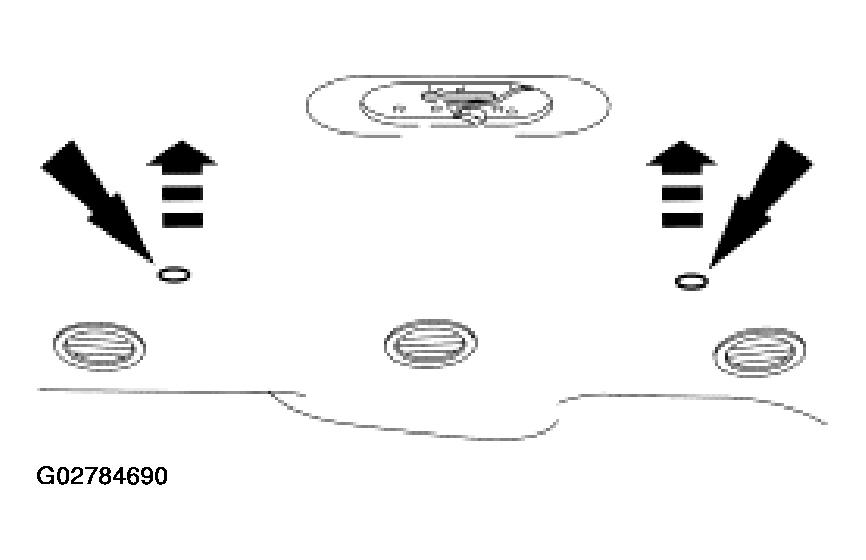

Fig 4: Installing Pin-Type Retainers On Headliner Located Near Vents
Courtesy of FORD MOTOR CO.
Install the 4 coat hooks.
Install the C- and D-pillar trim panels. Refer to INTERIOR TRIM AND ORNAMENTATION .
Install the door seals.
Connect the battery negative cable. For additional information, refer to BATTERY, MOUNTING AND CABLES
