Pinpoint Test N: The Overhead Console Does Not Respond To The Diagnostic Tool (ISO)

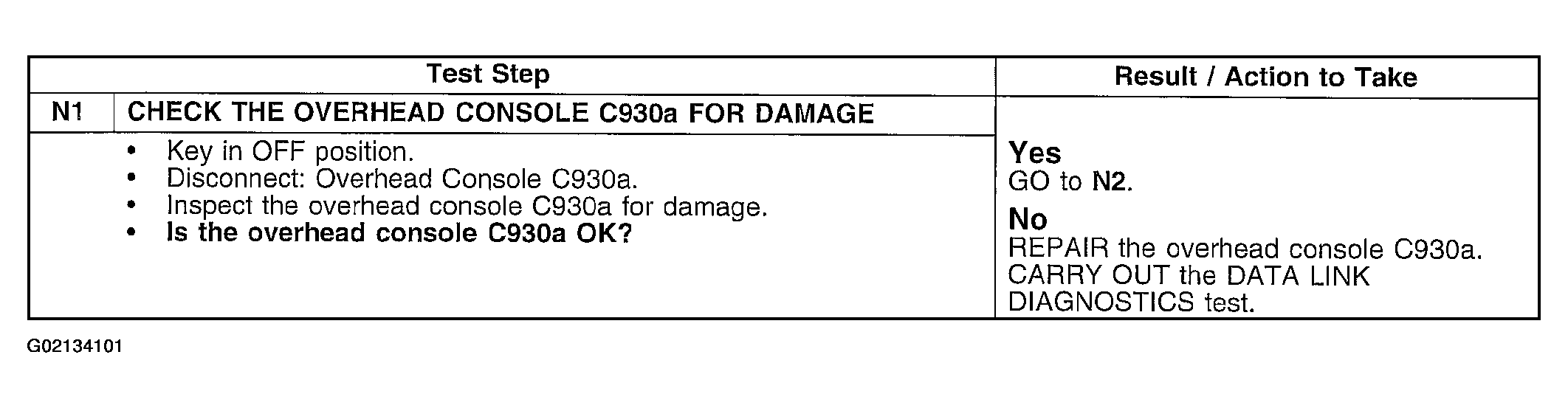

Fig 1: Pinpoint Test N (1 Of 2)
G02134101Courtesy of FORD MOTOR CO.

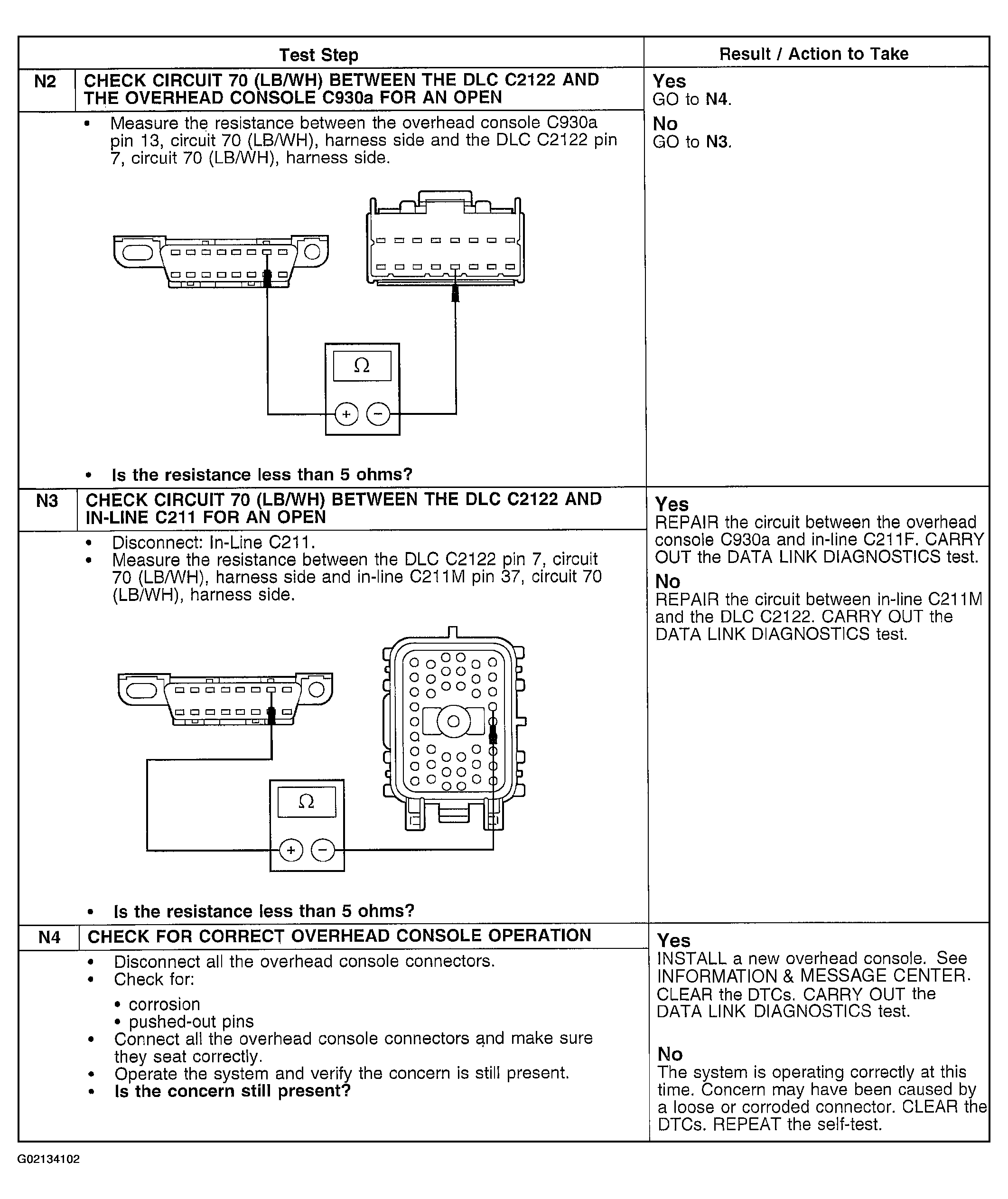

Fig 2: Pinpoint Test N (2 Of 2)
G02134102Courtesy of FORD MOTOR CO.
