Dual Automatic Temperature Control (DATC) Module Diagnostic Trouble Code (DTC) Index

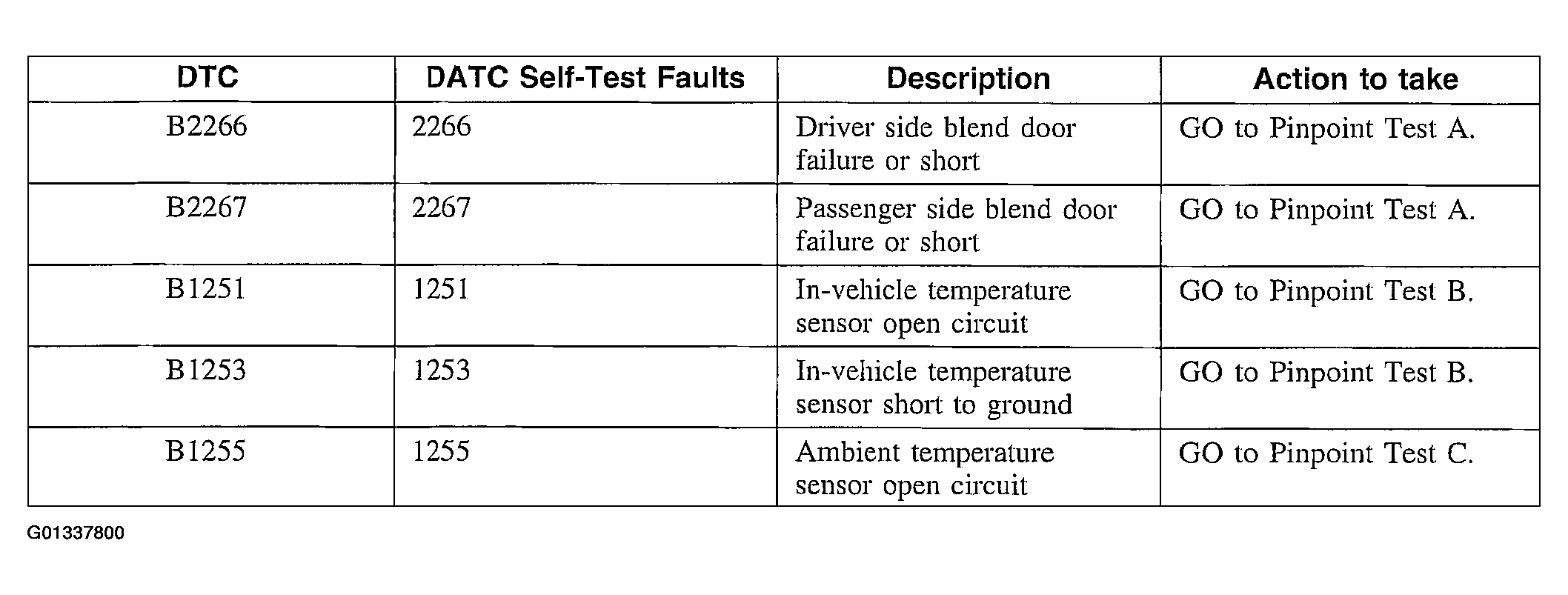

Fig 1: DATC Module DTC B2266, B2267, B1251, B1253 & B1255 Descriptions
G01337800Courtesy of FORD MOTOR CO.

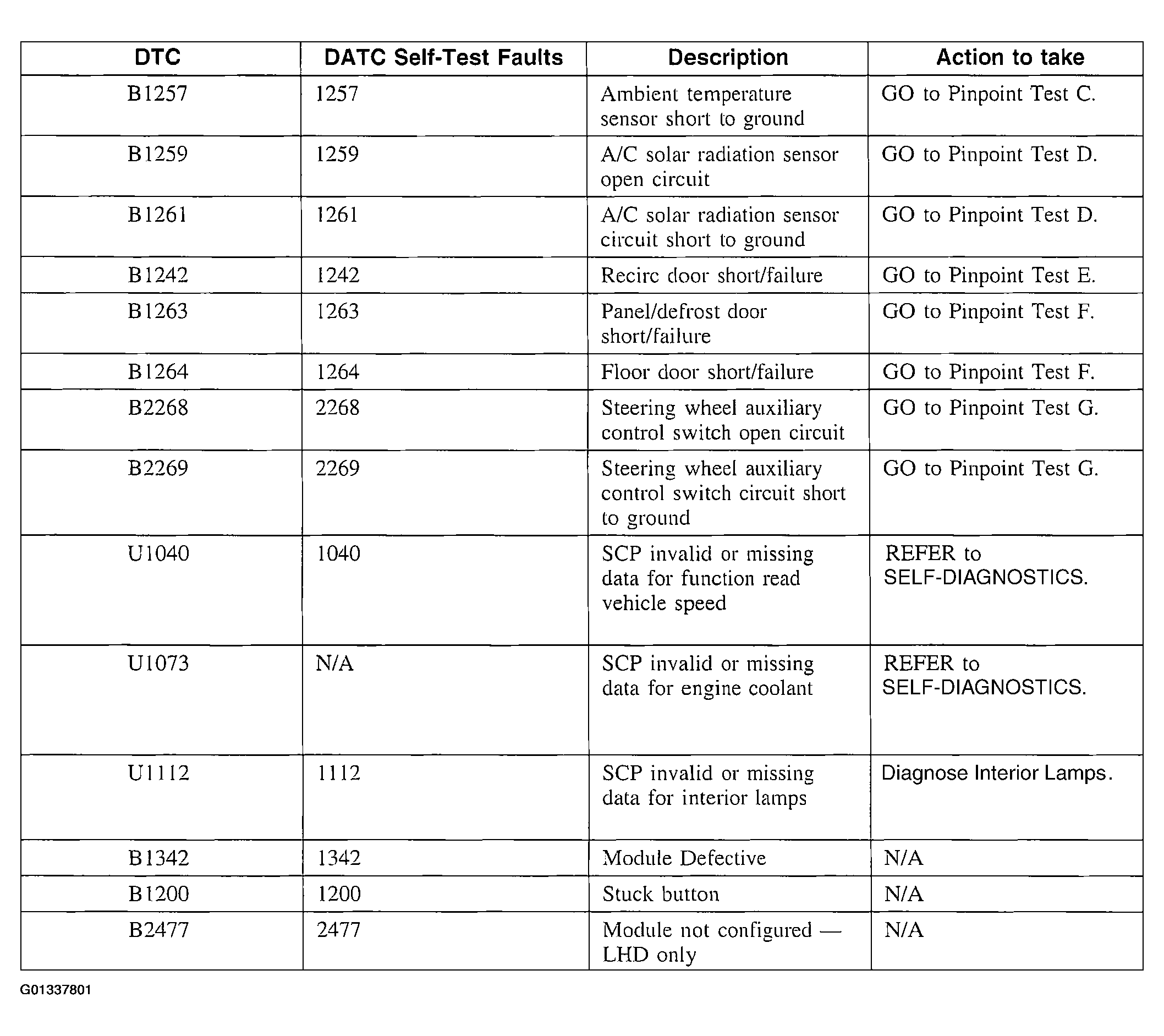

Fig 2: DATC Module DTC B1257, 1259, B1261, B1242, B1263, B1264, B2268, B2269, U1040, U1073, U1112, B1342, B1200 & B2477 Descriptions
G01337801Courtesy of FORD MOTOR CO.
