Section 275 (Engine-3.9L): Disassembly: Engine: Disassembly

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Illustration 1 of 24. Remove the components in the order indicated in the following illustration and table.

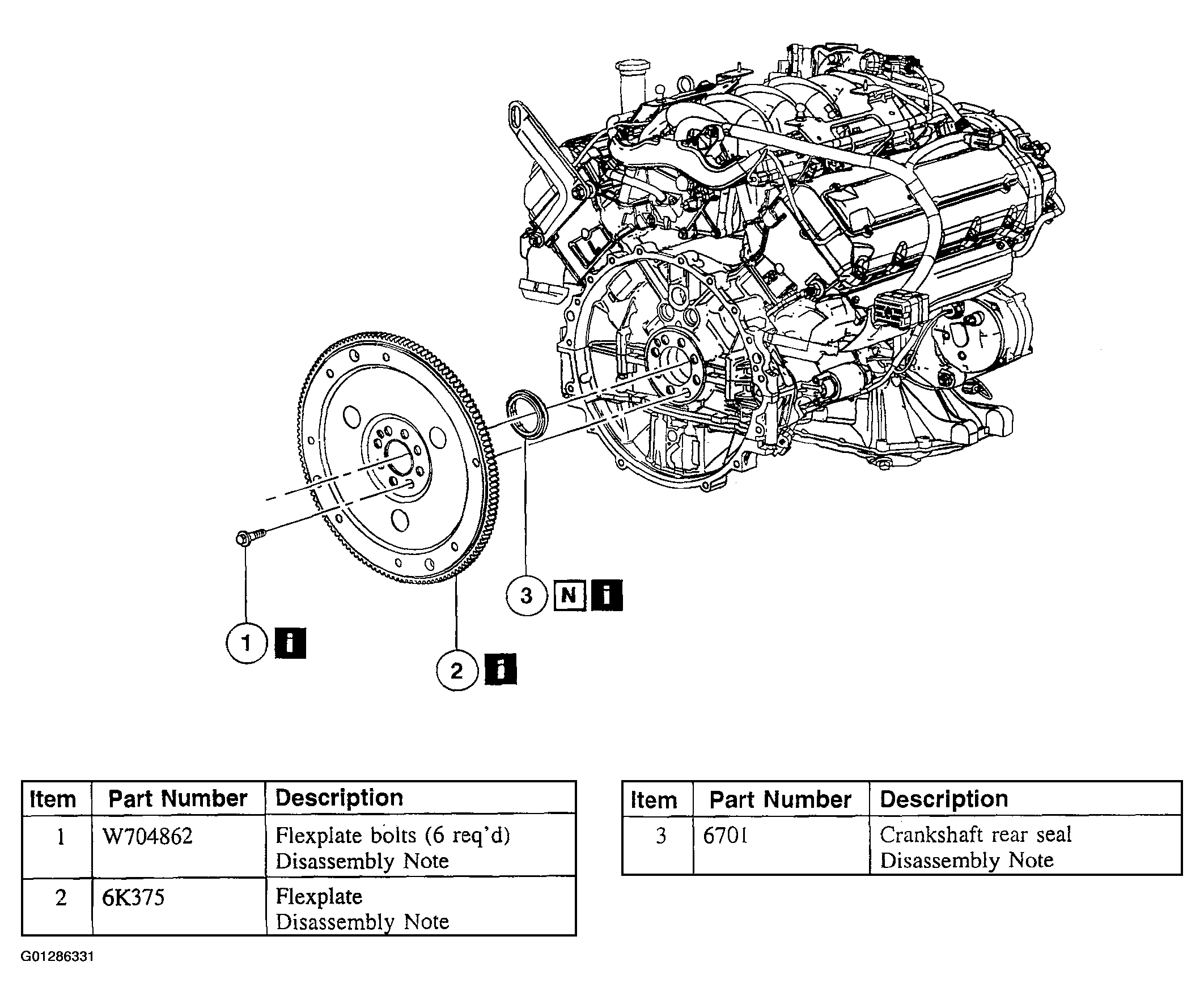

Fig 1: Removing Flywheel Components
Courtesy of FORD MOTOR CO.
Illustration 2 of 24. Remove the components in the order indicated in the following illustration and table.

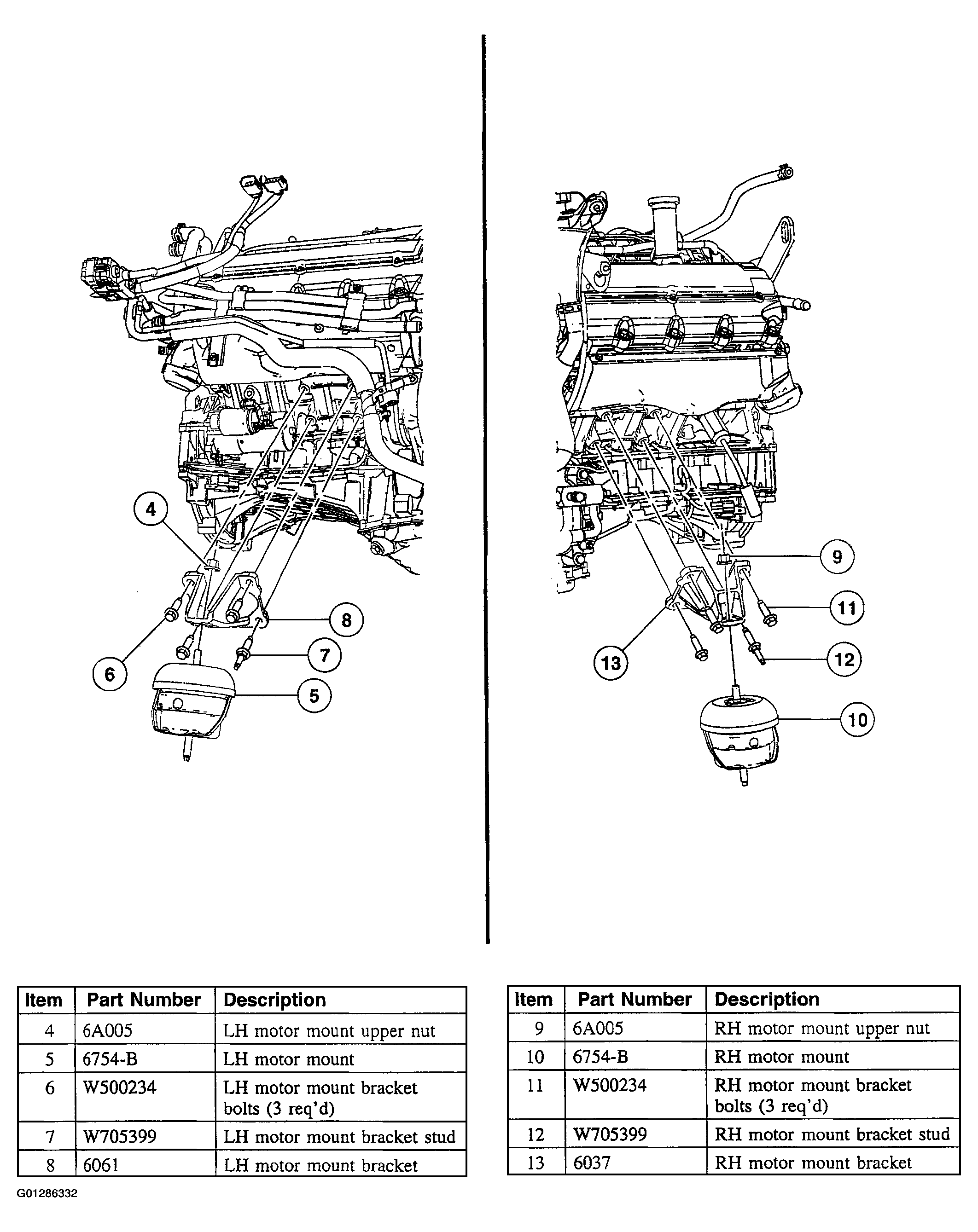

Fig 2: Removing RH And LH Motor Components
Courtesy of FORD MOTOR CO.
Illustration 3 of 24. Remove the components in the order indicated in the following illustration and table.

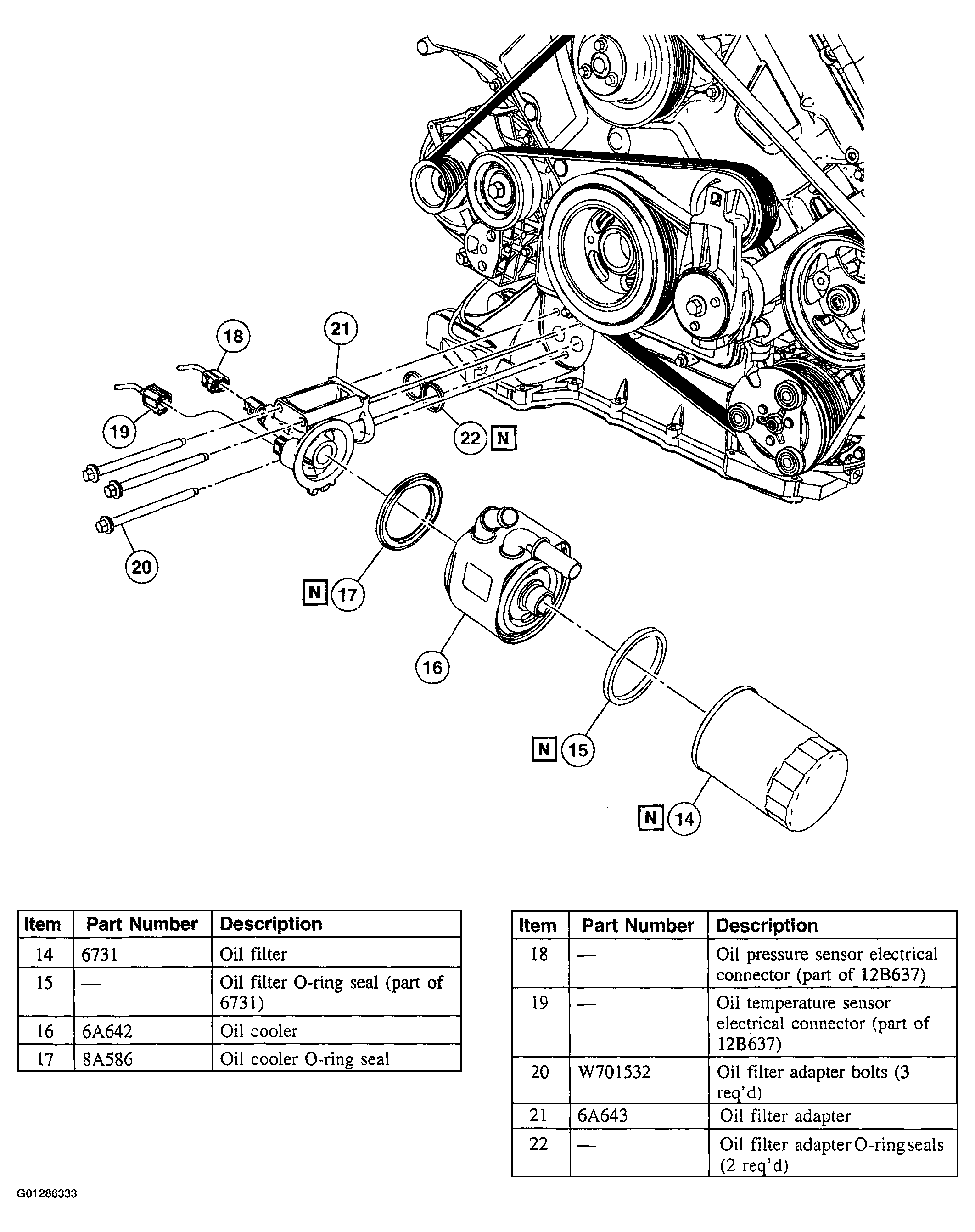

Fig 3: Removing Oil Filter Components
Courtesy of FORD MOTOR CO.
Illustration 4 of 24. Remove the components in the order indicated in the following illustration and table.

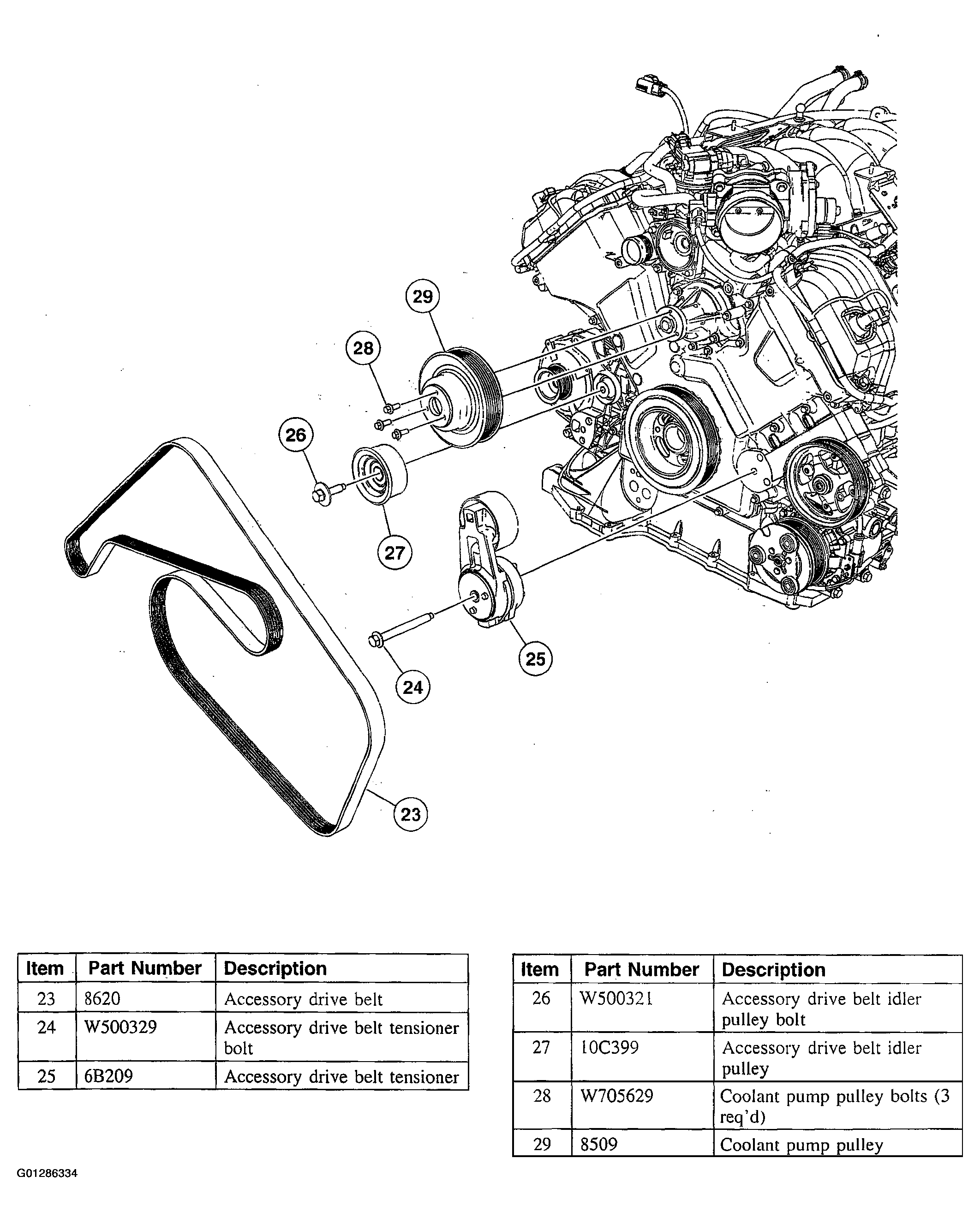

Fig 4: Removing Accessory Drive Belt And Components
Courtesy of FORD MOTOR CO.
Illustration 5 of 24. Remove the components in the order indicated in the following illustration and table.

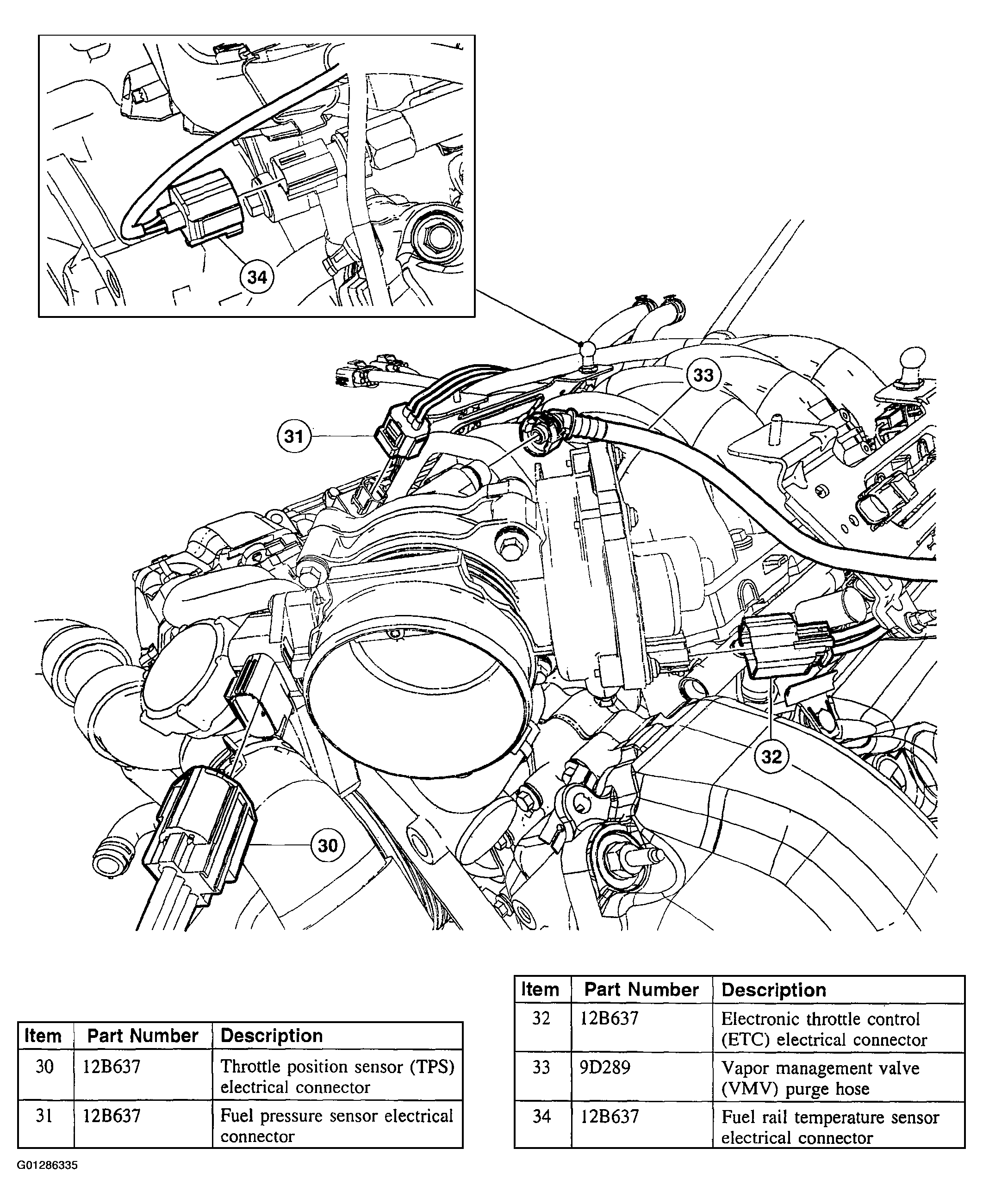

Fig 5: Removing Sensors Connectors
Courtesy of FORD MOTOR CO.
Illustration 6 of 24. Remove the components in the order indicated in the following illustration and table.

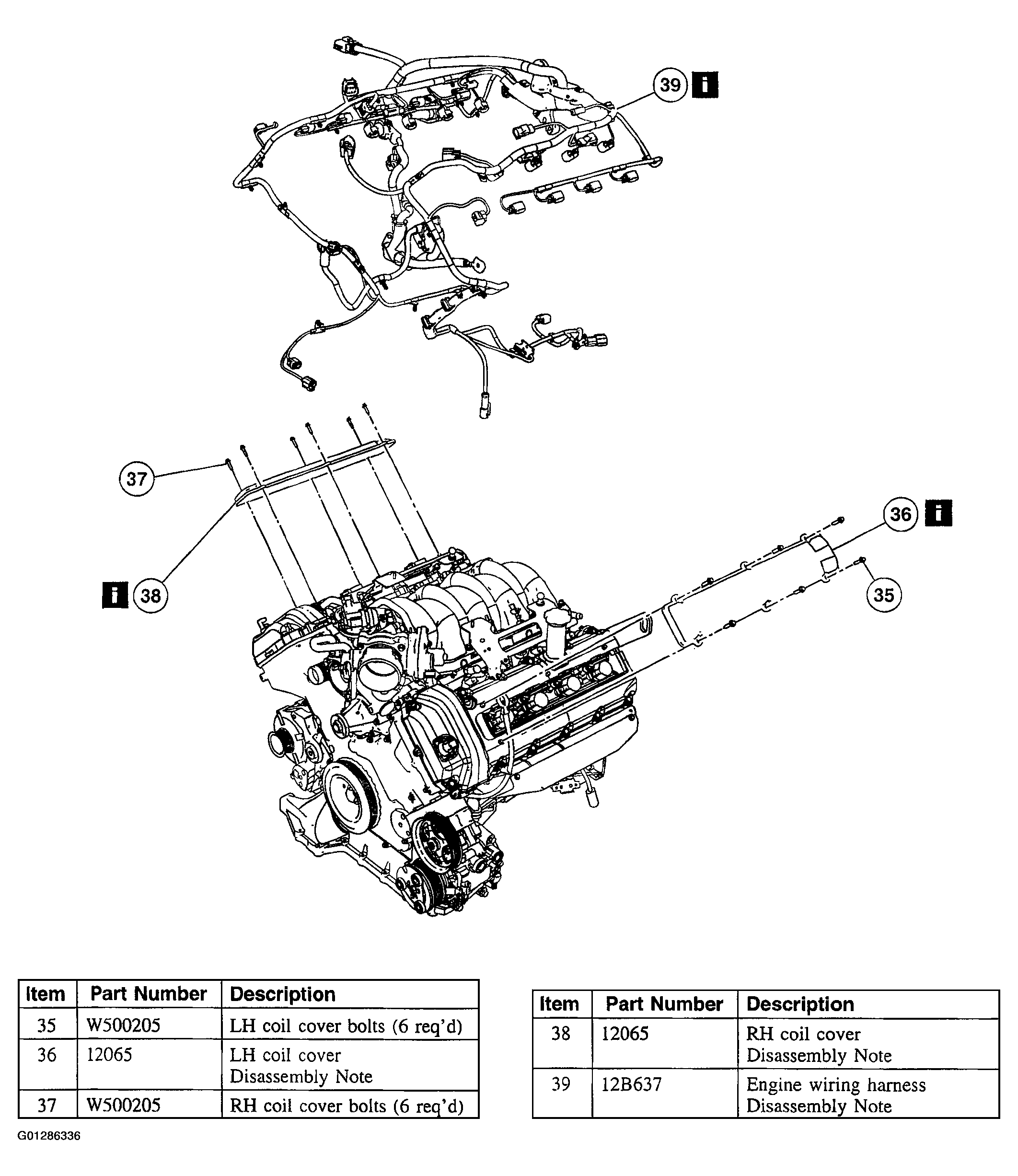

Fig 6: Removing RH And LH Coil Covers
Courtesy of FORD MOTOR CO.
Illustration 7 of 24. Remove the components in the order indicated in the following illustration and table.

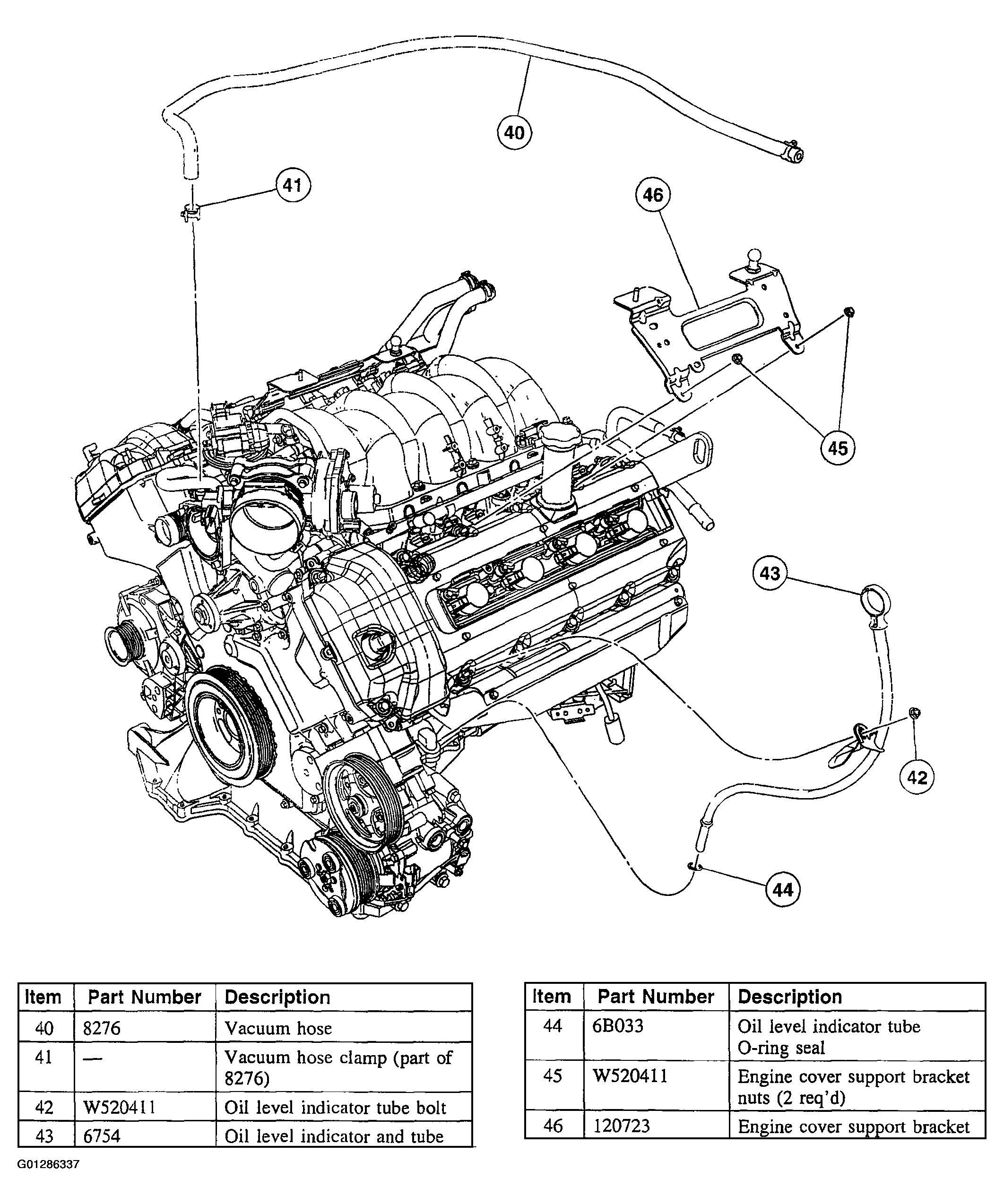

Fig 7: Removing Vacuum Hoses And Oil Level Indicator Tube
Courtesy of FORD MOTOR CO.
Illustration 8 of 24. Remove the components in the order indicated in the following illustration and table.

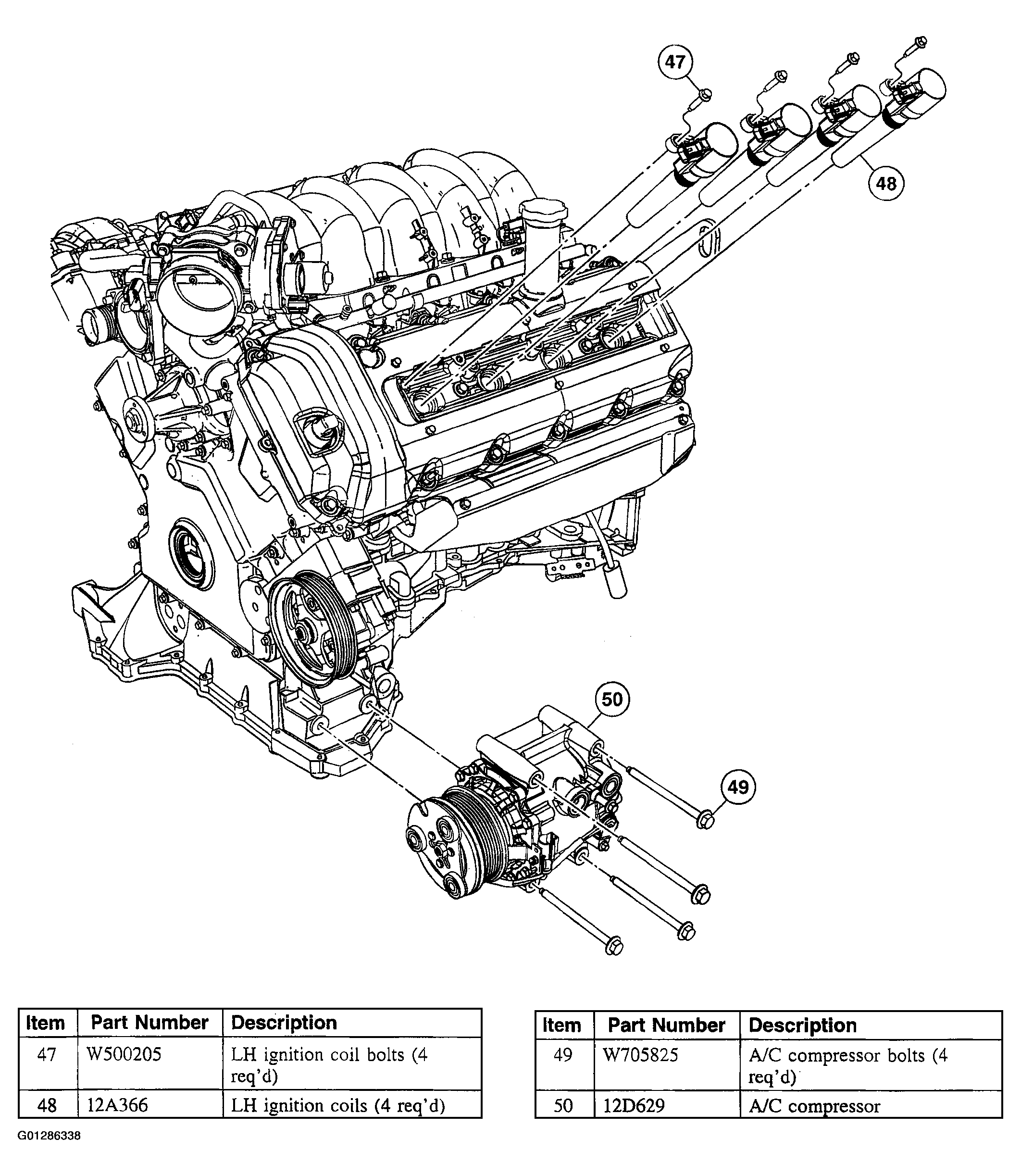

Fig 8: Removing LH Ignition Coils And A\C Compressor
Courtesy of FORD MOTOR CO.
Illustration 9 of 24. Remove the components in the order indicated in the following illustration and table.

Fig 9: Removing Engine Support Bracket
Courtesy of FORD MOTOR CO.
Illustration 10 of 24. Remove the components in the order indicated in the following illustration and table.

Fig 10: Removing EGR System Components
Courtesy of FORD MOTOR CO.
Illustration 11 of 24. Remove the components in the order indicated in the following illustration and table.

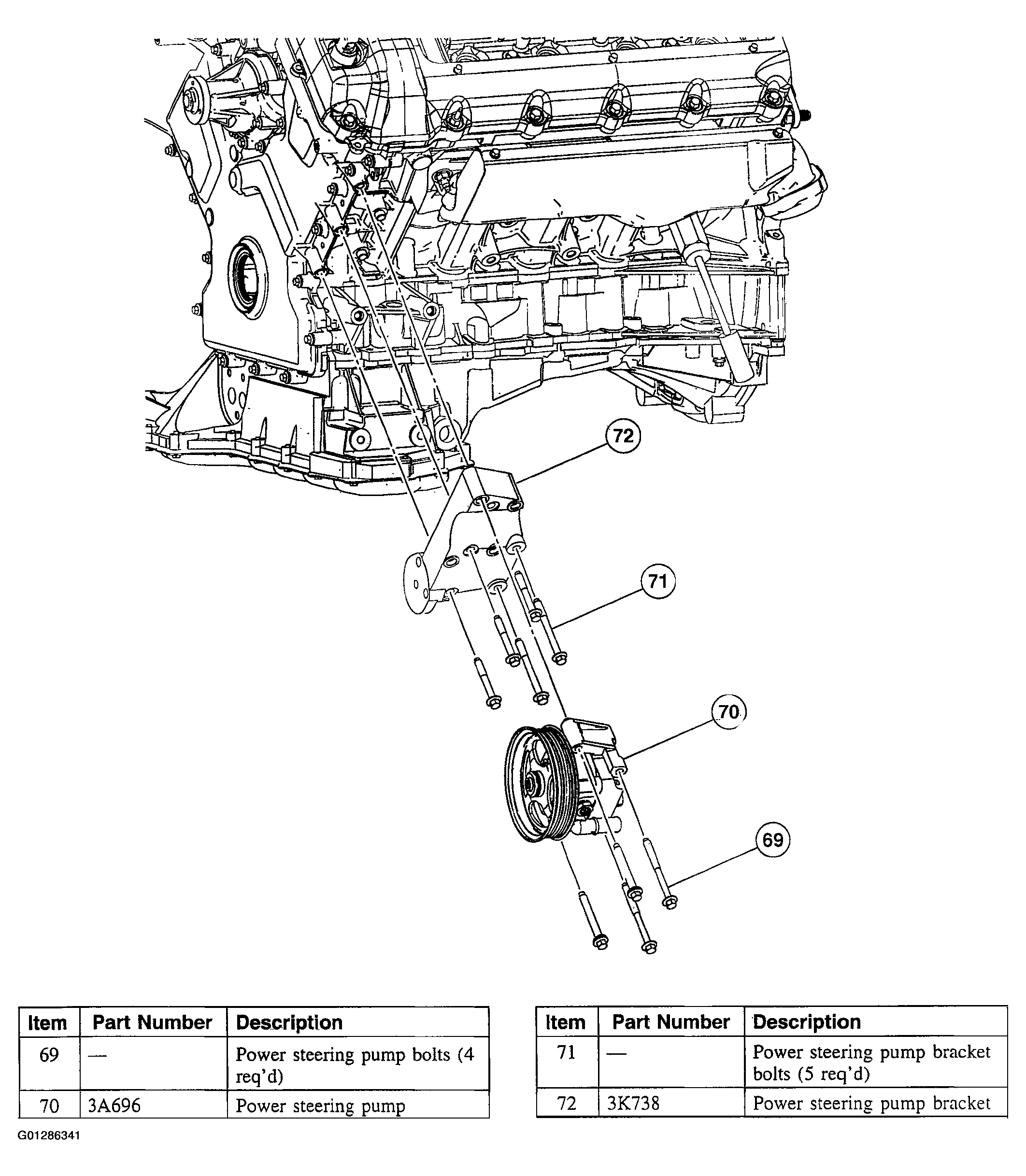

Fig 11: Removing Power Steering Components
Courtesy of FORD MOTOR CO.
Illustration 12 of 24. Remove the components in the order indicated in the following illustration and table.

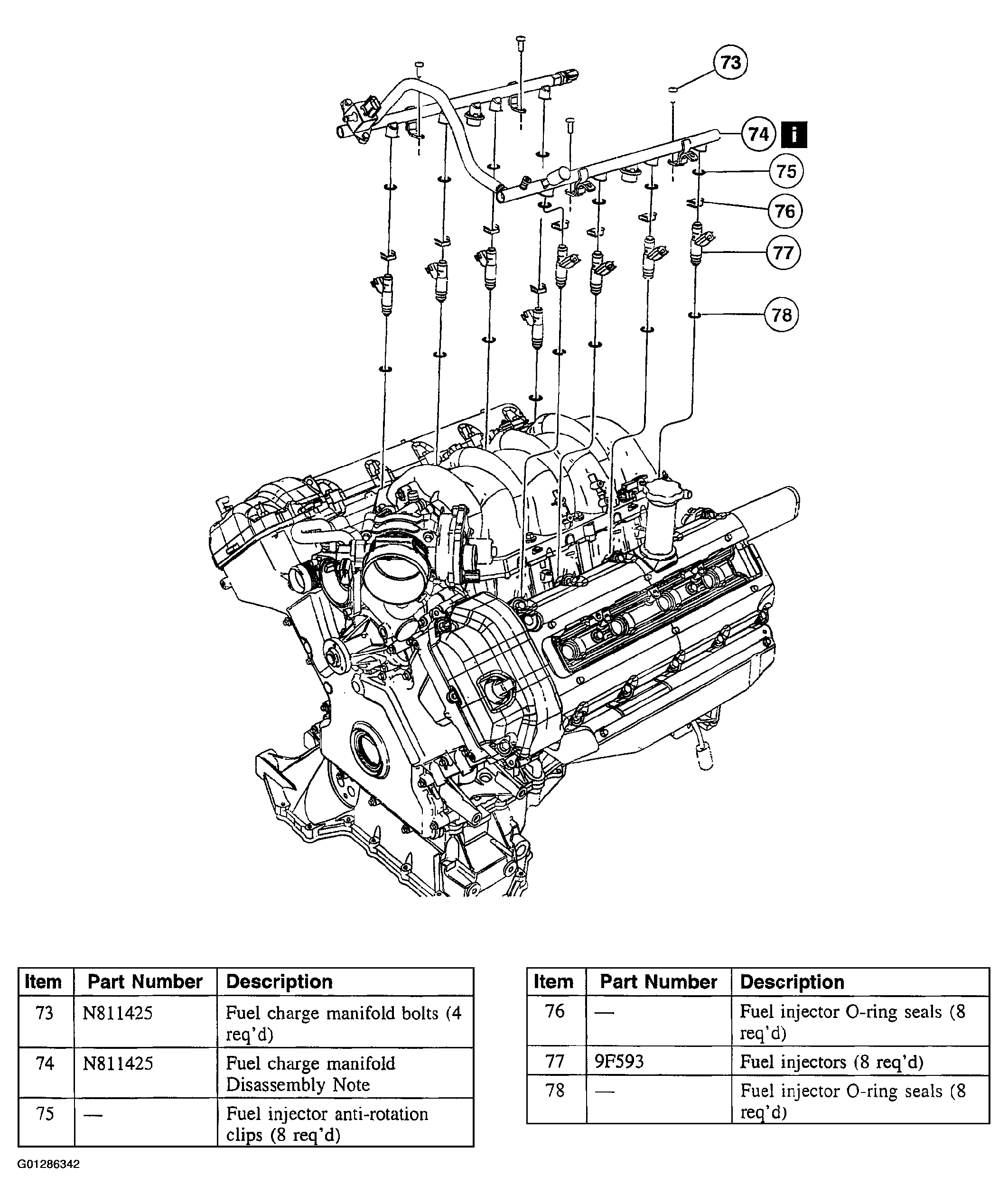

Fig 12: Removing Fuel Injectors Components
Courtesy of FORD MOTOR CO.
Illustration 13 of 24. Remove the components in the order indicated in the order indicated in the following illustration and table.

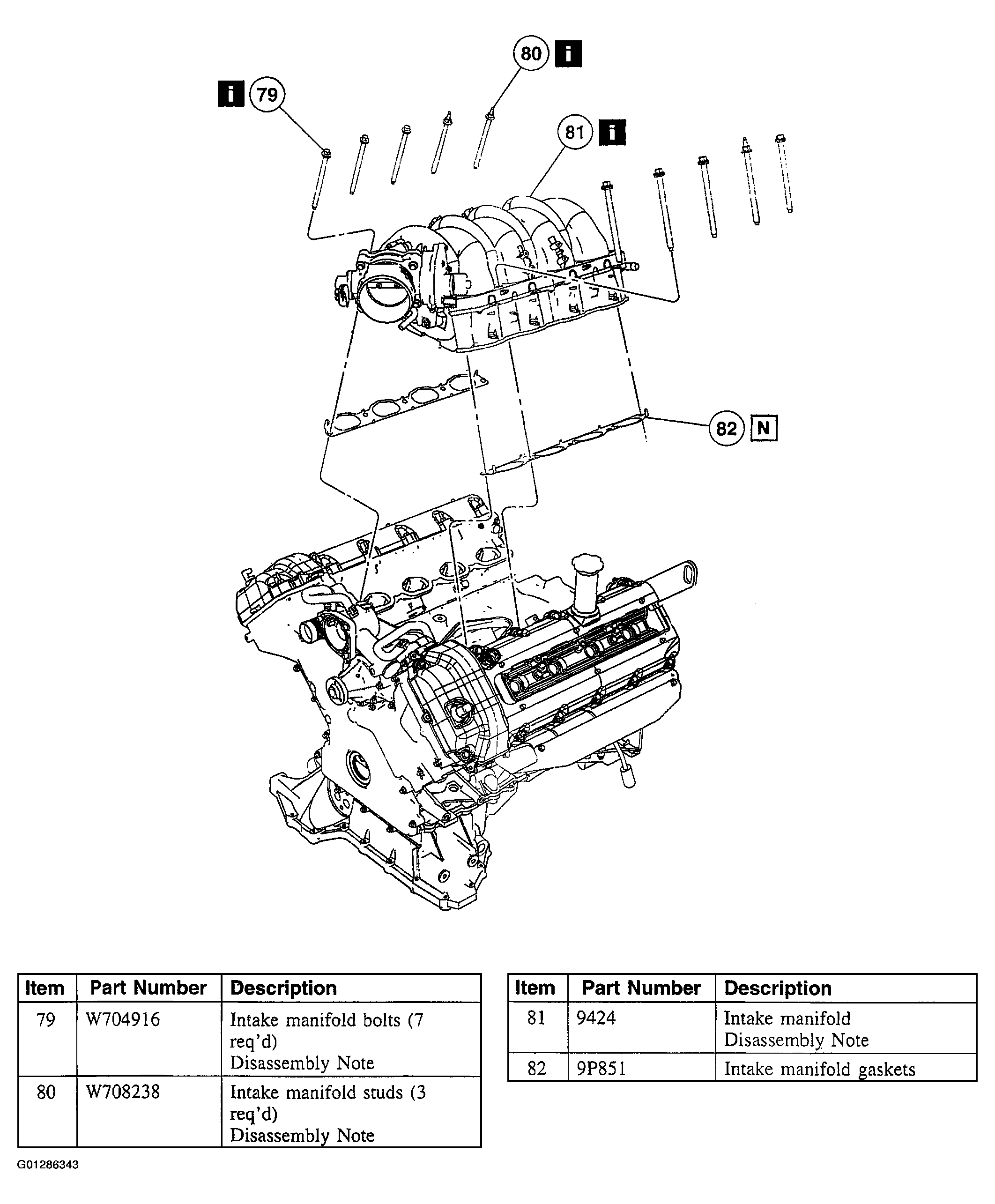

Fig 13: Removing Intake Manifold Components
Courtesy of FORD MOTOR CO.
Illustration 14 of 24. Remove the components in the order indicated in the following illustration and table.

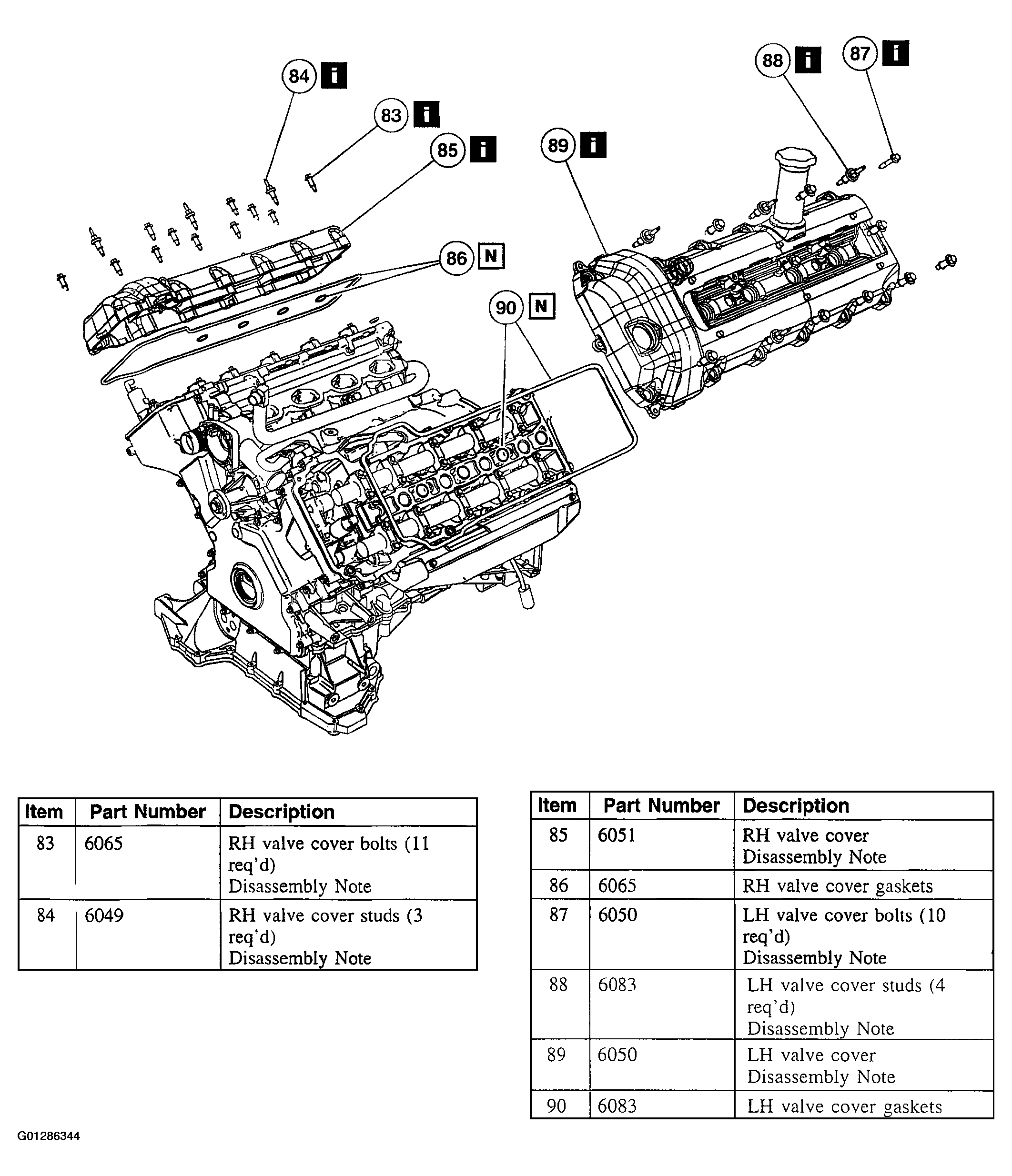

Fig 14: Removing RH Valve Cover Components
Courtesy of FORD MOTOR CO.
Illustration 15 of 24. Remove the components in the order indicated in the following illustration and table.

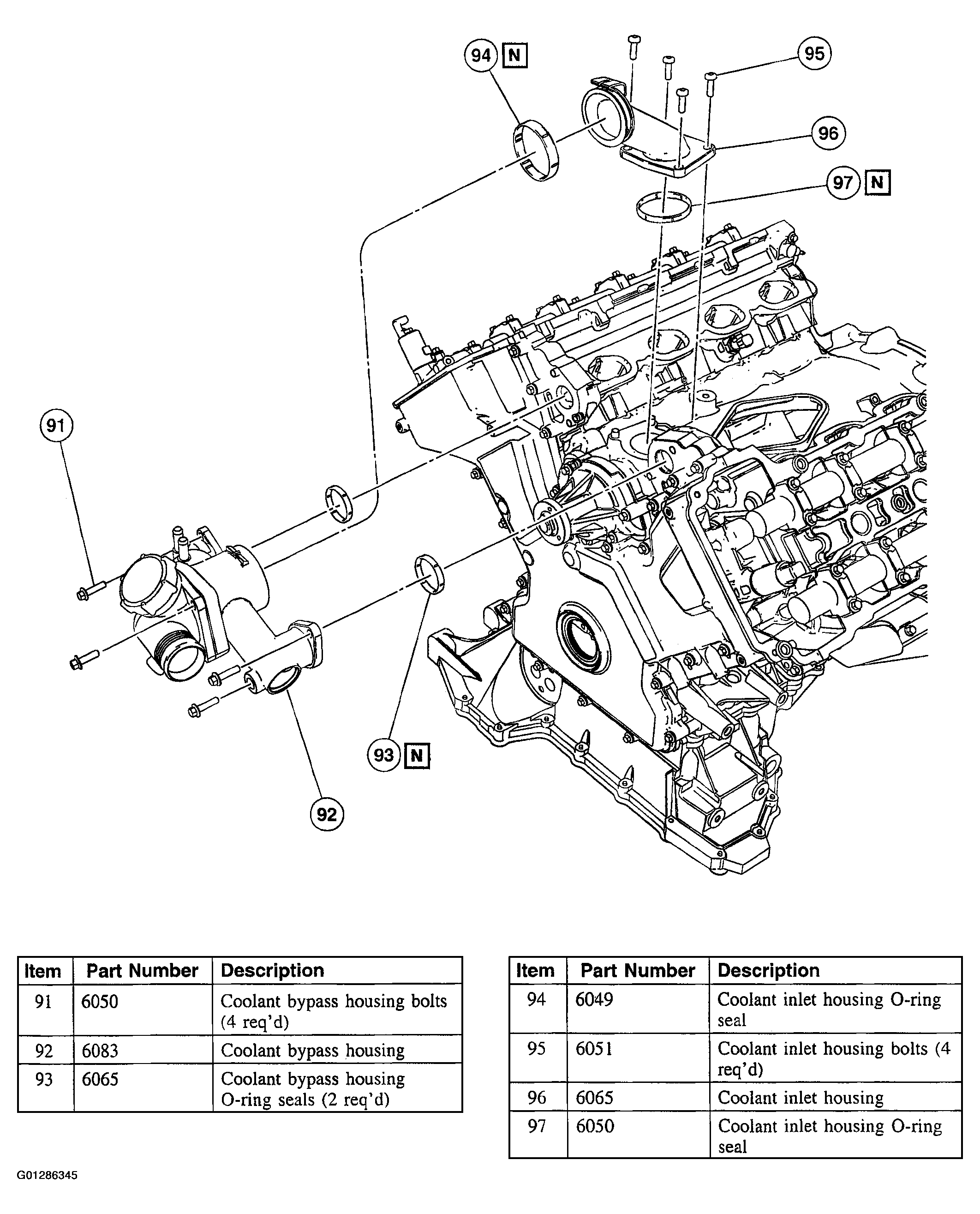

Fig 15: Removing Coolant Hoses Components
Courtesy of FORD MOTOR CO.
Illustration 16 of 24. Remove the components in the order indicated in the following illustration and table.

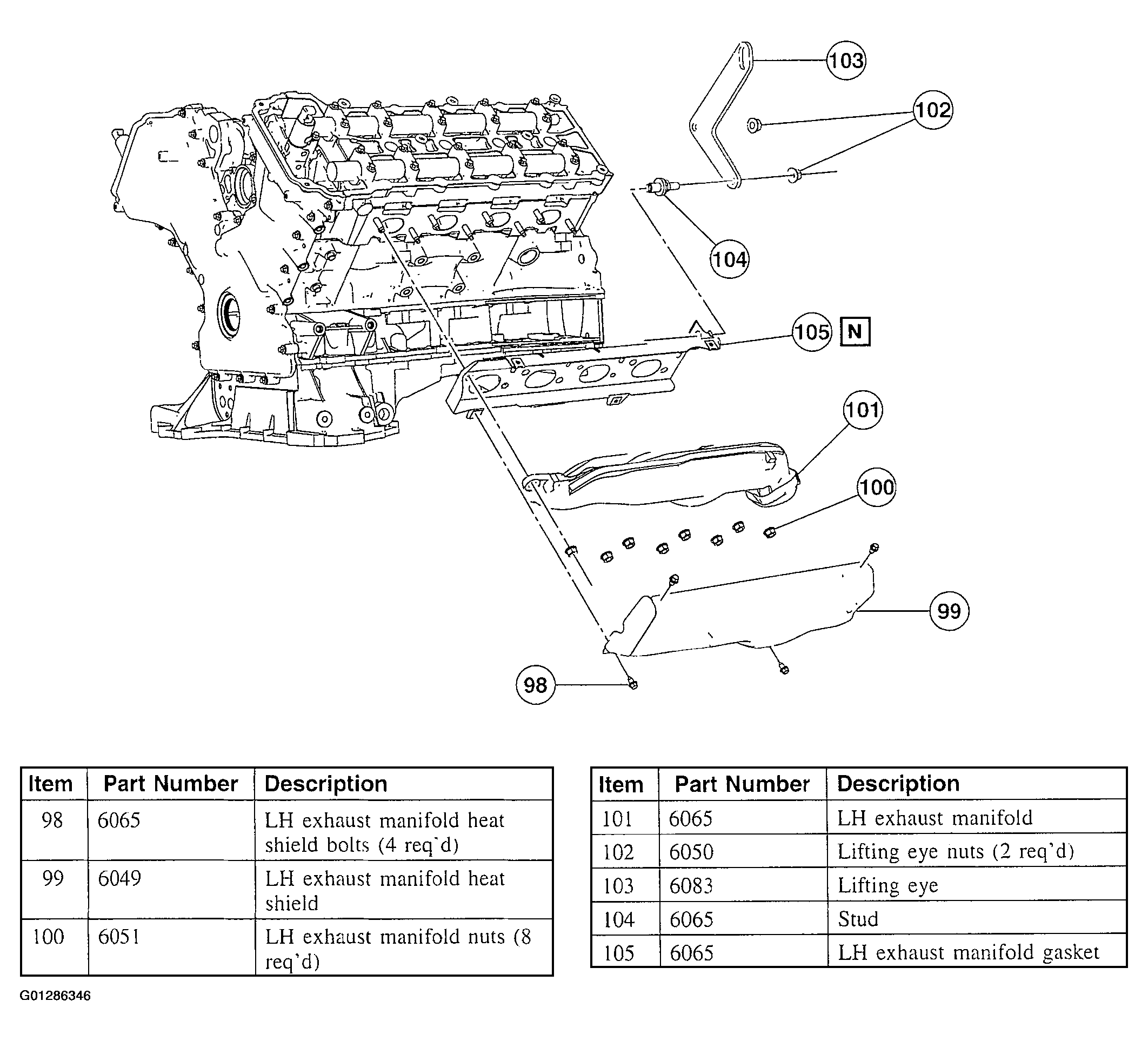

Fig 16: Removing LH Exhaust Manifold Components
Courtesy of FORD MOTOR CO.
Illustration 17 of 24. Remove the components in the order indicated in the following illustration and table.

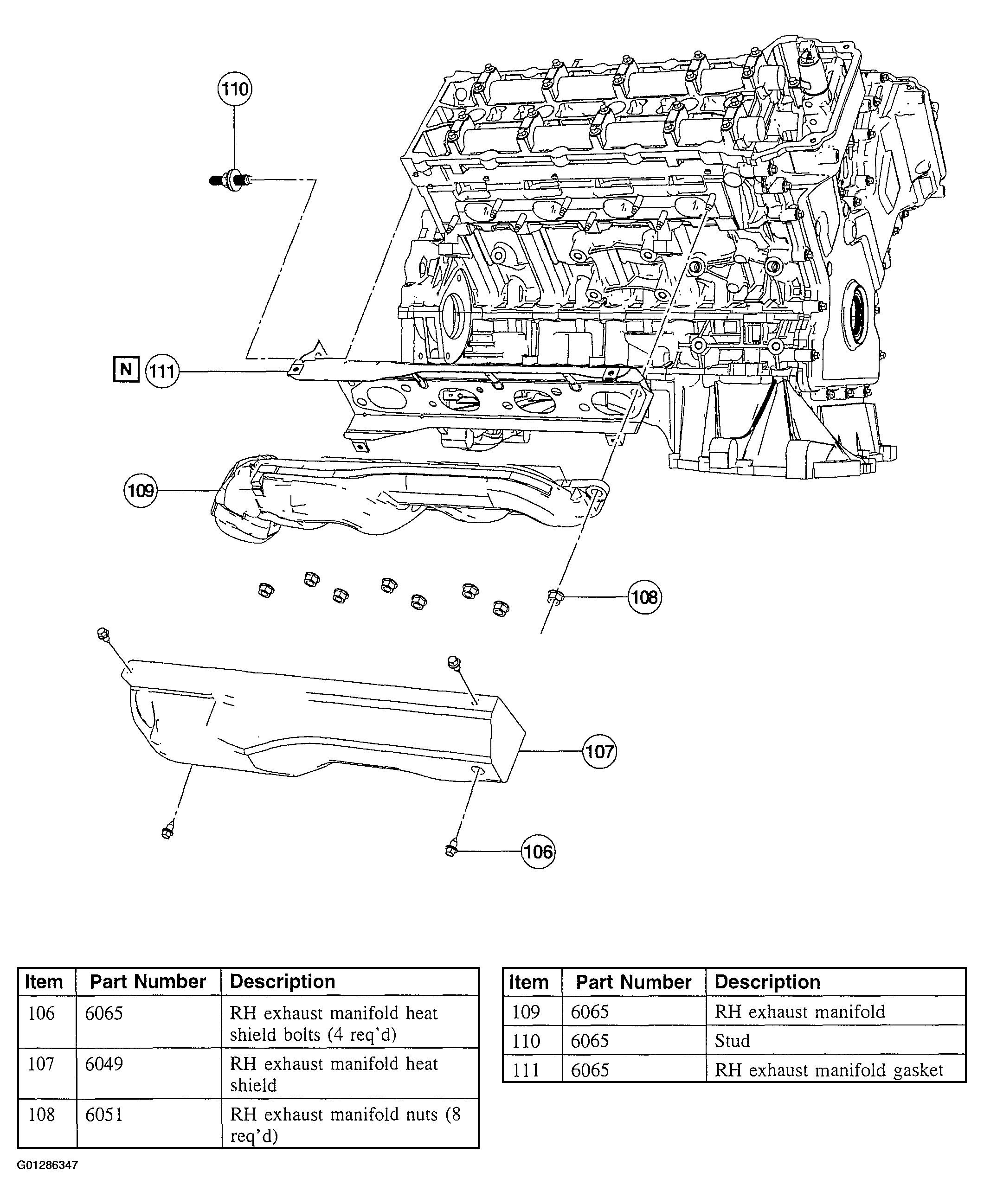

Fig 17: Removing RH Exhaust Manifold Components
Courtesy of FORD MOTOR CO.
Illustration 18 of 24. Remove the components in the order indicated in the following illustration and table.

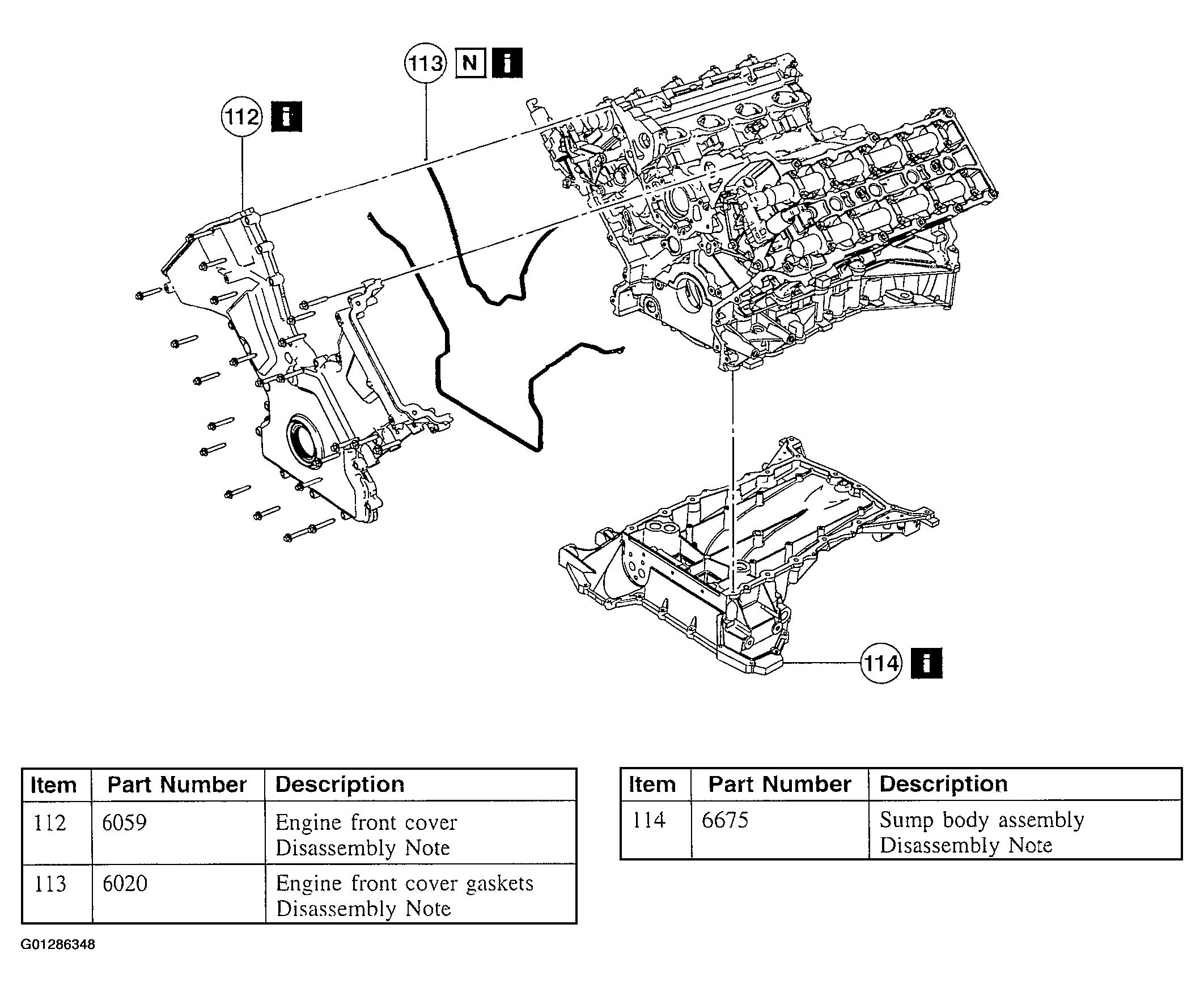

Fig 18: Removing Front Cover Components
Courtesy of FORD MOTOR CO.
Illustration 19 of 24. Remove the components in the order indicated in the following illustration and table.

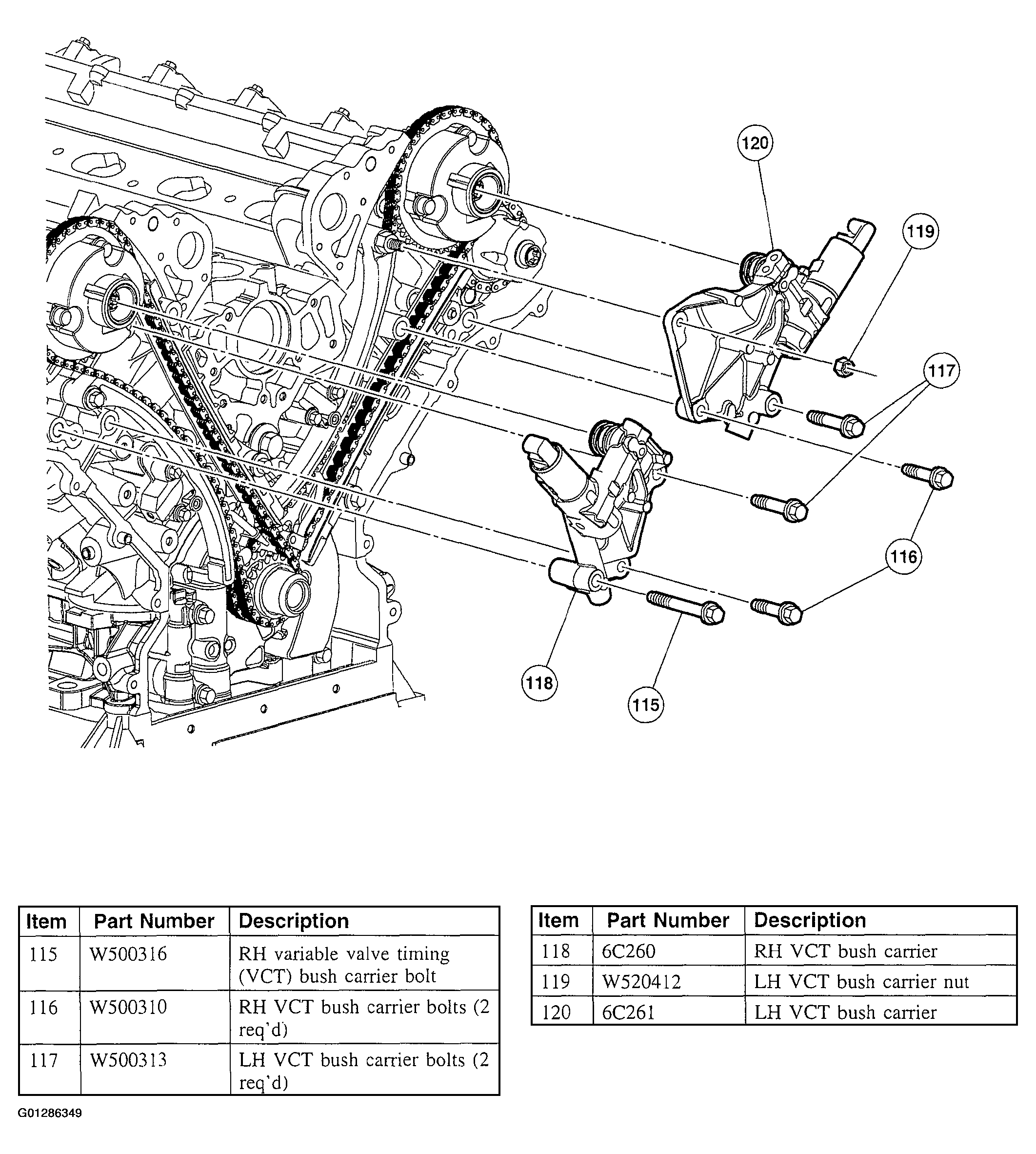

Fig 19: Removing VCT Bush Carriers Components
Courtesy of FORD MOTOR CO.
Illustration 20 of 24. Remove the components in the order indicated in the following illustration and table.

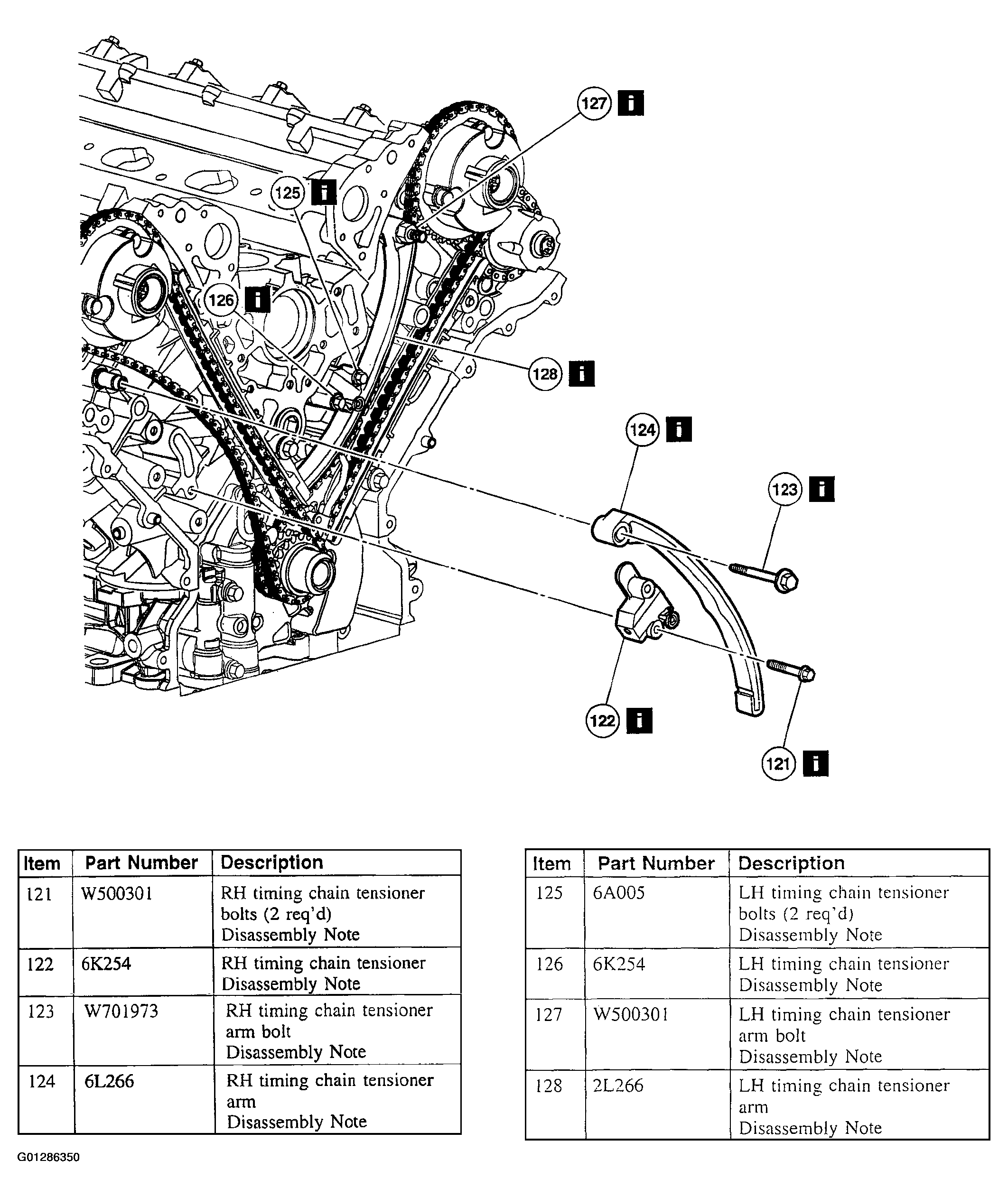

Fig 20: Removing RH Timing Chain Tensioner Components
Courtesy of FORD MOTOR CO.
Illustration 21 of 24. Remove the components in the order indicated in the following illustration and table.

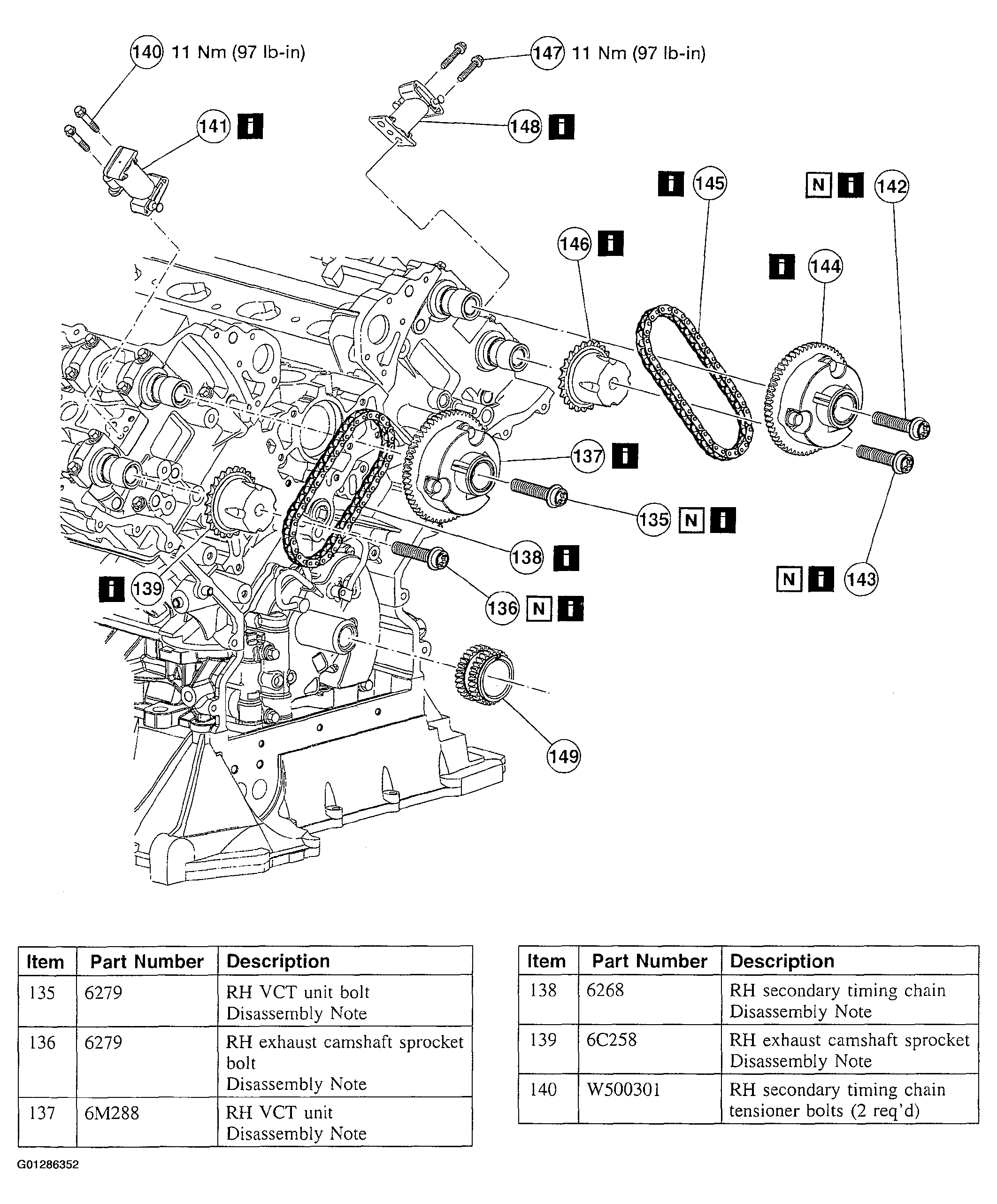

Fig 21: Removing RH Timing Chain Components
Courtesy of FORD MOTOR CO.
Illustration 22 of 24. Remove the components in the order indicated in the following illustration and table.

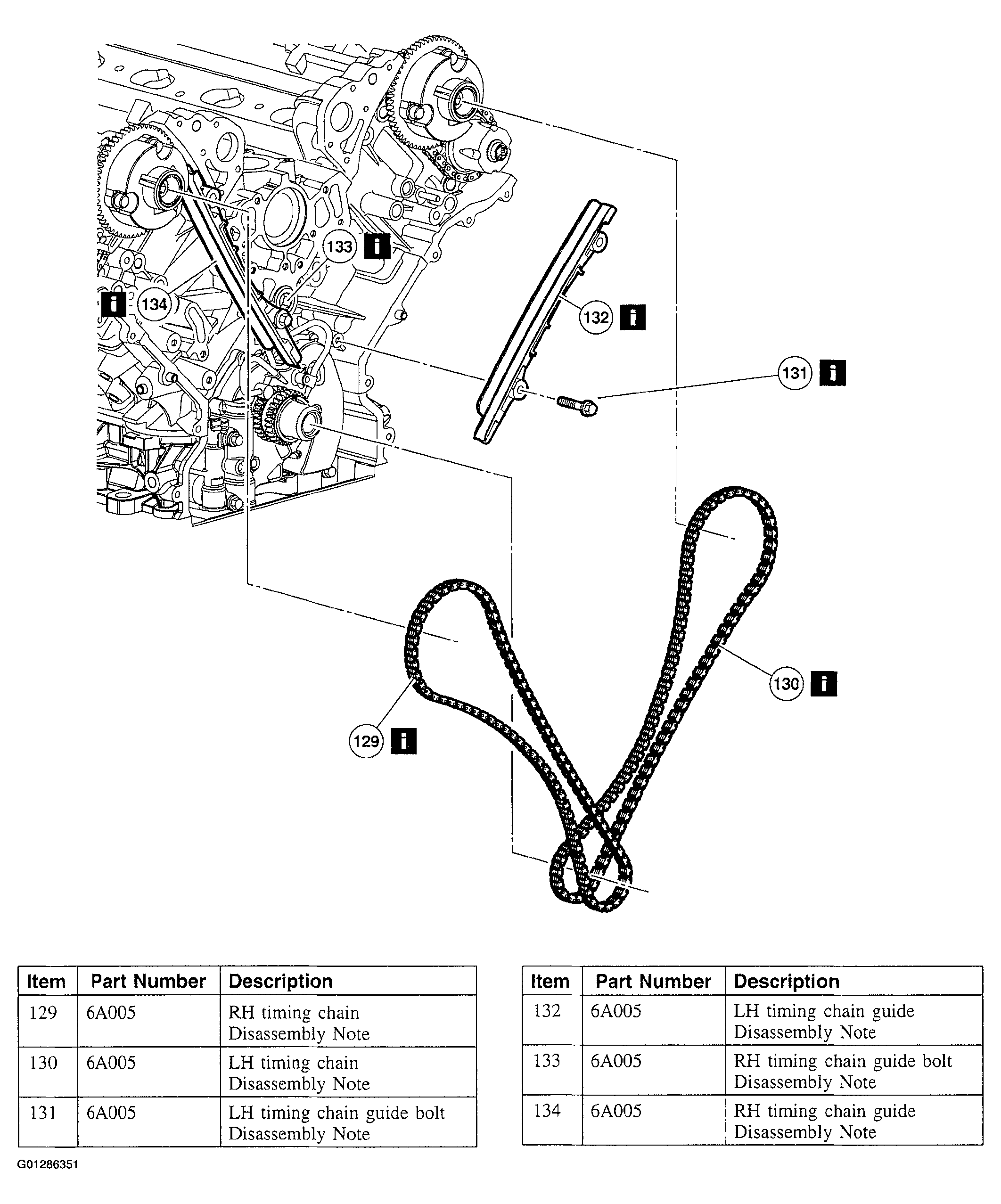

Fig 22: Removing Timing Chain And Sprockets
Courtesy of FORD MOTOR CO.

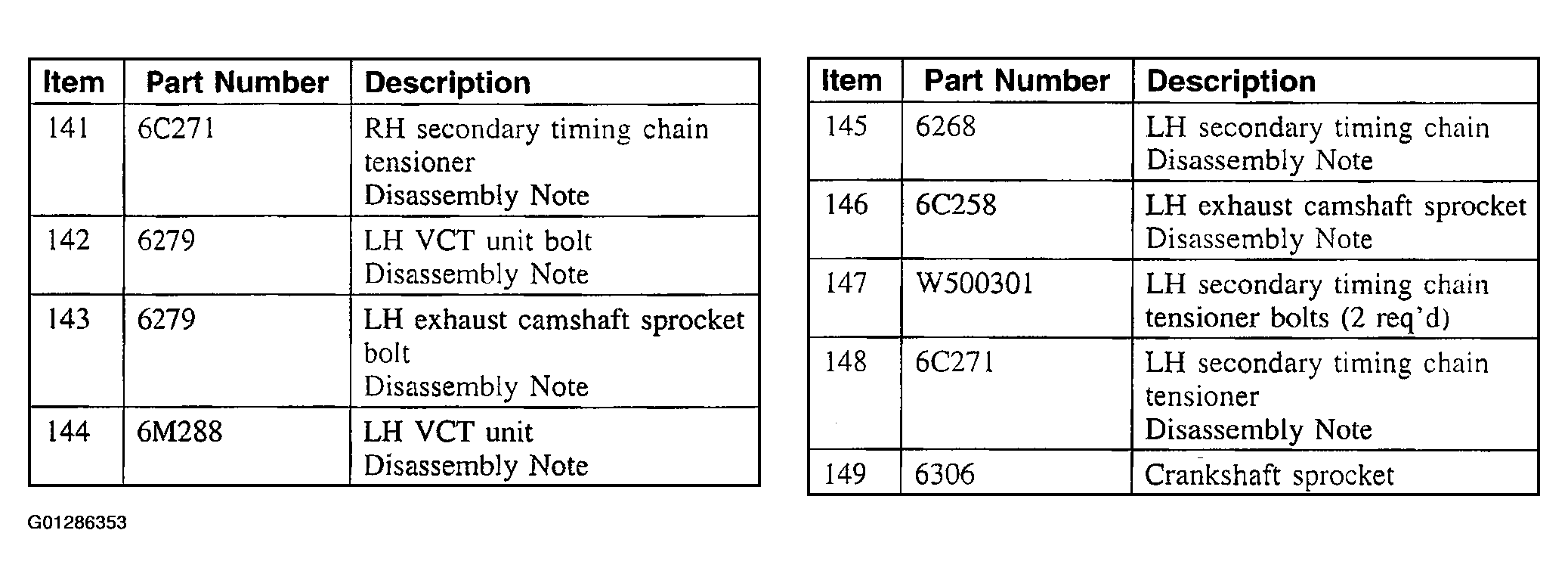

Fig 23: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 23 of 24. Remove the components in the order indicated in the following illustration and table.

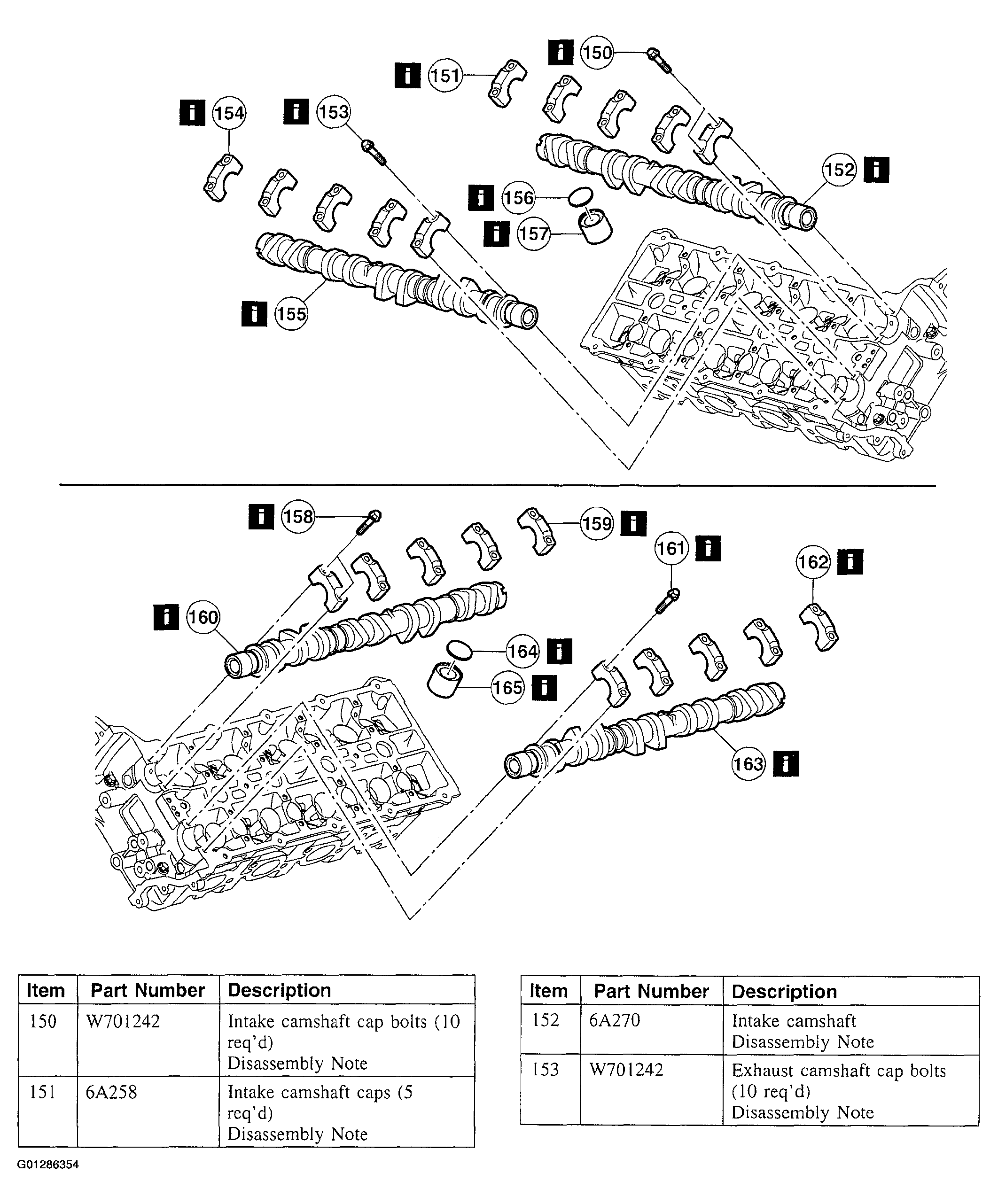

Fig 24: Removing Camshaft Components
Courtesy of FORD MOTOR CO.

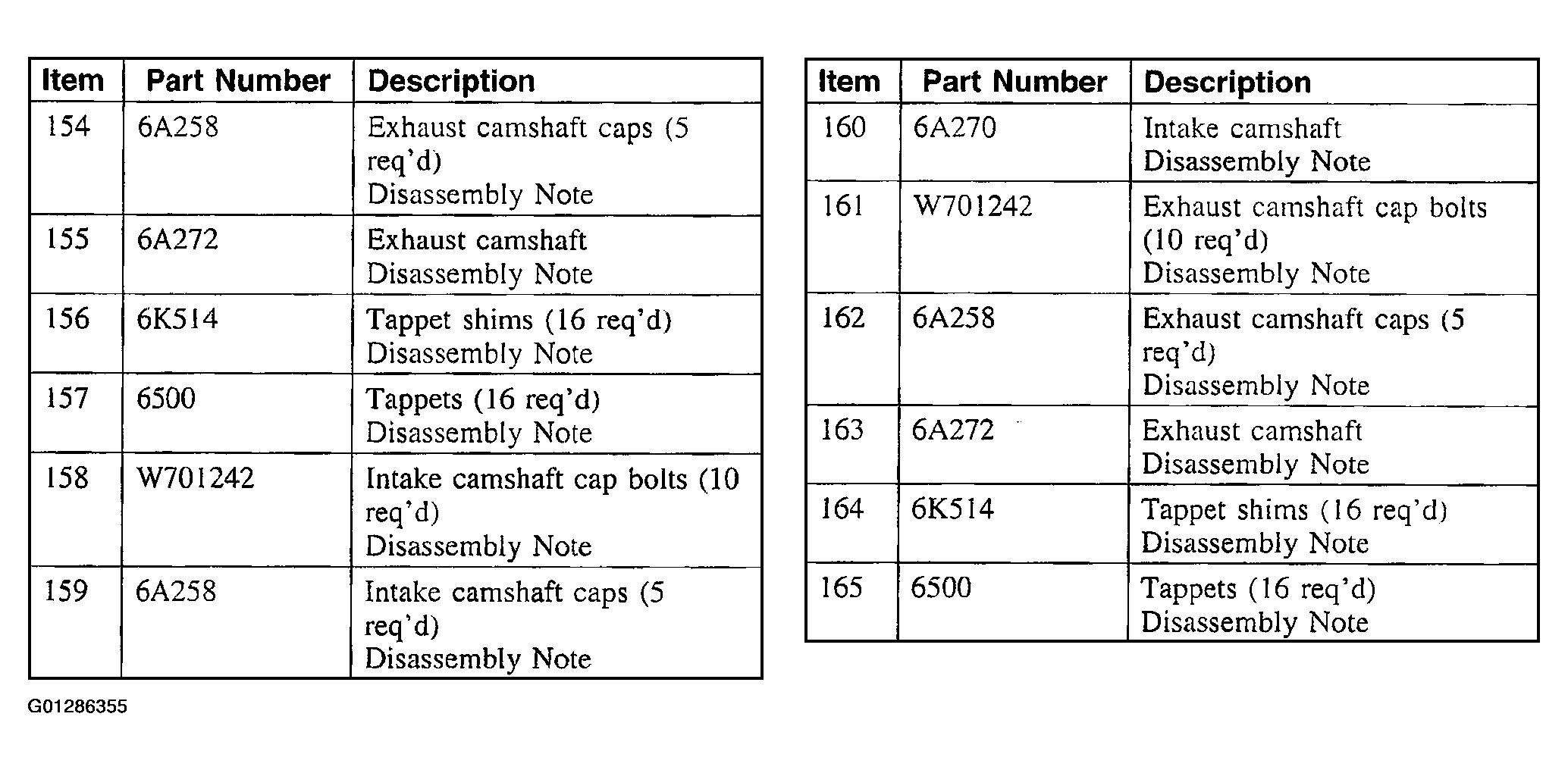

Fig 25: Parts Description Chart
Courtesy of FORD MOTOR CO.
Illustration 24 of 24. Remove the components in the order indicated in the order indicated in the following illustration and table.

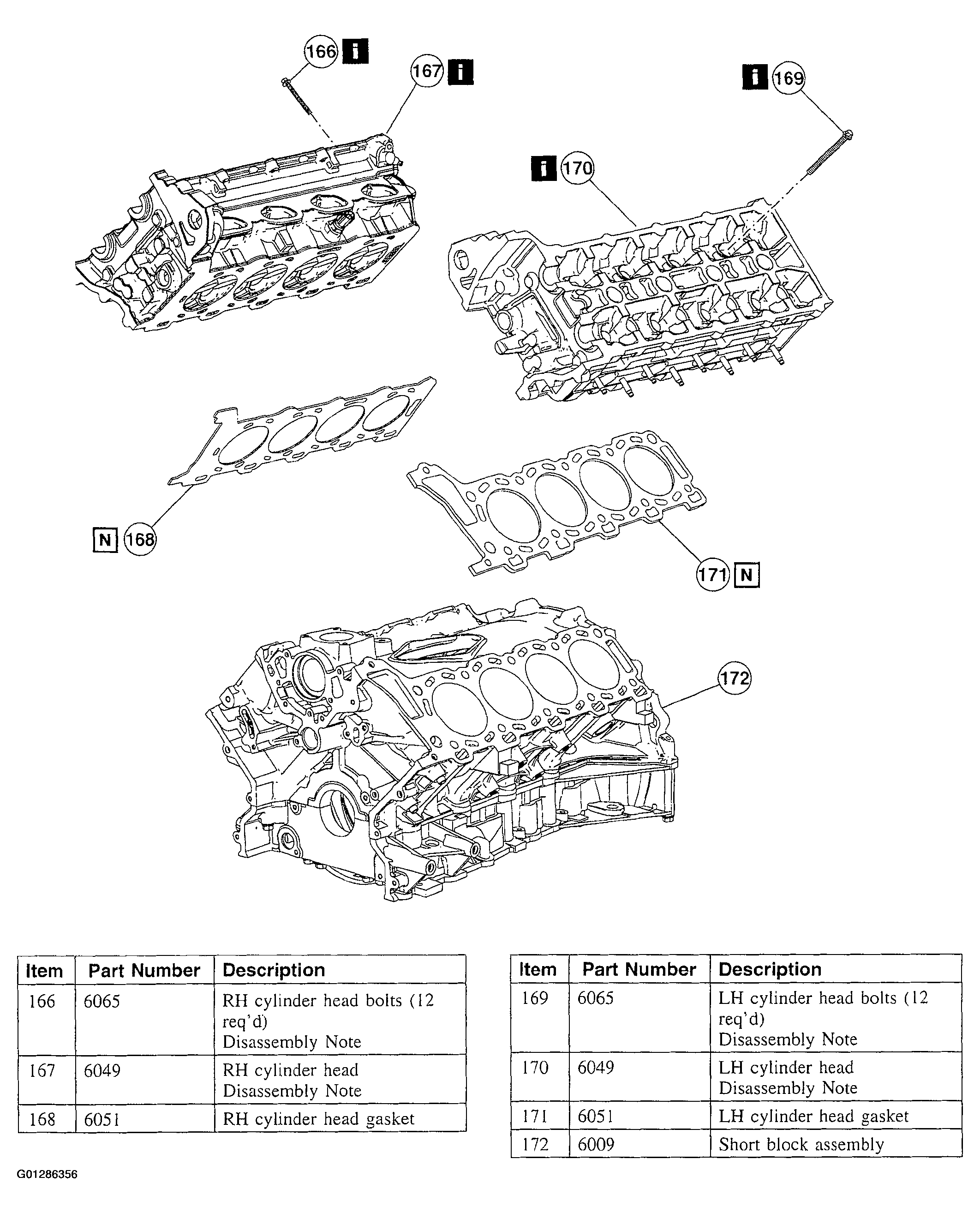

Fig 26: Exploded View Of Cylinder Head Components
Courtesy of FORD MOTOR CO.
