Pinpoint Test G: Navigation System Does Not Operate Correctly - The Audible Switches Are Inoperative

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Test Step

G1 CHECK THE SWITCH DISPLAY

Key in ON position.
Turn the audio unit on.
Press the MENU button.
Select SYSTEM SETUP.

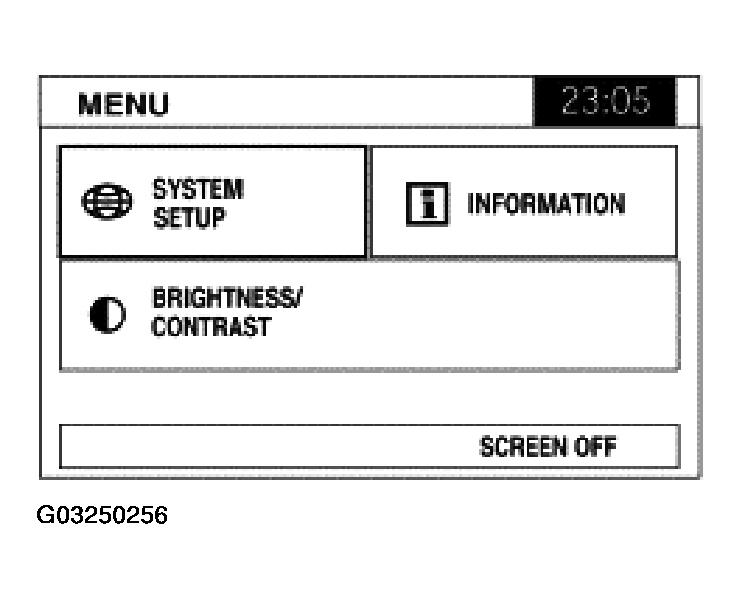

Fig 1: Selecting "SYSTEM SETUP"
Courtesy of FORD MOTOR CO.
Select AUDIBLE FEEDBACK.

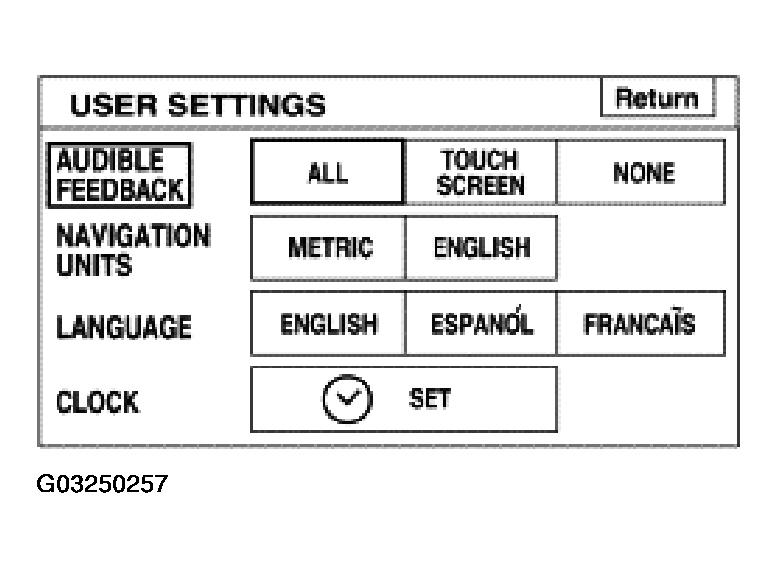

Fig 2: Identifying "AUDIBLE FEEDBACK"
Courtesy of FORD MOTOR CO.
Is NONE highlighted on the audible feedback settings?

Result / Action to Take

Yes

Select ALL. TEST the system for normal operation.

REMOVE the audio unit and SEND it to an authorized Ford audio system repair facility. REFER to AUDIO UNIT . TEST the system for normal operation.
