Pinpoint Test B: No Communication With The Driver Door Module (DDM)

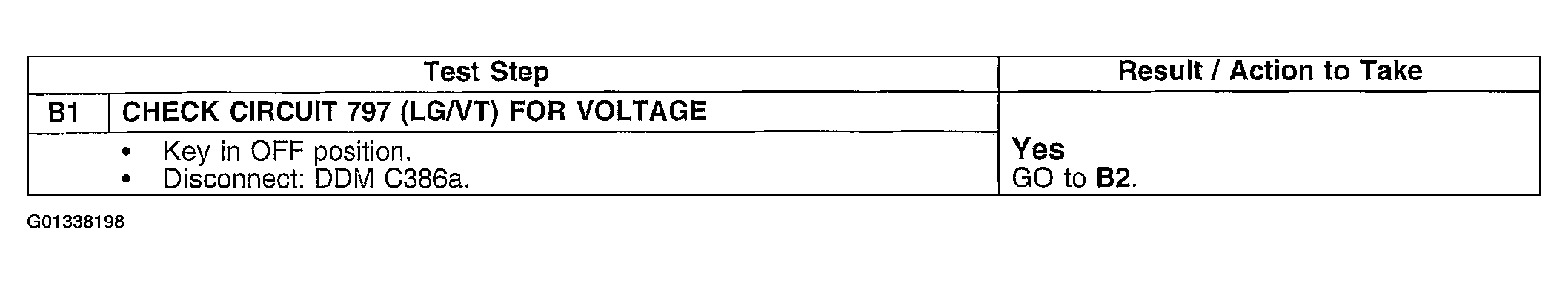

Fig 1: Pinpoint Test B (Step B1)

Courtesy of FORD MOTOR CO.

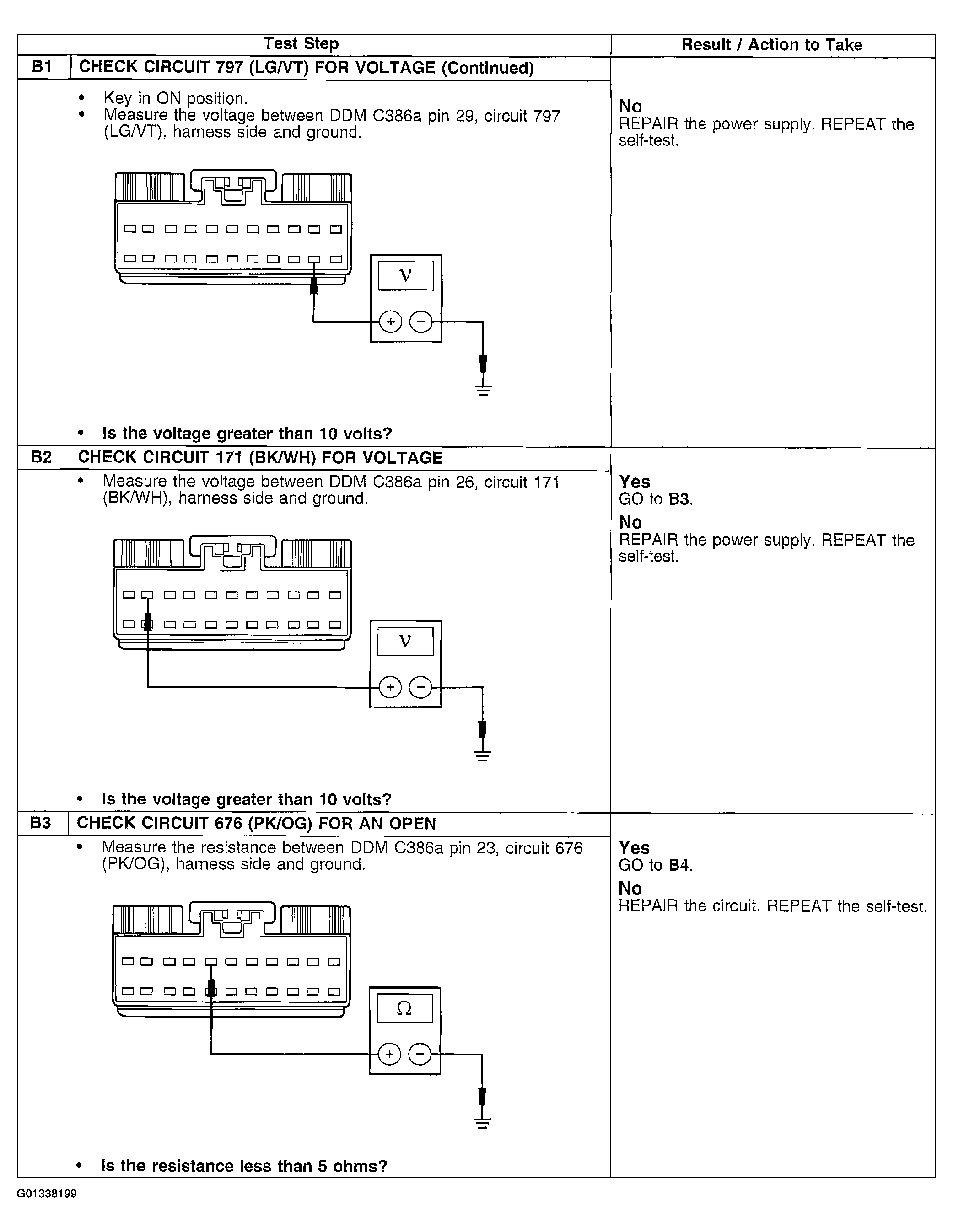

Fig 2: Pinpoint Test B (Step B1 Continued-B3)

Courtesy of FORD MOTOR CO.

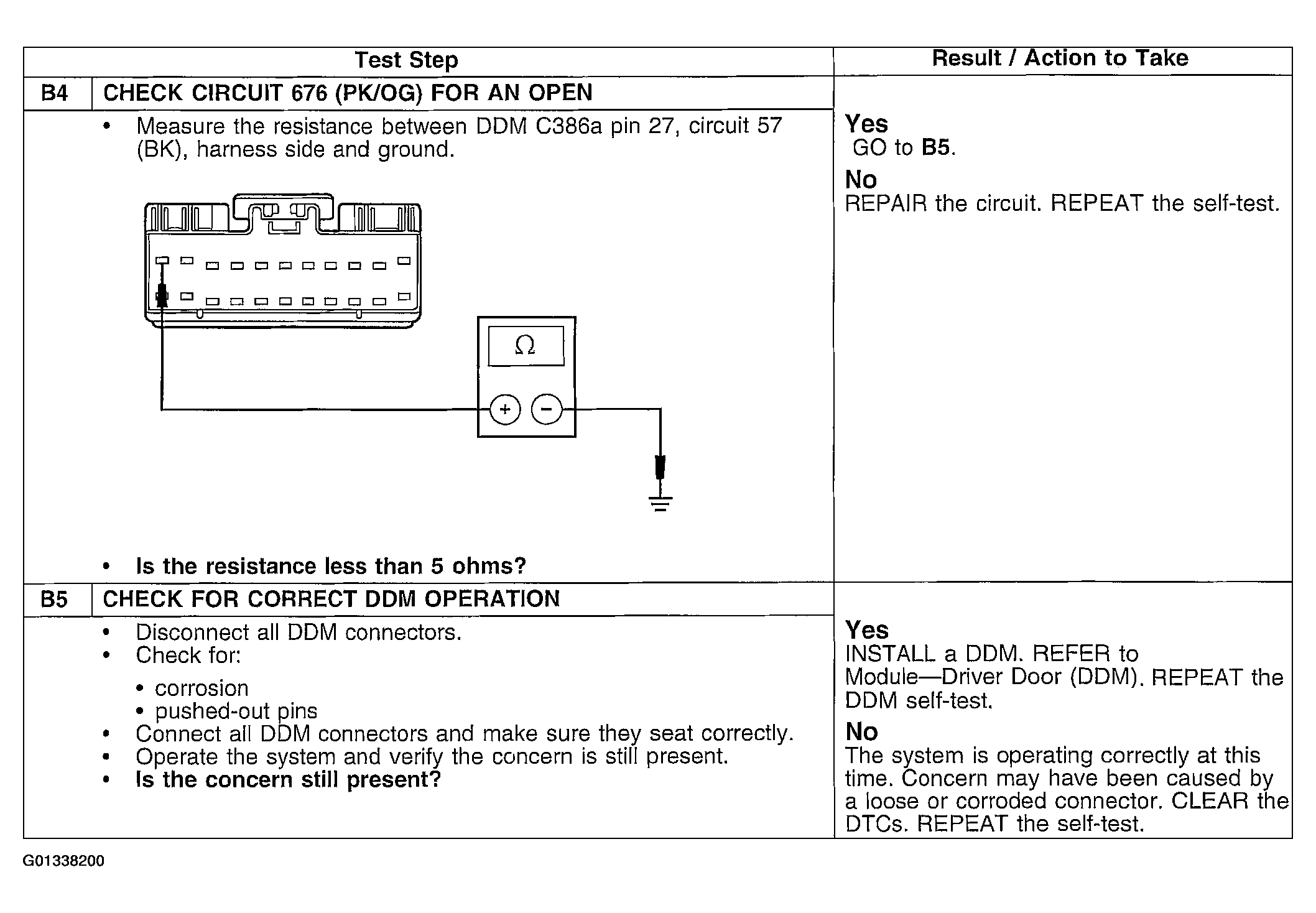

Fig 3: Pinpoint Test B (Step B4-B5)

Courtesy of FORD MOTOR CO.
