Powertrain Control Module (PCM) C175b

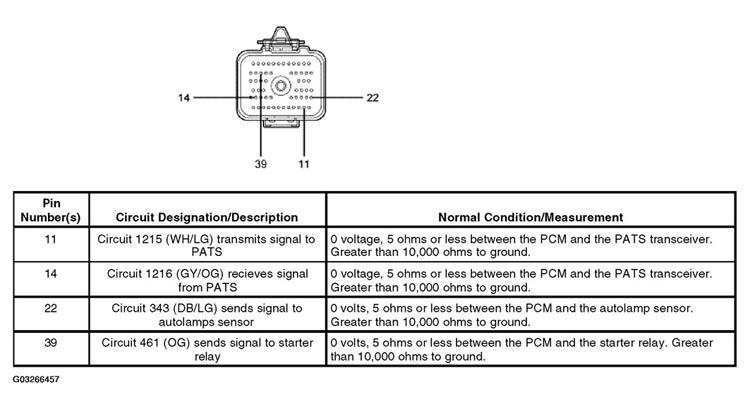

Fig 1: Identifying Powertrain Control Module C175b
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
